مميزات خاصة

1- PACKAGE CONTENTS - Model: CF12 (KR30), Thread Size: M12x1.5mm, Roller Diameter: 30mm, Roller Width: 14mm. It particularly suitable for the occasions when the radial space is limited
2- MATERIAL - The needle roller bearing is made of bearing steel, with high corrosion resistance and stability, The suitable working temperature range is -30°C to +100°C.
3- APPLICATION - Cam follower bearings are used as follower bearings for cam mechanisms and linear motion. They have high rigidity and high precision and are widely used in machine tools, industrial robots, electronic parts machinery and other machinery.
4- BOLT TYPE - The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.
5- TAKE NOTICE OF - Due to the light and screen setting difference, the item's color may be slightly different from the pictures

وصف

APPLICATION
Cam follower bearings are used as follower bearings for cam mechanisms and linear motion. They have high rigidity and high precision and are widely used in machine tools, industrial robots, electronic parts machinery and other machinery.

ABOUT THIS PRODUCTS
The needle roller bearing is made of bearing steel, with high corrosion resistance and stability, The suitable working temperature range is -30°C to +100°C.
The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.

SPECIFICATION
Model: CF12 (KR30)
Bearing Material: GCr15 Steel
Cage Material: Mild Steel
Roller Diameter: 30mm
Roller Width: 14mm
Stud Diameter: 12mm
Stud Length: 25mm
Thread Size: M12x1.5mm
Thread Length: 13mm
Overall Length (Max.): 40.2mm
Dynamic Load Rating (Cr): 0.59kN
Static Load Rating (Cor): 0.45kN
Limited Speed: 14000 rpm

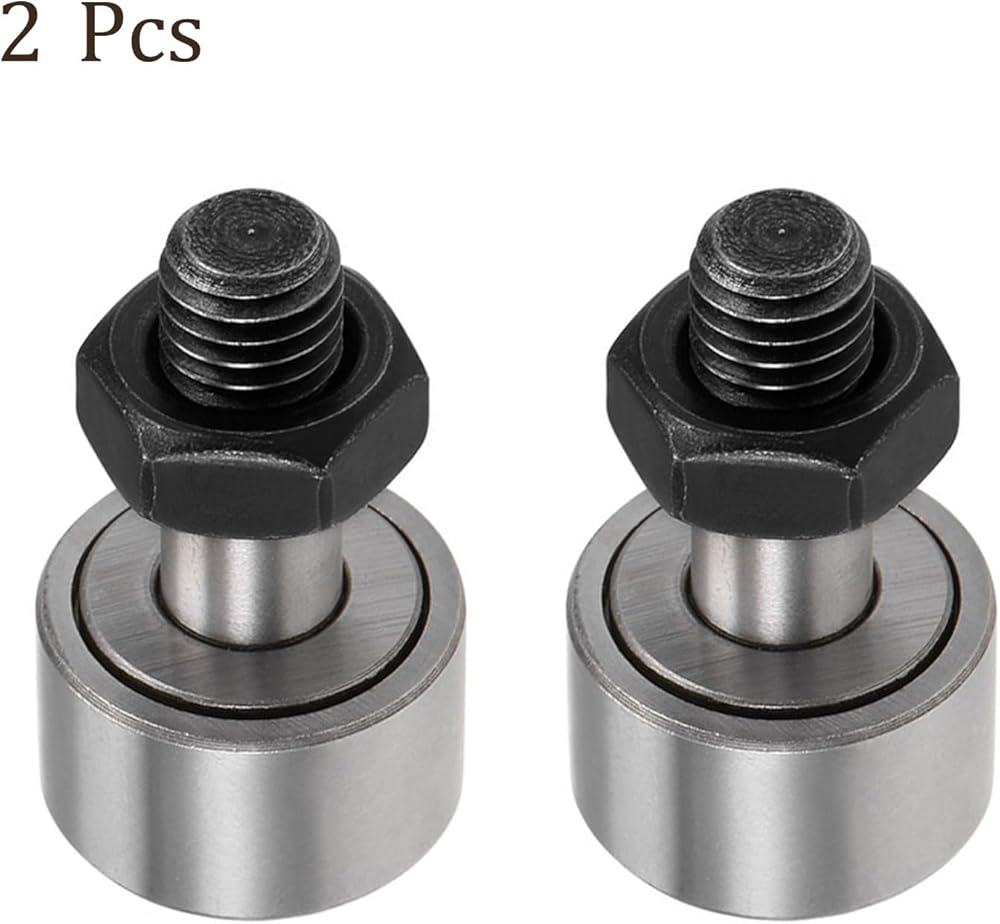

Package: 2 packs of Cam Follower Needle Roller Bearings

NOTE
Due to the light and screen setting difference, the item's color may be slightly different from the pictures
