Product description
Description:
This Hall NPN sensor consists of voltage regulator, voltage generator, difference amplifier, Schmitt trigger and open collector output. The input are the magnetic induction, the output is a digital voltage signal.

Features:
Wide supply voltage range.
High frequency.
Long life, small volume, convenient installation.
Can directly connect the transistor and TTL, MOS and so on logic circuit.

Specifications:

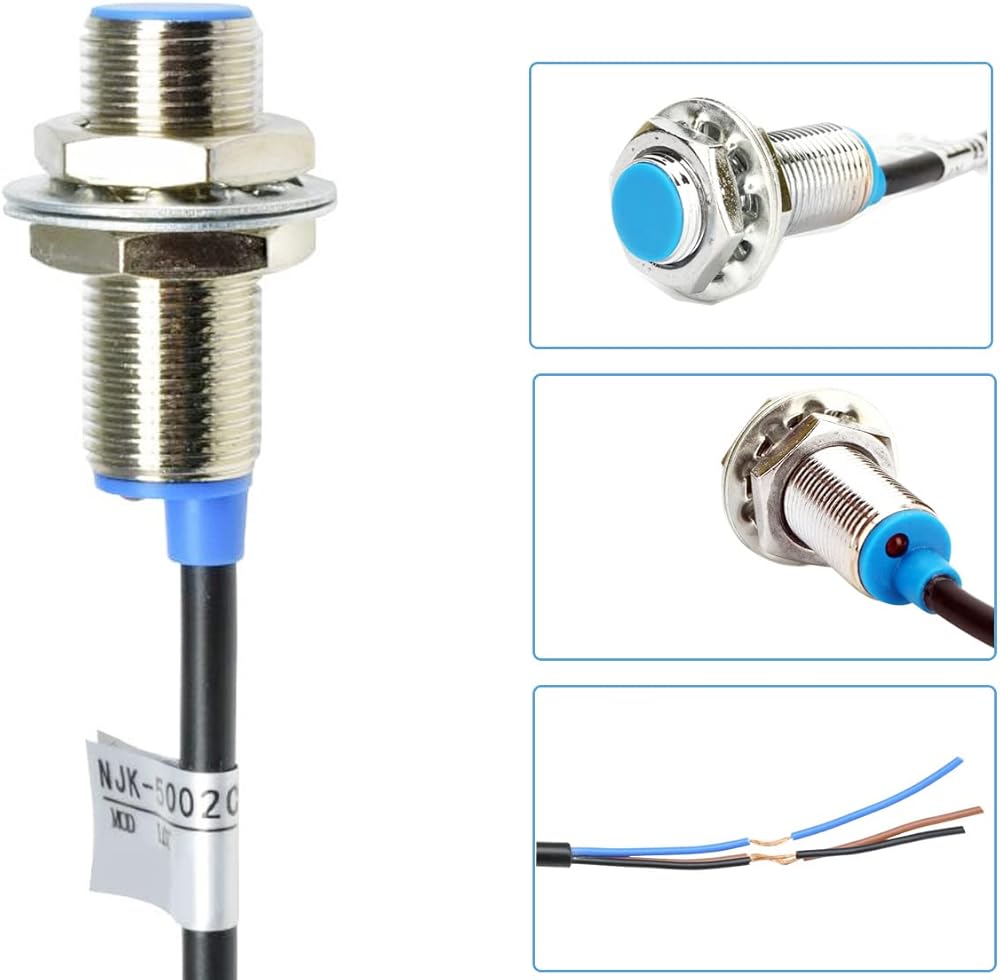

Model: NJK-5002C
Power supply voltage 5-30 volts DC
Detection distance 10 mm (effective detection distance 0-10 mm)
Load current 150 mA (not more than)

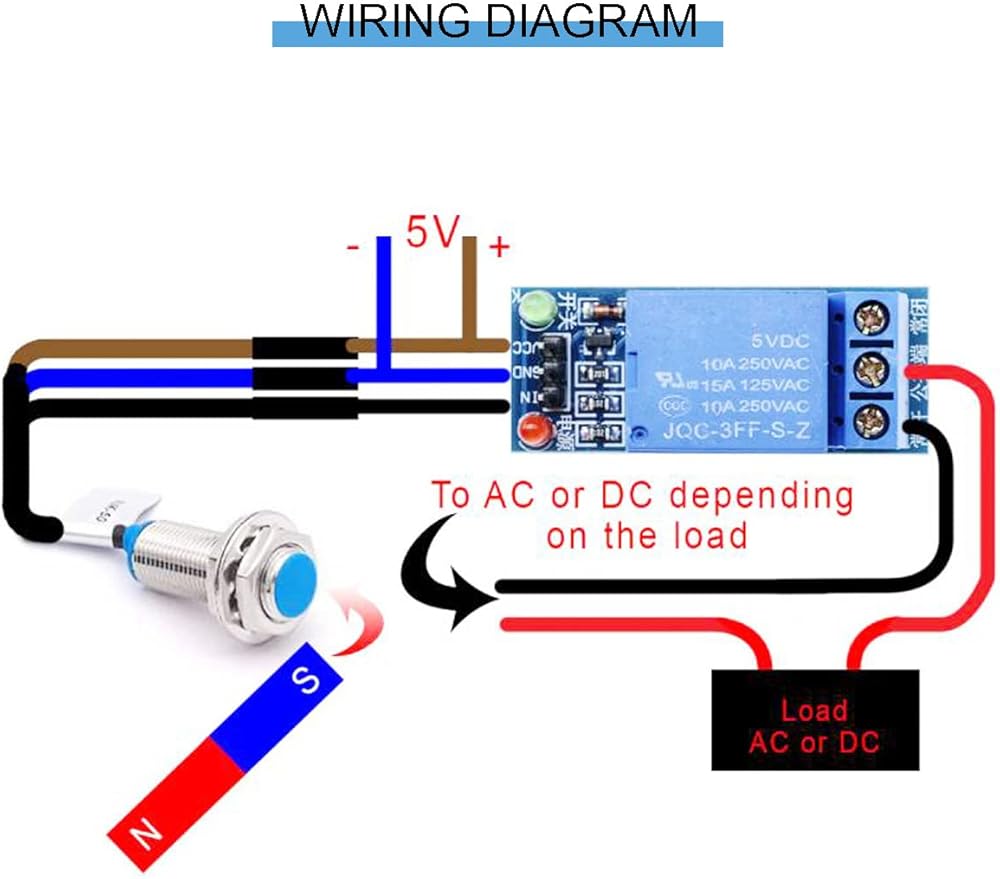

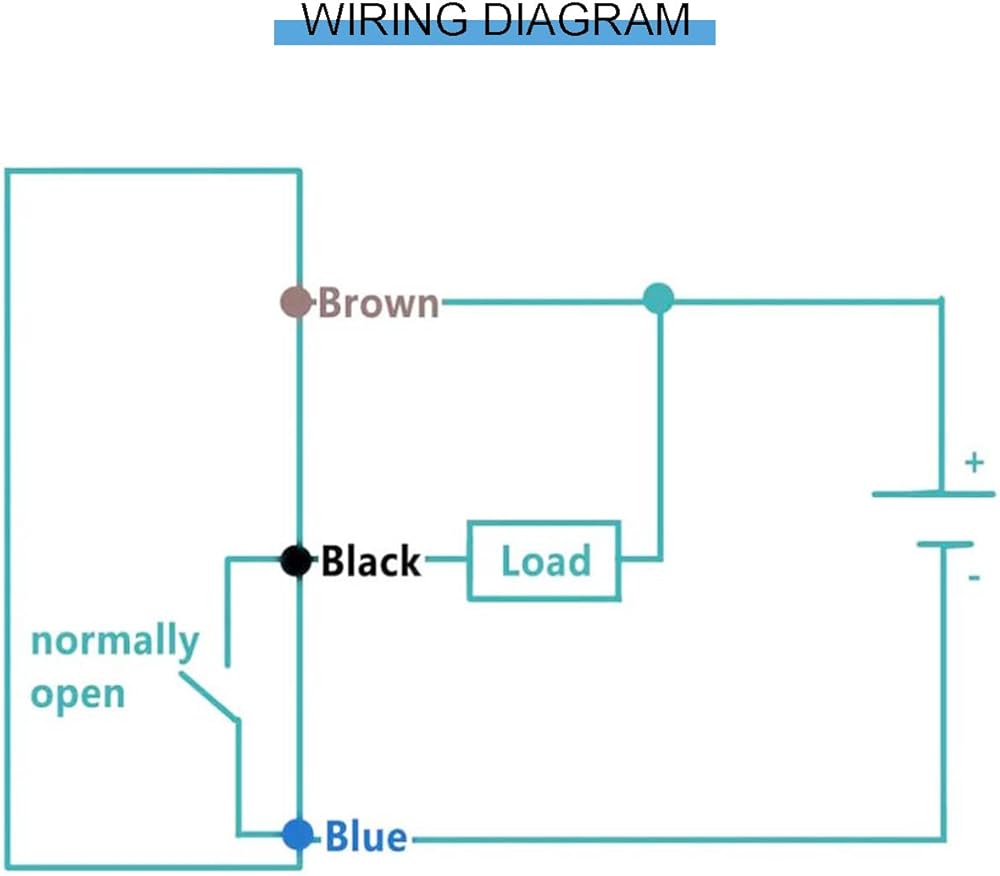

NPN three-wire output
Output state normally open (No)
Detect object metal material
Product material metal parts: copper plastic parts: PBT
External lead 1.2m
Output indicator (red)

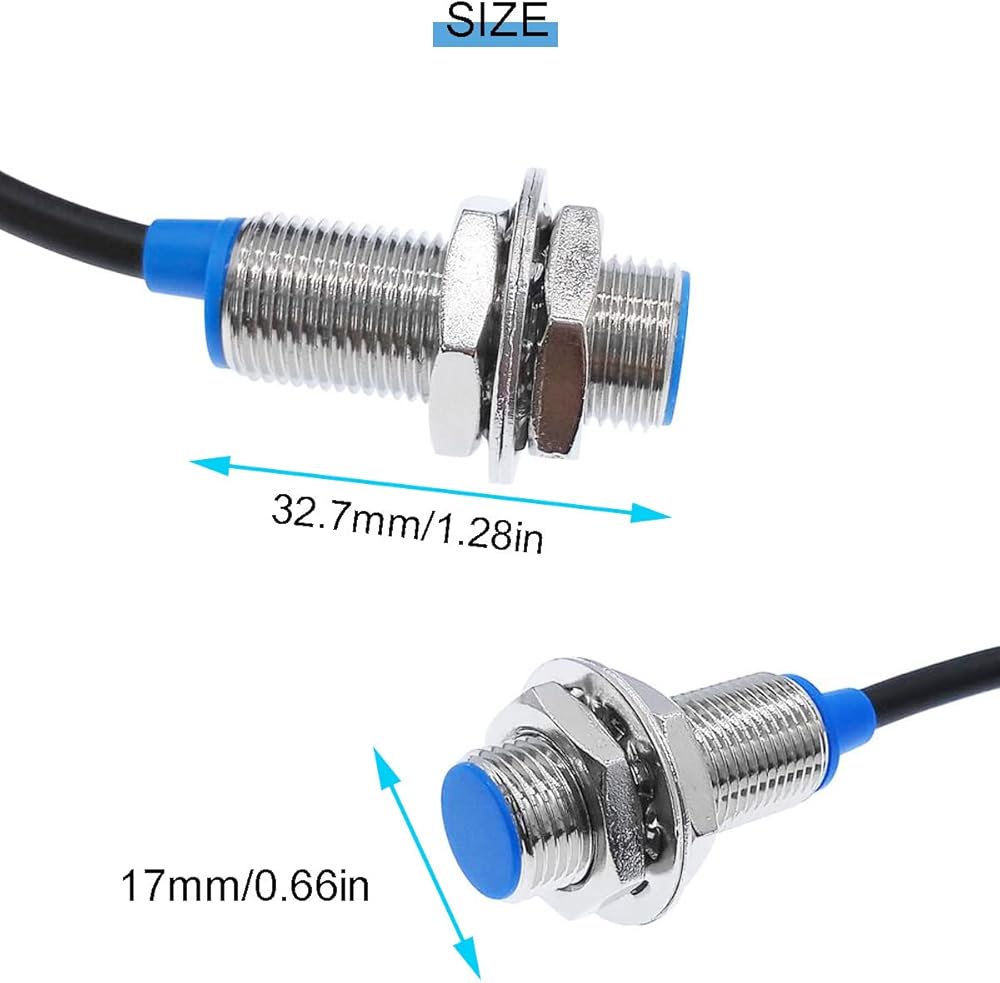

Overall diameter: 12 mm
Thread length: 32 mm
Total length: 37 mm

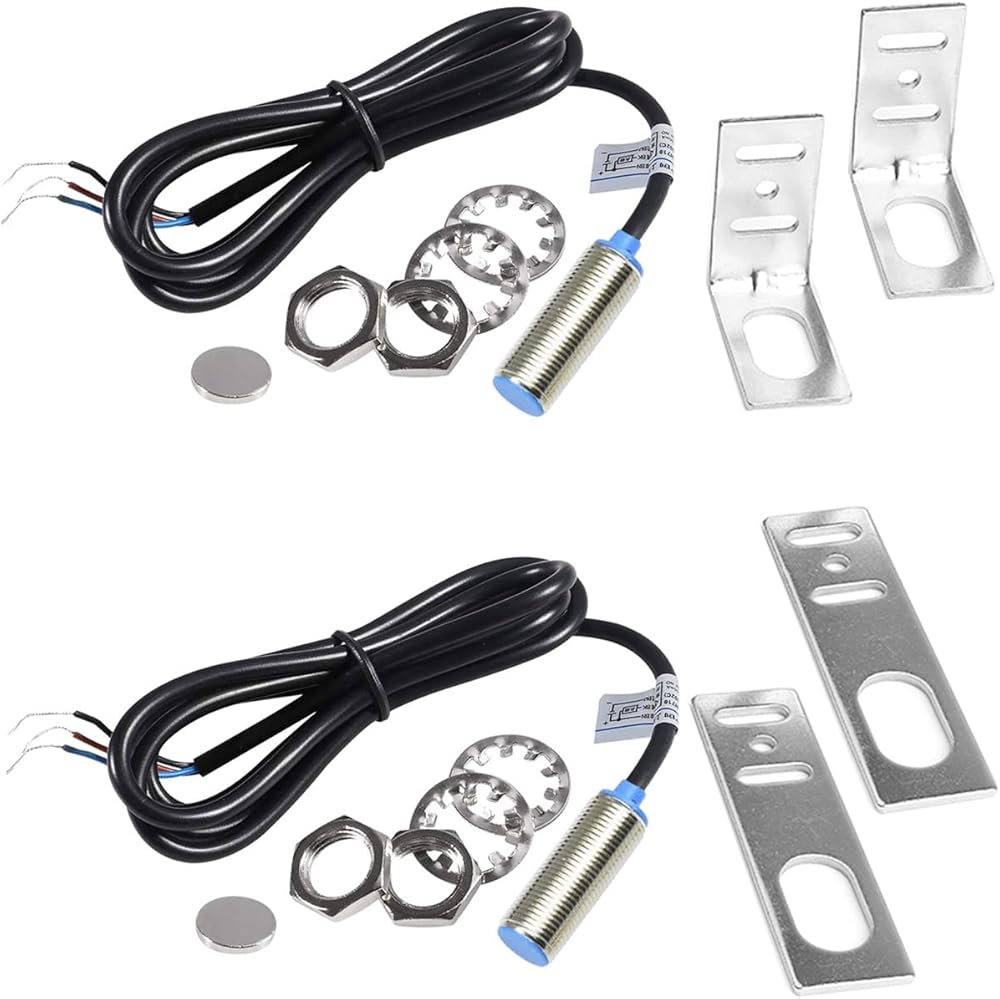

Package includes:
2 x NJK-5002C Hall Sensor

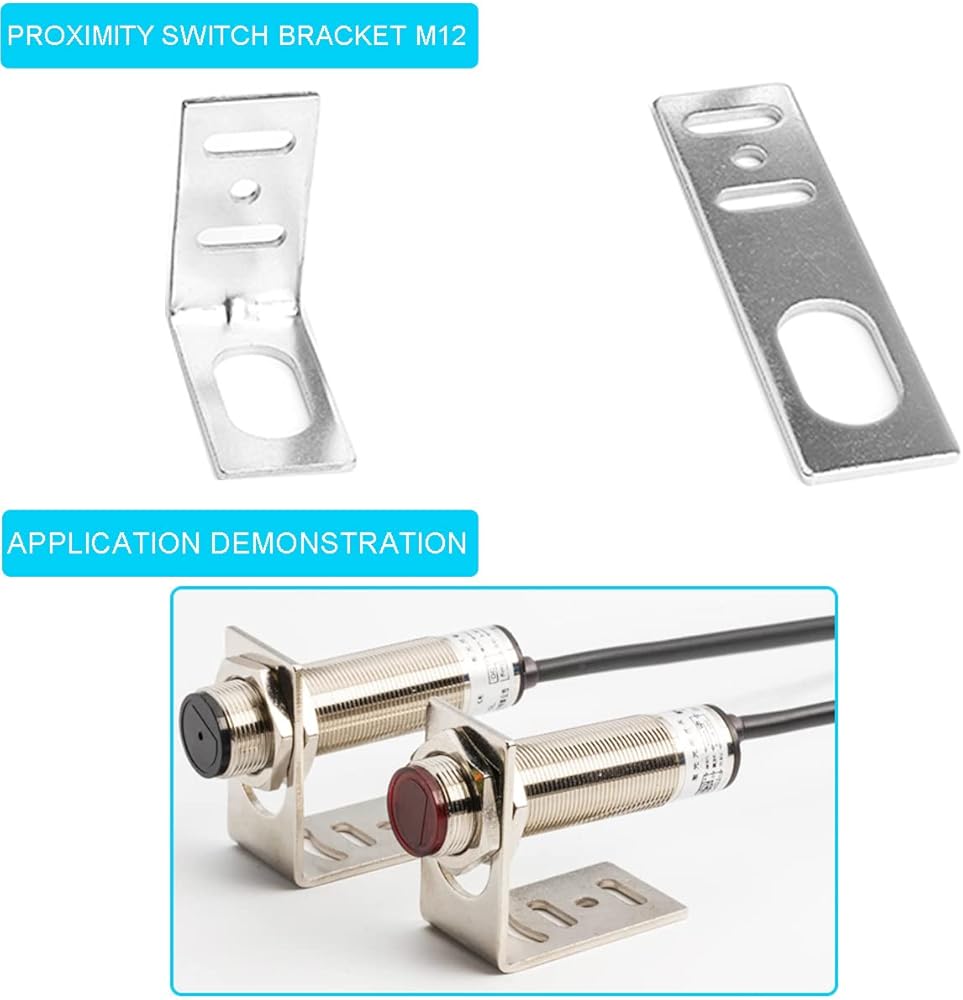

4 x Proximity switch bracket M12
