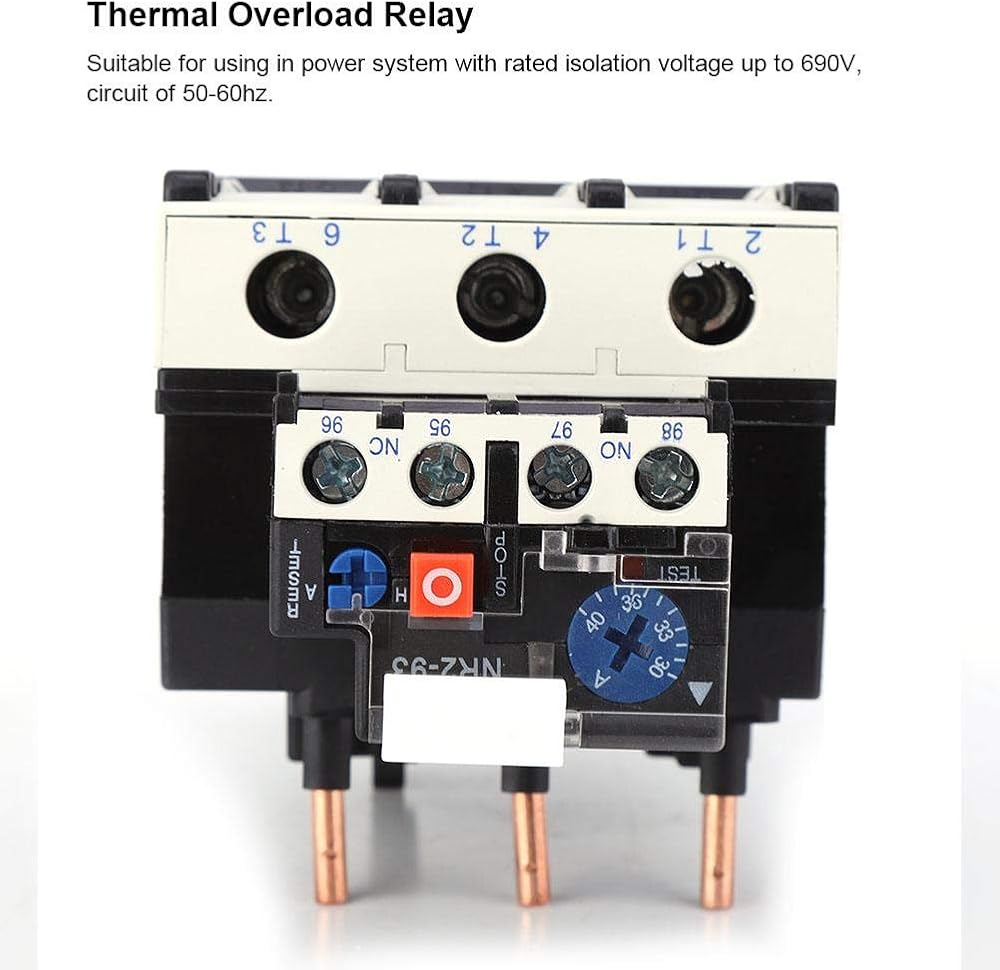

APPLICABLE OCCASIONS: Suitable for power systems with rated isolation voltage up to 690V and circuit 50-60hz.
PRODUCT FUNCTION: This relay can be used as an overload protection for long-term or indirect long-term maintenance of the motor.
FUNCTION: This relay is used for protecting the phase break when the electric motor is overload.
VERSATILE: The relay has different mechanism and temperature compensation.
EASY TO OPERATE: With phase break protection, manual and automatic reset, temperature compensation, trip indication, test button and stop button.

وصف

Specification:

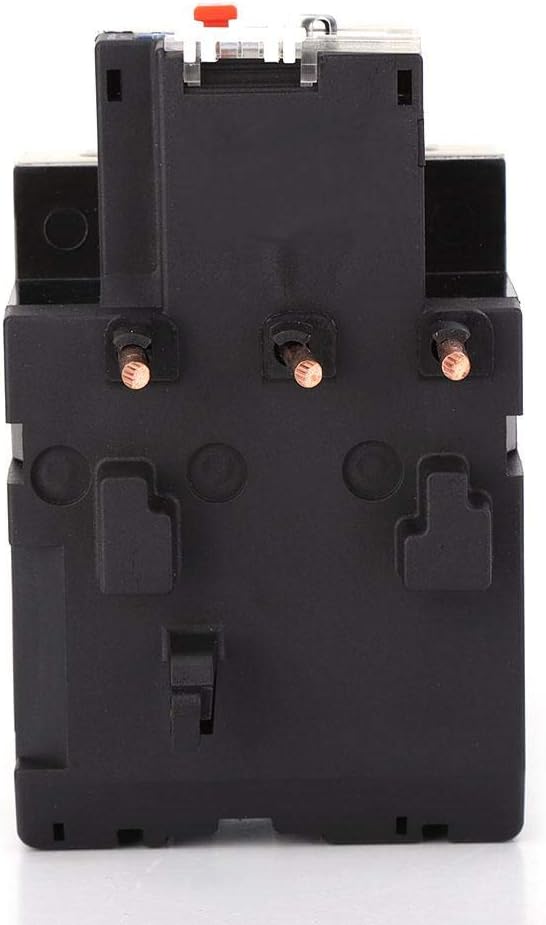

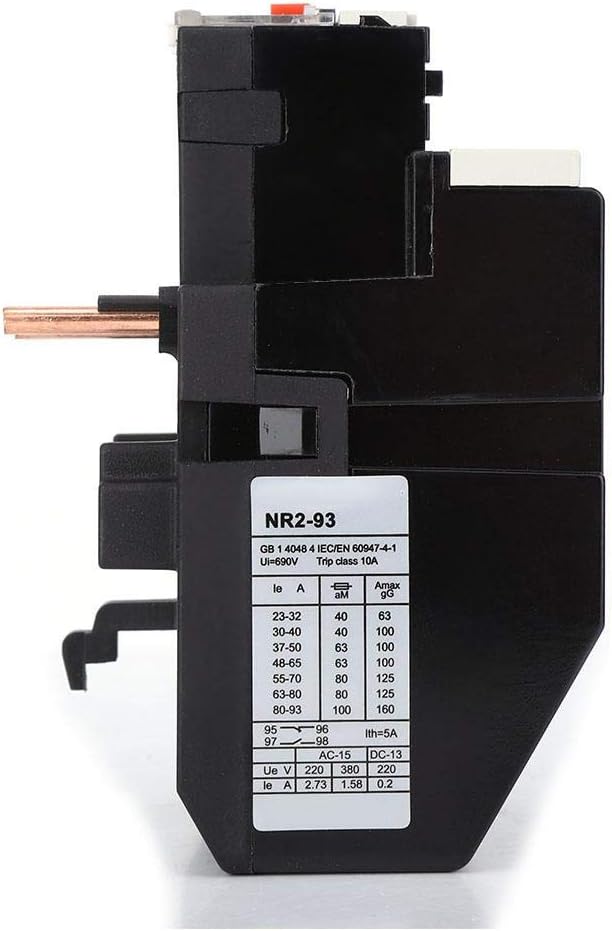

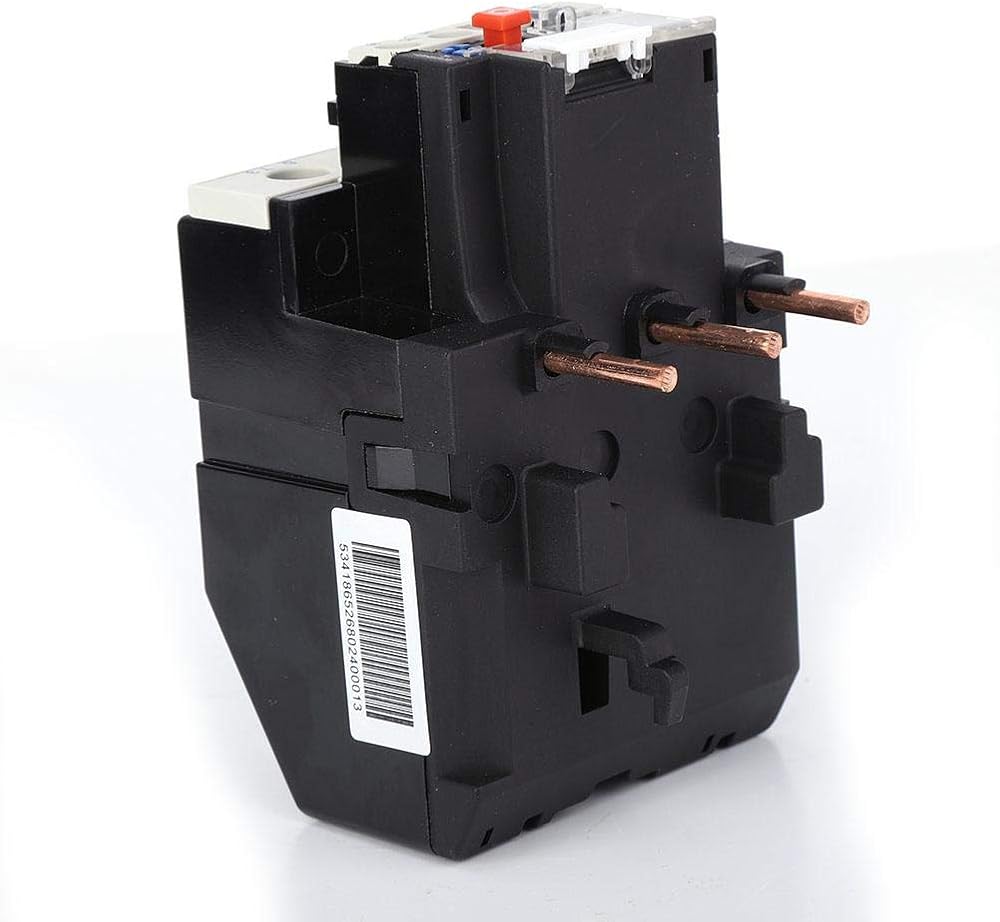

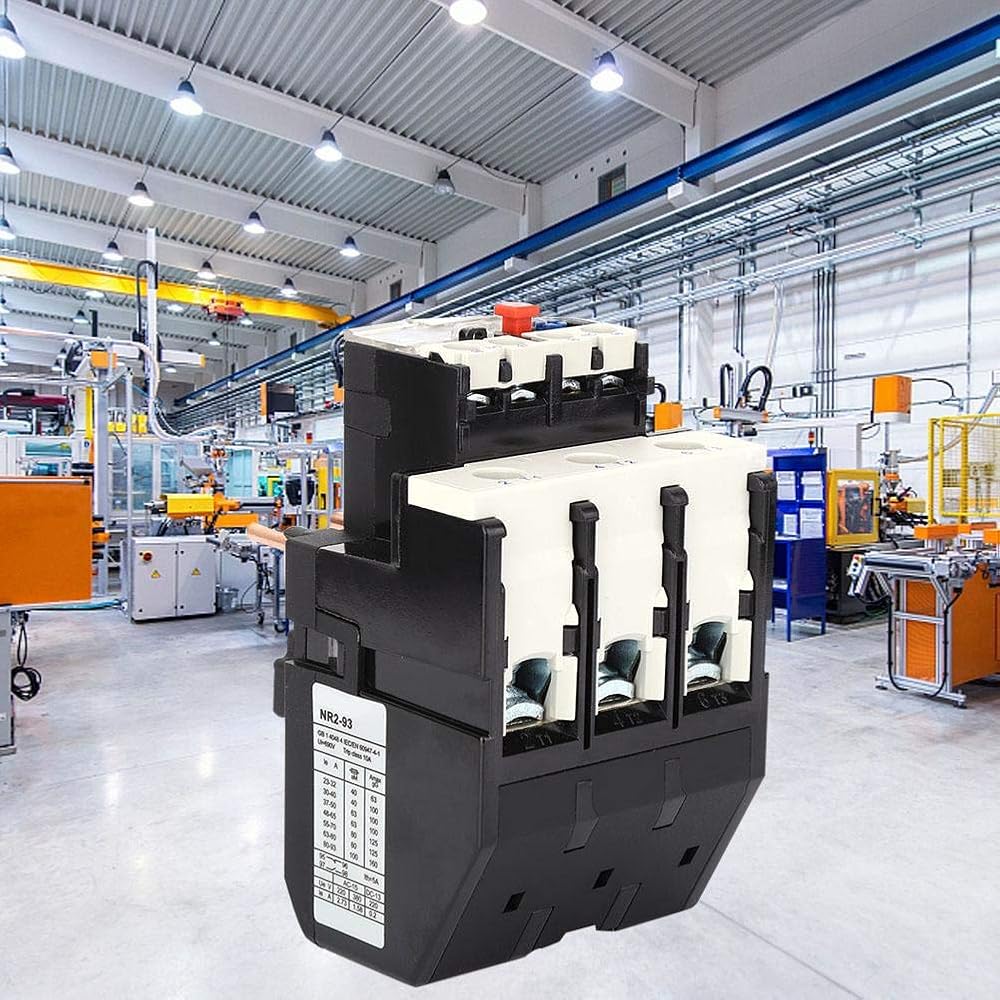

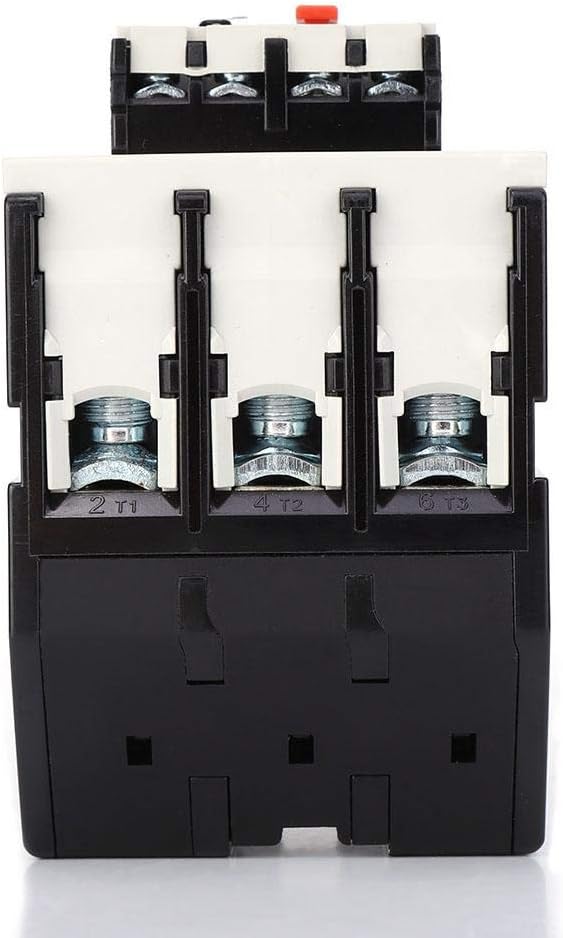

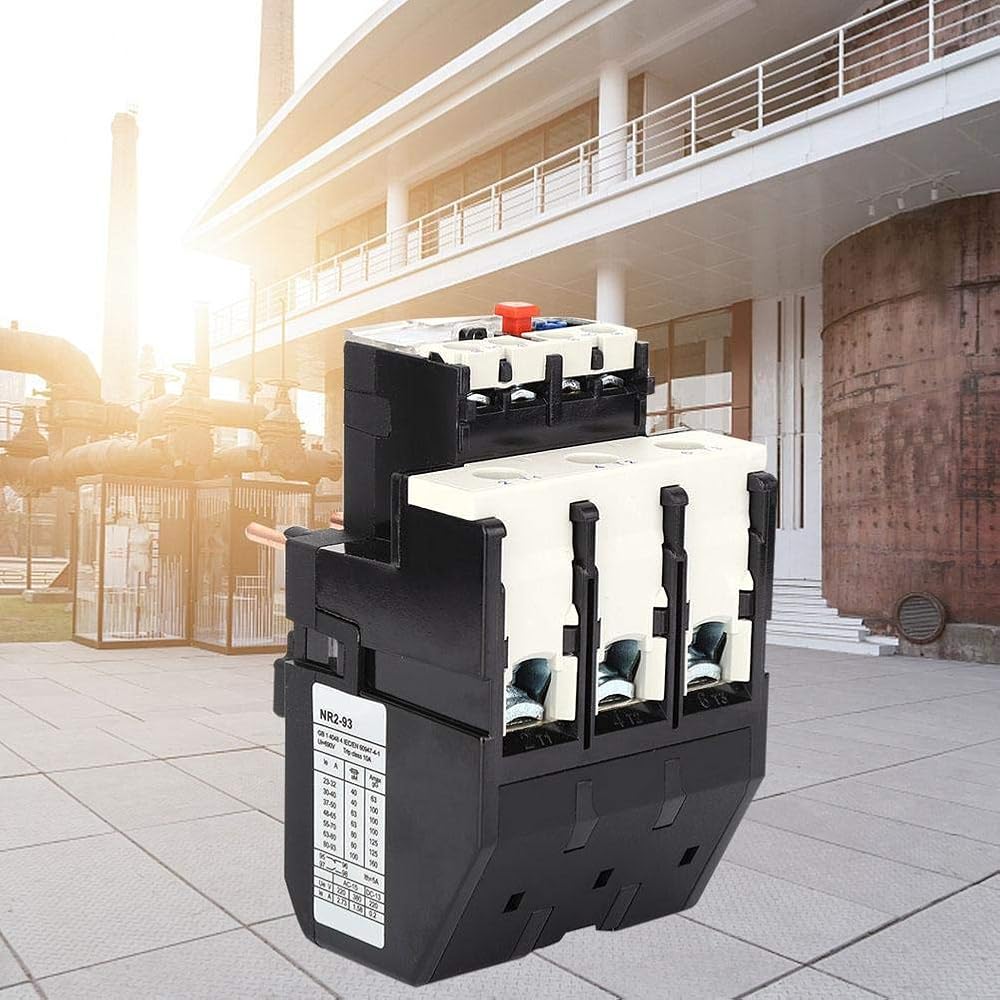

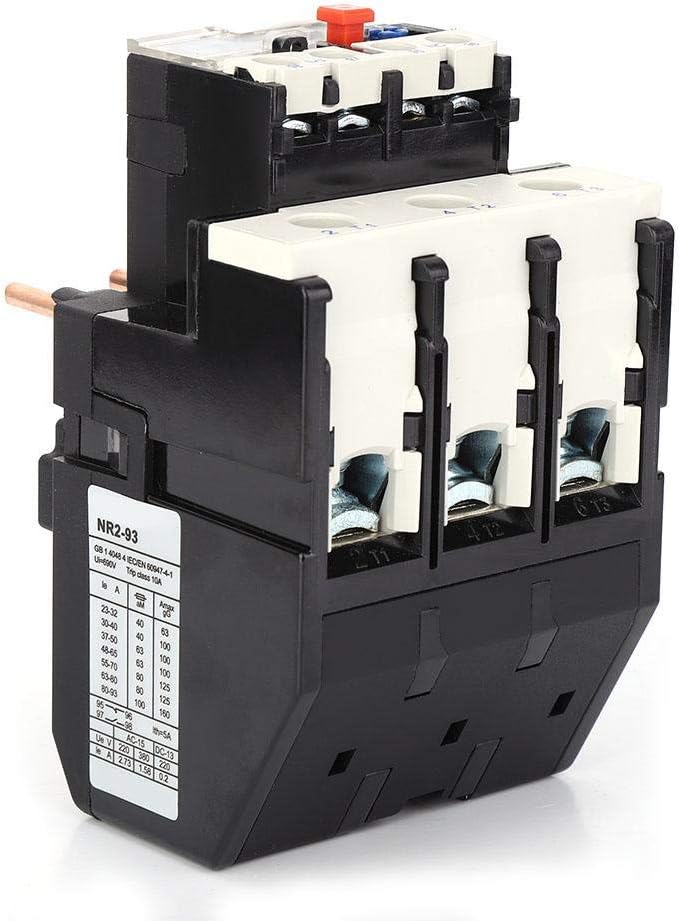

Item Type: Thermal Overload Relay
Power Frequency: 50-60hz
Optional Rated Current: 30-40A/37-50A/48-65A/55-70A/63-80A/80-93A
Rated Insulation Voltage: 690V
Phase Break Protection: Yes
Manual and Automatic Reset: Yes
Temperature Compensation: Available
Tripping Instructions: Yes
Test Button: Yes
Stop Button: Yes
Installation: Plug-in
Auxiliary Contacts: 1NO + 1NC
AC-15 220V Rated Current A 2.73
AC-15 380V Rated Current A 1.58
DC-13 220V Rated Current A 0.2
Traverse Sectional Area: Main Loop4-35, Auxiliary Loop 0.5-2.5
Tripping Level:10A
Specification: 40aM 63gG
Weight: Approx. 468g

Package List:
1 * Thermal Overload Relay
