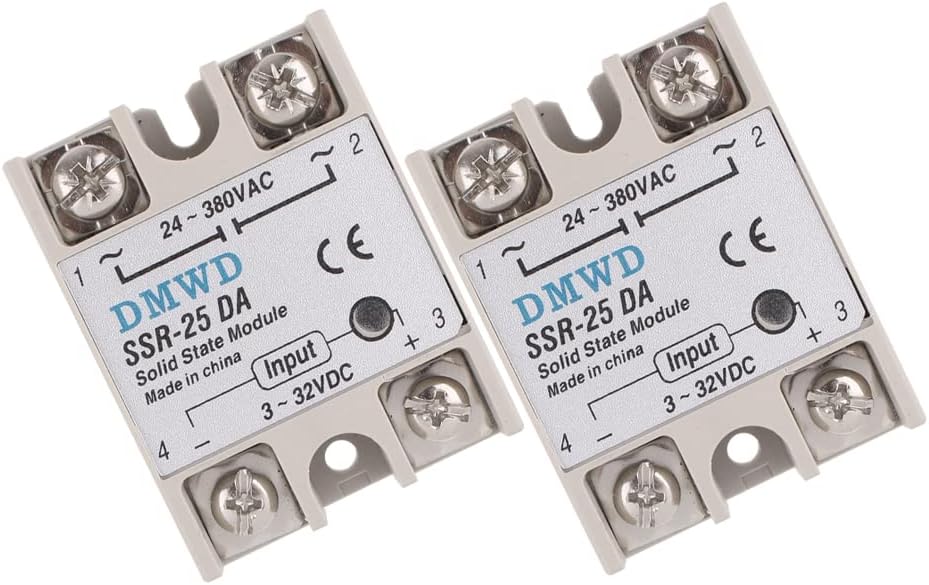

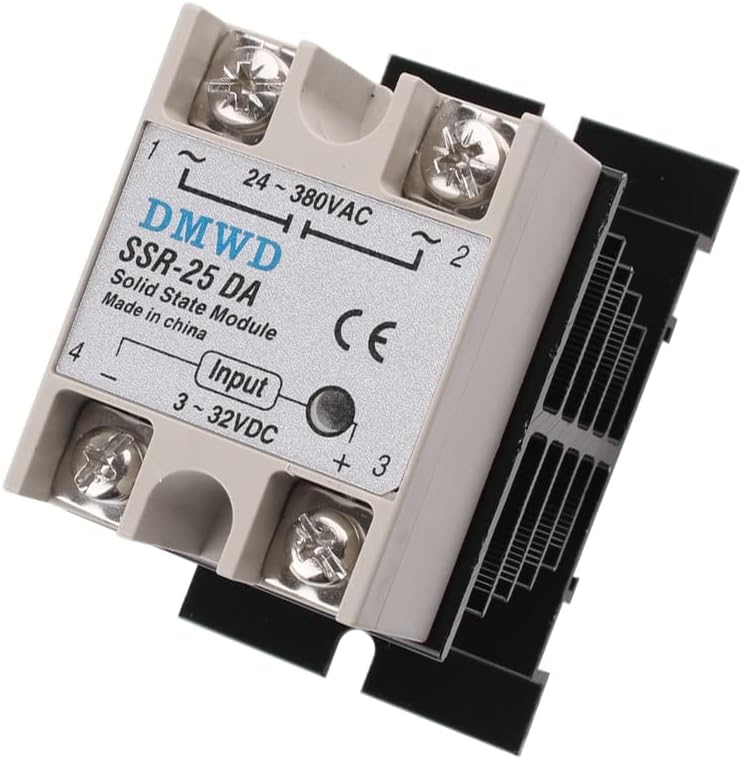

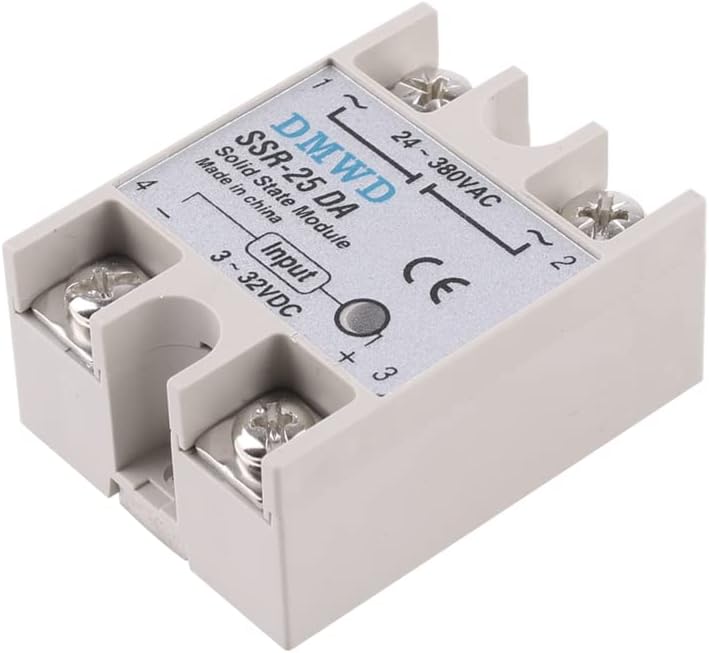

DMWD Low cost single phase solid state relay SSR-25DA
Input voltage 3-32V DC
Load voltage 24-380V AC
Load current 25Amp

25A 3-32V DC to AC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

Built in RC absorption
Photoelectric isolation
SCR output
LED indicator for operation status
Panel mount
Zero-crossing switch type
UL Approved, CE Compliant to EN60950-1

Note:
* When the load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.
* When the load current is 40A or more, a fan cooling radiator or water cooling radiator must be equipped.
* Heat sink is included.

Package Content:
1 x Solid State Relay

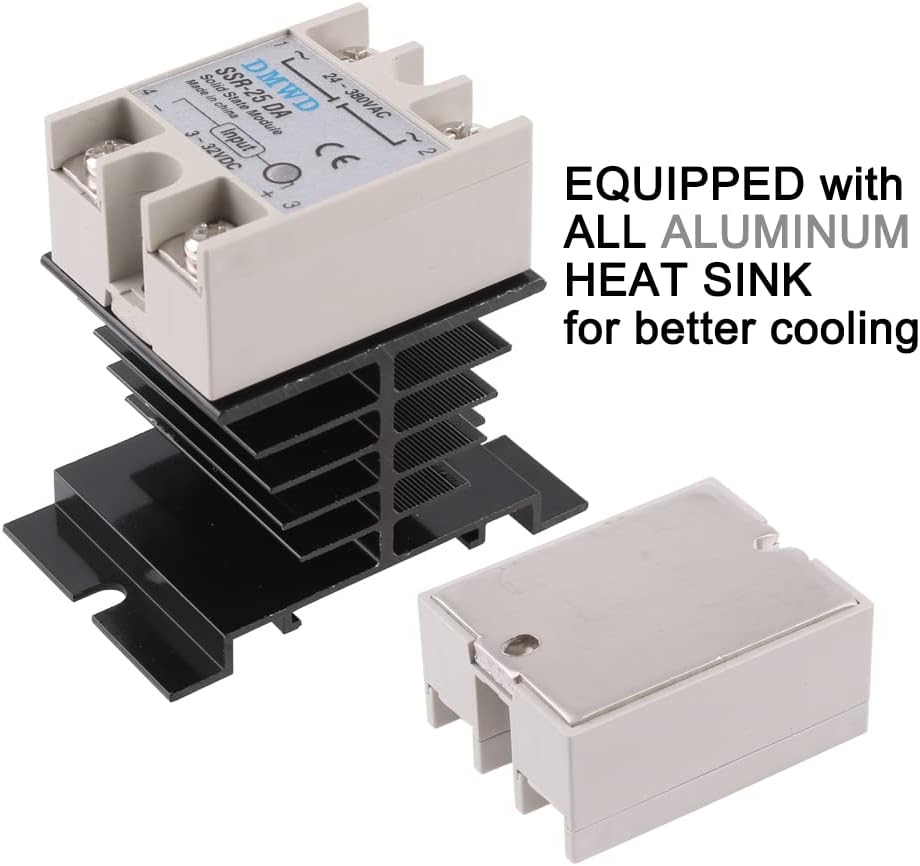

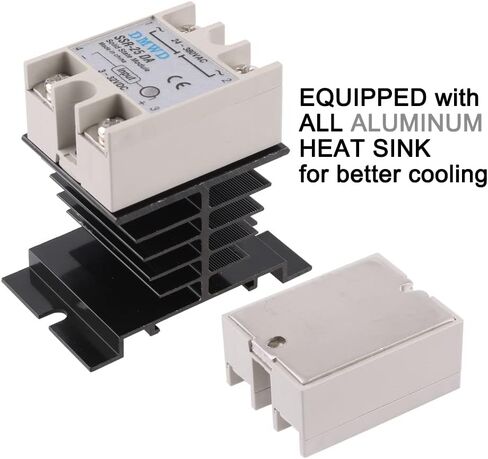

1 x All Aluminium Heat Sink

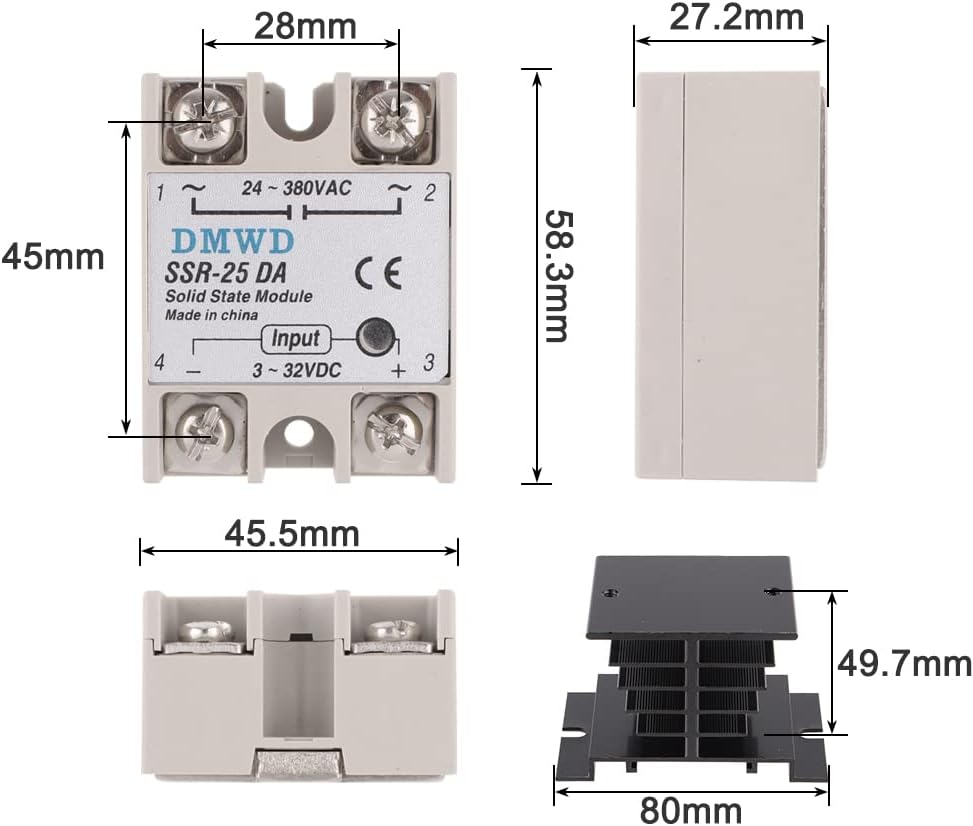

Size/Weight:
SSR(58x45x28mm/80g)
Heat Sink(78*50*50mm/80g)

Warranty:
Free new replacement in 5 years, Have faith in quality
