Specification:
Input Voltage: 6V~12V DC
Input Current: 2A~5A (Related to Voltage)
Output Voltage: About 500KV~1000KV
Input Cable Length: About 100mm(Red is Positive)
Output Cable Length: About 100mm
Arc Discharge Distance: 10mm~20mm

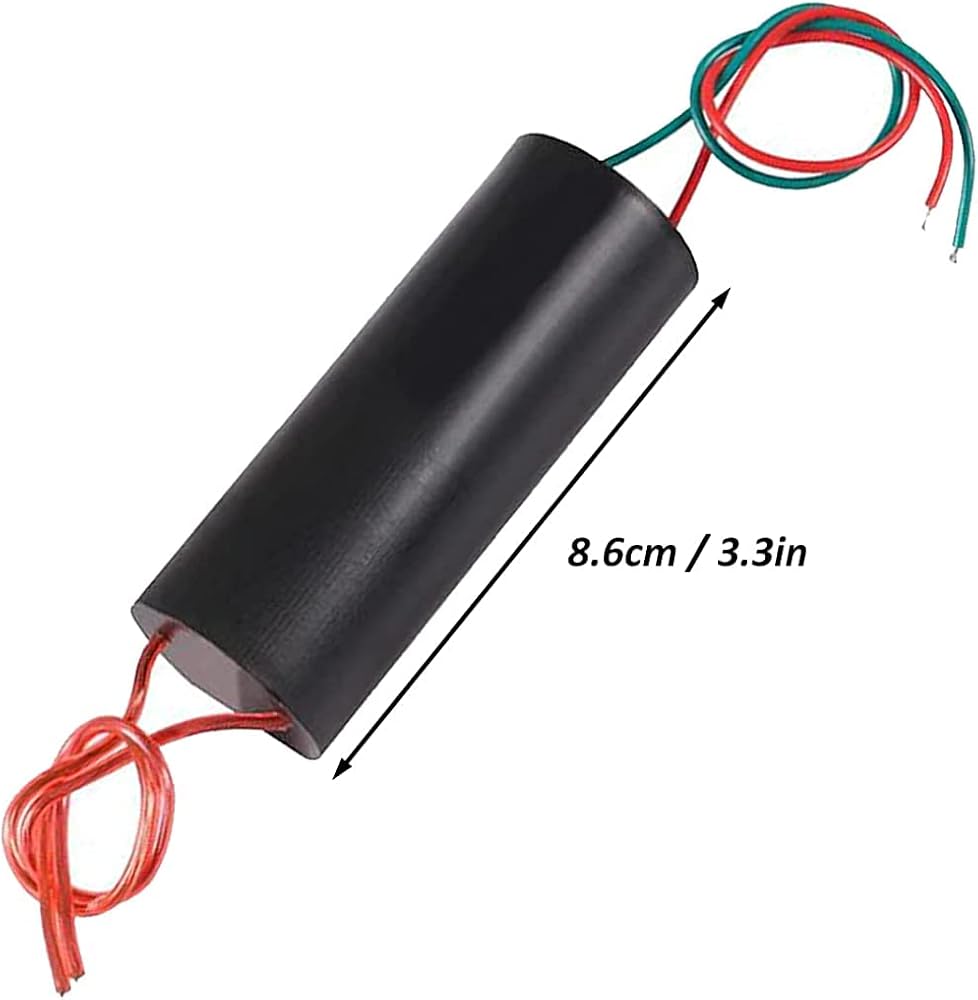

High Voltage Generator Size: 8.6cm*2.4cm*2.1cmPackage Contents:

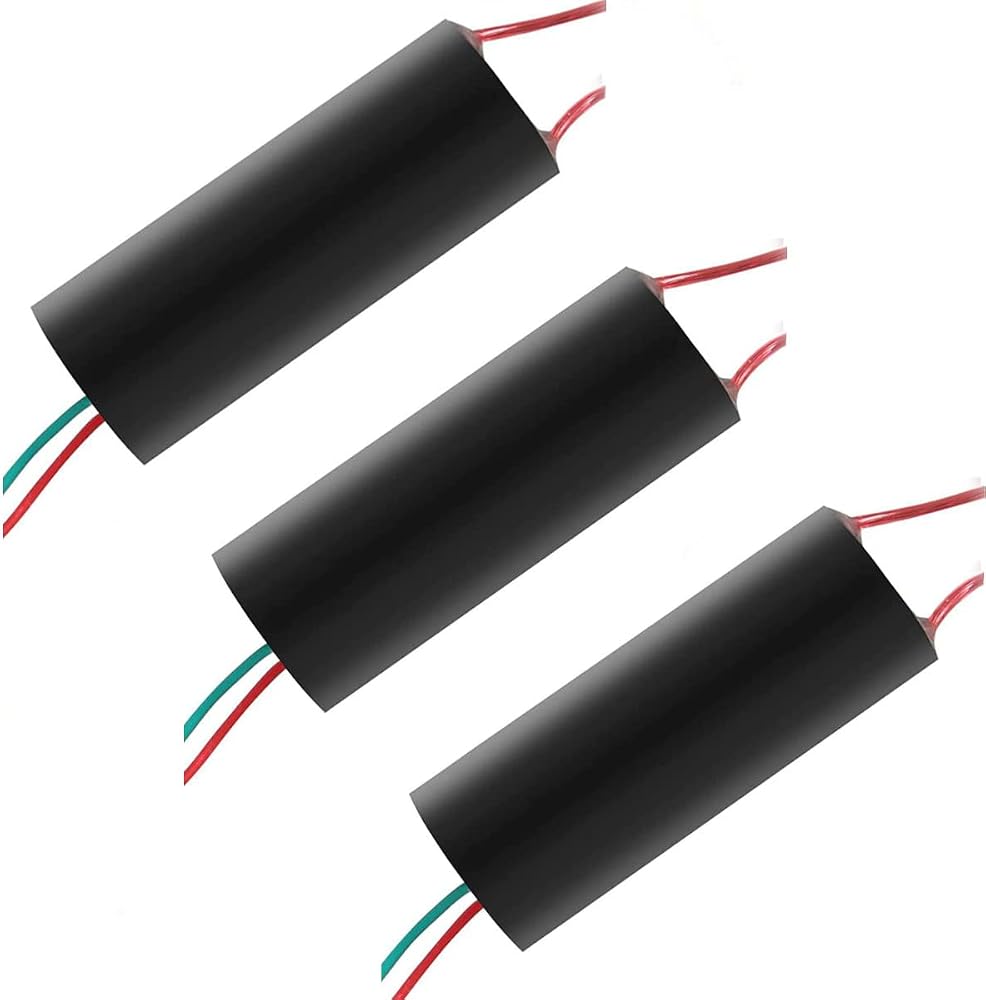

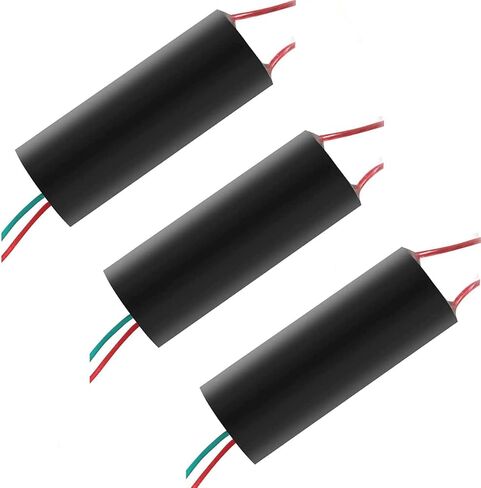

3 x High Voltage GeneratorNOTE:
1. Output Cable Should be Adjusted Properly Before Power On, and the Arc Distance Depends On the Voltage and Capacity of Battery
2. The Arc Distance Should from Short to Long, do NOT Produce a Longest Arc at First,Otherwise the Module Might be Damaged
3. The Way to Judge a Battery Capacity is Enough to Output Maximum Power is to Measure the Battery Voltage when Producing Arc. IF the Measured Voltage is about 6V, then it can Produce Maximum Power. Recommended Battery Capacity is Above 2000mA or above 4000mA if Possible.
4.Adjust the Output Spacing Before Use, the Use Spacing should be Within 1.5cm (Test a Small Distance at the First Use, such as 1cm and Increase Slowly), the Output does NOT Short-Circuit and does Not Exceed the maximum arc distance, Intermittent Work, It is Best to Power On Within 5 Seconds Each Time
