APPLICATION
- The spur pinion gear is extensively used in a wide range of applications, including Electric Grinders, Gearboxes, and Reduction Gears. The gear plays a crucial role in ensuring the smooth and efficient operation of these devices.

ABOUT THIS PRODUCTS
- The spur gear is constructed from 45# steel, ensuring enhanced stability, resistance to wear, and exceptional strength, resulting in long-lasting durability.
- The spur pinion gear exhibits lower roughness and noise levels and has a smoother rolling motion than other gears. Additionally, gears produced with excellent machining can withstand high levels of force without compromising their performance.

SPECIFICATION

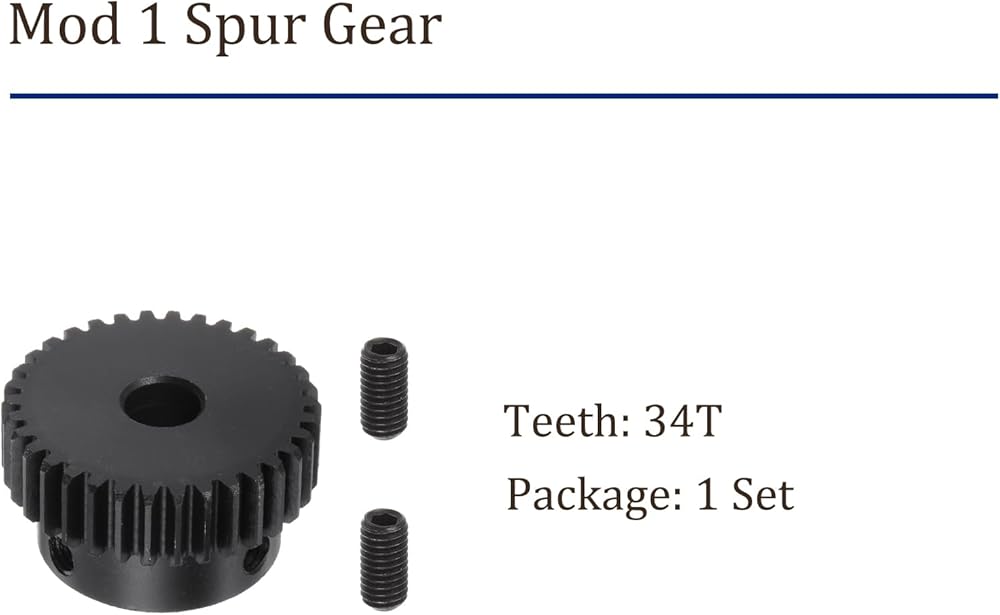

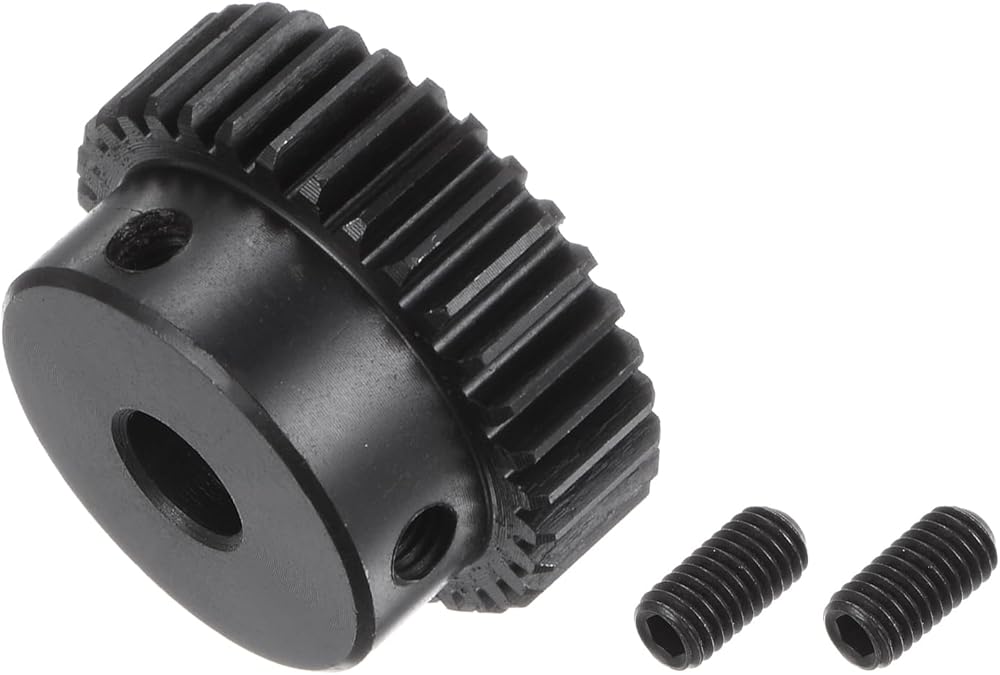

Package Content: 8mm bore Mod 1 pinion gear 34T includes 2pcs set screws
Teeth: 34T
Module: 1 Mod
Pressure Angle: 20°

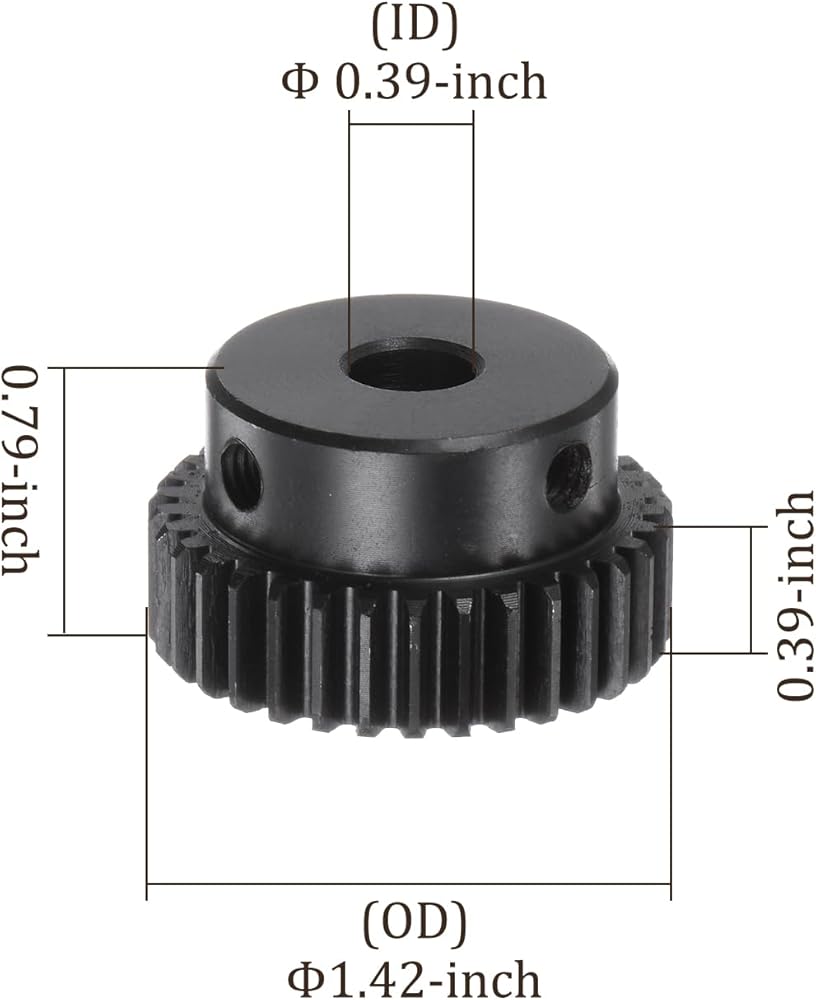

Gear Step Diameter: 28mm / 1.1inch
Gear Step Height: 10mm / 0.39inch
Teeth Pitch: 3.14mm / 0.12inch
Teeth Depth: 2.25mm / 0.09inch
Outer Diameter: 36mm / 1.42inch
Inner Hole Diameter: 8mm / 0.31inch
Effective Tooth Length: 10mm / 0.39inch
Total Thickness: 20mm / 0.79inch

NOTE
- Please confirm whether the product size meets your needs before ordering.
