Name: 2 قطعة مفتاح هزاز للقفل التلقائي تبديل تشغيل/إيقاف/تشغيل 3 أوضاع مقاومة للماء تيار مستمر 12 فولت/20 أمبير 24 فولت/10 أمبير 7 سنون DPDT ضوء LED أزرق، مع مجموعة أسلاك توصيل لشاحنة القوارب البحرية والسيارة القافلة RV SUV ATV
Brand: MKBKLLJY
Availability: InStock

مميزات خاصة

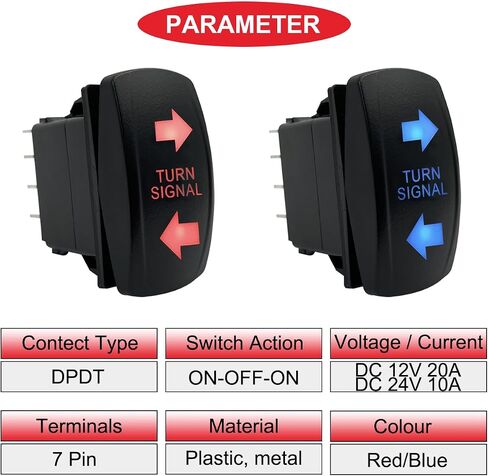

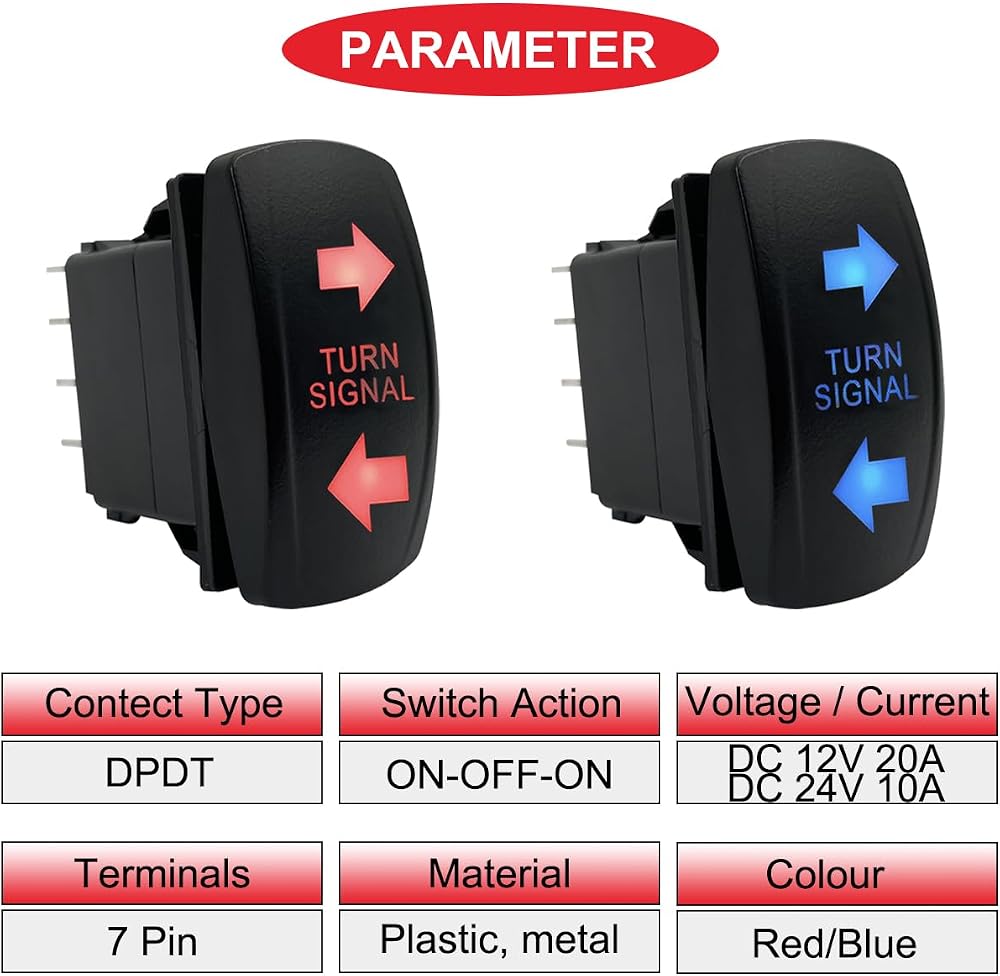

🟢【PARAMETER】Rated Voltage & Current: DC 12V 20A;DC 24V 10A;Positions: 3 (ON / OFF / ON );Pin Quantity: 7;Contact Type : DPDT;Mounting Type:Panel Mount;Mounting Hole Diameter: 1.42"" (36 mm) x 1.06"" (21 mm);Cable Length: 100mm / 3.93inch;Wire Gauge:18AWGMaterial: Plastic, Metal;LED Color: Blue.
🟢【Automatic Lock】This switch is Automatic Lock action！It works when you press the switch up or down, it is OFF then you press the switch on middle position.
🟢【Easy to install】Panel mounting hole size of the switch: 1.42" (36 mm) x 1.06" (21 mm), mounting hole size available for most vehicles boat install or replace, It can be directly installed or replaced on the original panel, It is easy and simple to set it up.
🟢【Wide Application】Universal for all cars, RVs, SUV, ATV, UTV, Cans, Motorcycles, buses, marine boats, yachts, trailers, jeeps, prerunners, camper, caravans, engineering vehicles, special vehicle etc.

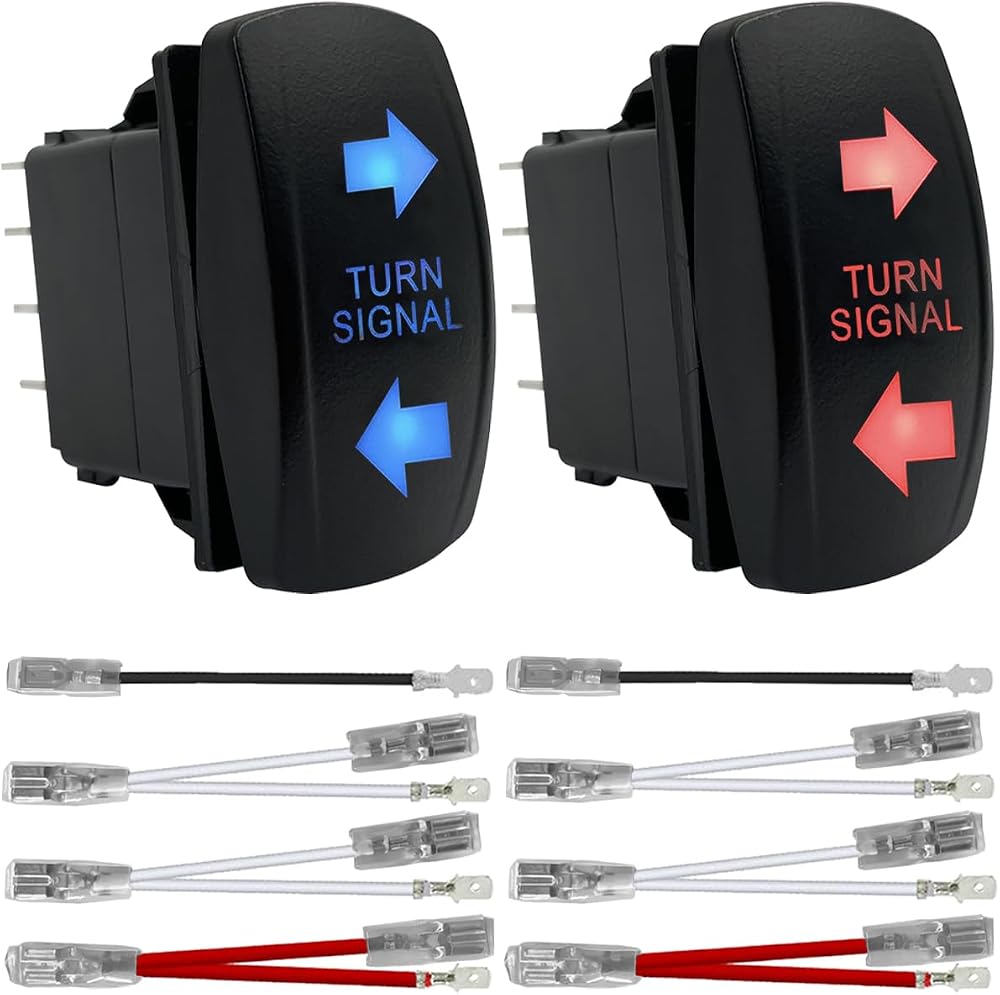

🟢【Package Content】2 x Blue LED Light Automatic Lock Rocker Switch DC 12V/20A 24V/10A 7Pin DPDT with Jumper Wires Set.

وصف

Description:
Rated Voltage & Current: DC 12V 20A;DC 24V 10A;

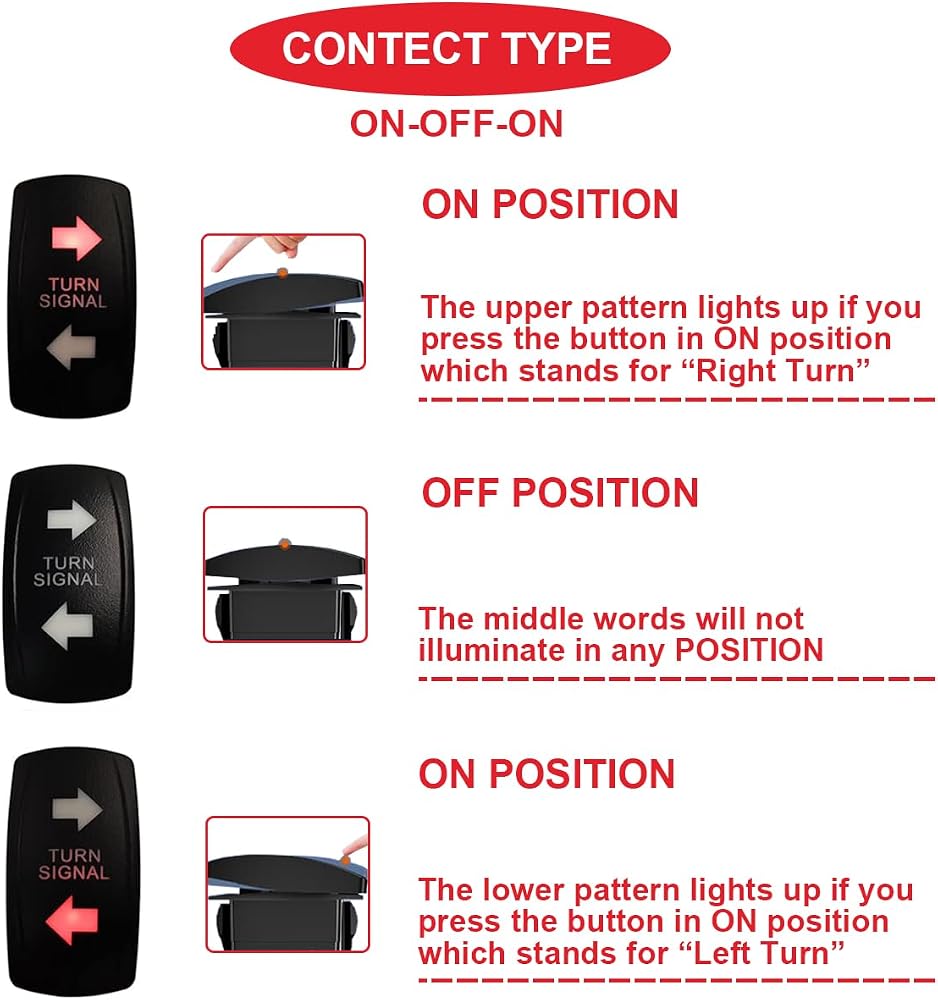

Positions: 3 (ON / OFF / ON );

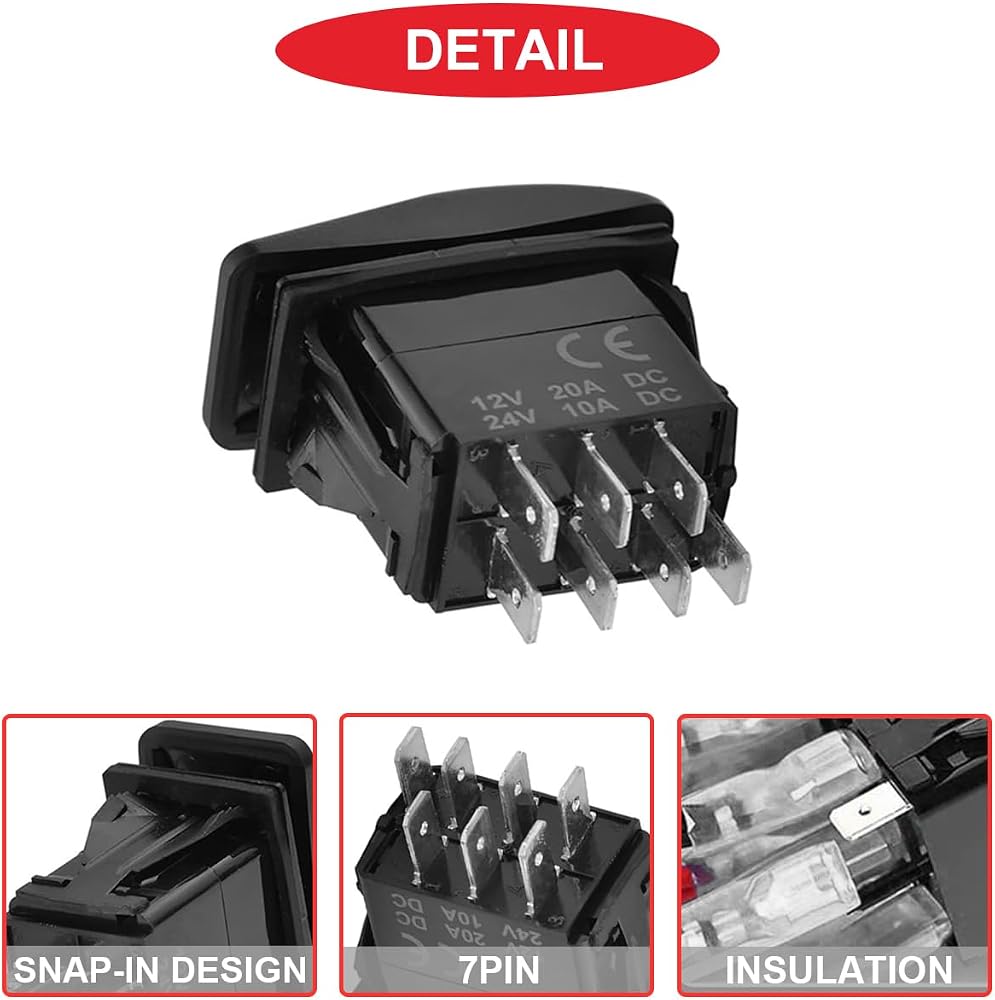

Pin Quantity: 7;
Contact Type : DPDT;
Mounting Type:Panel Mount;

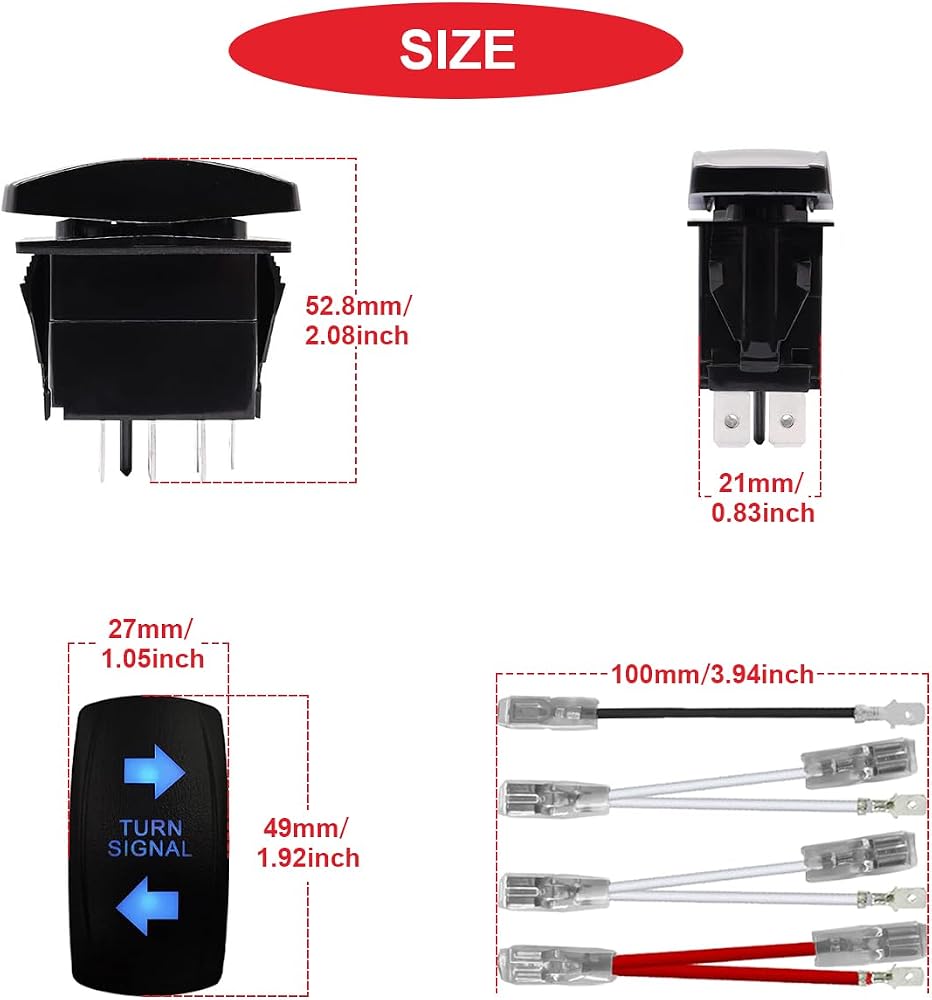

Mounting Hole Diameter: 1.46" (37.2 mm) x 0.83" (21.2 mm);
Cable Length: 100mm / 3.93inch;

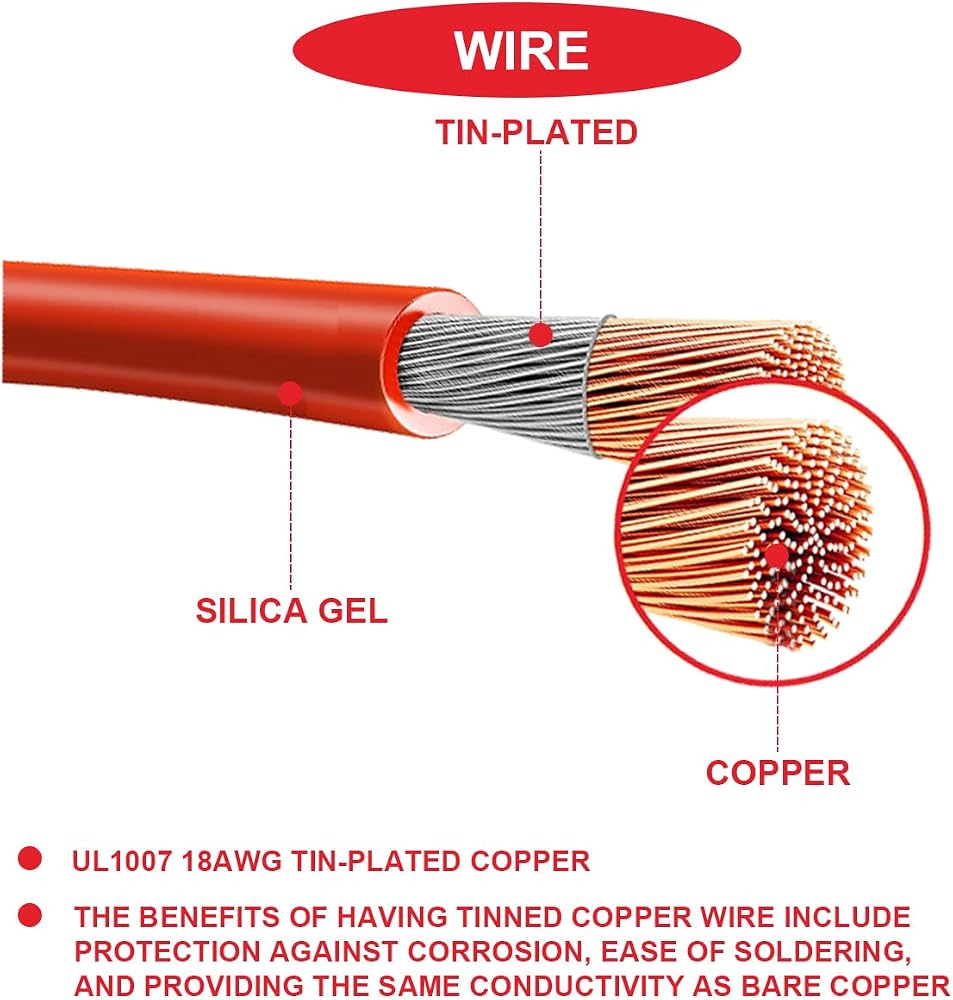

Wire Gauge:18AWG;
Material: Plastic, Metal;
LED Color: Blue.

Package Content:
2 x Blue LED Light Momentary Rocker Switch DC 12V/20A 24V/10A 7Pin DPDT with Jumper Wires Set.
