Technical Details

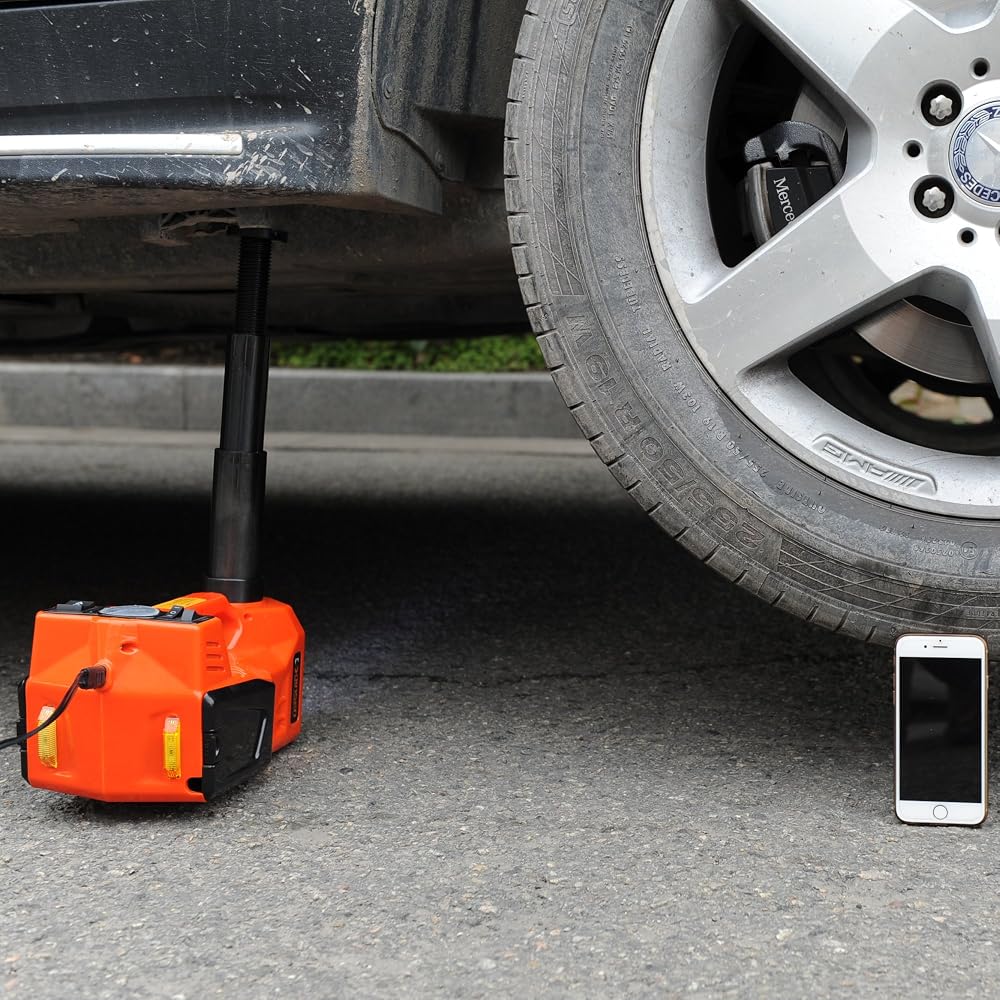

3 in 1 Combo 1 ton electric jack, 12V inflatable pump and LED lamp.
2 sleeves with 4 size of #17,#19,#21,#23, suitable for most of vehicle.
Cross groove saddle prevent slipping from vehicle.

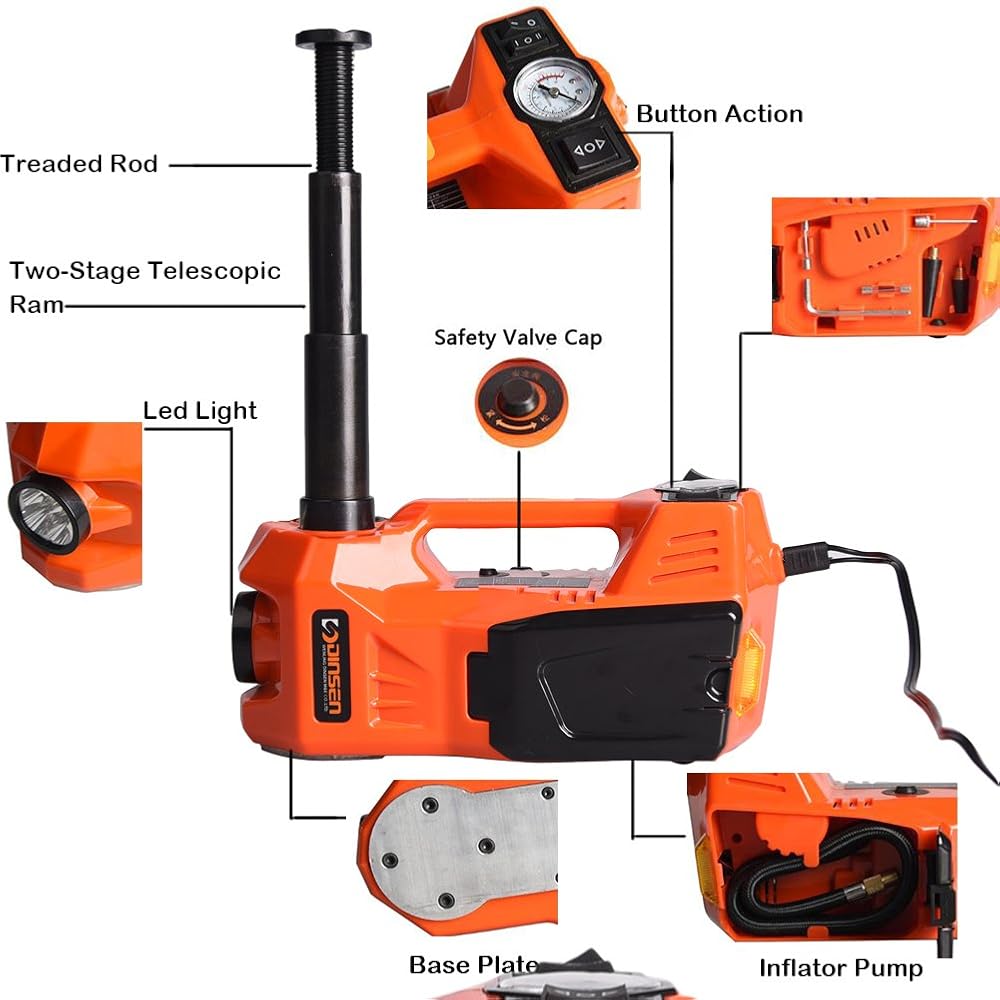

Rotating threaded rod can be spin out up to 75mm, makes cross groove saddle closer to lifting point.
In case of the power has been disconnected, self-locking power structure and safety unloading knob prevent jack from falling and will not come down immediately. When re-connecting the power, jack will go on working in accordance with the instruction, or using the safety valve manually to fall.

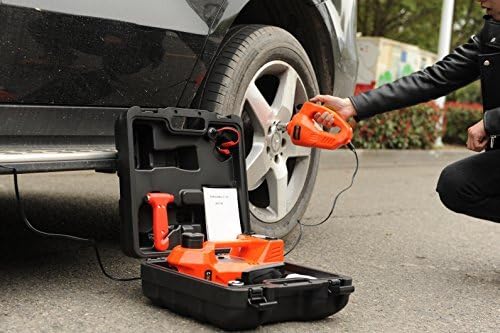

Storage case fits skid-proof tape and reflective tape.
Small size for easy storage in boot.

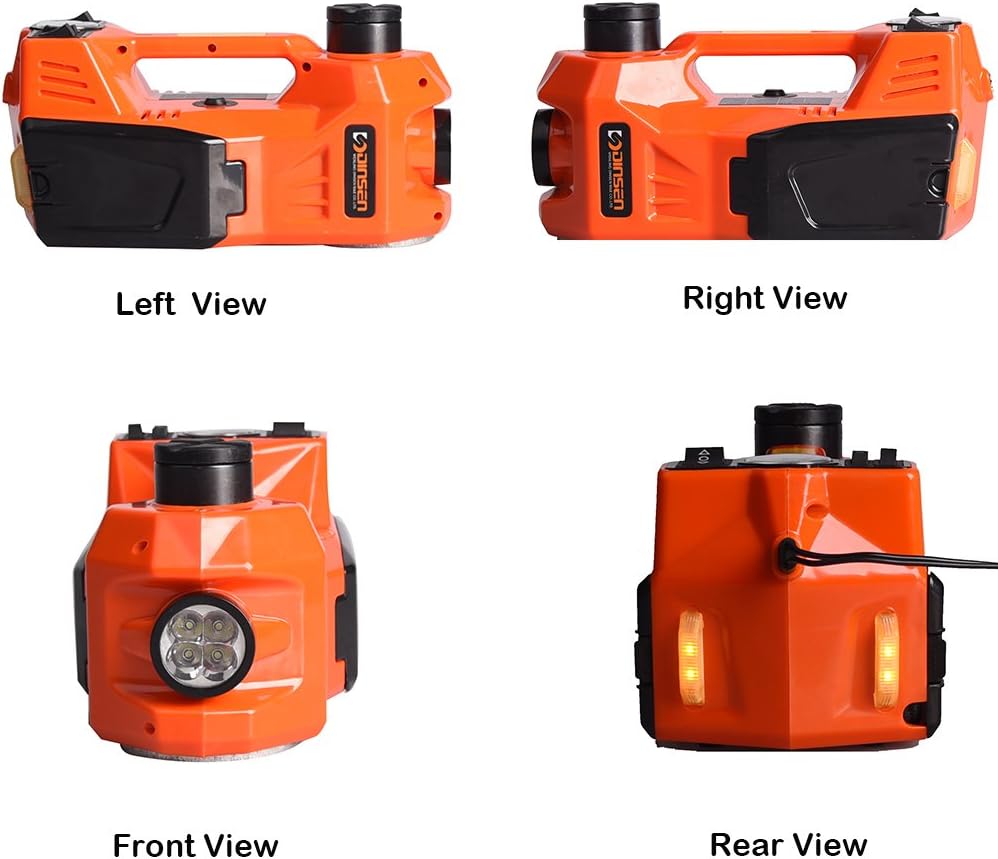

LED lamp on jack can be used as flashlight.
Specification:
a.For Jack:
Input Voltage: 12VDC
Current: 13A
Fuse: 15A
Max Loading: 2200 lb (1000 kg)

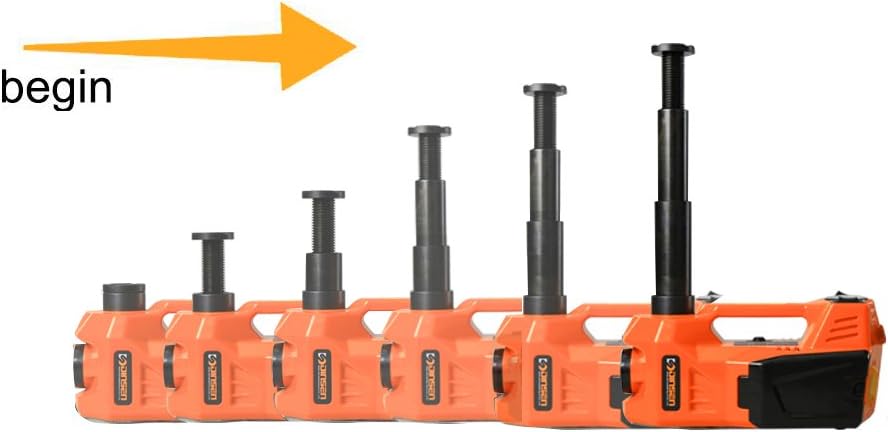

Lifting Height Range:6.1 in. -17.3 in. (155mm-440mm)
Power Cord Length: 11.5 ft. (3.5m)
Working Temperature: 5℉ ~122℉(-15℃~+50℃)
Jack Size: 12.6 in. * 7.5 in. * 6.7 in.
Weight: 10.8 lb(4.9kg)

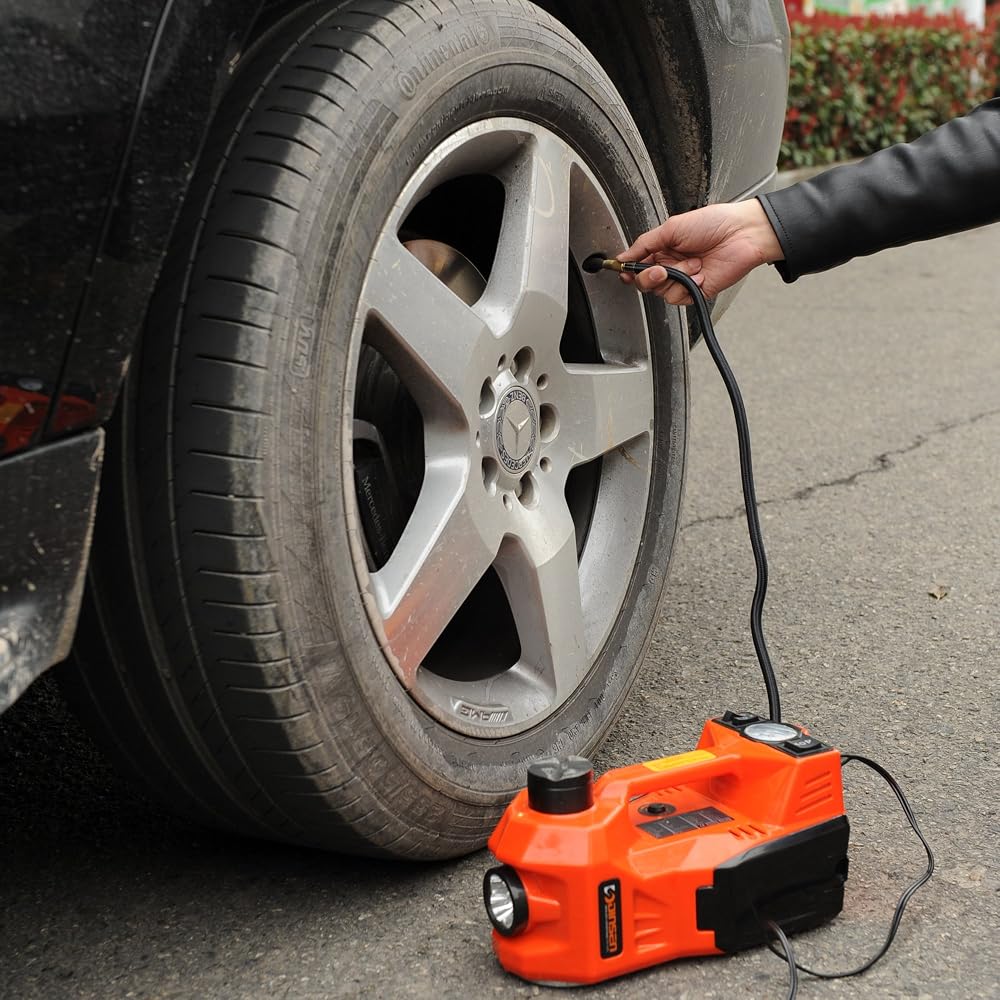

b. For Inflatable Pump:
Input Voltage: 12VDC
Air Flow: 9.2 gal/min (35L/min)
Working Temperature: 5℉ ~122 ℉(-15℃~+50 ℃)
Current: 10A
Max Pressure: 10BAR/150PSI
Hose Length: 23.6 in. (0.6m)
Cylinder Diameter: 25mm
Storage Case:13.8"*13.4"*7.6"
Packing Size: 14.6"*14.2"*8.46"
Weight: 21.23(9.63kg)

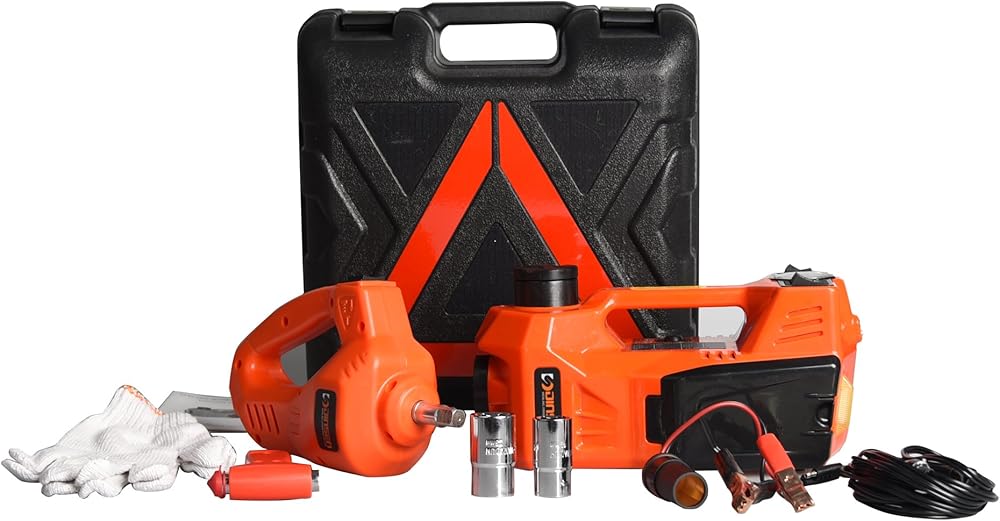

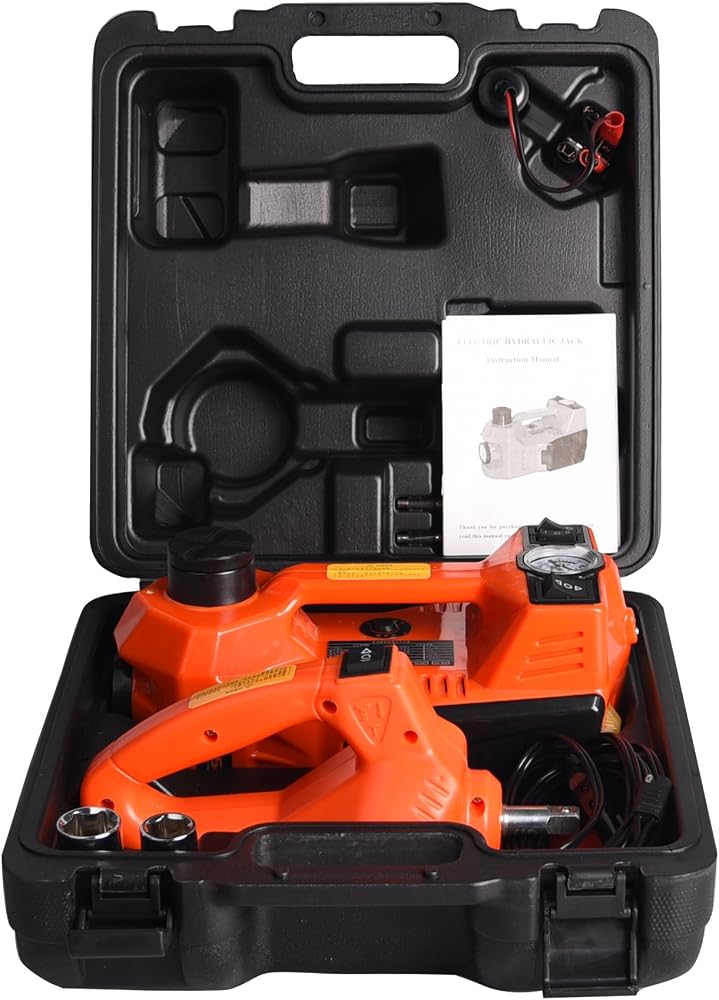

Packing List:
Combo 3 in 1 Electric Hydraulic Jack * 1

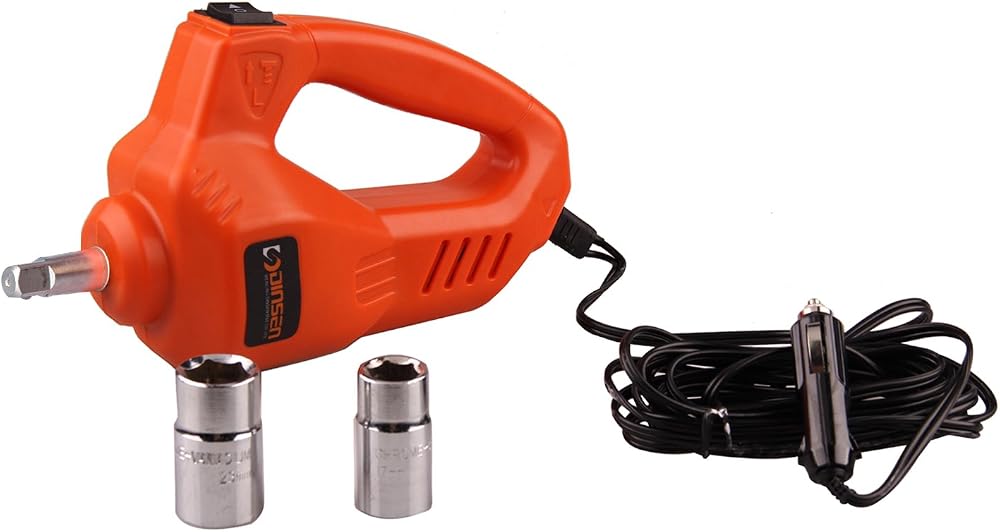

Electric Impact Wrench * 1
Emergency Hammer * 1
Storage Case* 1
Cord Socket* 1
Gloves* 1
Power Cord * 1
Fuse * 2
Instruction Mannual* 2 (One is for jack, the other is for wrench)
Warning:
Please read this manual carefully before using.
