Specifications:
Gain: 7–12 dBi
Frequency Range: 698960MHz / 17102700MHz / 3300-3800 MHz
VSWR: Polarization: Horizontal
Impedance: 50 Ohms

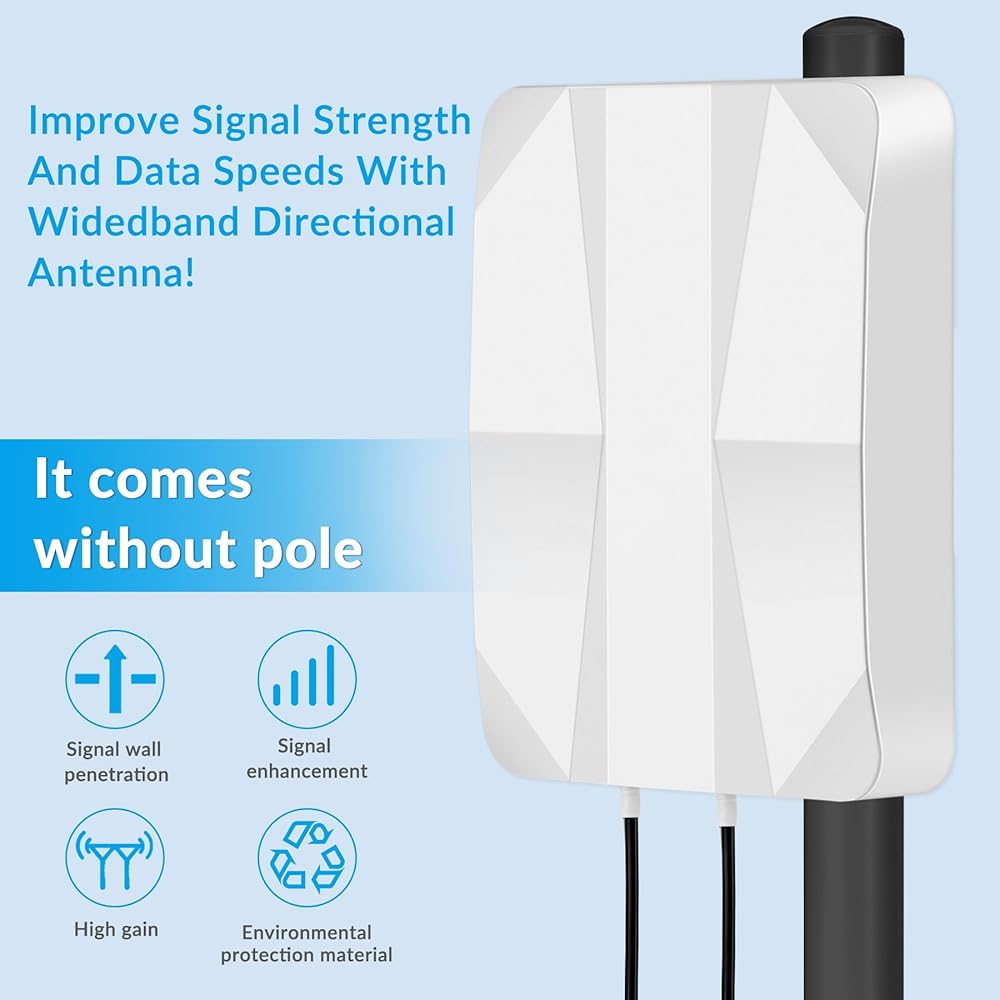

Direction: Directional

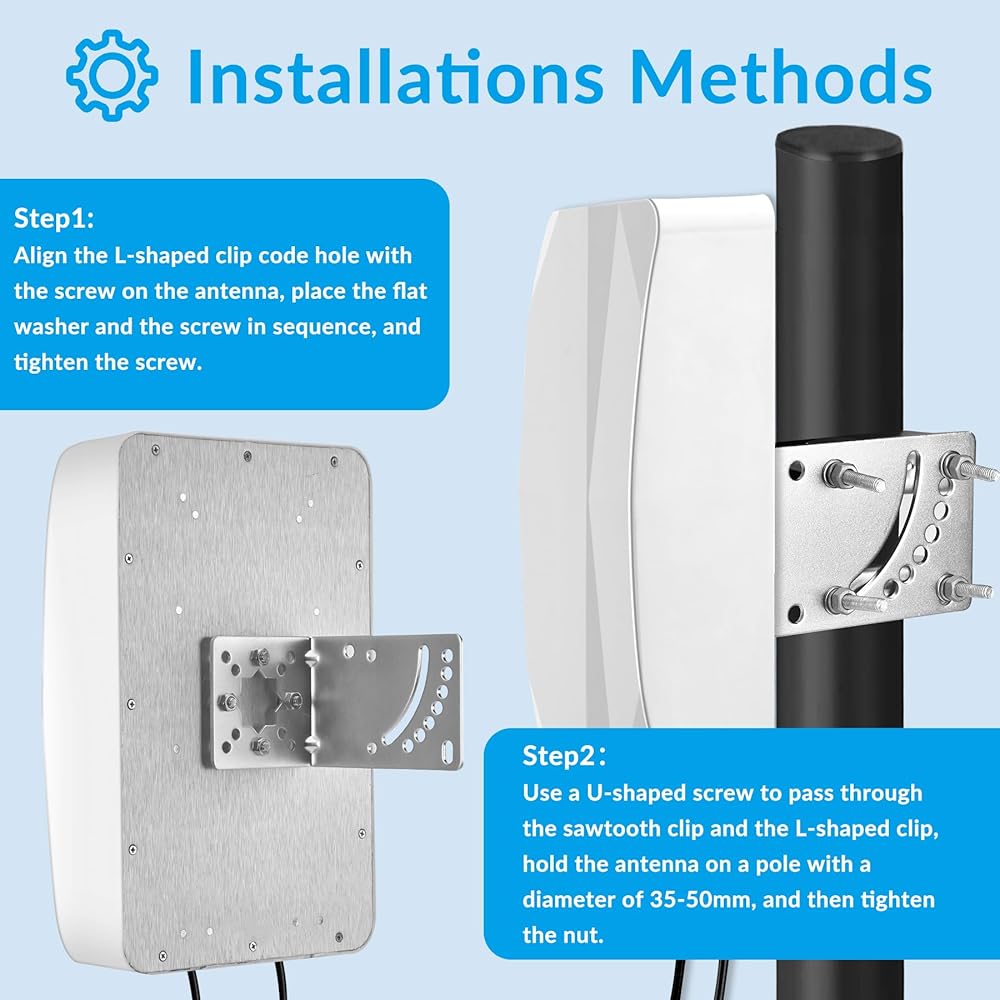

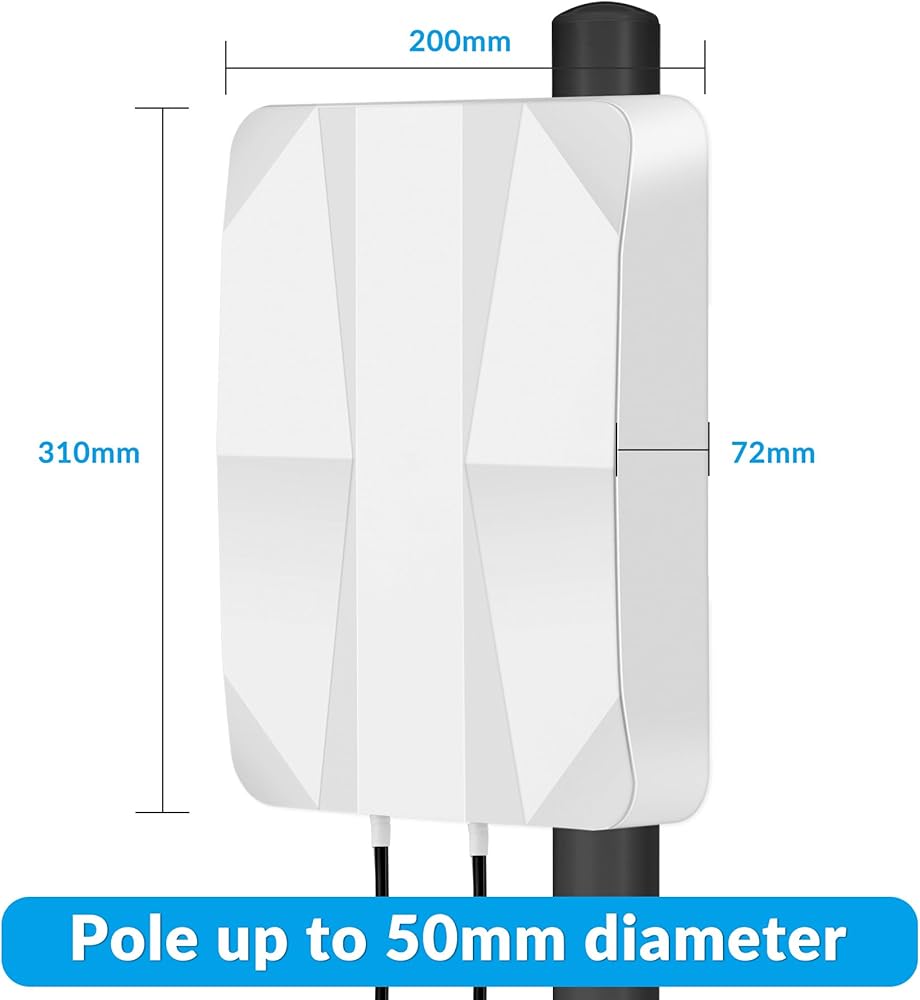

Mounting: L-bracket
Antenna Connector: N-female

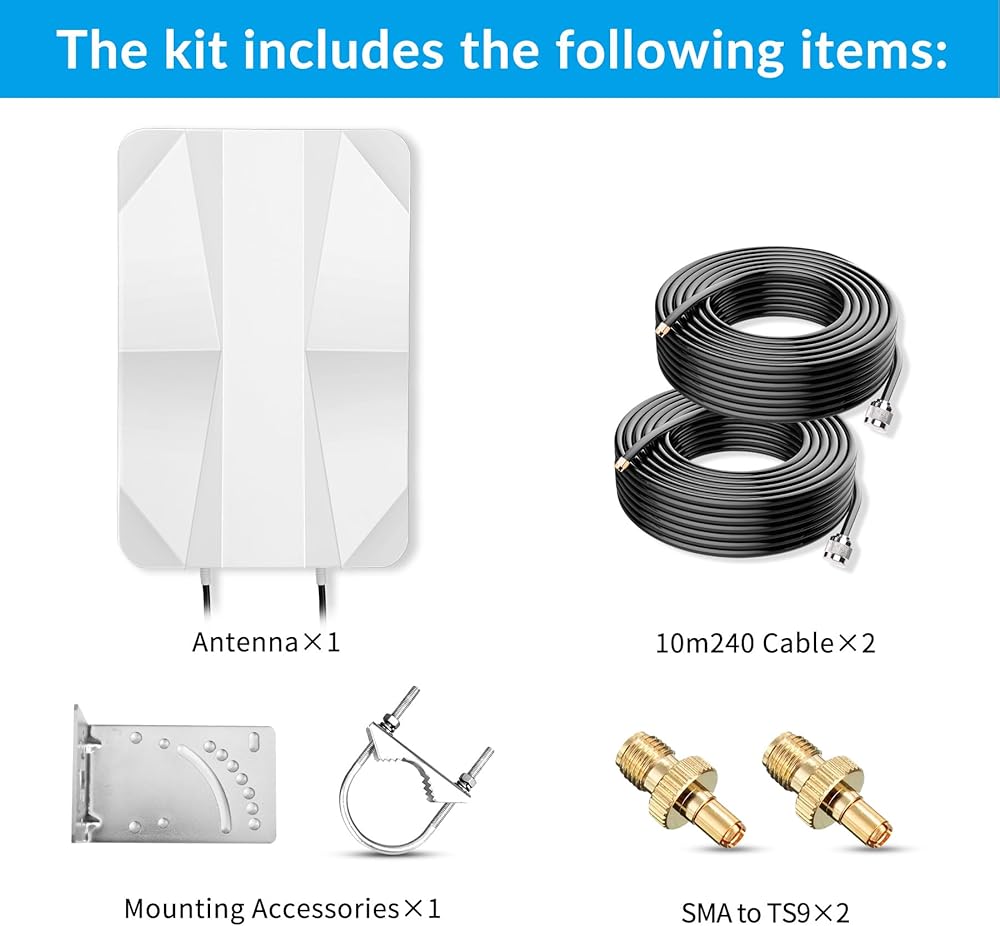

Adapter Cable: 10m N-male to SMA-male KMR240 cable
Adapter: TS9

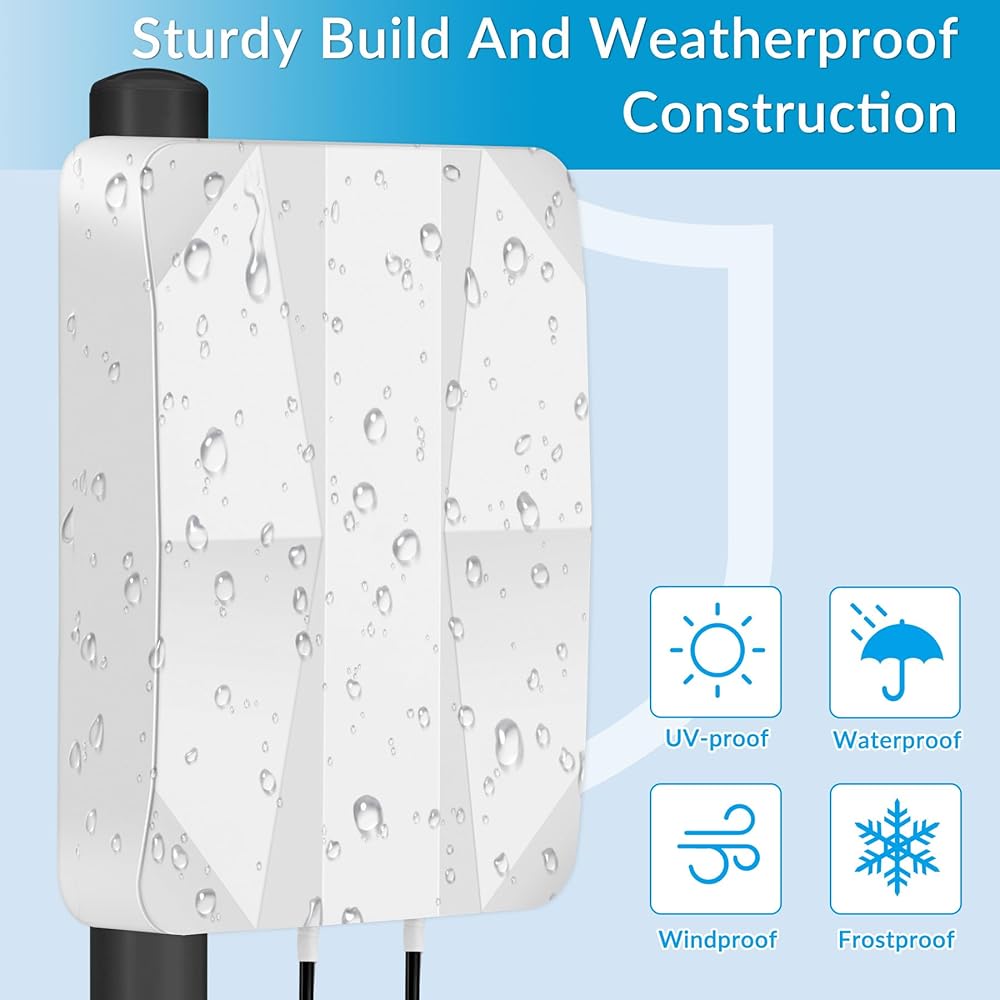

Waterproof
Operating Temperature: -20°C ~ +80°C
Storage Temperature: -30°C ~ +85°C

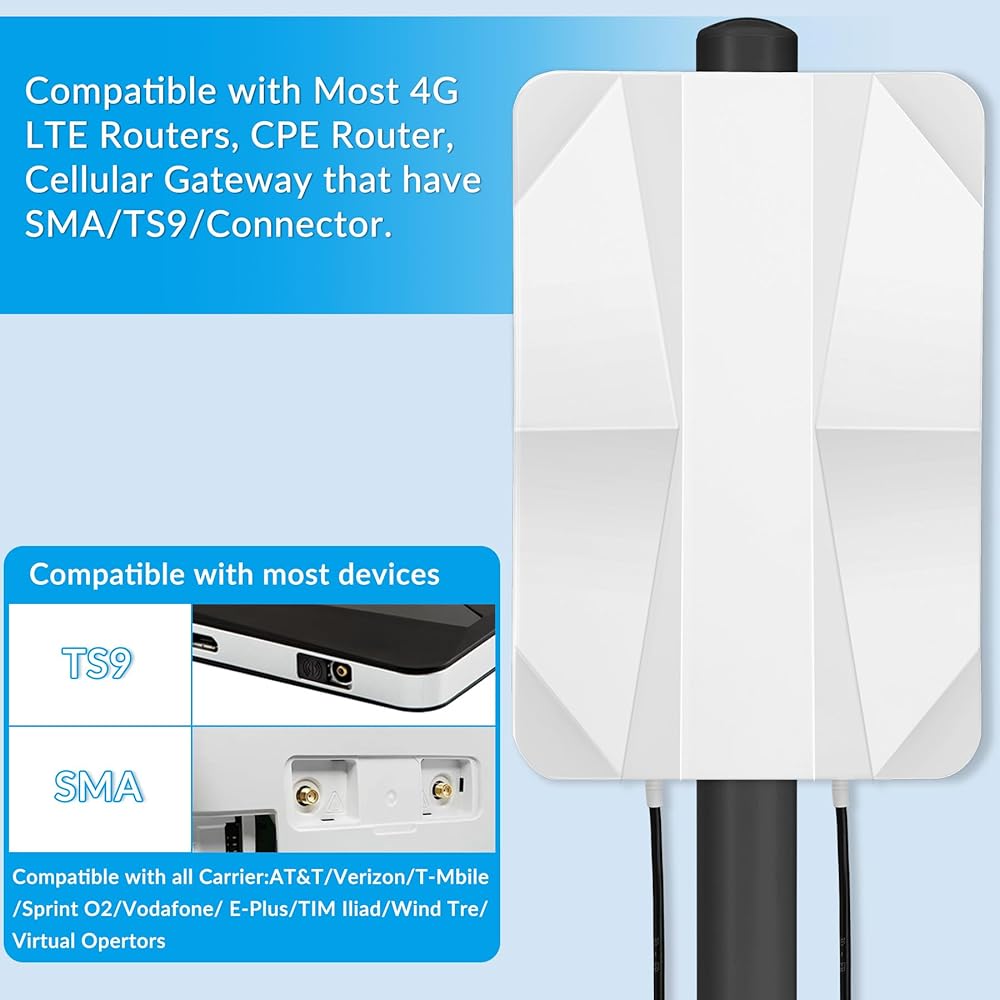

Compatible with 4G LTE Wireless Mobile Router, Wireless Home Phone Hotspot Router Modem;

Note:

1. Before installation, please change the router backend settings from internal to external antenna.
2. After installation, please restart the router to check if the signal strength has changed and if the network is stable.
3. Keep the antenna away from high-power devices to reduce signal interference.

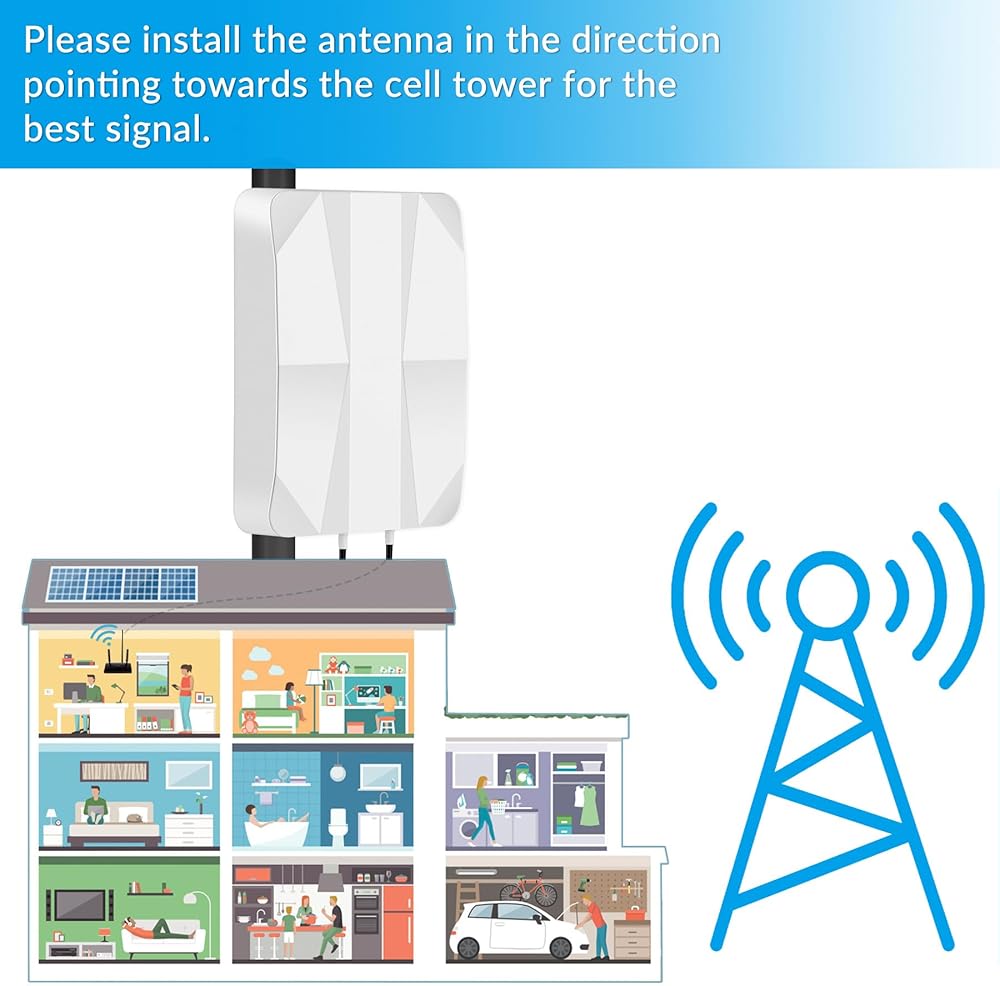

4. Signal transmission is influenced by many factors, including distance, density of high-rise buildings, and openness of the view. The signal may be absorbed, reflected, or interfered with. Please try multiple installation positions to achieve maximum transmission efficiency. It is recommended to install the antenna in a relatively open and high position, such as on the roof, near the window, or outside the window. If the antenna is placed indoors, the signal transmission distance may be reduced.
5. Since LTE is a "Shared Medium," the available capacity of the base station is always distributed to all users. Therefore, when many people are online, the data rate of each person may be significantly reduced.
6. The antenna cable can be extended, but with each additional meter, the "signal gain" generated by the antenna is lost due to attenuation. The extent of this loss depends on the type and quality of the antenna cable.
