مميزات خاصة

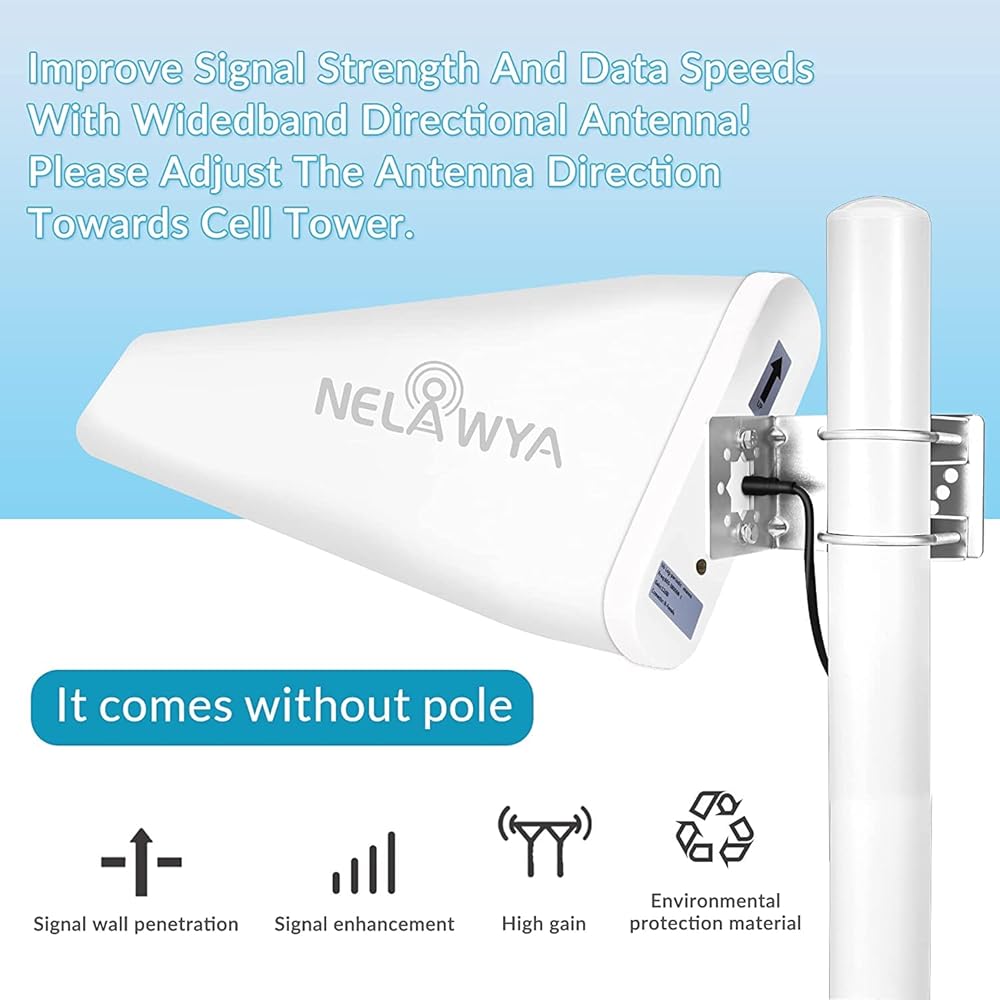

High Gain 5G 4G LTE Antenna. Frequency Range: 698~960MHz / 1710~2700MHz / 3300-3800 MHz ; Gain: 7-12dBi; Directional Antenna; V.S.W.R: ＜2.0 ; Impedance: 50Ω; Waterproof; Antenna Connector: N Female; Cable: 2x10 Meters KMR240 Extension Coaxial Cable; Adapter: TS9/CRC9 Adapter;
Built to Last.This MIMO Antenna is built with the highest quality materials for reliable connectivity when you need it most! Reception conditions at the customer site are rarely ideal, for which our LTE antennas solve the fundamental problem of degrading reception quality in practical use. This will significantly improve the performance and stability of 4G LTE network connections.
Reception conditions at the customer site are rarely ideal, for which our LTE antenna solves the basic problems that degrade reception quality in practice. This will significantly improve the performance and stability of Internet connections.
Make the signal bypass the damping of the building. If you set up LTE terminals in your apartment or house, you must expect further degradation in reception quality. Because the signal radio waves first have to penetrate the building. Insulation and special structural features, such as steel mesh in concrete, can produce strong shielding. In this context, the use of this outdoor external antenna is particularly important.
Positional advantage. Vertical approaches can often further improve signal quality. The 10-meter extension cord provided in our kit allows the antenna to be mounted as high as possible, especially if the base station does not have a direct line of sight. As the technical term goes, for every meter of elevation, you avoid the diffuse stray field in the diffraction region of the wave. Meaning: In the ideal case, instead of a diffuse "wave slurry" caused by reflection, diffraction, etc., the signal is picked up directly.

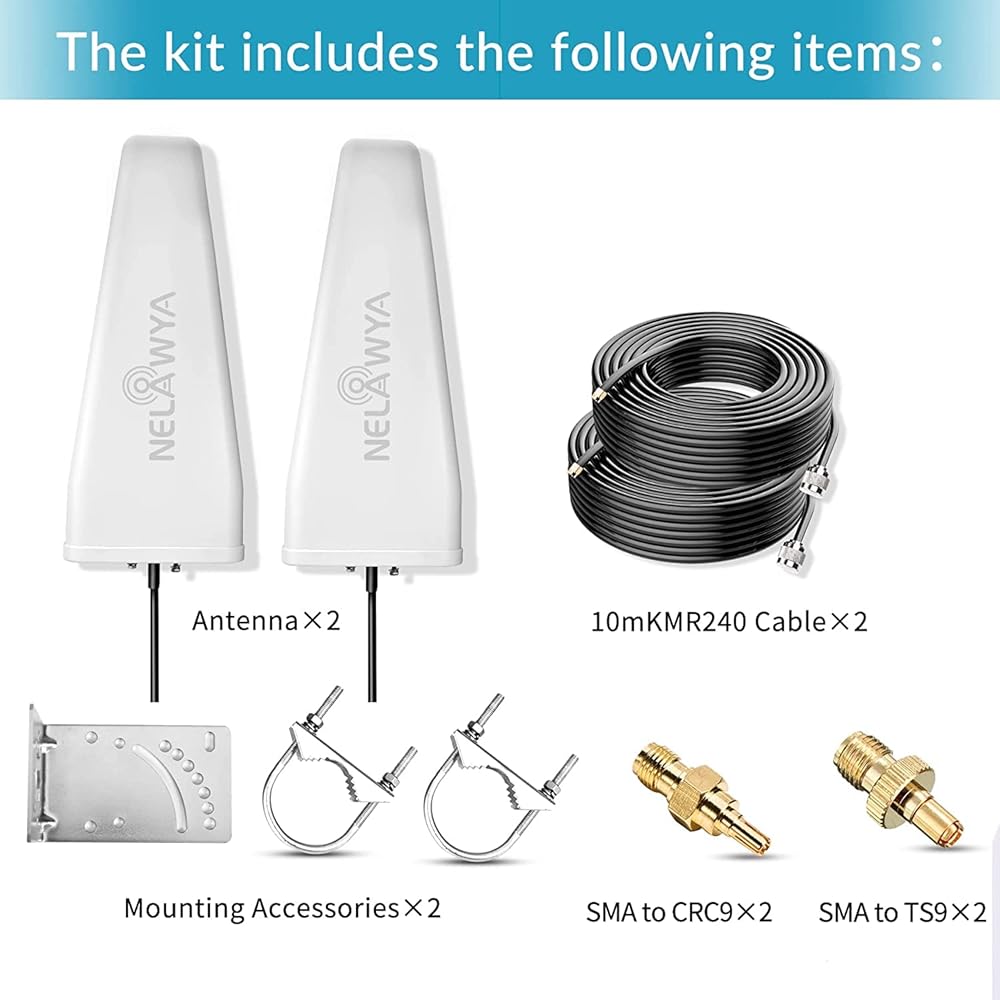

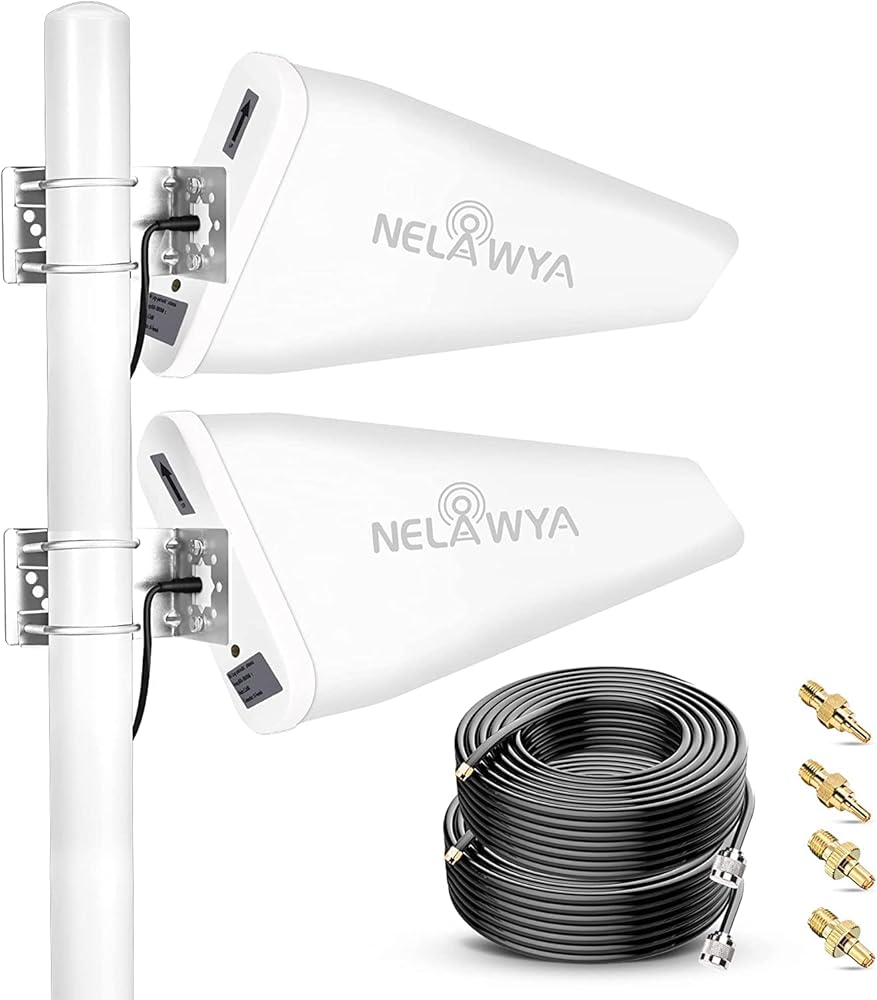

Package List: 1 x 5G/4G Antenna, 2 x 10cm KMR240 Coaxial Cable, 1xMounting Kit, 4x Adapters (As the Picture Shown);

وصف

Specifications:
Gain: 7-12dBi
Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz, 3300-3800 MHz
VSWR: Polarization: Linear Vertical;
Impedance: 50 ohm;

Direction: Omni-directional;

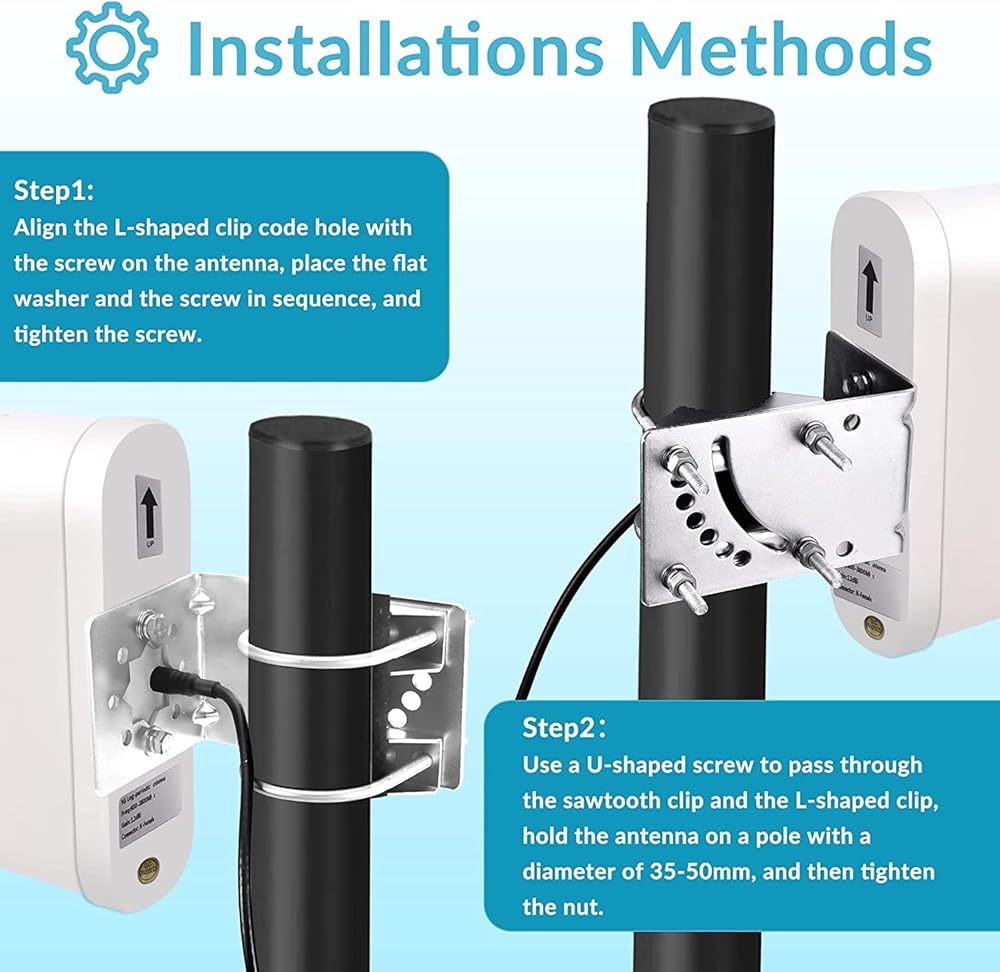

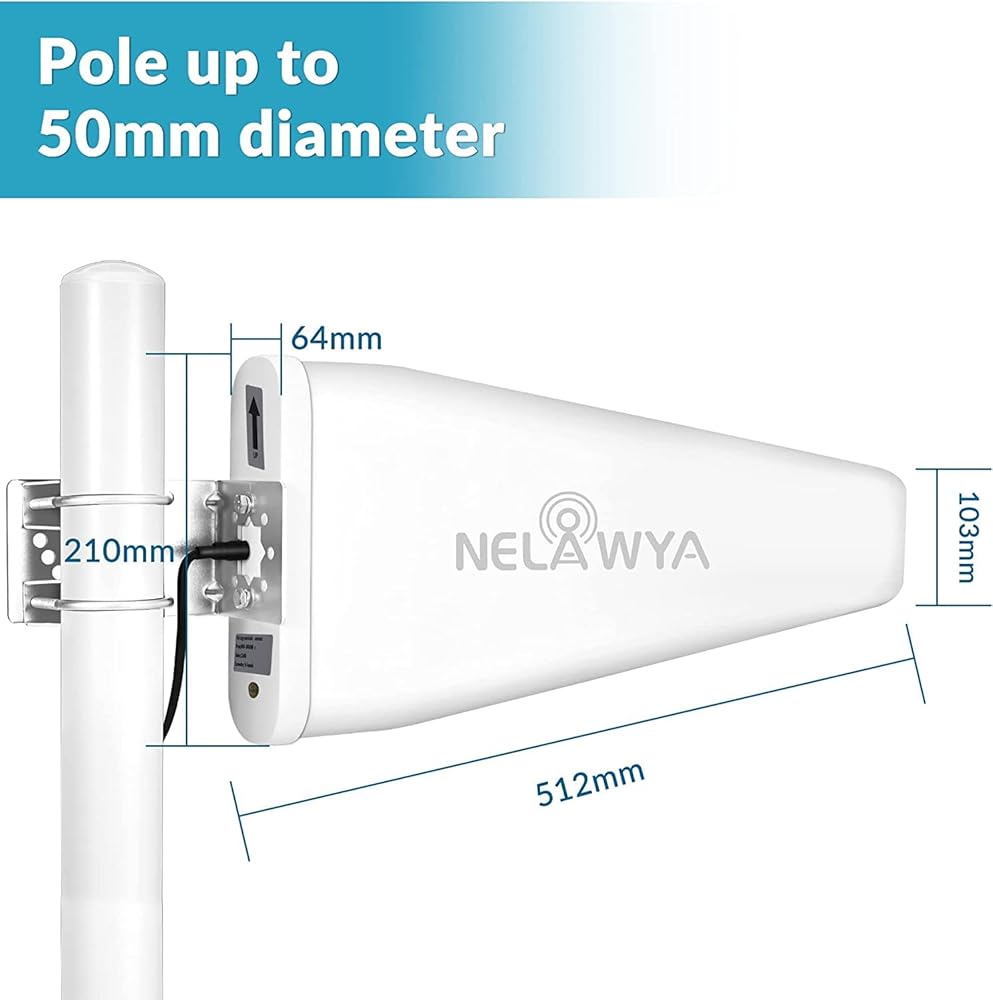

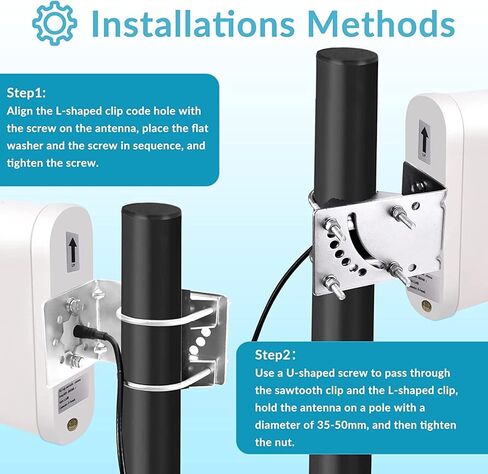

Installation: L-bracket
Antenna Connector:N Female Connector;

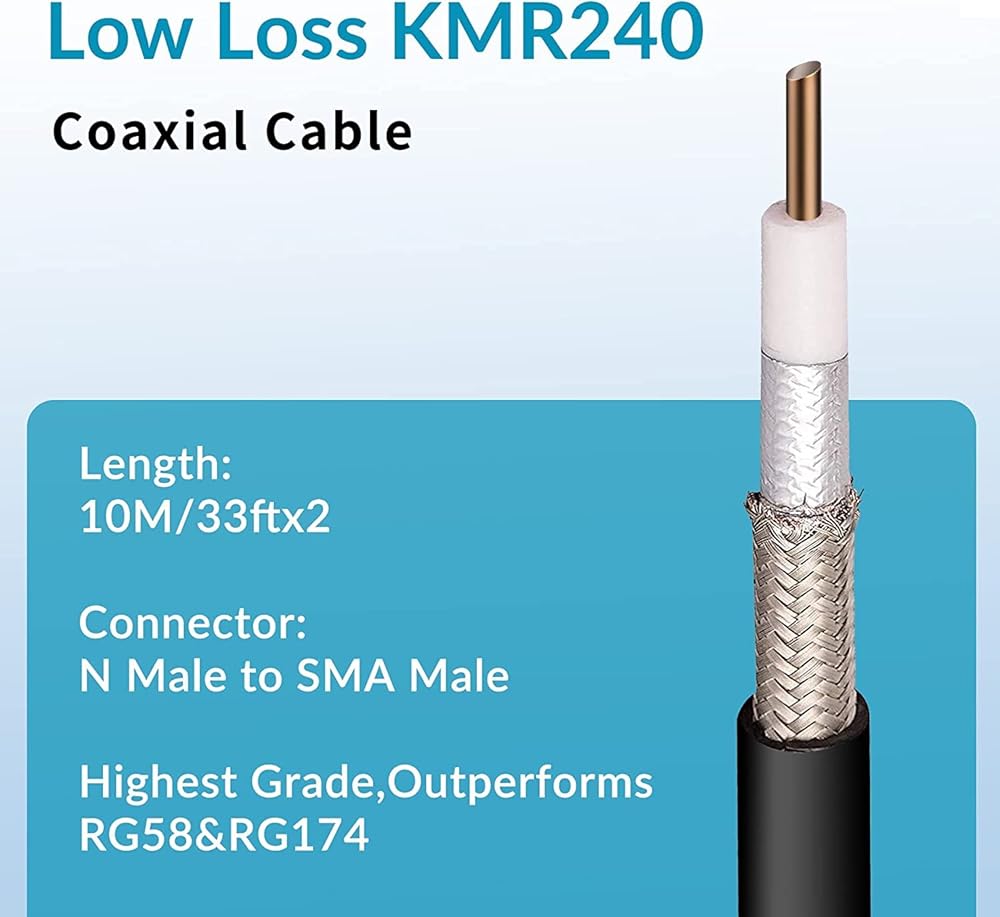

Adapter Cable: 10m N Male to SMA Male KMR240 Cable

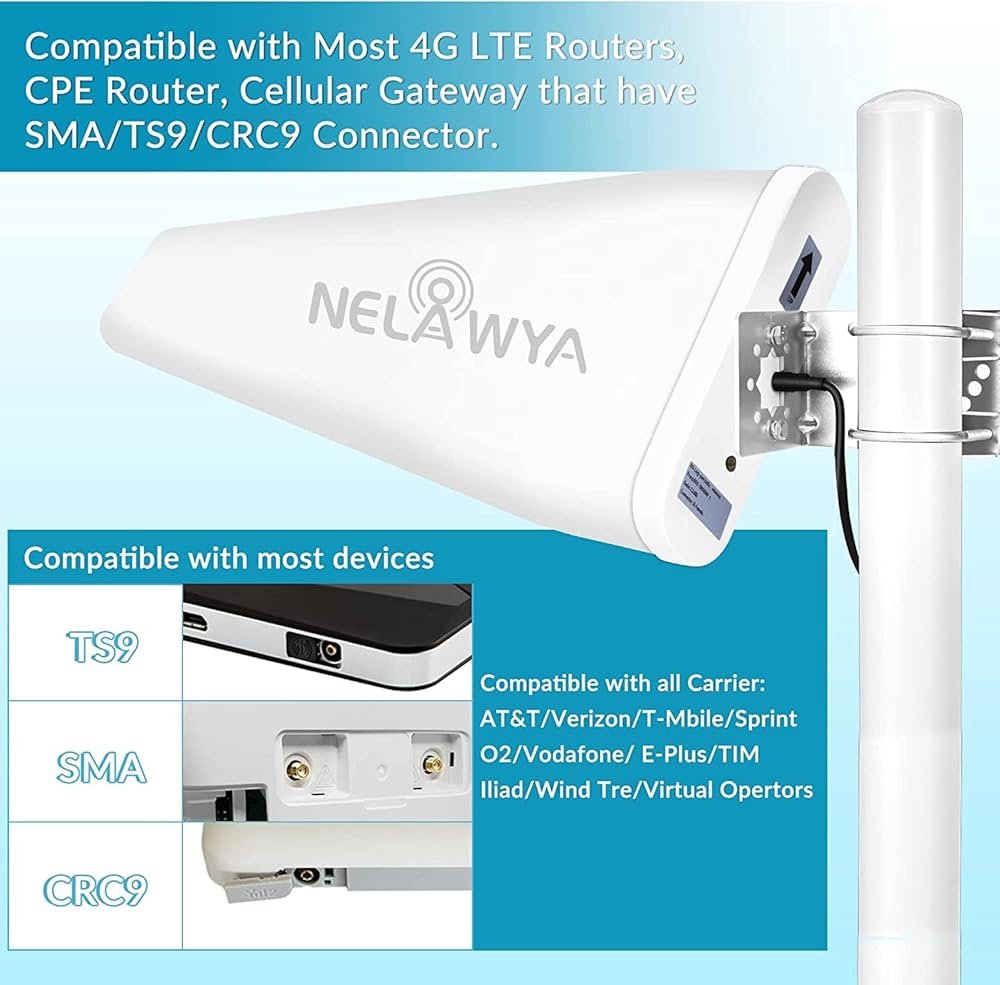

Adapter: TS9/CRC9

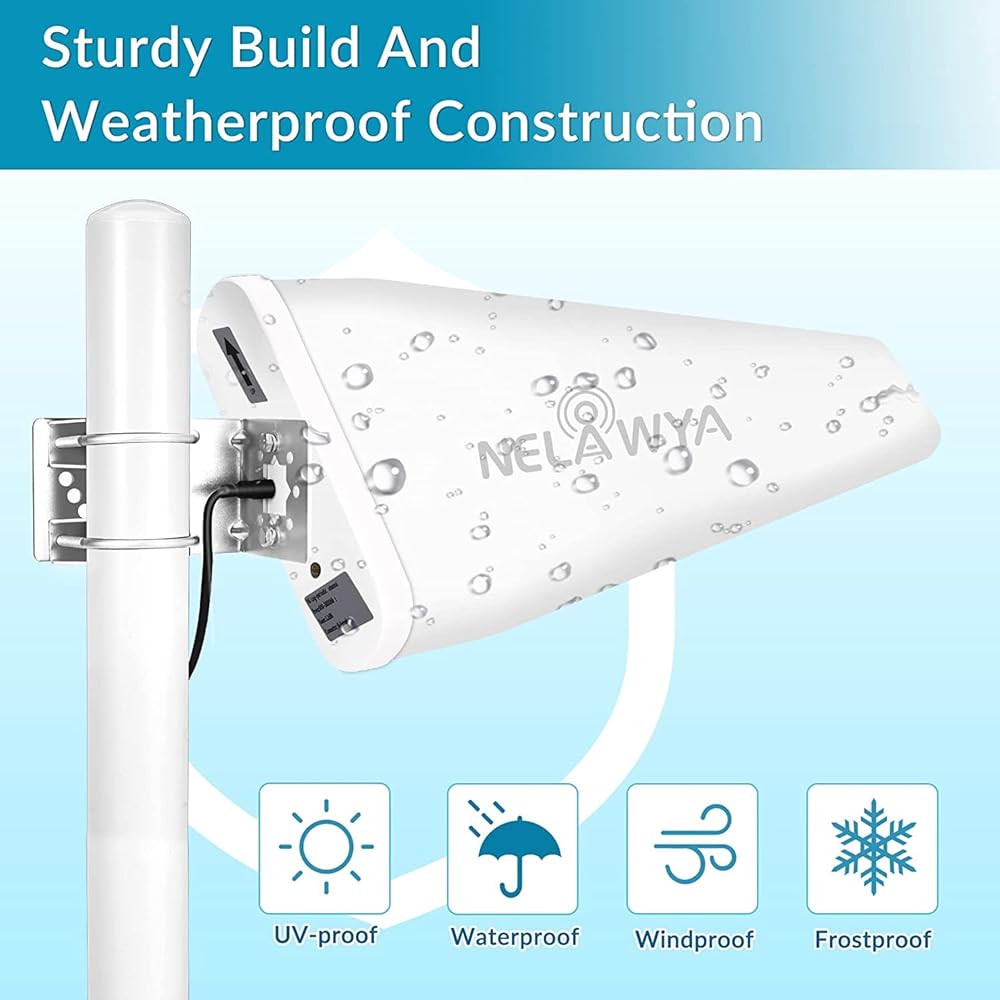

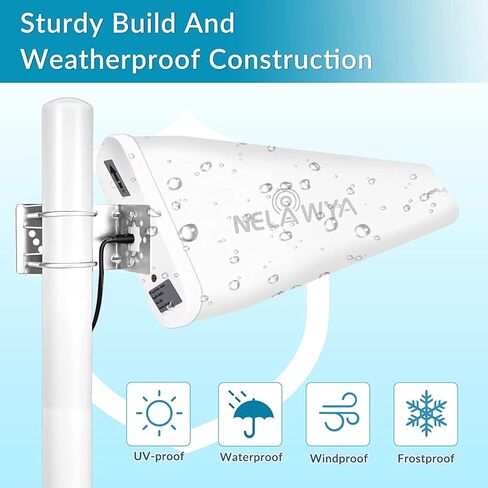

Waterproof;
Operating Temperature: -20°С ~ +80°С
Storage Temperature: -30°С ~ +85°С

Compatible with 5G 4G LTE Wireless Mobile Router, Wireless Home Phone Hotspot Router Modem, CPE Router, Cellular Gateway; 4G LTE Industrial Gateway Router Modem Terminal; Game Camera;

Compatible with M1 MR1100 M2 MR2100, AC790, AC810, LB1120, LB1121, LB2120. Verizon JetPack AC791L, MiFi 6620L, 7730L, 8800L B315 B310 B311 B525 B535 MOFI MOFI4500 MF279 4G Cat6 Wi-Fi Modem LTE Wireless Router.

Note:

Before the installation, please change the Router backend Settings from internal to external antenna.
After the installation, please restart the router to check if the signal strength has changed and whether the network is stable.
Please keep the antenna away from high-power equipment to reduce the impact on the signal.

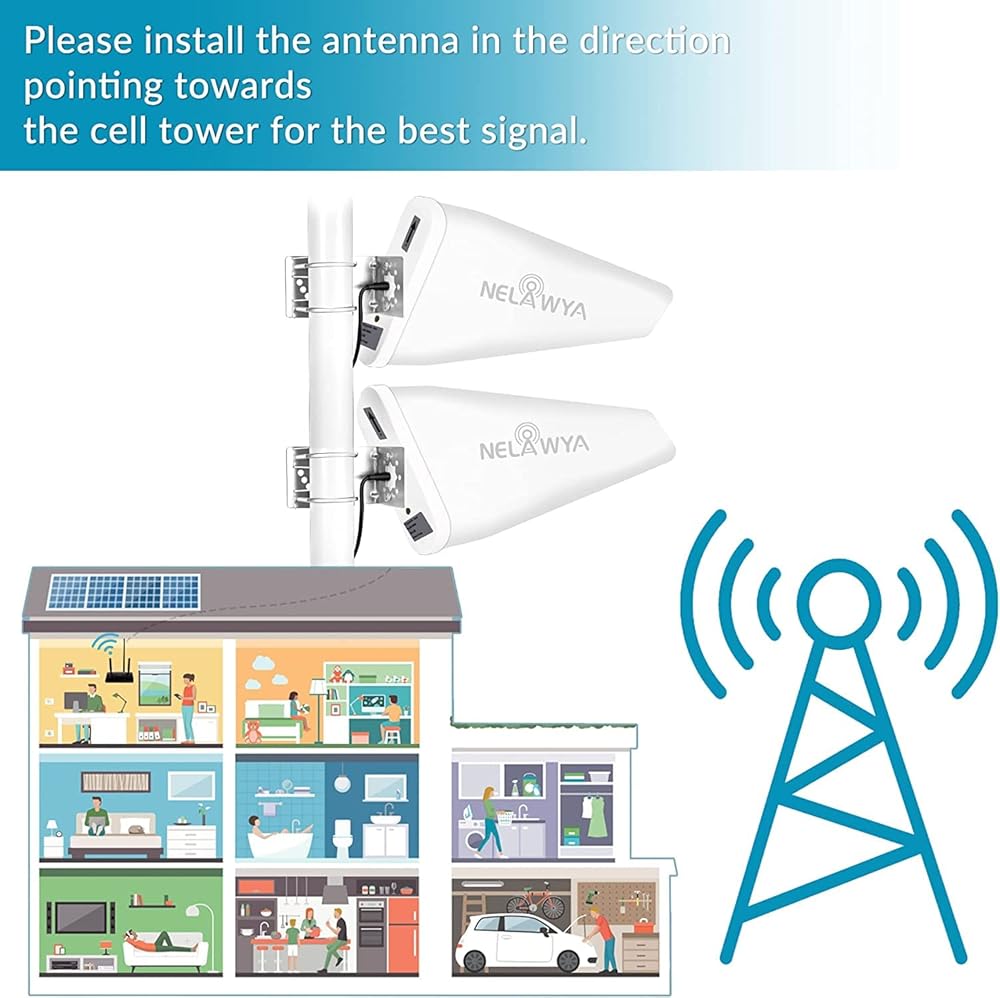

Signal transmission is affected by many factors, including distance, the density of high-rise buildings, view openness; The signal may be absorbed, reflected or interfered. Please try more installation positions to achieve the maximum transmission efficiency. The antenna is recommended to installed in a relatively open and high position, such as the roof, near the window or out of the window. If the antenna is placed indoors, the signal transmission distance will be reduced.
Anyone who finds a stable connection throughout the day but notices a serious deviation in the data rate only during peak hours is, unfortunately, perfectly normal, and even extra antennas offer little to no improvement. Since LTE is a "shared medium", the available capacity of the base station is always allocated among all users. So, statistically speaking, sometimes when a lot of people are online, each person's data rate can be greatly reduced.
The antenna cable can in principle be extended further, but for every additional meter you lose the "signal gain" generated by the antenna due to attenuation. How strong this is depends on the type and quality of the antenna cable.
