Feature:

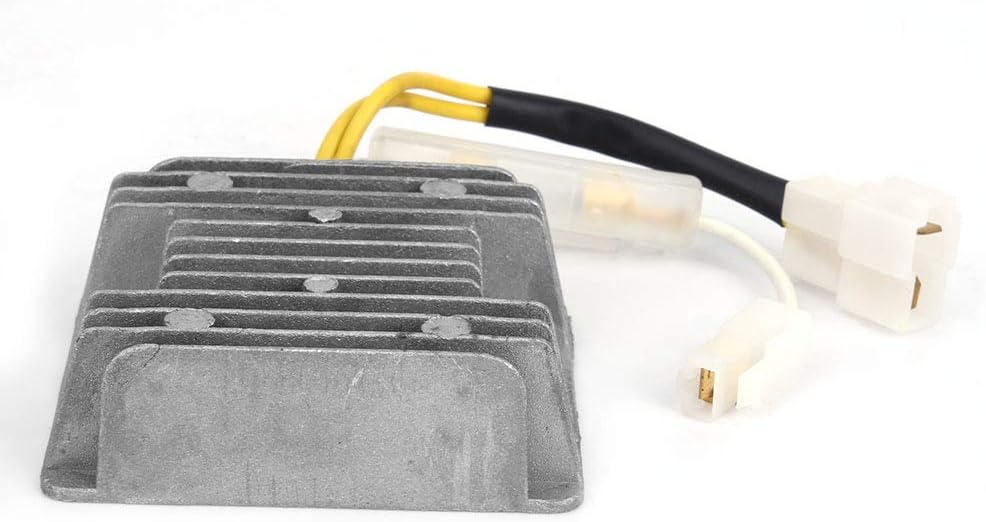

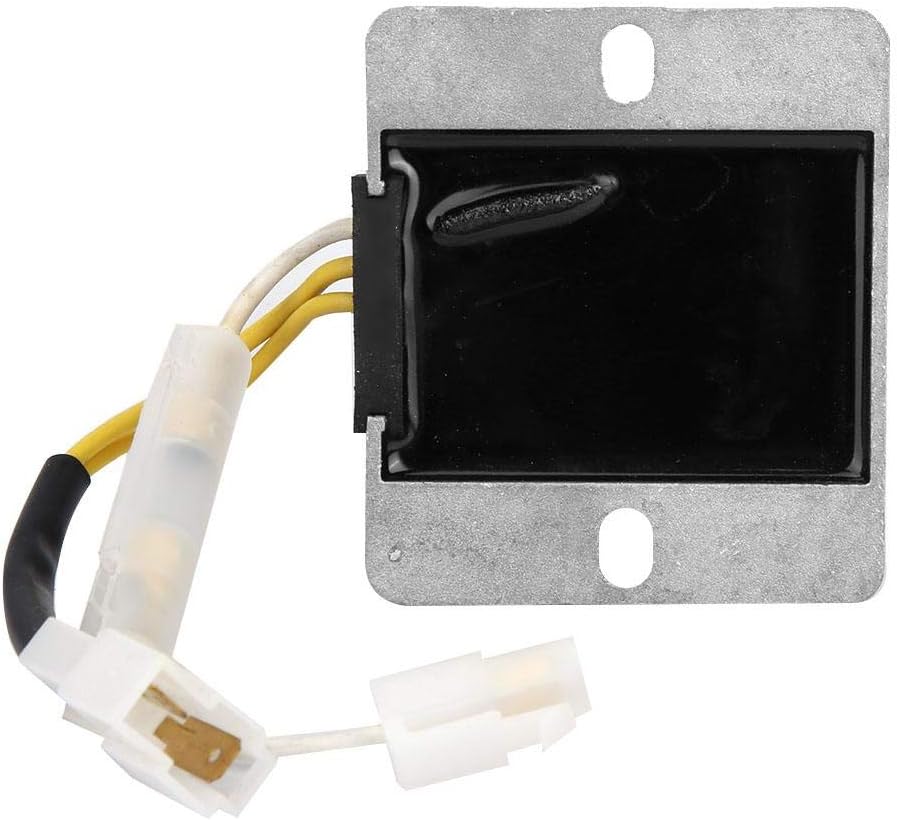

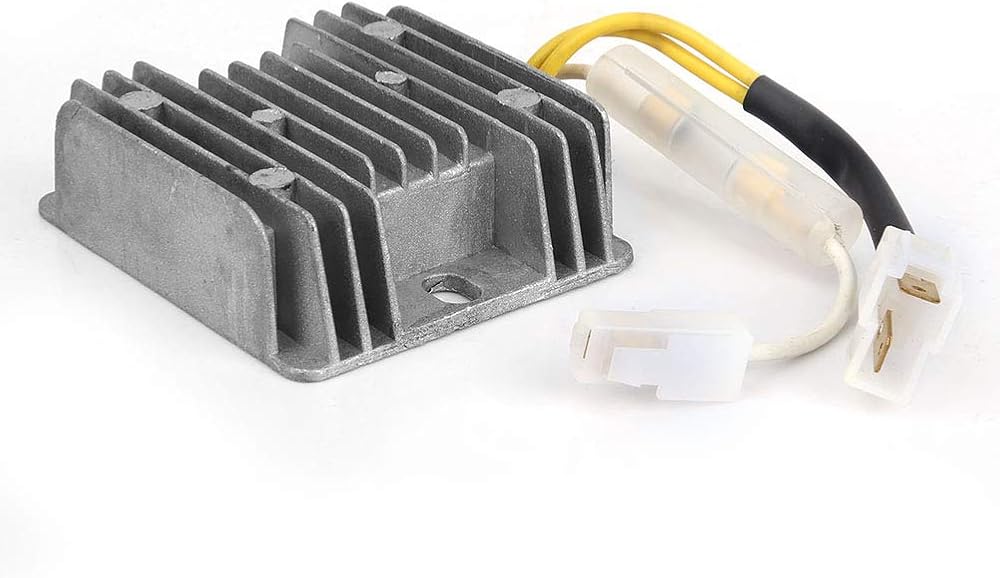

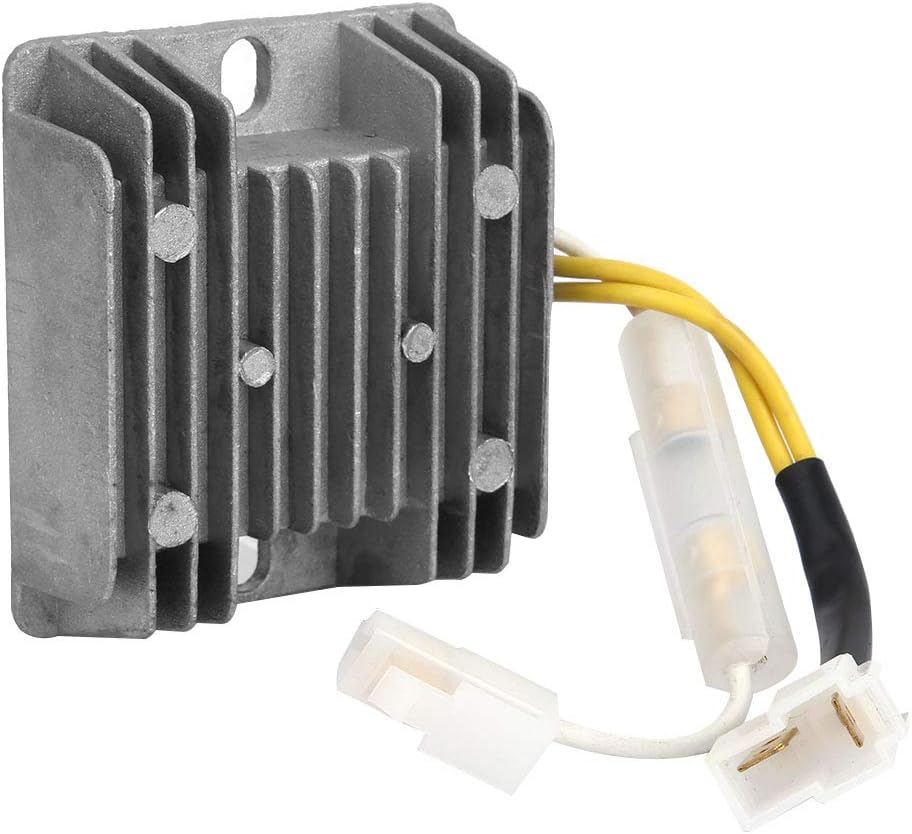

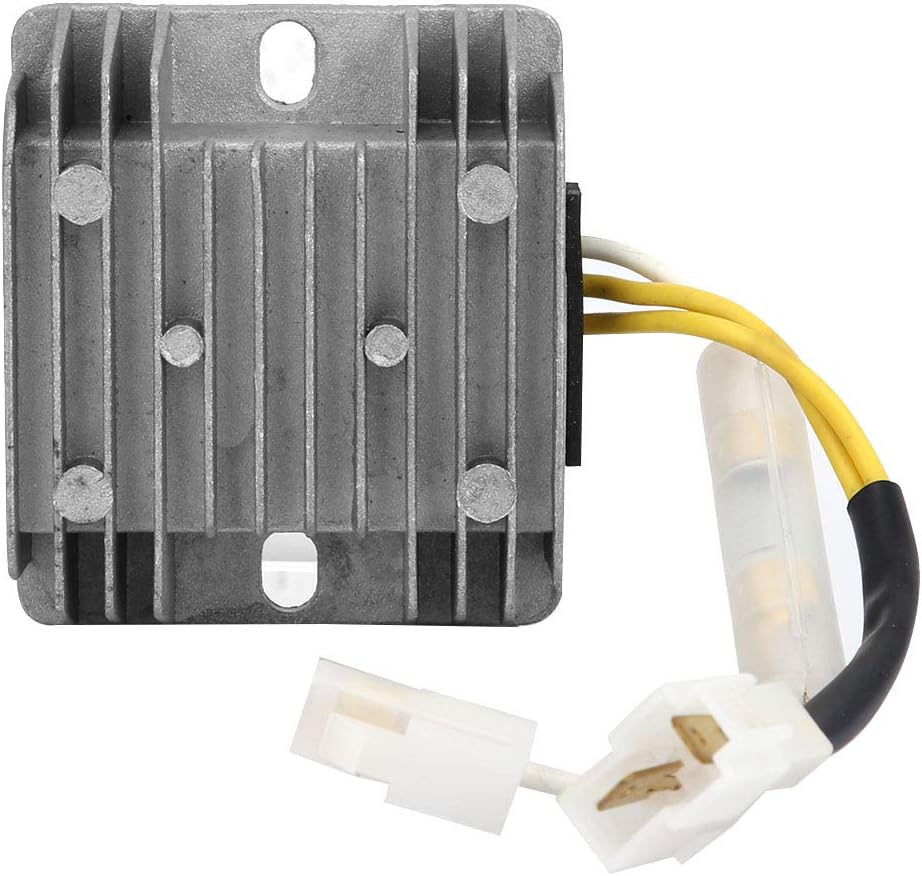

【Multifunction】 :This is a engine voltage regulator, AVR, rectifier. The two yellow lines are the AC input, the white line is the DC positive output, and the aluminum housing is the negative output.
【Adaptable】 :Wide voltage input, high load, The input AC voltage range is: 15-55V, and the output DC voltage is 13.5V.
【High Stability of Output】 :This regulator is a thyristor device that charges the battery at a constant voltage, with a thyristor half-controlled bridge.
【Easy to install and Use】 :This regulator has 2 plugs with a total of 3 wires, small volume, easy to install and convenient to use
【Useful Replacemnet 】:If your generator has no output and/or your battery isn't charging, this is the part that most likely needs replaced, but please make sure that your generator has these same connections

Specification:
Input voltage: 15 ~ 55V AC
Output voltage: 13.5 ± 0.5V DC
Output current: 8A-10A
Working temperature: -5 ° C ~ 65 ° C
Storage temperature: -20 ° C ~ 90 ° C
Dimensions: 75mm*61mm*28mm (L*W*H)
Suitable for: Permanent magnet flywheel generator
Working voltage: 14V (battery)
Weight: 170g

Package list:
1 * Diesel Generator Voltage Regulator

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
