The 1205 programmable series motor controller is preset for 48 Volt / 0-5KΩ, and thus will not work on 24 or 36 volts, or other throttle types apart from 0-5KΩ. However, it can be adjusted with a CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station for use with 36 voltage. Please note that 24V compatibility remains unavailable.

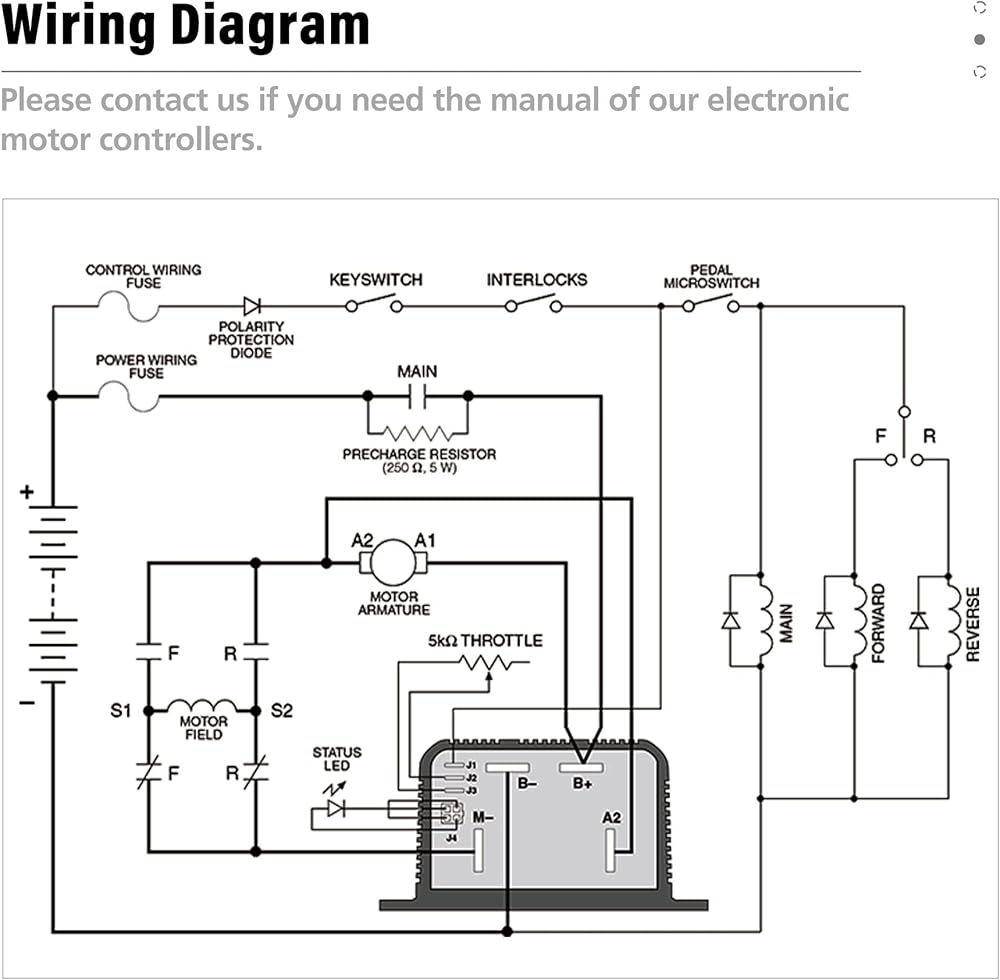

Note: By default, the J5 terminal of the new 1205M controllers is not activated. The controller wiring is the same as the old 1205M controllers without a J5 terminal.

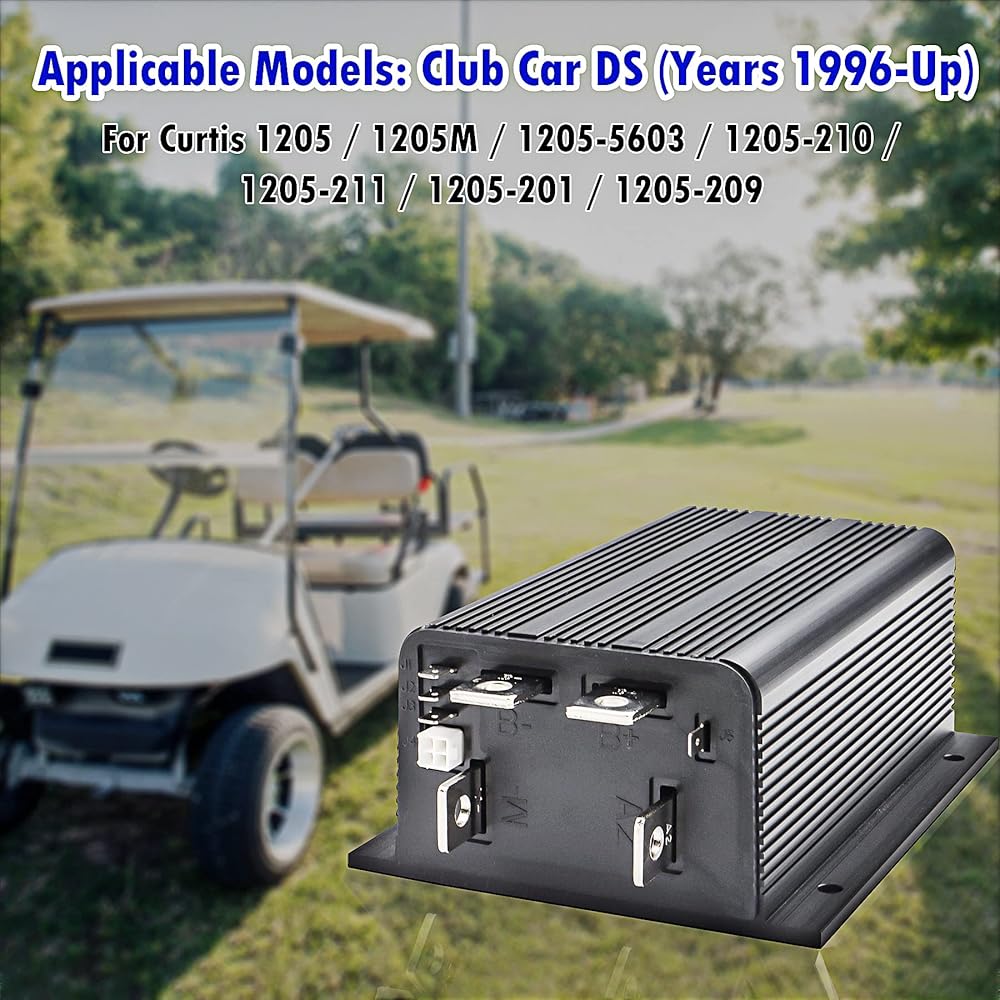

Key Features: For CURTIS 1205/1205M/1205m-5603/1205-210/1205-201/1205-209/1205-211/1205m-5601

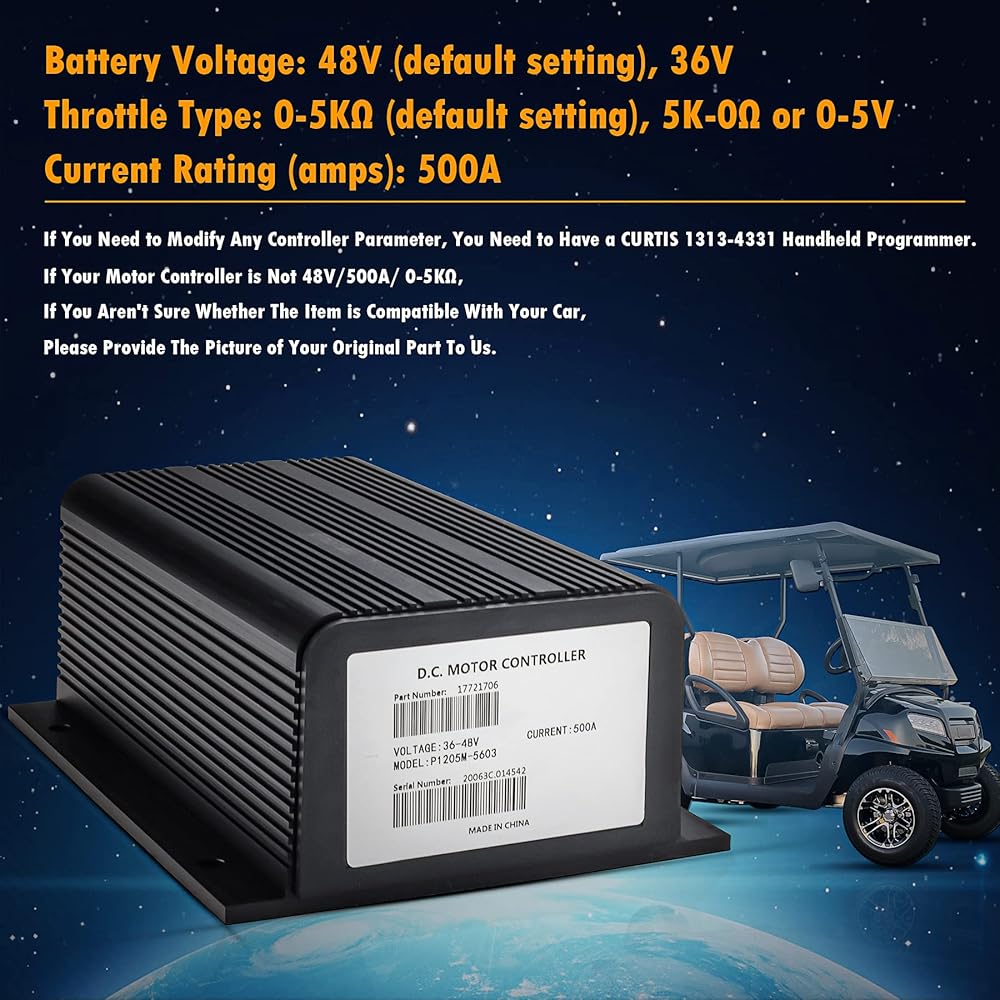

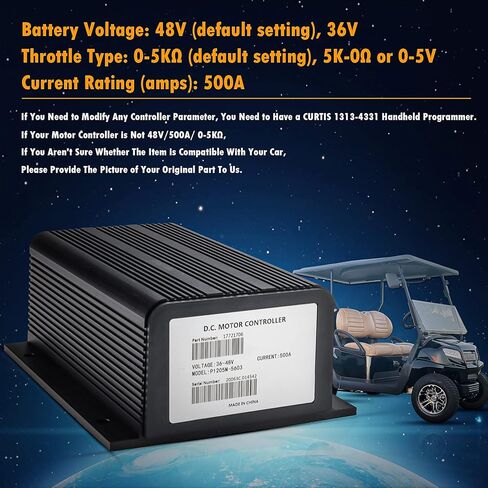

Nominal Battery Voltage (Volts): 48V (default and preset setting for instant use) or 36V ( adjustable with a 1313 programmer to set)
Fitment: Compatible with EZGO 1996-up Golf Cart
Current Rating (amps): 500A (Compatible with 200A, 300A, 325A or 400A)
Throttle Type: 0-5KΩ (default and preset for instant use)
Ten throttle types can be used with the controllers (adjustable with a1313 programmer):
Type 0: 2-wire potentiometer, 0–5kΩ (default and already preset setting for instant use);
Type 1: 2-wire potentiometer, 5kΩ–0;
Type 2: single-ended 0–5V input;
Type 3: 2-wire potentiometer, 4.6kΩ–0;
Type 4: 2-wire potentiometer, 5.5kΩ–0;
Type 5: 2-wire potentiometer, 1kΩ–0;
Type 6: ITS input;
Type 7: single-ended 6.3–10.6V input;
Type 8: single-ended 6–12V input;
Type 9: single-ended 3-wire potentiometer, 0–5kΩ
If You Aren't Sure Whether The Item is Compatible With Your Car, Please Contact us - we'll reply within 24 hours.
