مميزات خاصة

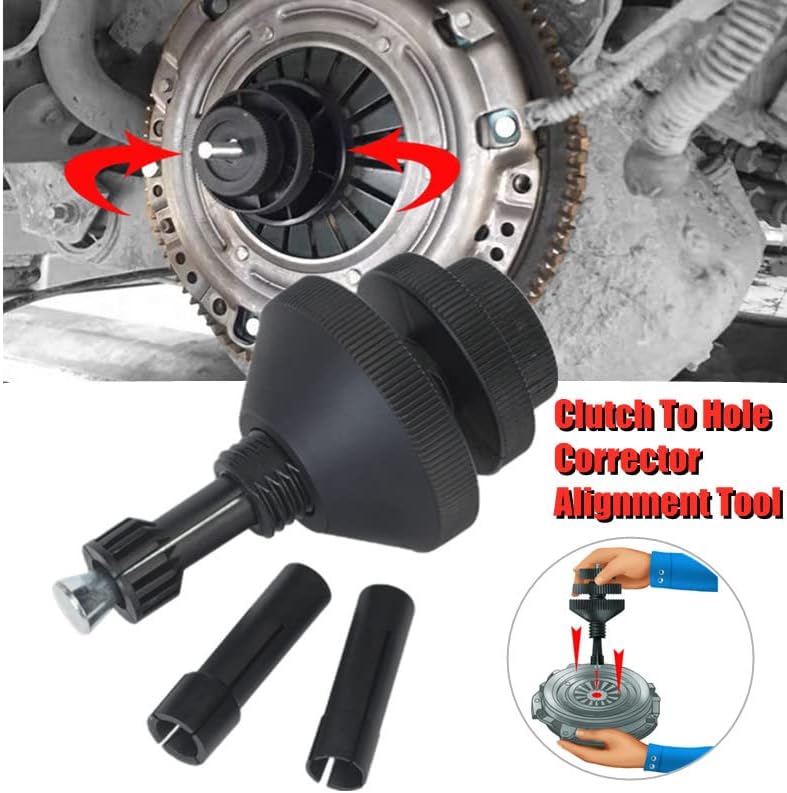

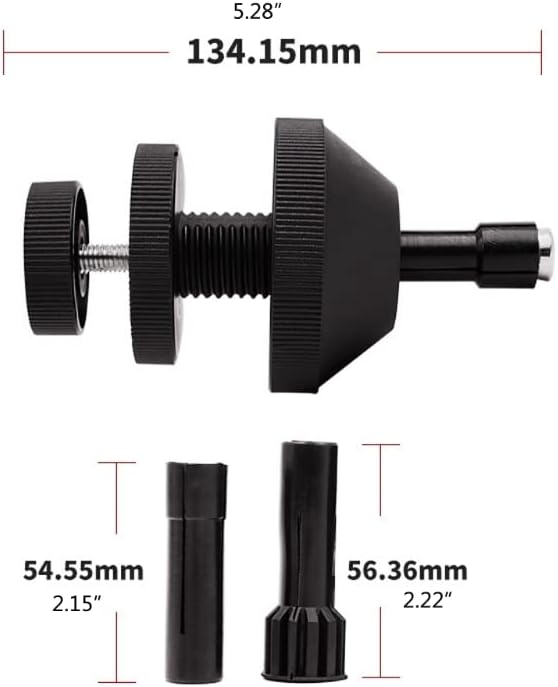

Car clutch vacancy calibration tool can be used in the range of 14.4-21mm 20.9-29mm.

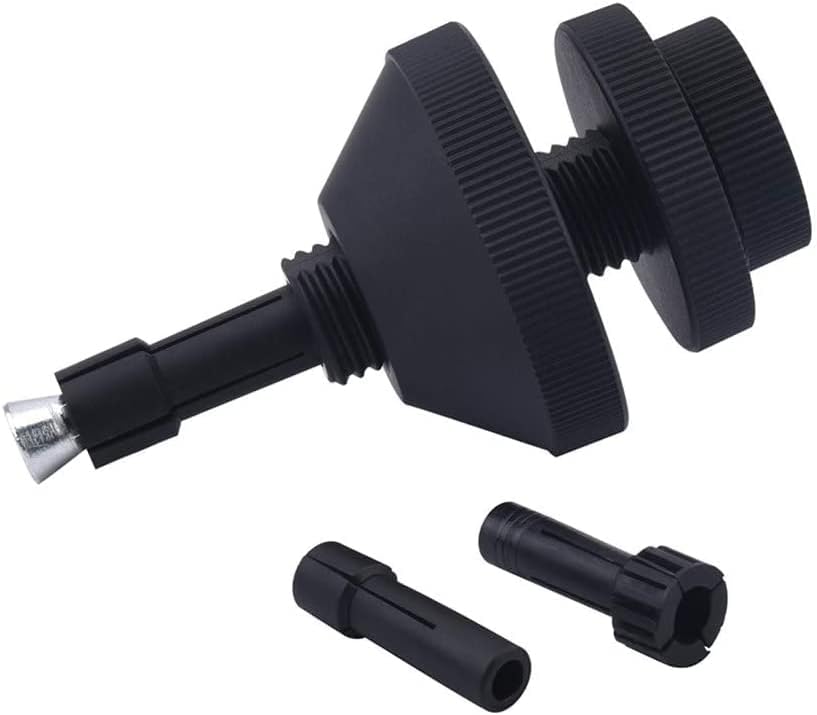

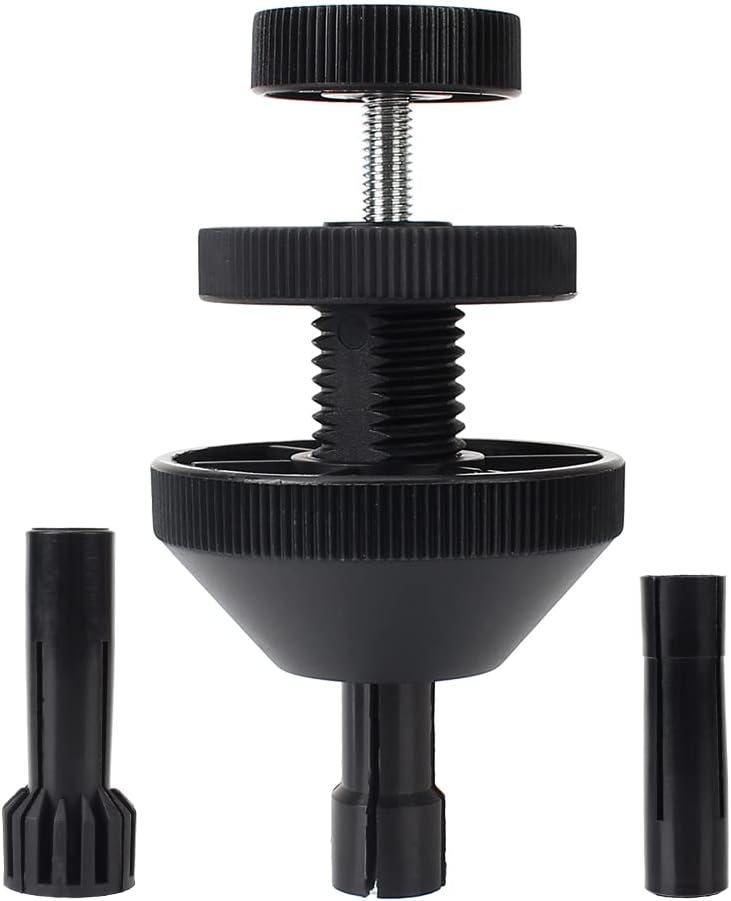

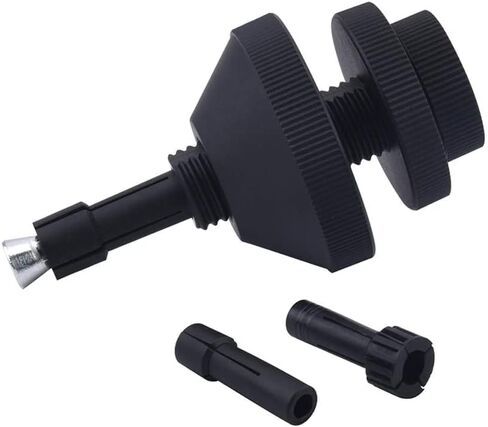

Fits 90% of cars and light track up to 5tons gross (not suitable for Minis or vehicles with double plate clutches). Also suitable for front wheel drive vehicles. Supplied with two different sized expanding collets.

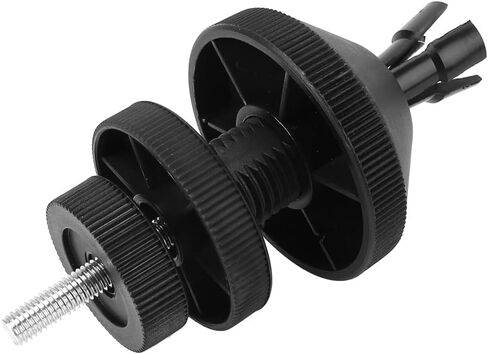

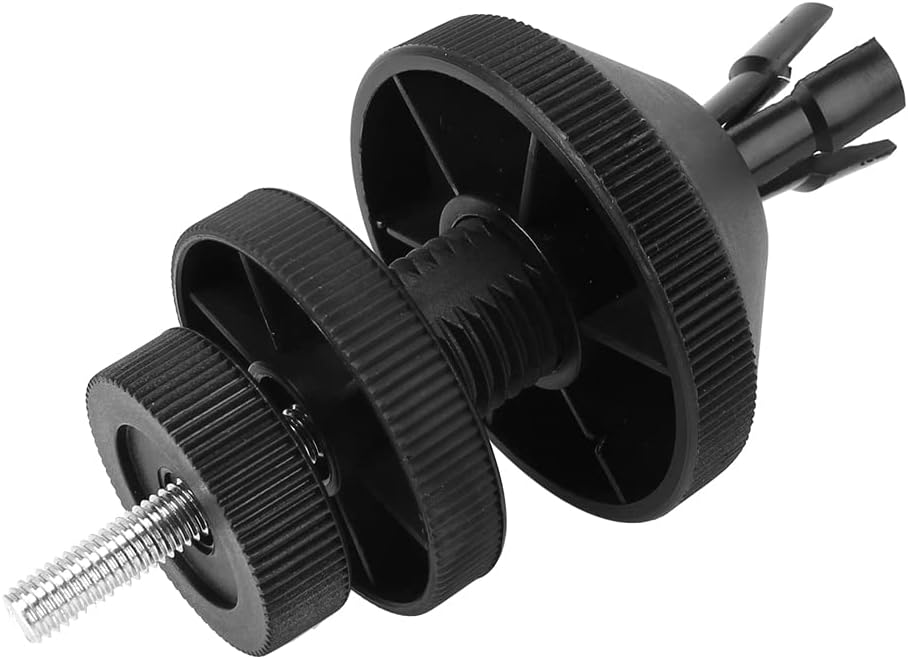

Nylon components with brass main shaft. Allows the clutch plate and the pressure plate to be assembled on the bench, making clutch changes a one handed operation.

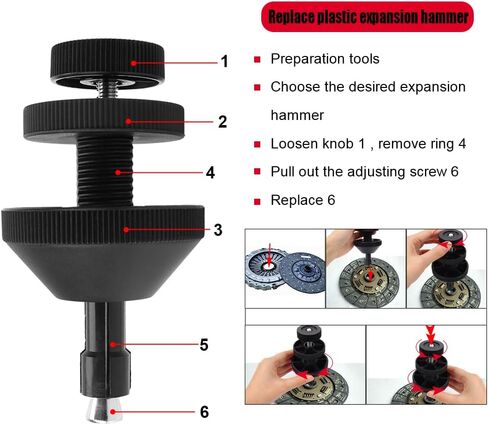

Thread the funnel wheel onto the centre body, with ribs facing the same direction as those on the fixed wheel that is the smooth side of the wheel facing away from the fixed wheel. Select the suitable collect, depending on clutch size, and slide onto the centre shaft. Insert centre shaft and collect through centre body and thread small wheel onto the end of the shaft.

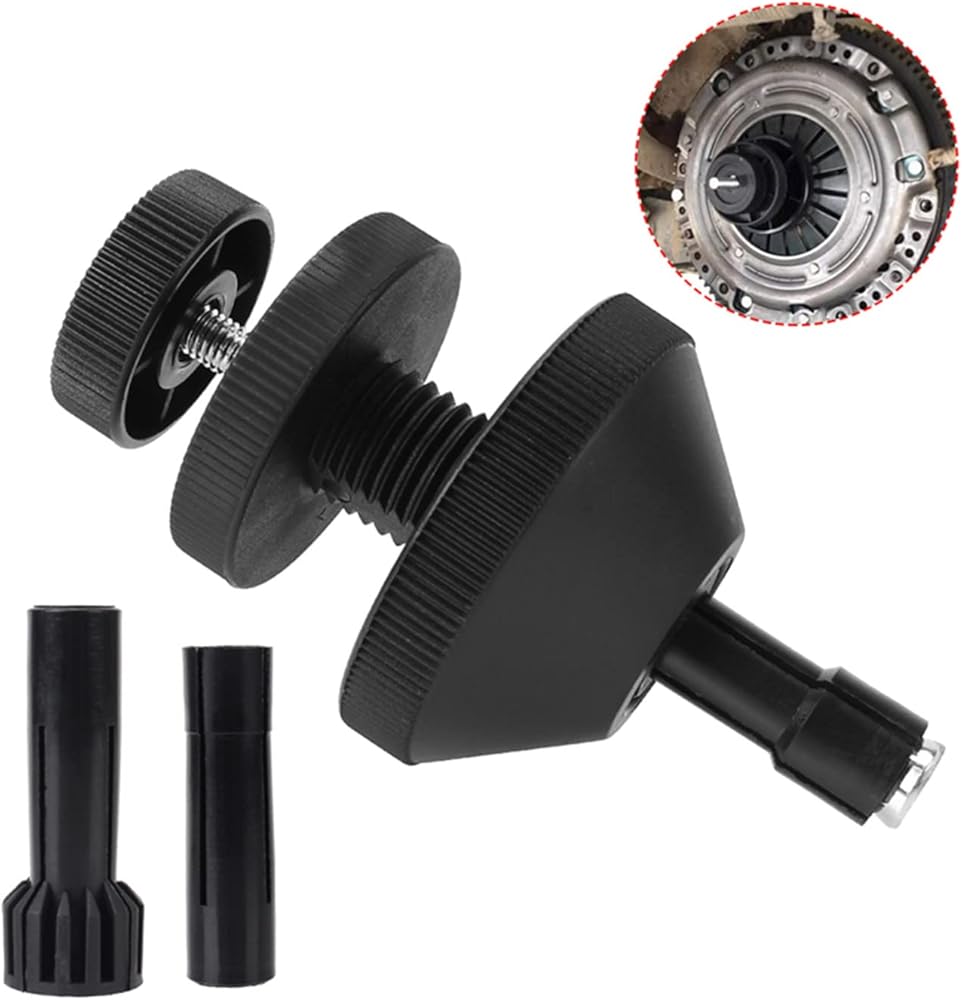

Allows for manual fixing (centring) and applying the clutch disc to the pressure plate in cars and trucks during installation.

وصف

Instructions:

Step 1. Place clutch plate over pressure on workbench, insert tool through centre and push down.

Step 2. Tighten the small wheel to expand the collet which is inside the clutch plate.

Step 3. Tighten the funnel wheel until contact is made with the pressure plate then turn both plates over.

Step 4. Align both plates together by slipping them sideways until both edges are parallel, then tighten the funnel shaft, holding both plates together.

Step 5. Install the both plates to the flywheel, then remove the tool by loosening the small wheel.

Package Included:

2x Sleeve anchors

1x Strut sleeve
