مميزات خاصة

【Multifunction】DROK digital multimeter is a high precision coulombmeter that can accurately measure voltage, current and capacity of battery in real time, it can help accurately understand the working status of battery. It is designed for monitoring output voltage and current, as well as battery charging and discharging, etc.

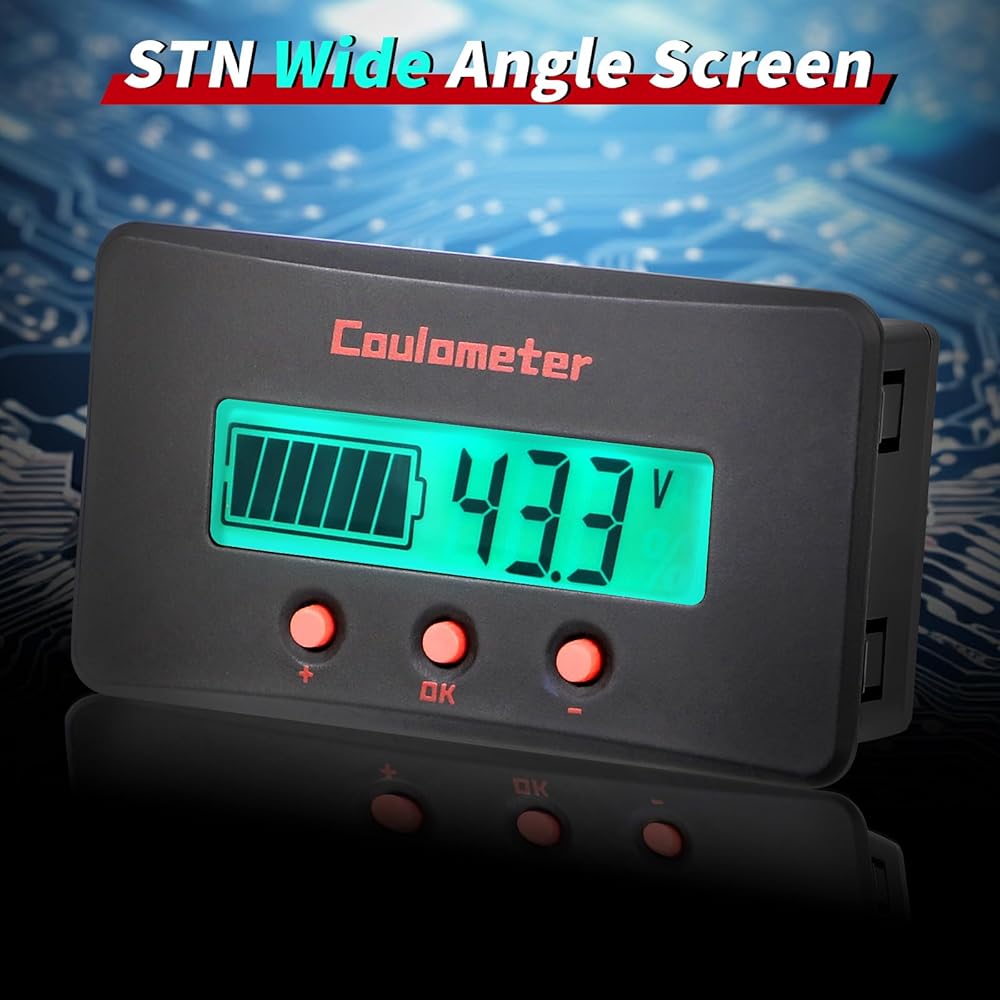

【Wide Angle Screen】DROK Coulombmeter is designed with wide viewing angle high contrast curved LCD screen, can be easily read anywhere. Further more, it can also be read in dark or low light conditions thanks for the backlight design.

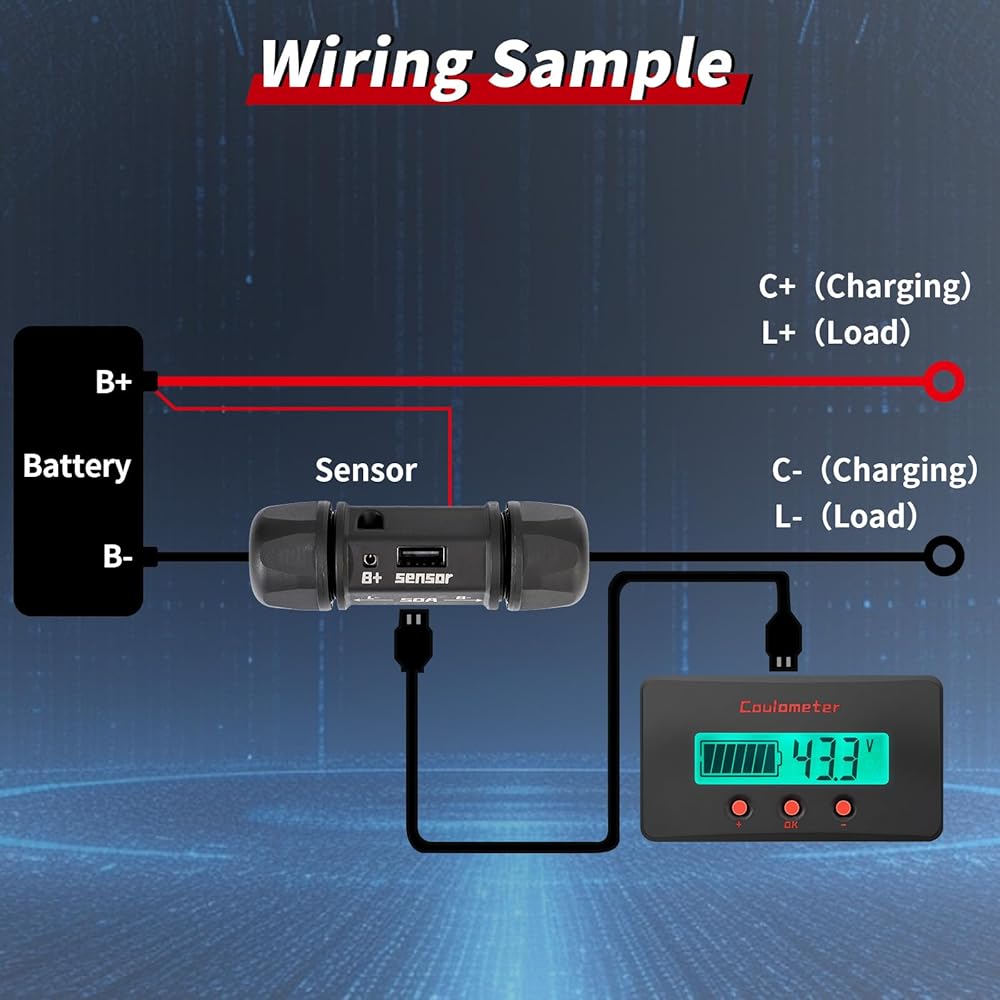

【Bi-Directional Tester】DROK multimeter can monitor the battery while it charging or discharging. The battery terminal wiring remains unchanged，switch the load terminal to change charging mode.
【Easy to install】 Easy to install and use. Please follow the constructions of user mannual step by step. This multimeter comes with a buckle design and is embedded for installation. The connection between DROK multimeter and the current sensor is very convenient through a USB-USB cable.
【Application】It is applicable for 8-120v various batteries such as lead acid,ternary polymer,iron phosphate and other lithium battery. Can be used as battery voltage meter, battery capacity tester panel for motorcycle, golf carts, car, marine, RV, boat, solar generator.

وصف

Parameters:
Working Voltage: 8-120V
Current: 0-100A
Power consumption: 0.5mA(sleeping)/5mA/(working)

Features:

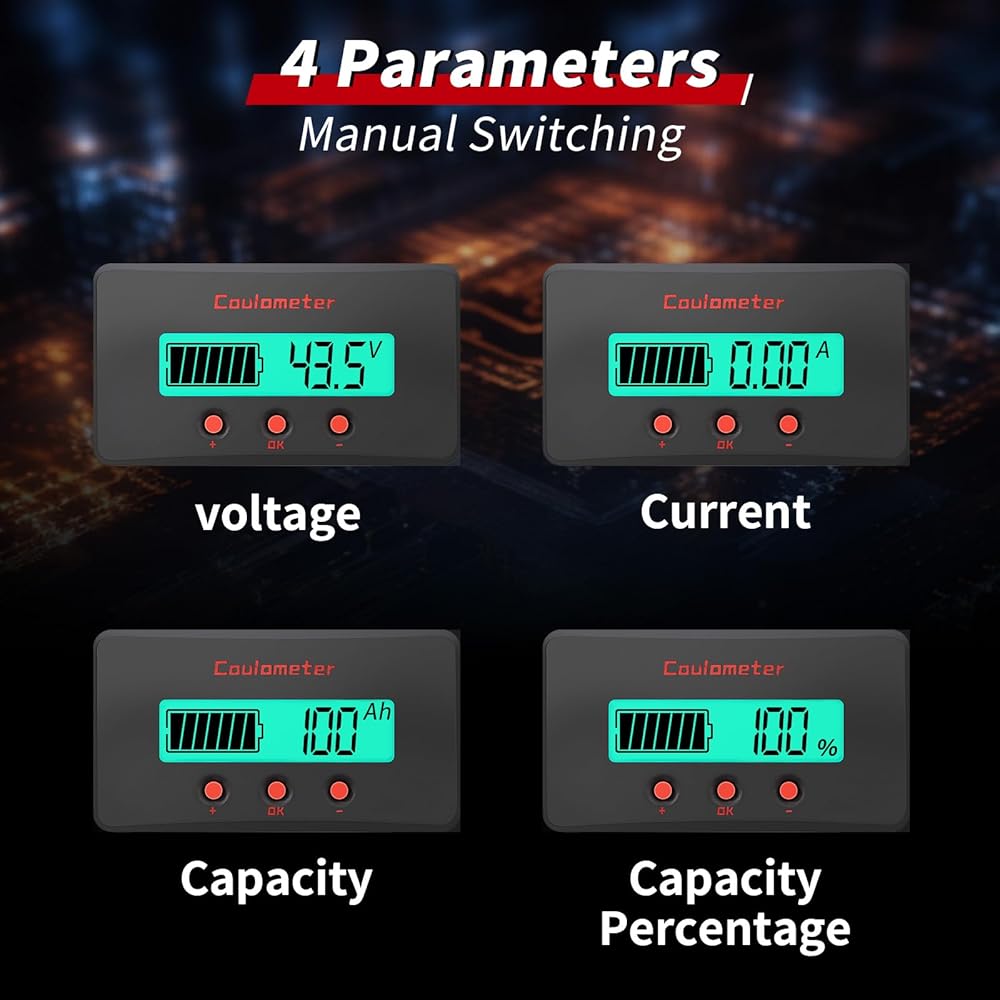

LCD Display: This multifunctional device can display various physical parameters including real-time voltage, current, power, remaining capacity, and usage time. Featuring an LCD display, the product provides comprehensive and clear data.
Switch ON/OFF -- Designed with the turn on/off switch, convenient for daily using.

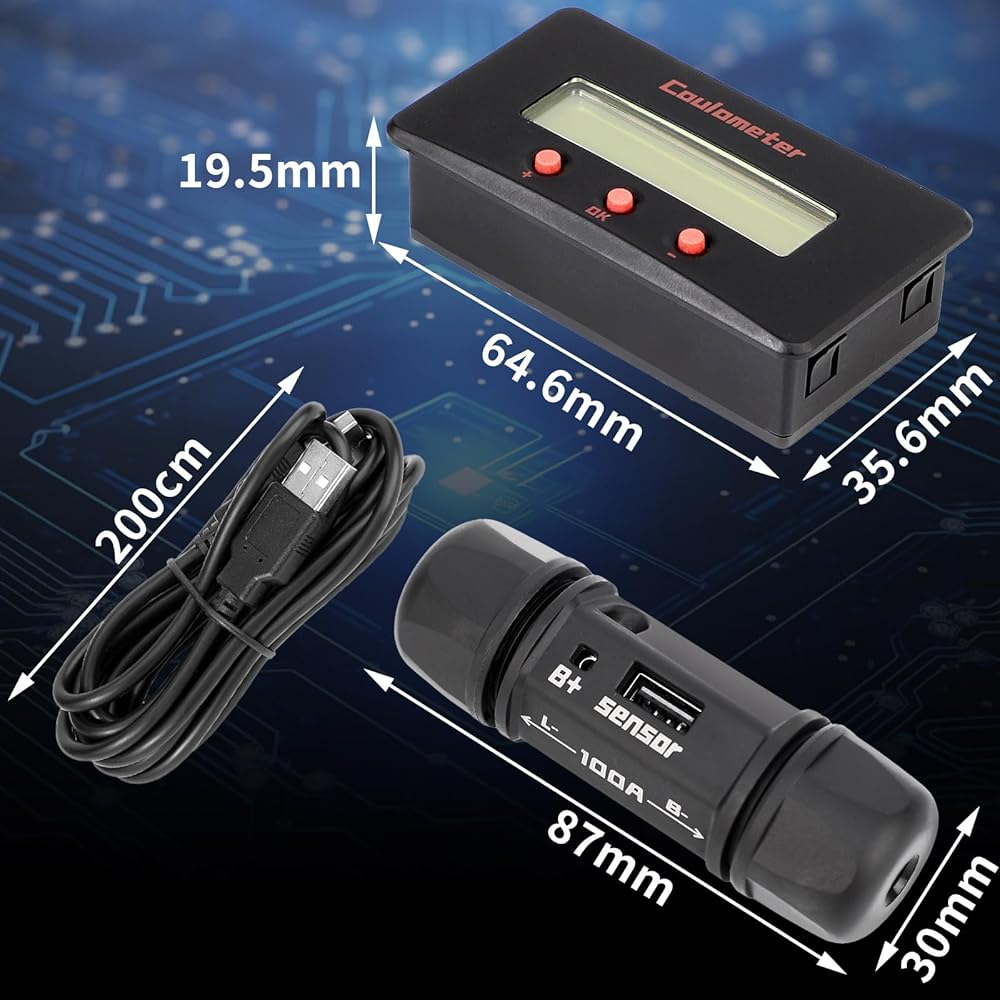

Size Information:
Product size: 64.6x35.6x19.5mm
Installation dimension: 61x32mm

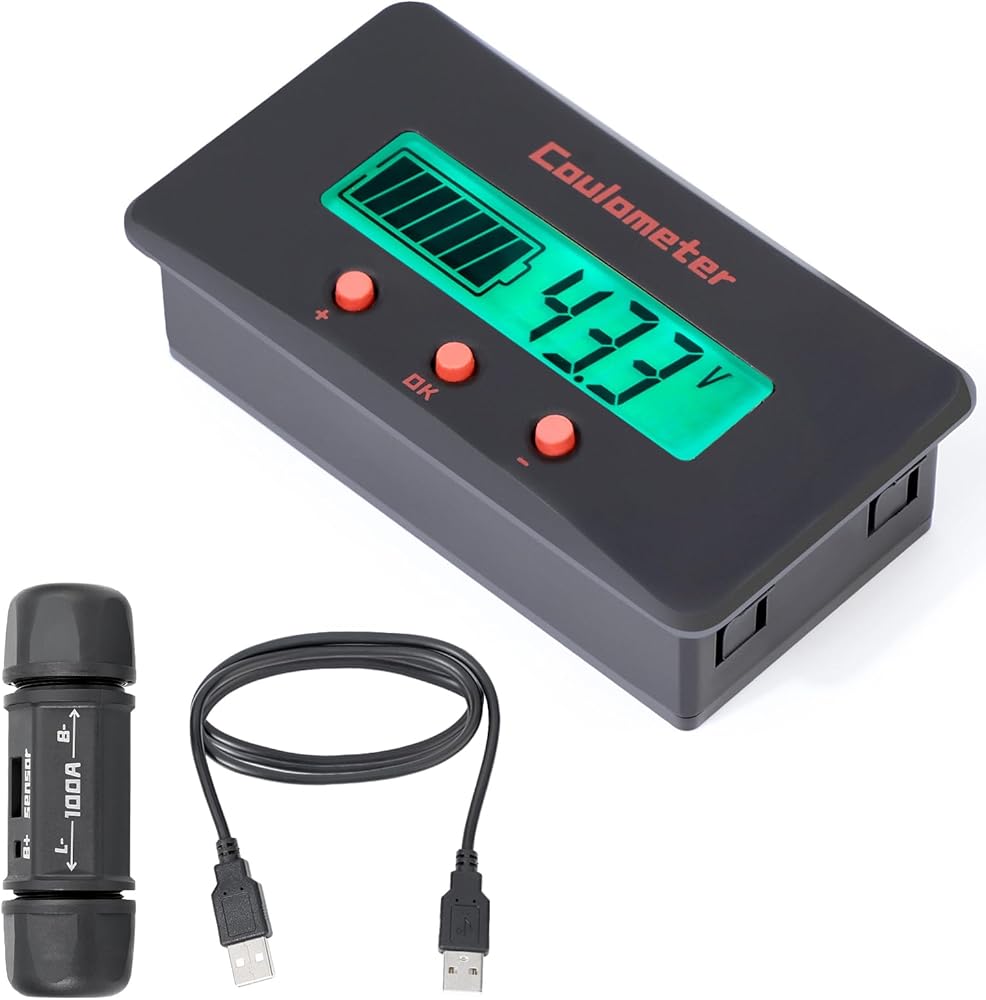

Package Includes:
1x 120v Battery Meter
1x Current Sensor
1x 2m USB Cable
