Specification
Input voltage range- 32-70V
Low voltage deconnectioning threshold - 28V
Reconnection undervoltage threshold- 30V
Output voltage adjustment range – 10-15V
Yield- 87%
DC output current has nominal output voltage and has 25C - 9A
Maximum output current- 12.5A

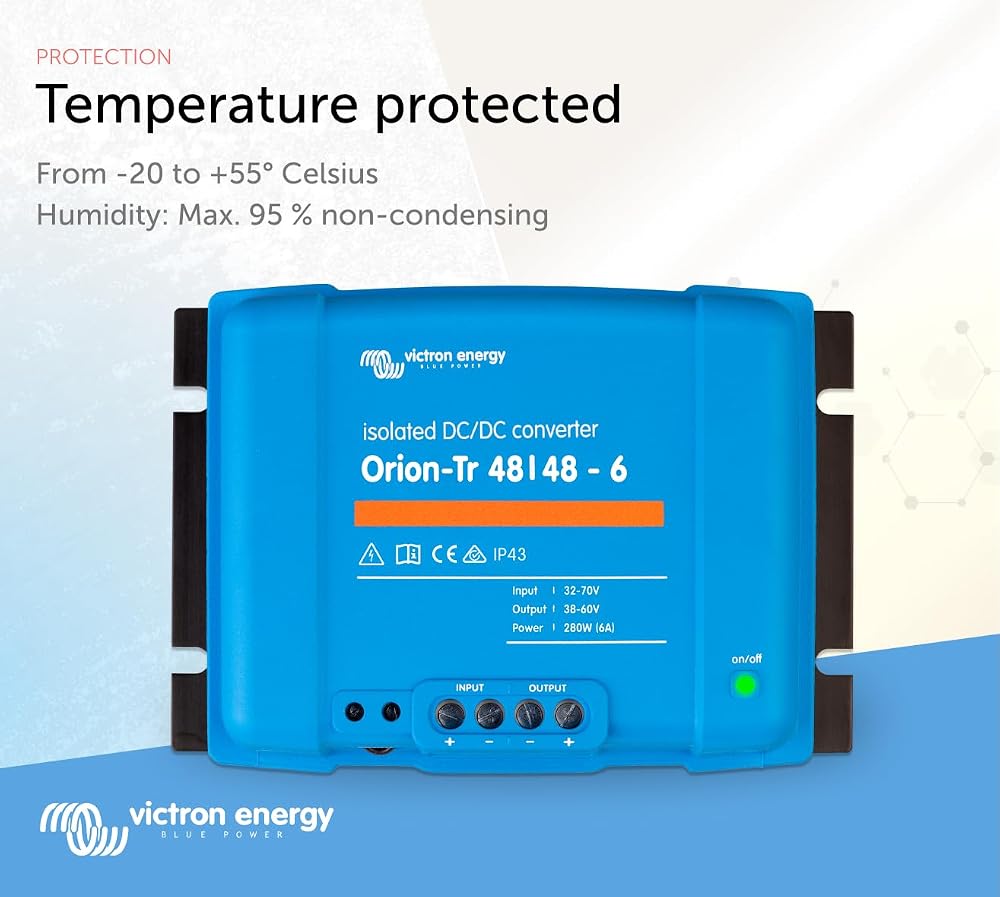

Operating temperature range (3% reduction per °C above 40°C) --20 to +55°C

Dimensions:
Height (mm) - 100
Width (mm) - 113
Depth (mm) - 47
Weight (kg) – 0.42
Warranty
5 years
Description

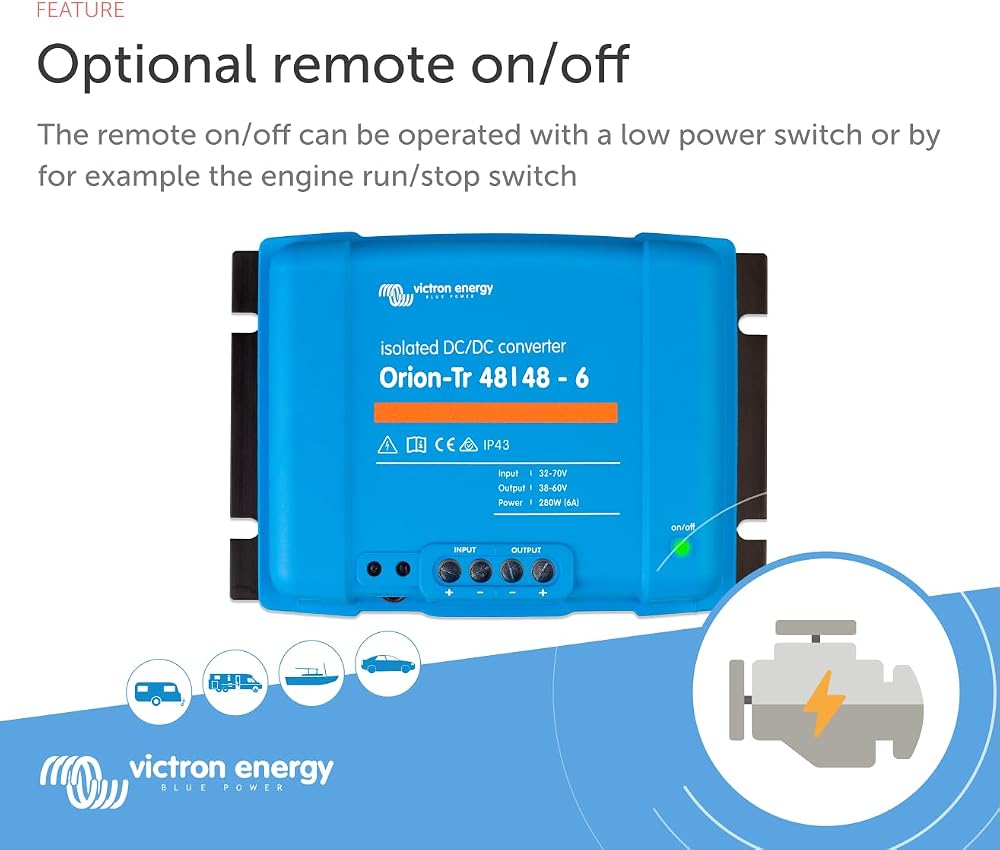

Remote on/off connector
The on-off remote connector makes the need for a high current switch on the input wiring unnecessary. The on-off remote connector can be operated from a low power switch or, for example, from an engine on/off switch (see manual).
Adjustable output voltage: it can also be used as a battery charger e.g. to charge a 12 V starter battery or a service battery in a 24 V system.

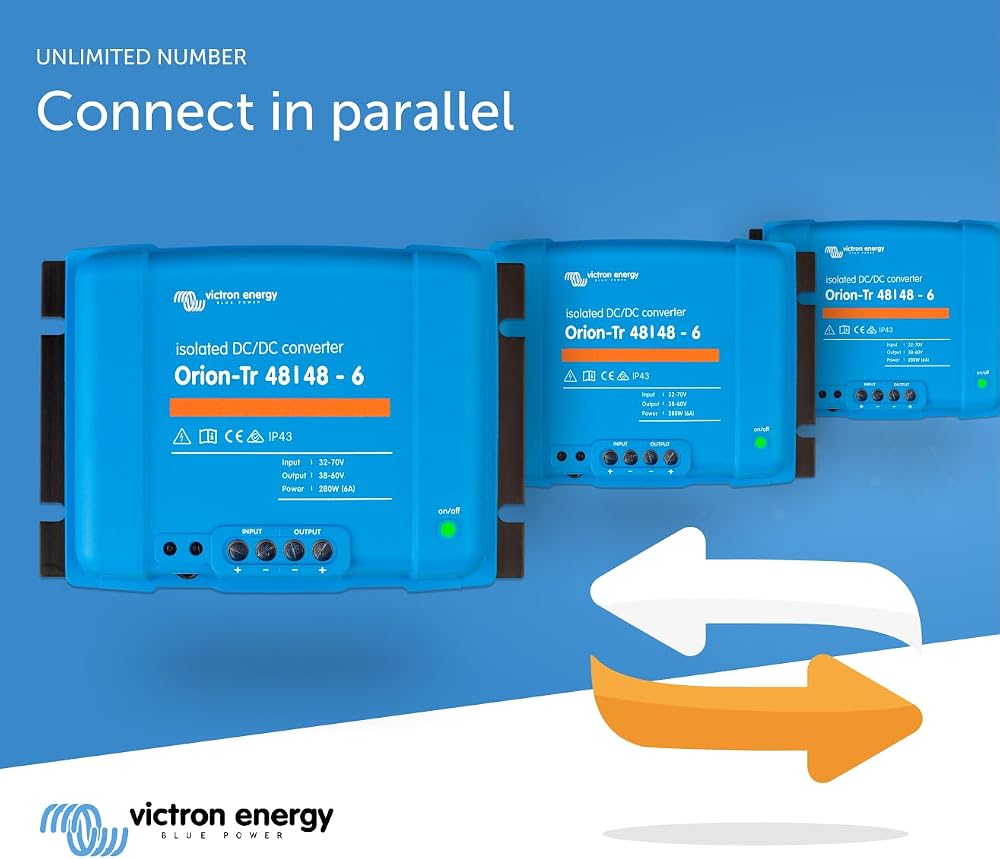

All models are short-circuit protected and can be installed in parallel to increase the output current. An unlimited number of units can be connected in parallel.
IP43 protection: If the installation is done with screw terminals, point down.
Screw terminals: No specific tools are required for installation.
Input fuse: On 12 models
