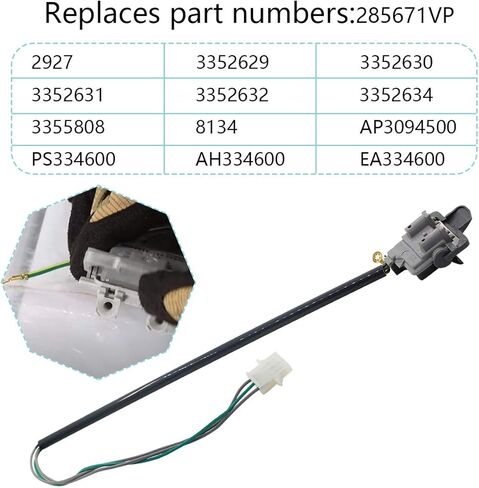

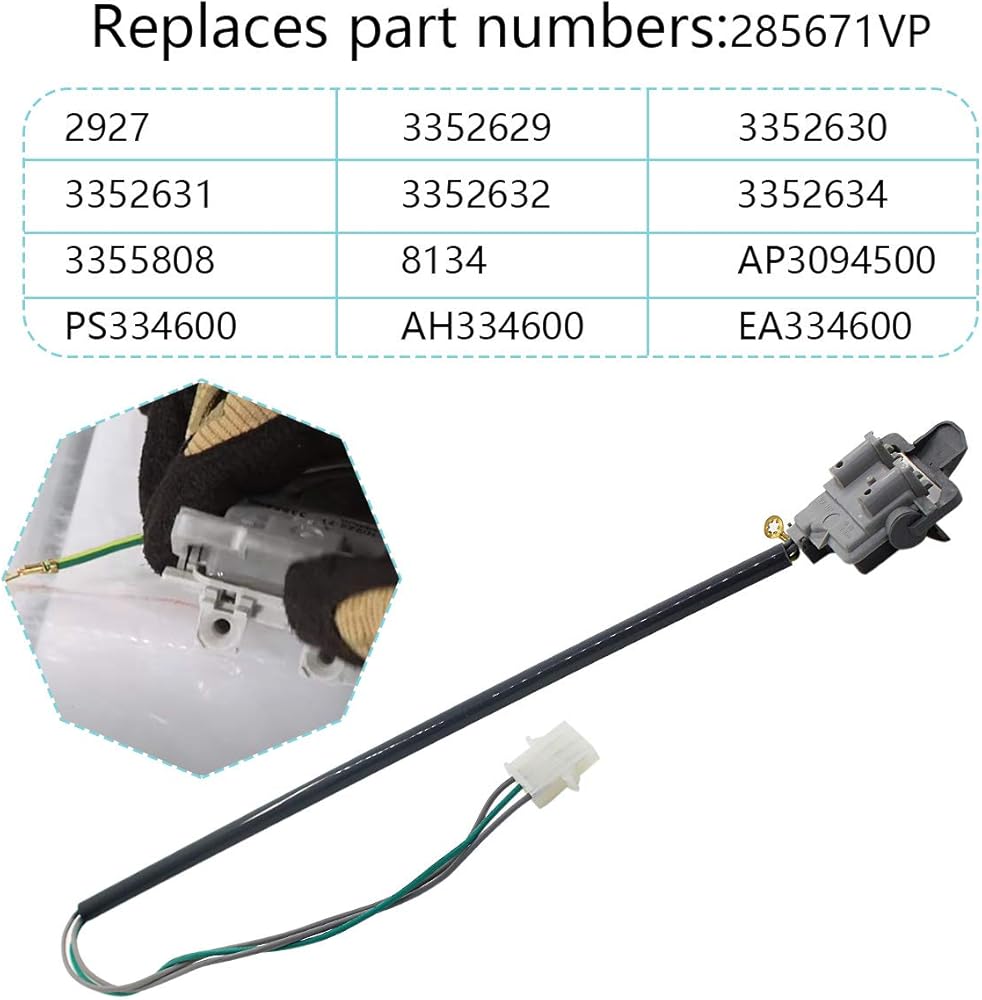

Replaces part numbers:
285671VP, 2927, 3352629, 3352630, 3352631, 3352632, 3352634, 3355808, 8134, AP3094500, PS334600, AH334600, EA334600.

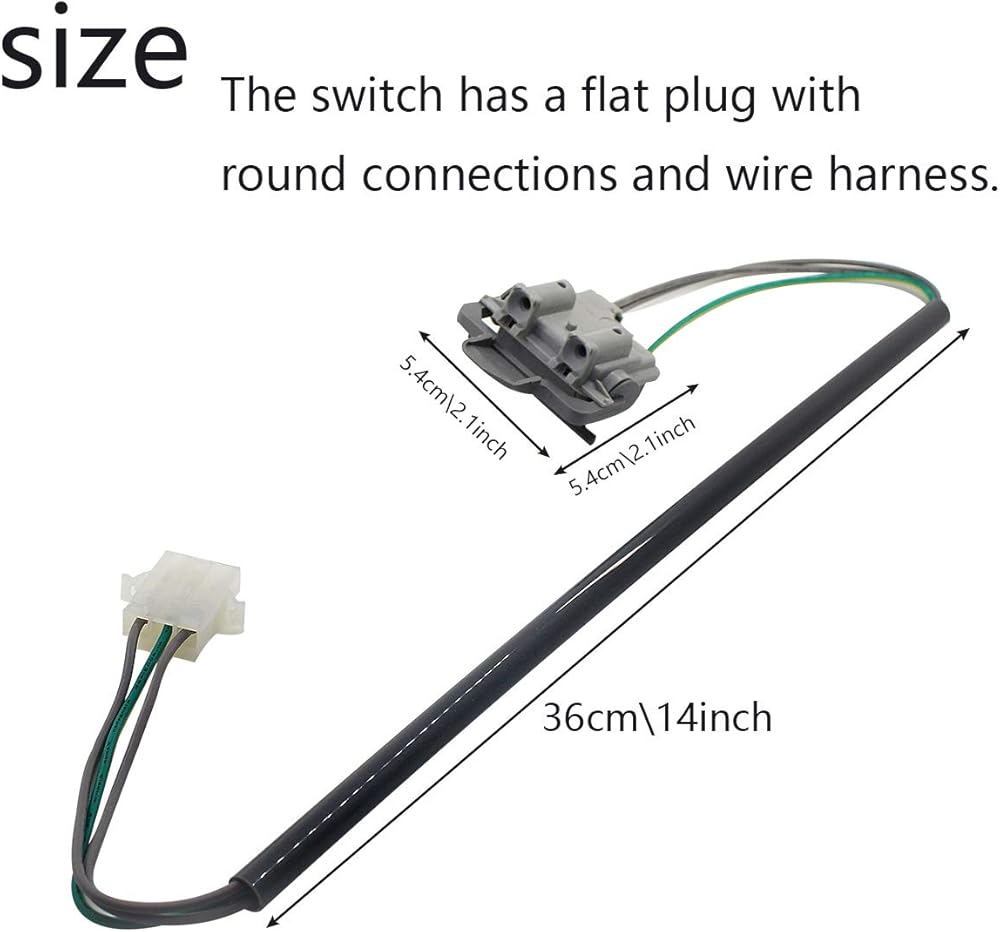

The switch has a flat plug with round connections and wire harness.

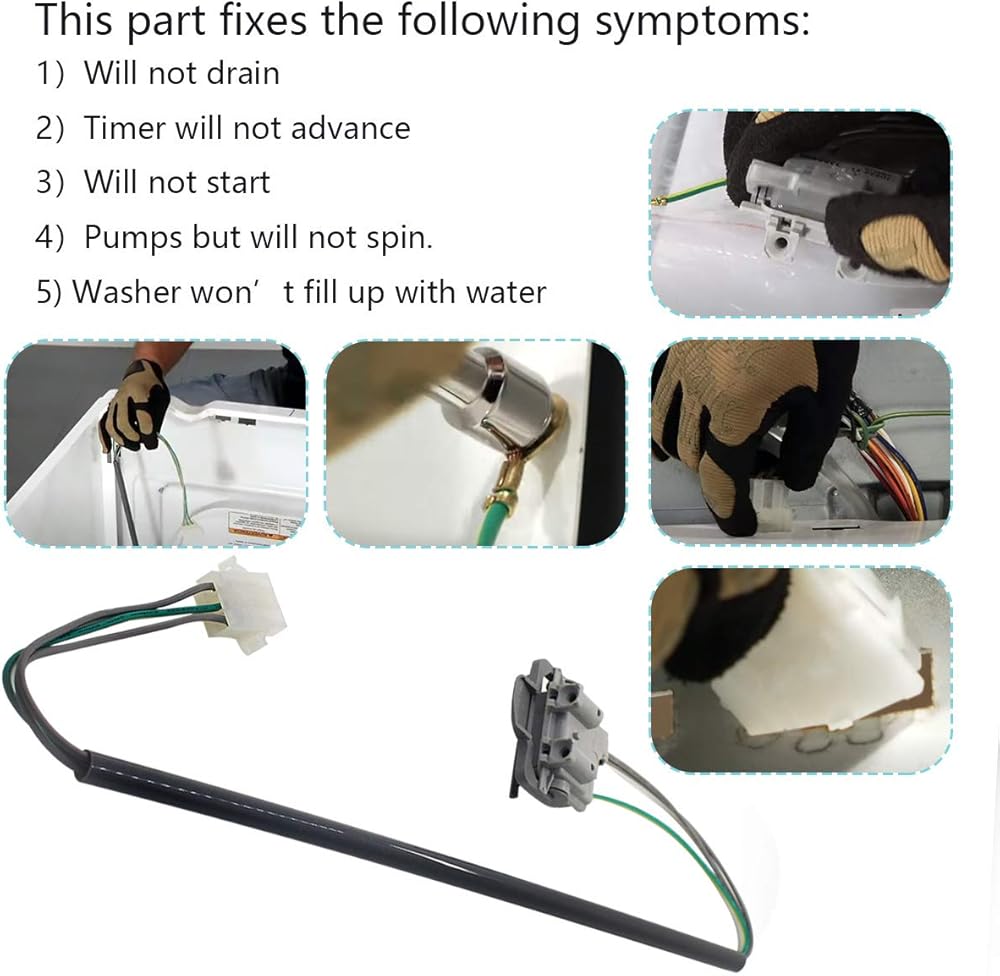

This part fixes the following symptoms:
1）Will not drain
2）Timer will not advance
3）Will not start
4）Pumps but will not spin.
5) Washer won't fill up with water

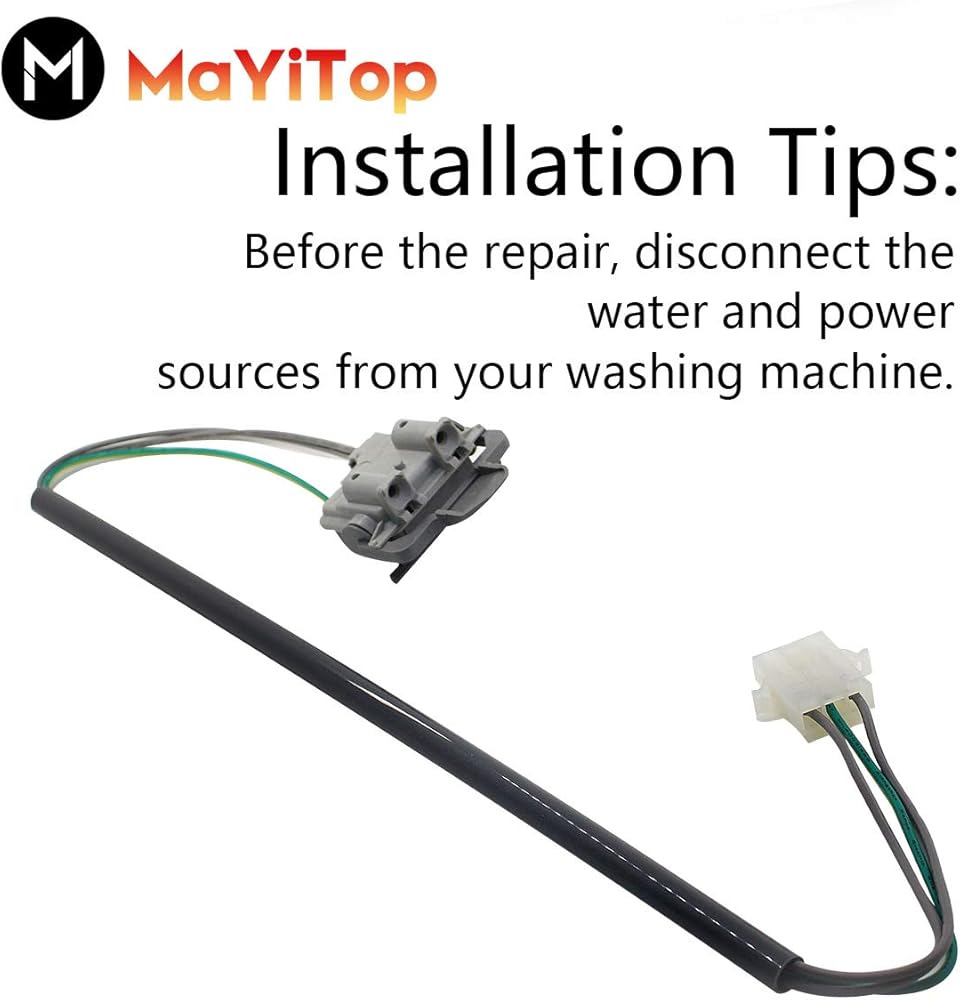

Installation Tips:
Before the repair, disconnect the water and power sources from your washing machine.

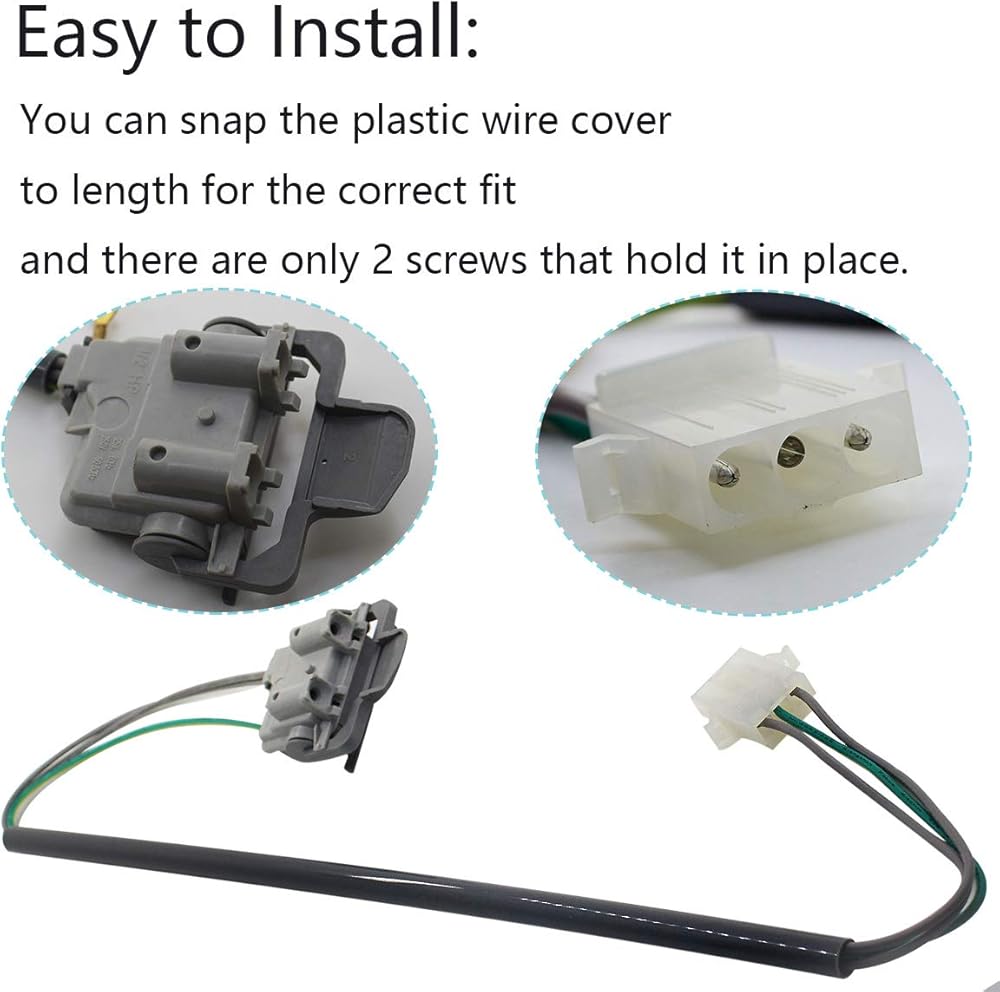

Easy to install:
1) Unplugged the Washer and disconnected the hoses, so you could slide the washer into the kitchen.
2) Unfastened the two screws in the front lower corners of the controls panel and tilted is back. Unfastened the old lid-switch wiring from the control panel
3) Remove the clips at the two corners under the control panel. Rotate the cover forward to clear it from the back and lifted it off and set it off to the side.
4) While you had the Washer disassembled,you could vacuumed out all the accumulation of dust
5) Removed the lid switch and unfastened the ground wire.
6) Installed the new switch and reassembled the Washer.
