Name: مجموعة أدوات HQMaster مجموعة أدوات طحن القطع باستخدام الحاسب الآلي (4 أنواع، كل 10 قطع) بما في ذلك مطحنة نهاية مسطحة/كروية، مطحنة نهاية أربعة مزامير و10 قطع نقش على شكل حرف V
Brand: HQMaster
Availability: InStock

مميزات خاصة

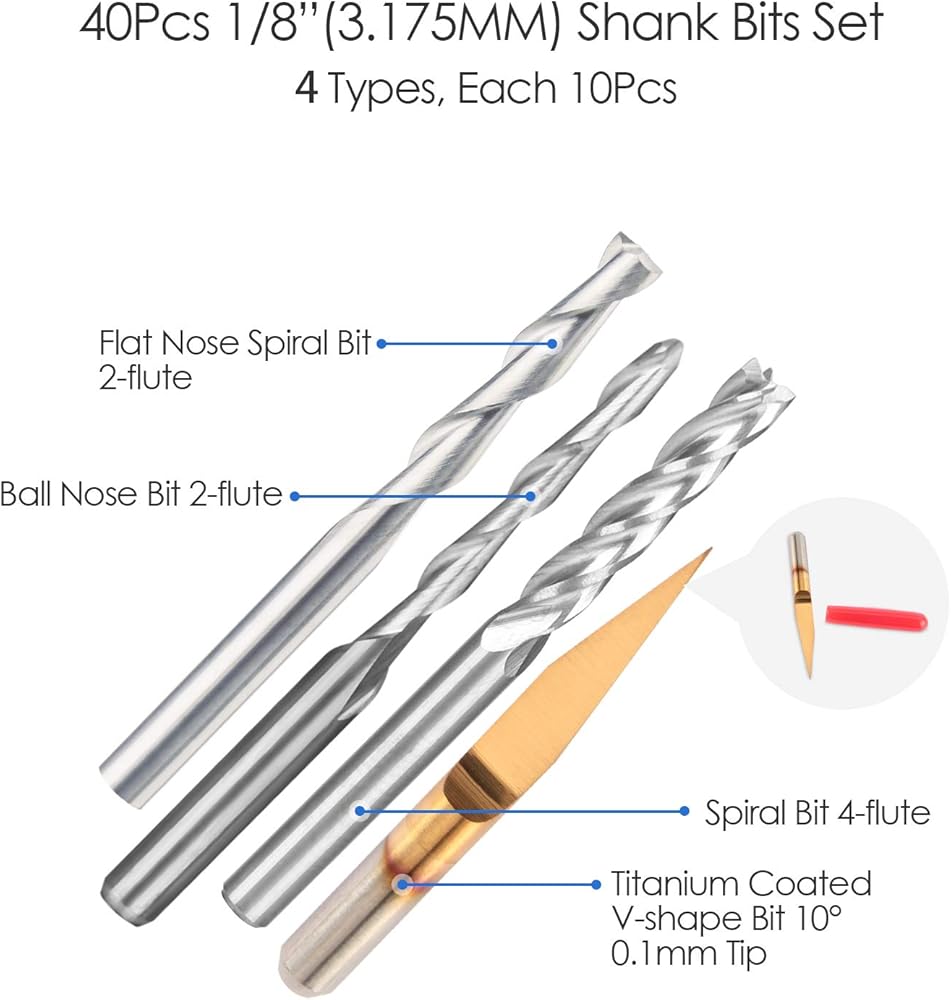

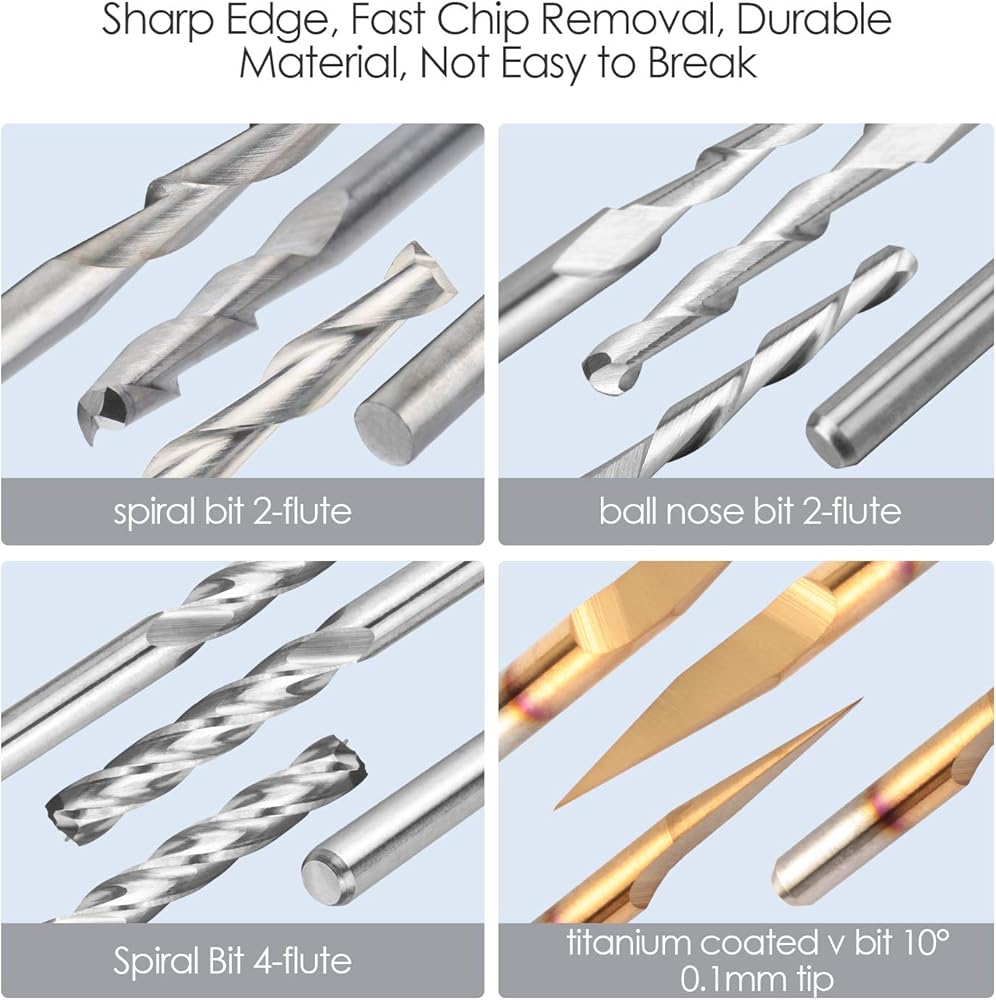

Package contents ---- 4 type bits each 10pcs assorted in 4 storage cases (will meet most standard milling applications), including 2-flute 1/8" shank spiral bits/2-flute 1/8" shank ball nose bits/4-flute 1/8" shank spiral bits/titanium coated v bit 1/8" shank 10° 0.1mm tip
Premium quality ---- Quality tungsten carbide material; precision edge-grinding technology; long service life, not easy to break; Excellent cutting results and enhanced productivity

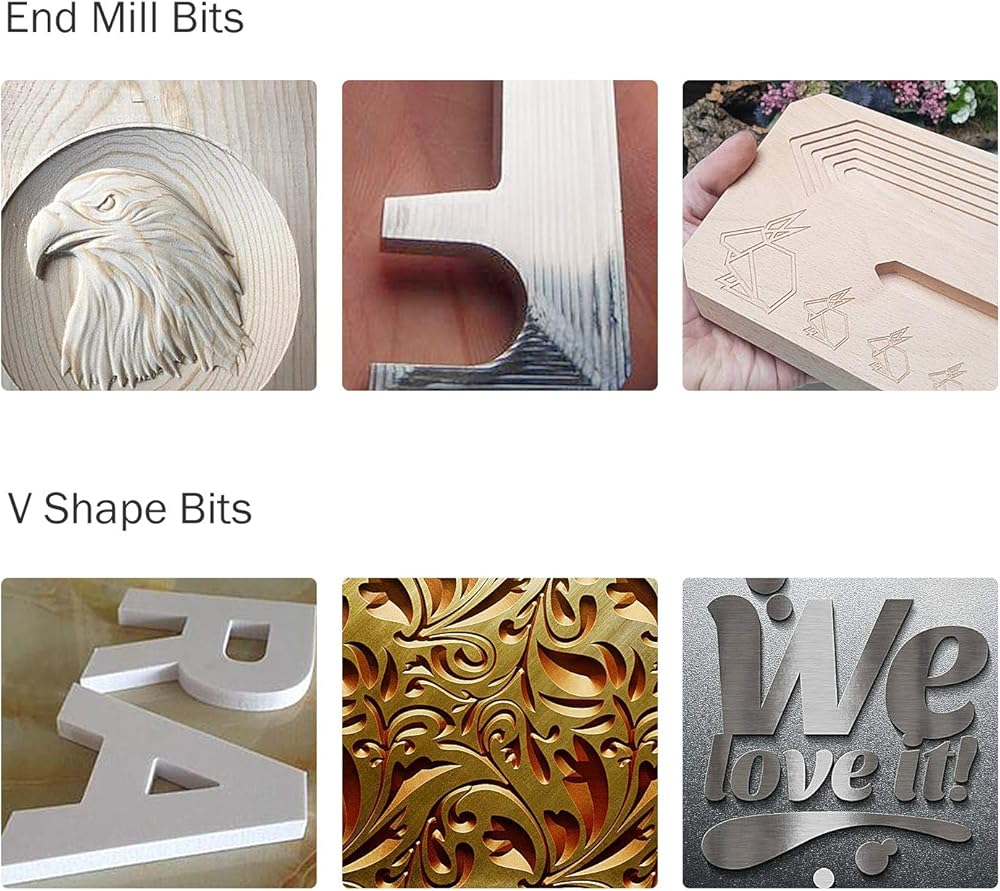

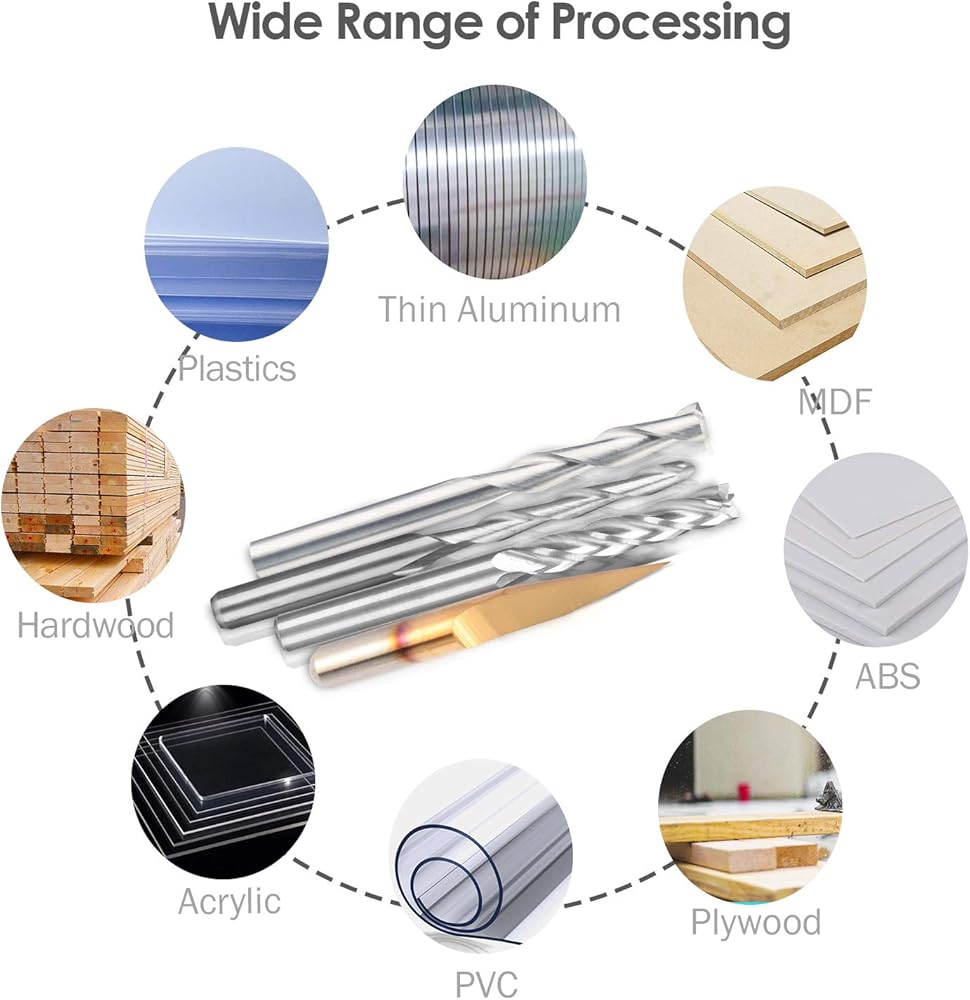

Wide application ---- Used for carving, cutting, engraving, milling, dadoing, boring, routing, slotting in materials like density board, wood, acrylic, plastic, PCB, PVC, PP, MDF, nylon, resin, plywood, hardwood etc.; V bit cutters are used for PCB, SMT, the CNC, mold, plastic, thin copper/aluminum/stainless steel and other precision metal parts processing
High efficiency ---- These bits own sharp edge which is able for fast engraving that makes high efficiency; Fast chip-removal speed leaves an unobstructed path for the end mill
Perfect cutting ---- The design of 2-flute/4-flute, mirror polishing and larger chip space of CNC Router Bit makes non-stick crumbs, smooth cutting and fast chip-removal

وصف

HQMaster End Mill Combination Kit Set CNC Router Bits Cutter Cutting Milling Tool (4 Type, Each 10Pcs) Including Flat Nose/Ball Nose End Mill, 10° V-shape Engraving Bits and 4 Flutes End Mill

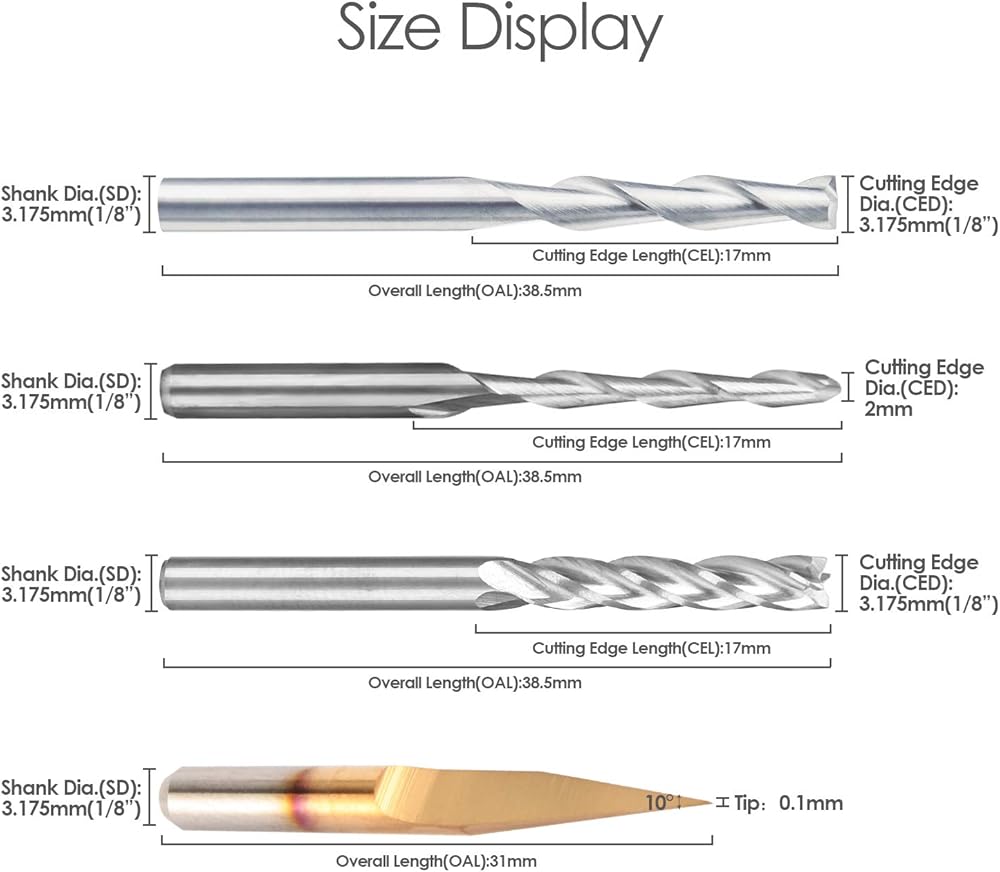

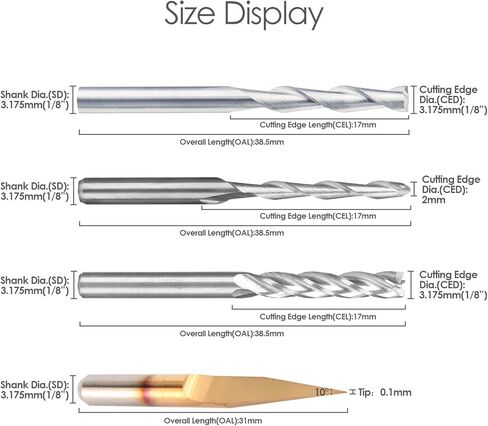

Type 1: 1/8" 17mm 2 Flutes Flat Nose Spiral End Mill Upcut Bit
Made with solid carbide
Shank diameter (SD): 3.175mm (1/8") approx.
Cutting edge diameter: 3.175mm (1/8") approx.
Cutting edge length: 17mm
Total length: 38.5mm
Quantity: Pack of 10

Type 2: 1/8" 17mm 2 Flutes Ball Nose End Mill Upcut Bit
Material: tungsten steel
Shank diameter (SD): 3.175mm (1/8") approx.
Cutting edge diameter: 2mm
Cutting edge length: 17mm
Total length: 38.5mm
Quantity: Pack of 10
Storage case size: 55*55*9mm

Type 3: Degree 10° Tip Dia. 0.1mm Titanium Coated V-shape Bits
Material: tungsten steel
Degree: 10°
Tip diameter: 0.1mm
Shank diameter (SD): 3.175mm
Total length: 31mm
Coated with titanium: Improve the speed and feed rate of the tool, improve surface wear resistance
Range of processing: PCB, SMT, the CNC, mold, plastic, copper, stainless steel and other precision metal parts processing
Quantity: Pack of 10
Storage case size: 55*55*9mm

Type 4: 1/8" 17mm 4 Flutes Spiral End Mill Upcut Bit
Material: tungsten steel
Shank diameter (SD): 1/8" (3.175mm)
Cutting edge length: 17mm
Total length: 38.5mm
Quantity: Pack of 10
Storage case size: 55*55*9mm

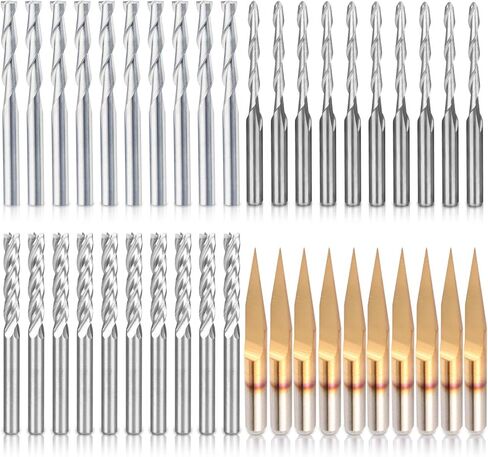

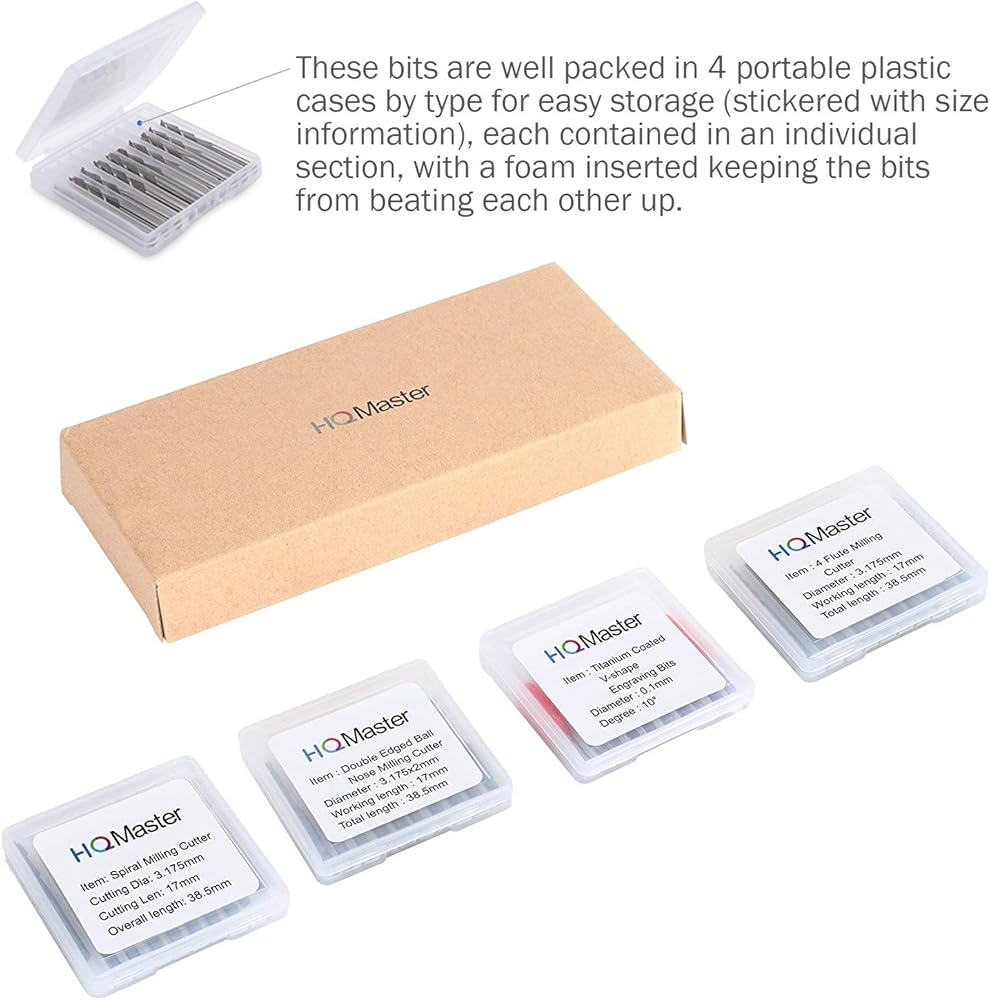

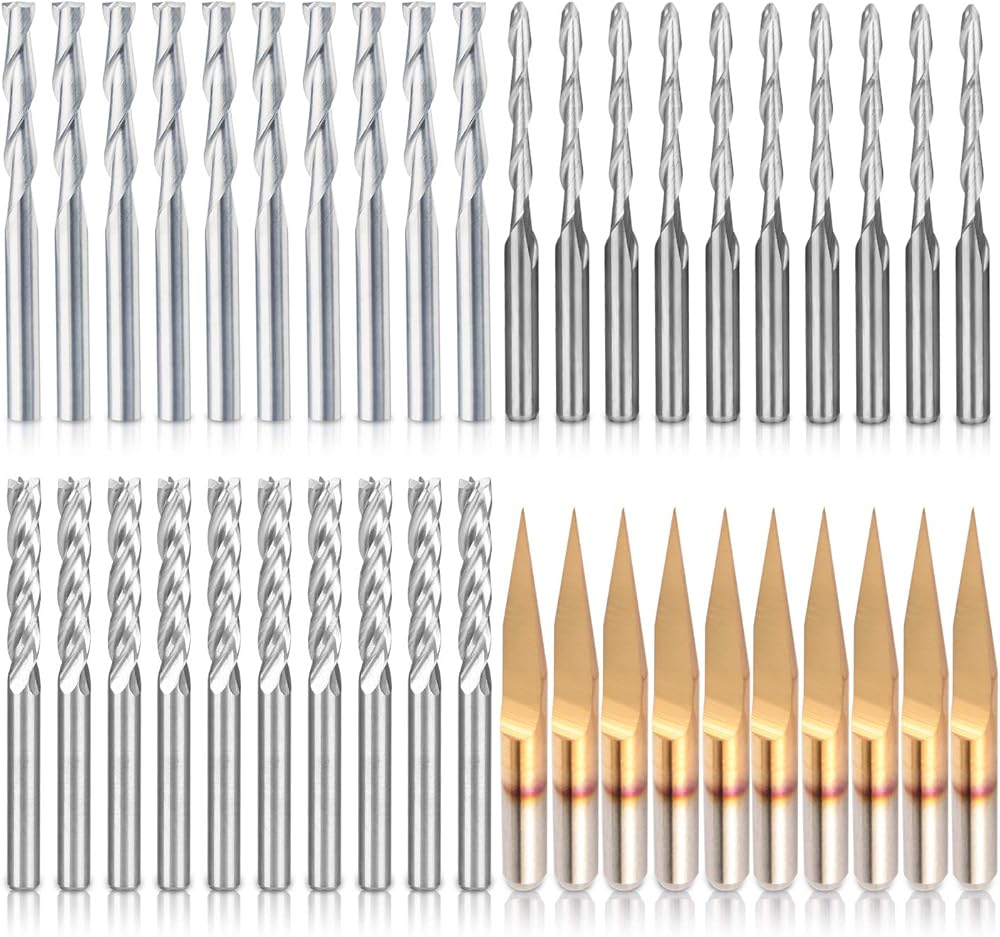

Package contents(assorted in 4 seperate case):
10 x 1/8" 17mm 2 Flute Flat Nose Spiral End Mill Upcut Bit-------Type 1
10 x 1/8" 17mm 2 Flute Ball Nose End Mill Upcut Bit---------------Type 2
10 x Degree 10° Tip Dia. 0.1mm Titanium Coated V-shape Bits----Type 3
10 x 1/8" 17mm 4 Flute Spiral End Mill Upcut Bit--------------------Type 4
