Specification:
Condition: Brand New
Item Type: RC Accessories
Material: PCB
Size: Approx. 28 X 19mm / 1.1 x 0.7in
Forward: 30A
Instantaneous : 40A
Returns: 20A
Brake: 40A
Function: Forward, Backward, Brake
UBEC Output: Voltage 5.7v, Current 1a (Power Receiver, Servo Power)
Voltage Support: 4 ~ 8v Can Be Used Directly On 2s Lithium Battery (7.4v).
Wiring:
Battery (Must Pay Dividends)
Motor (Regardless Of Positive Or Negative)
Black Red And White Third Line-> Receiver Ch2 (Usually Black On The Outside And White On The Sticker)
Regulation:
Esc Is Set In The Middle Of The Range, And New Controls Usually Require Fine-Tuning The Throttle.
Esc Is Not Lit, It Is An Intermediate Value, And The Throttle Trimming Is Controlled By Th Trim.
Compatible: For 1/16 1/18 1/24 Car And Ships

packing list:

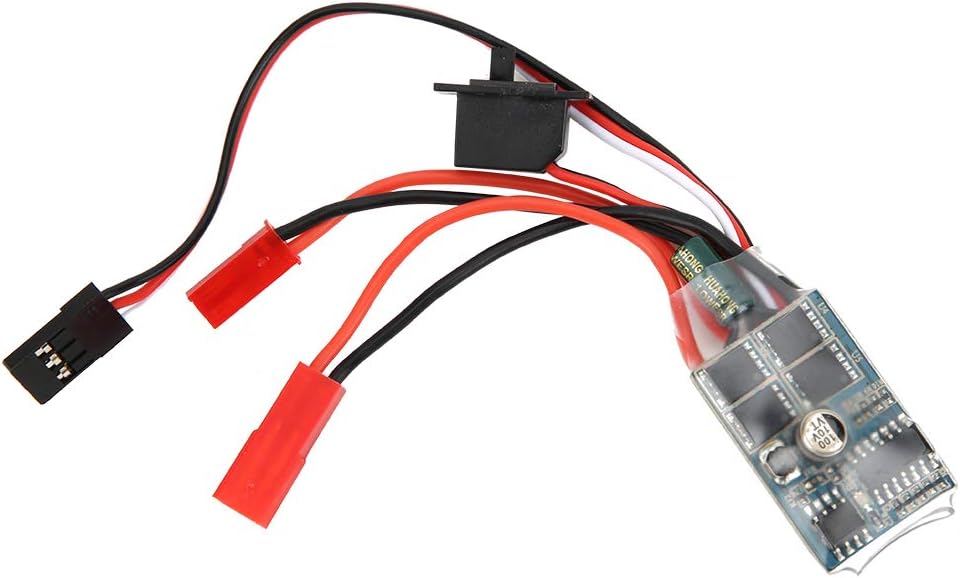

1 x Two Way Brush ESC

Notice:
1. Due to manual measurement, please allow 1‑3mm error!
2. The color may be slightly different for different monitor displays.
3. By default, the JST header has a switch.
4. The product actually comes with brake.
