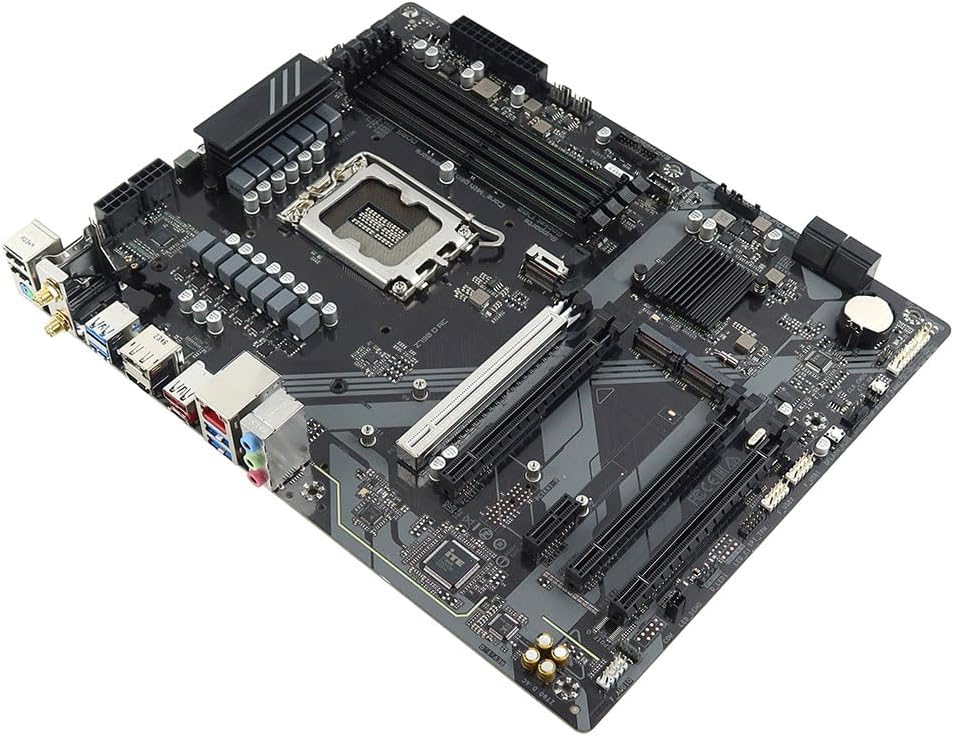

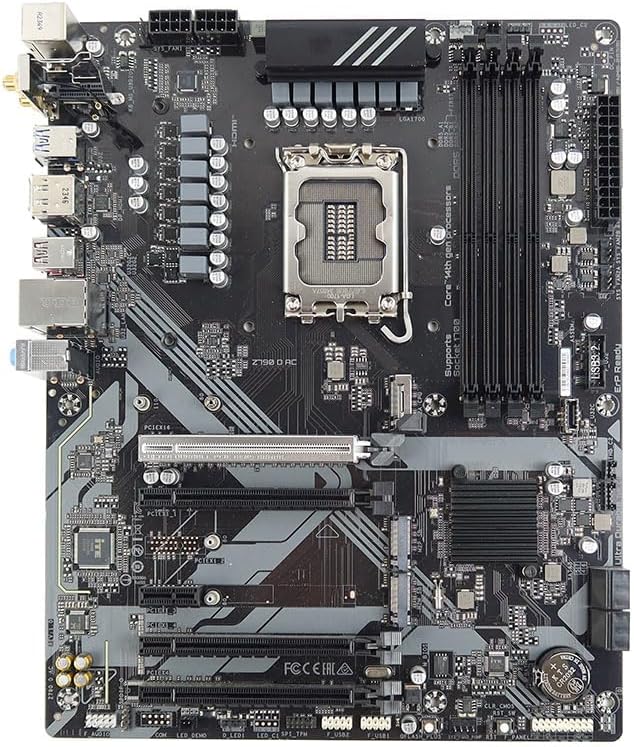

Desktop Motherboard Compatible Replacement Spare Part for Gigabyte Z790 D AC Intel Chipset Z790 Socket LGA1700 DDR5 HDMI DisplayPort USB-C SATA 6Gb/s ATX.

Model: Z790 D AC
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th & 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/5600/5400/5200/5000/4800MHz
Storage Interface: SATA 6Gb/s
RAID Support: SATA: 0, 1, 10; NVMe: 0, 1, 10
Bluetooth Standard: Bluetooth 5.1
Wireless Lan Support: Intel Wireless- AC 9560 802.11n WIFI
Network/Communications: Realtek 2.5GbE LAN
Audio: Realtek Audio CODEC High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connectors, 1x CPU fan header, 1x CPU fan/water cooling pump header, 3x system fan headers, 1x system fan/water cooling pump header, 2x addressable LED strip headers, 3x M.2 Socket 3 connectors, 4x SATA 6Gb/s connectors, 1x front panel header, 1x front panel audio header, 1x S/PDIF Out header, 1x USB Type-C header, with USB 3.2 Gen 1 support, 1x USB 3.2 Gen 1 header, 2x USB 2.0/1.1 headers, 2x Thunderbolt add-in card connectors, 1x Trusted Platform Module header, 1x reset button, 1x Q-Flash Plus button, 1x reset jumper, 1x Clear CMOS jumper
Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x USB Type-C port, with USB 3.2 Gen 2 support, 1x USB 3.2 Gen 2 Type-A port (red), 4x USB 3.2 Gen 1 ports, 2x USB 2.0/1.1 ports, 2x SMA antenna connectors (2T2R), 1x HDMI port, 1x DisplayPort, 1x RJ-45 port, 3x audio jacks
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 3.0 x16 (x1 mode), 1x PCIe 3.0 x1, 2x M.2 PCIe Gen4x4/x2, 1x M.2 PCIe Gen4x4/x2 / SATA, 4x SATA3 6.0 Gb/s
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit
