Specification:

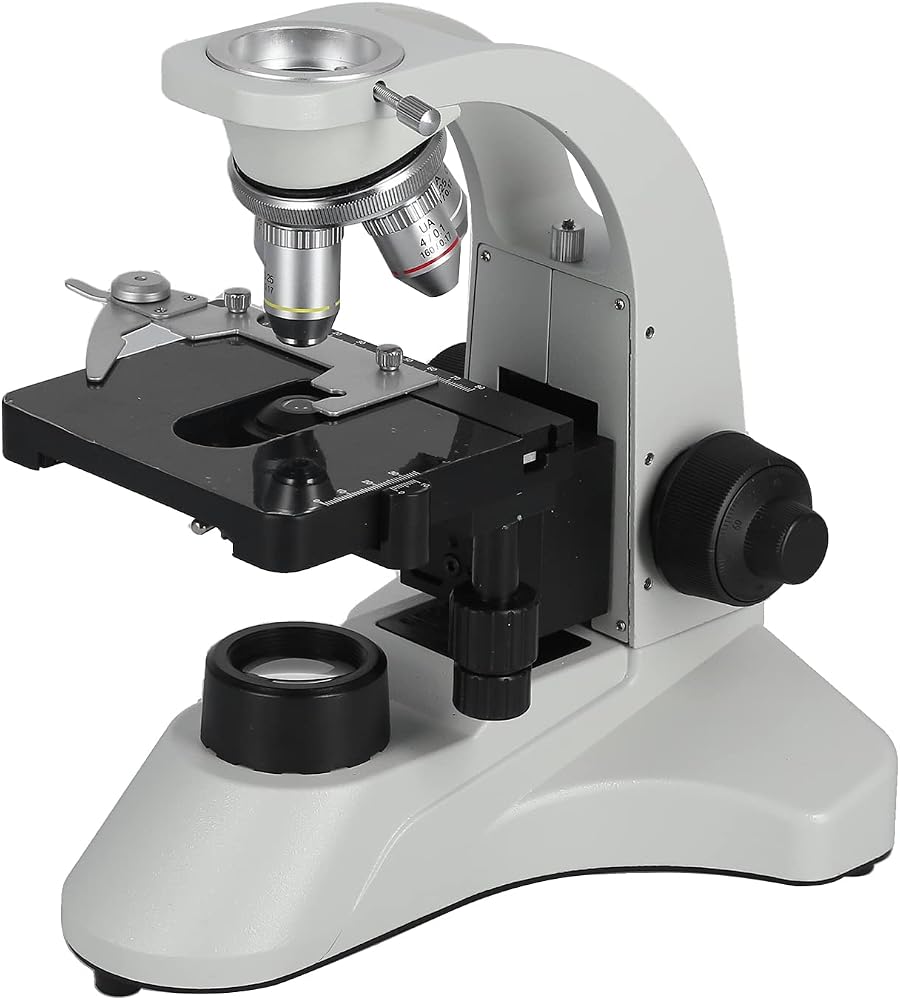

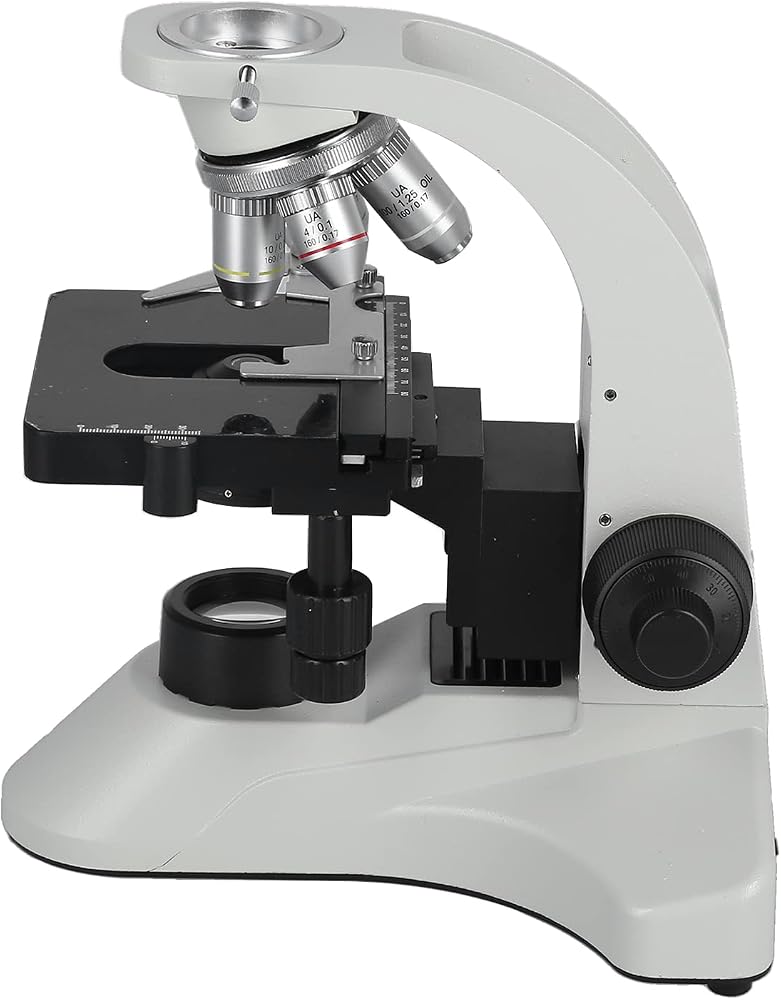

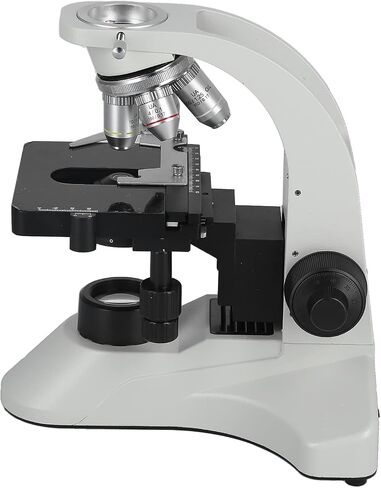

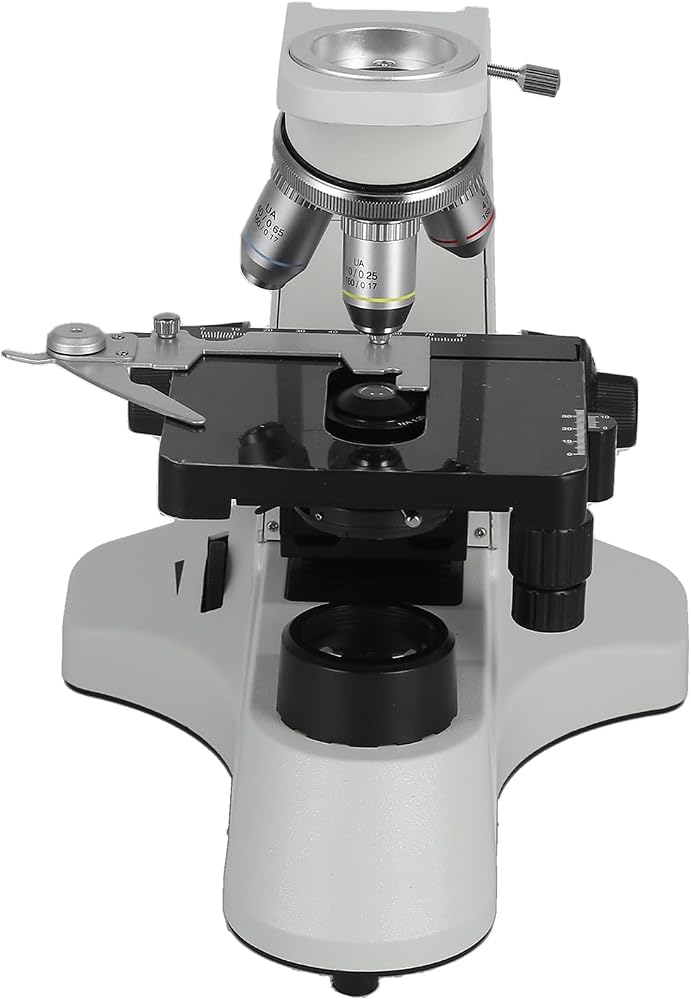

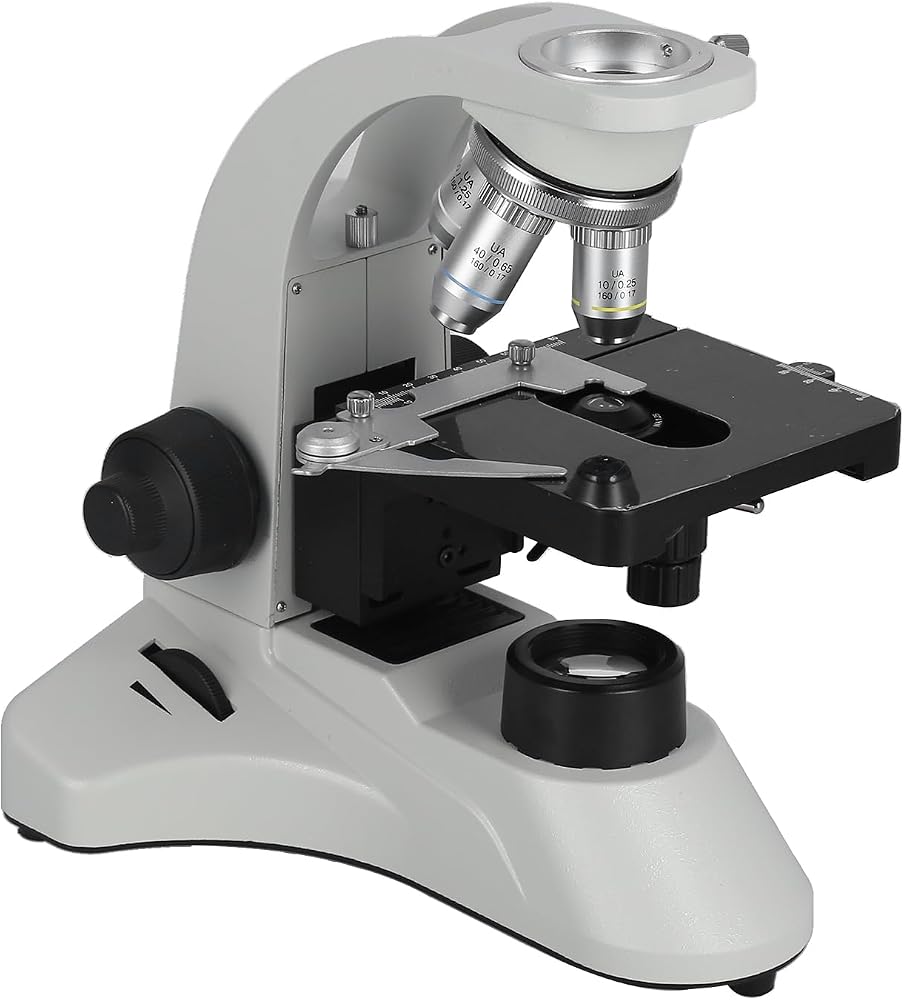

Item Type: Biological Microscope
Material: Stainless Steel
Optical Magnification: 40X-1600X
Observation Tube: Hinged binoculars, 30° tilt, 360° rotation

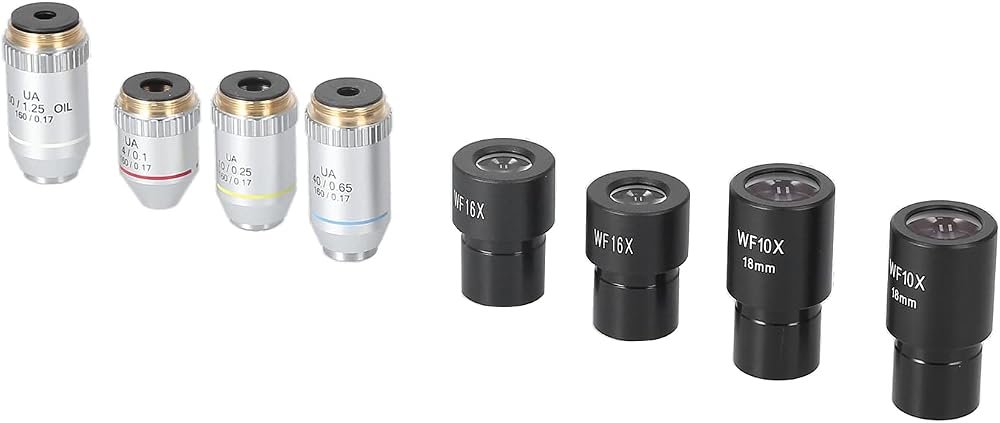

Eyepiece: Wide angle eyepiece WF10X, 18mm / 0.7in, wide angle eyepiece WF16X, 11mm / 0.4in
Objective Lens: 195 Achromatic lens 4X, 10X, 40X (Spring), 100X (Oil lens)
Converter: 4 Hole conversion

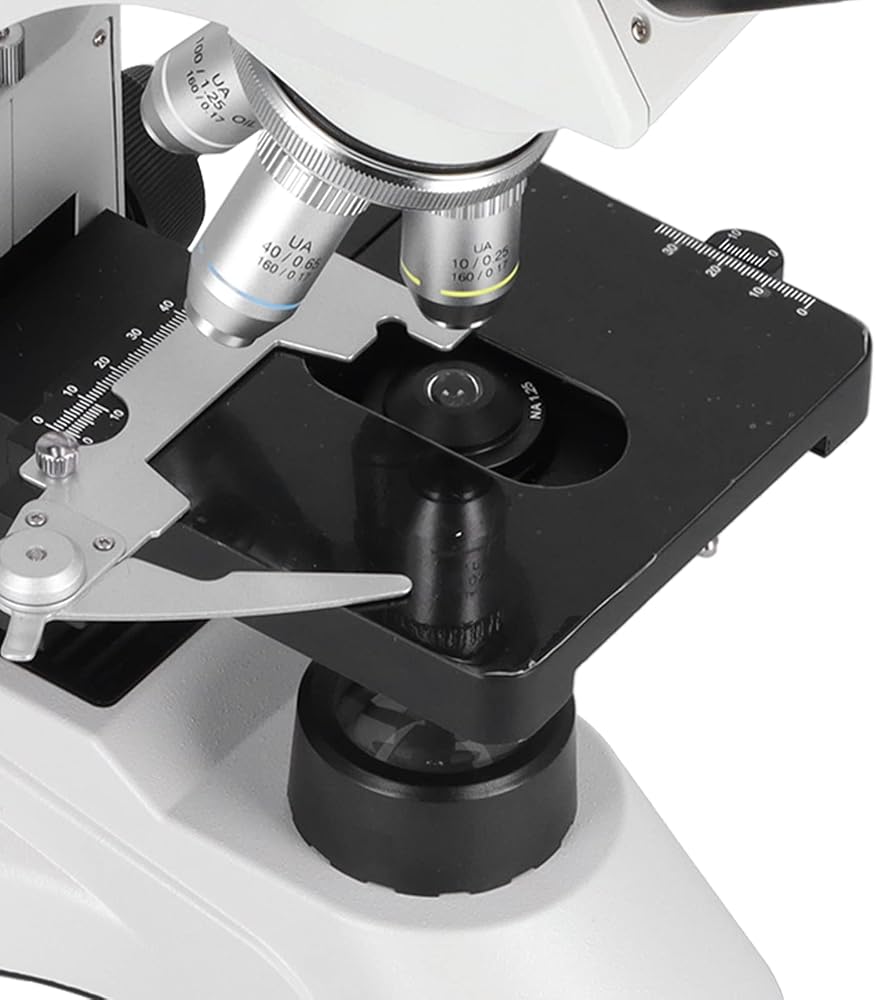

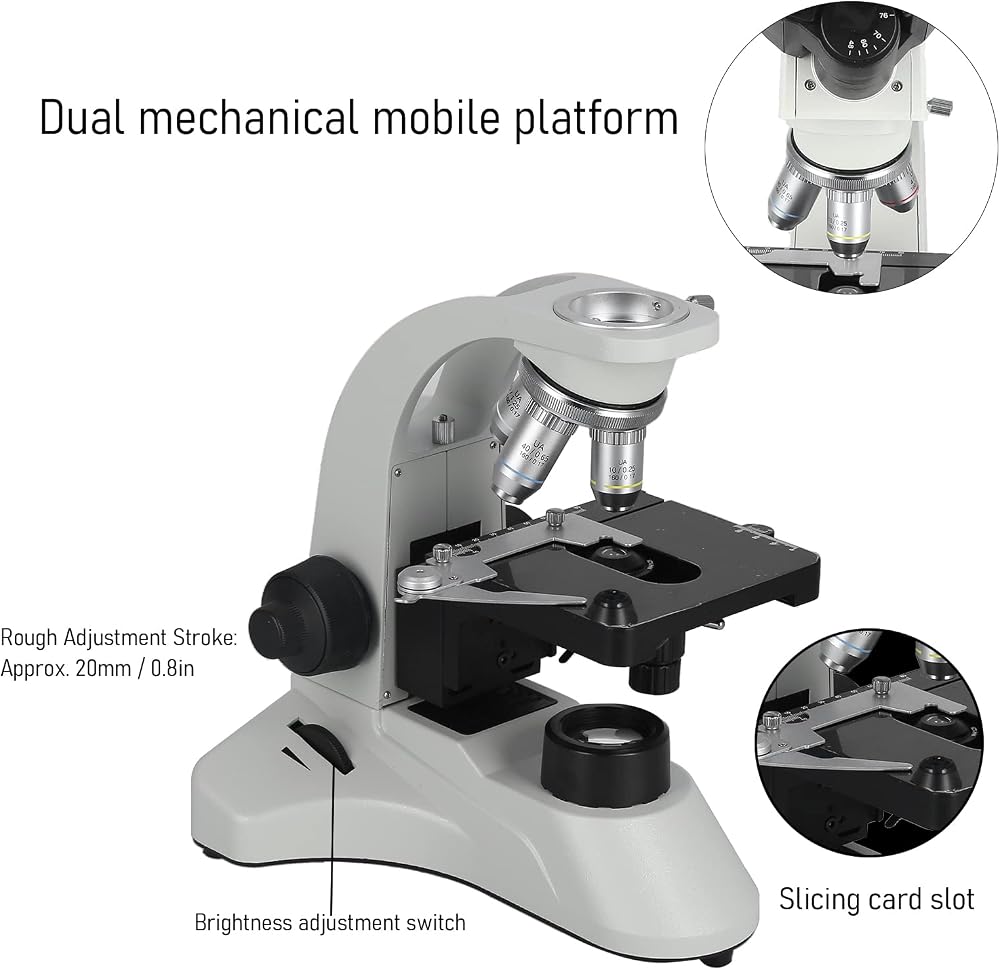

Operating Double mechanical mobile platform, size 125x115mm, moving range 70x30mm
Focusing Mechanism: Coaxial coarse and fine, Approx.20mm / 0.8in thick, 0.002mm fine adjustment
Concentrator: Abbe Concentrator, . =1.25, with variable aperture
Light Source: LED Cold light source, high brightness, adjustable brightness
Power: External regulated power adapter, DC5V/2A
Uses: Observe microscopic substances, widely used in schools, laboratories and other learning and research places

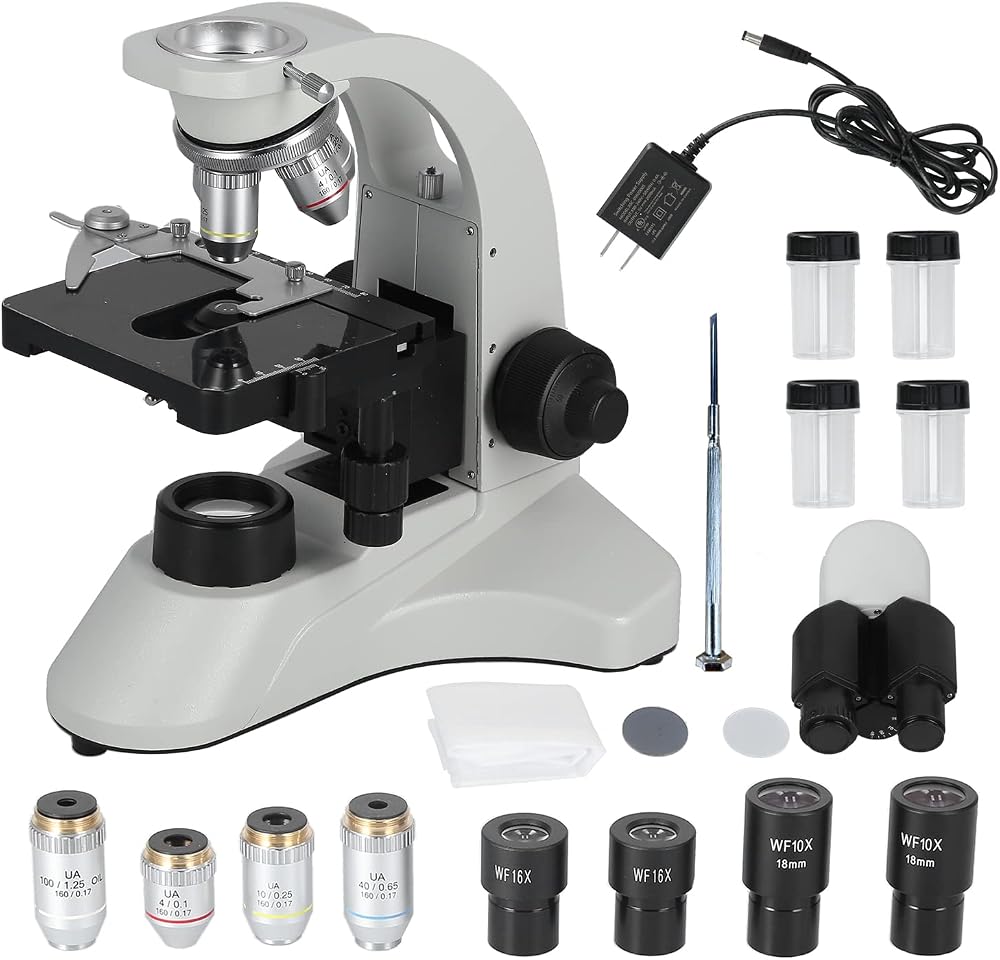

packing list:
1 x Microscope Body (Eyepiece Part)
1 x Microscope Body (Objective Lens Part)
1 x Power Adapter
2 x WF 16X Eyepiece
2 x WF 10X Eyepiece
1 x Objective Lens 4X
1 x Objective 10X
1 x Objective Lens 40X
1 x Objective Lens 100X
4 x Eyepiece Storage Box
2 x Filter
1 x Small Screwdriver
1 x Storage Bag
1 x User Manual
Notice:
1. This product does not come with glass slides
2. Pay attention to the use of matching voltage to avoid short circuit and fire, which may cause danger
3. To prevent electric shock or fire, you must turn off the power switch and unplug the power cord before replacing the bulb and . Turn off the power switch, just turn the switch to 0
