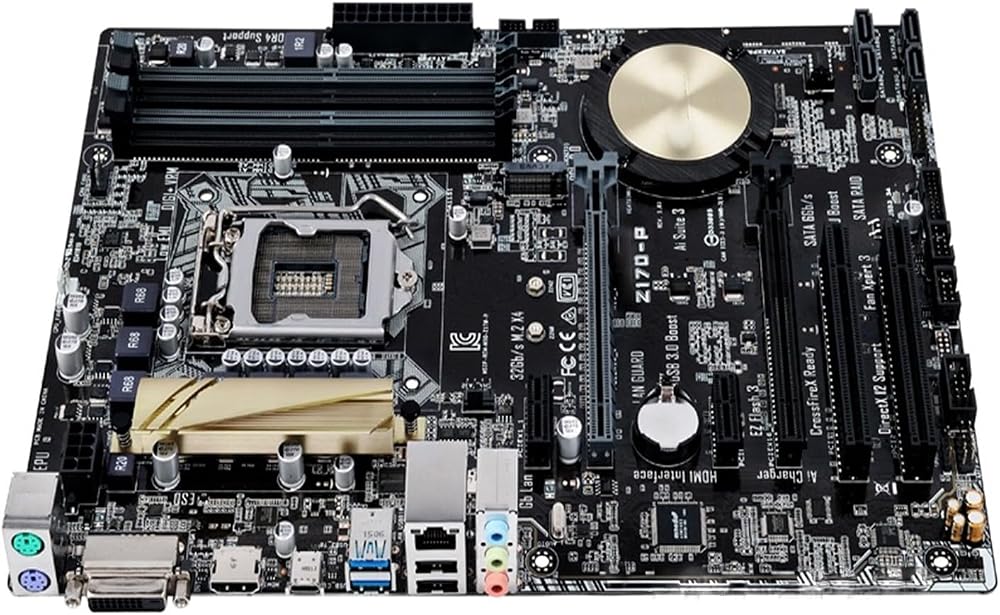

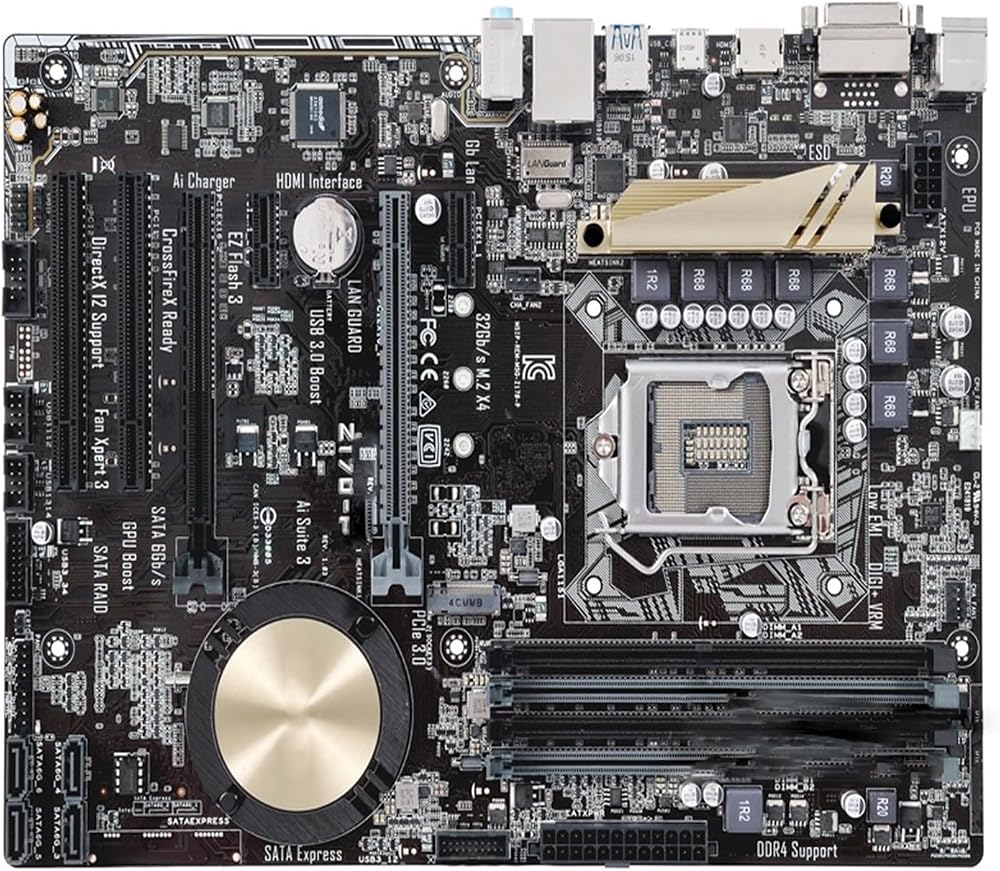

This ZZVIKJ motherboard is equipped with several power supply designs, which can provide stable voltage and high performance support for the processor. Especially in high-load calculation, this design makes the system run more stably, and the heat dissipation design is excellent, ensuring long-term stable operation.
Motherboard chip
Main chipset Intel Z170
Display chip CPU built-in display chip (requires CPU support)
Audio chip integration Realtek ALC887 8-channel sound effect chip
Processor specifications
CPU type 6th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description supports Intel 14nm processors
Memory specifications
Memory type 4 × DDR4 DIMM
Maximum memory capacity 64GB
Memory description supports dual channel DDR4 3466 (overclocking)/3400 (overclocking)/3333 (overclocking)/3300 (overclocking)/3200 (overclocking)/3000 (overclocking)/2800 (overclocking)/2666 (overclocking)/2400 (overclocking)/2133MHz memory
Storage Expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2 × PCI-E X16 graphics card slot, 2 × PCI-E X1 slot
PCI slot 2 × PCI slot
USB interface 1 × USB3.1 Type-C interface, 6 × USB3.0 interface (4 built-in+2 backplane), 6 × USB2.0 interface (4 built-in+2 backplane)
Video interface 1 × DVI interface, 1 × HDMI interface
One 8-pin power interface and one 24-pin power interface
Main board type ATX board type
External dimensions 30.5 × 22.4cm
==========
RAID Supported : No
Processor compatibility : 6th Intel Core i7,6th Intel Core i3,6th Intel Core i5
Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video,Office,Design

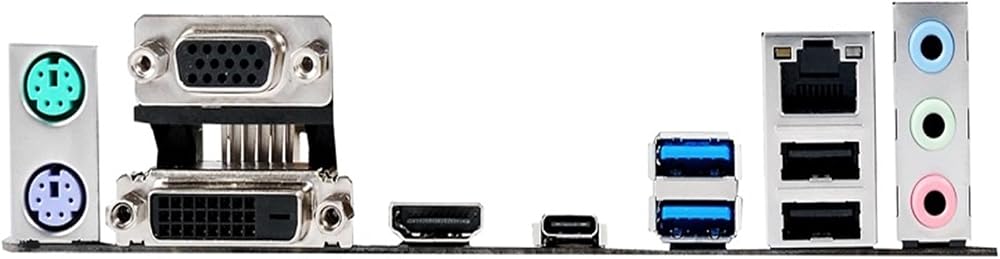

Back I/O Ports : 1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2,HDMI 1.4,DVI-D
Onboard LAN : 1x RJ45
Number of M.2 : 1
Number of SATA Ports : 4
Storage Interface Type : SATA 3,M.2 (NVMe)
Number of PCI : 2
Number of PCIe x 1 : 2
Number of PCIe x 16 : 2
PCI - E standards : PCI-E 3.0
Number Of Memory Slots : 4
Support Memory Type : DDR4
Quality Certification : ce
Memory channel : Double
Form Factor : CeB
Maximum Ram Capacity : 64 GB
Form Factor : ATX
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel Z170
Application : Desktop
Socket Type : LGA 1151
