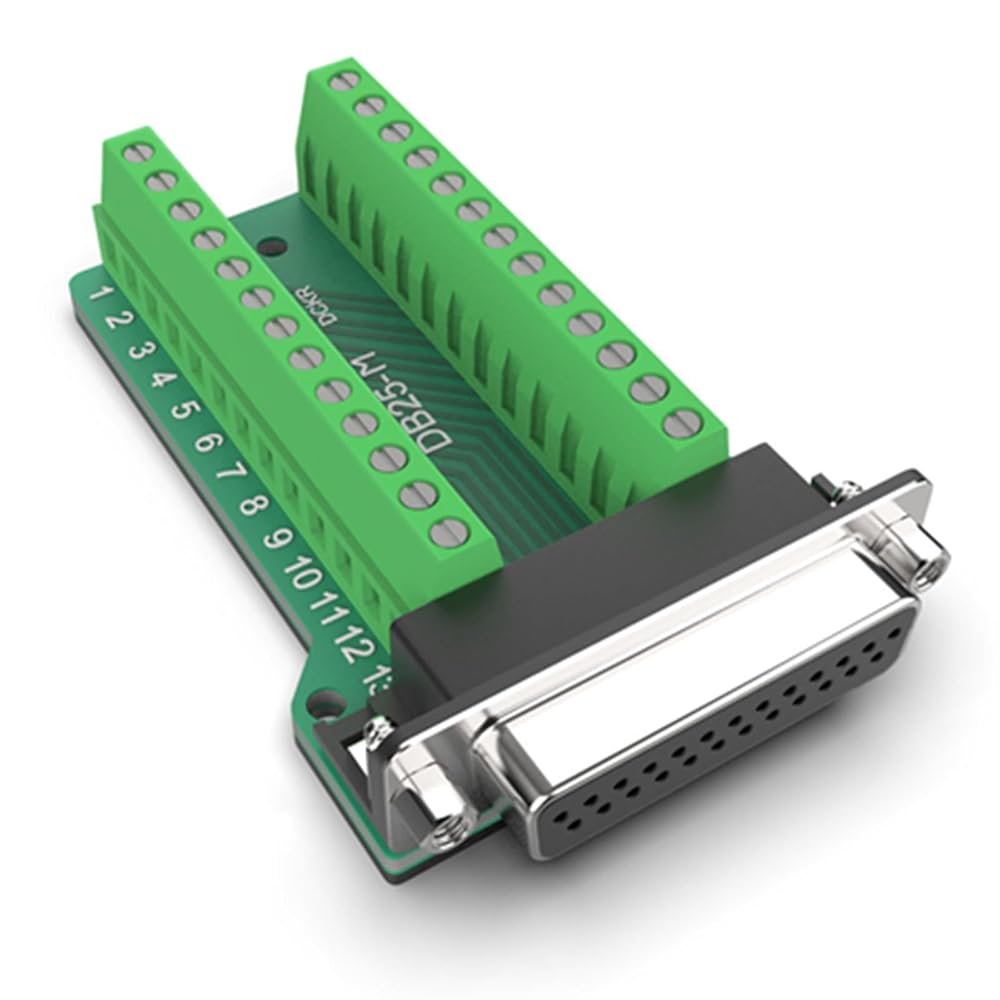

DB25 Male Breakout Board Connector - D-SUB 25 Pin Solder-Free Terminal Adapter, RS232 Serial Port to Wiring Module (Male/with Nut) in Kuwait

DB25 Male Breakout Board Connector - D-SUB 25 Pin Solder-Free Terminal Adapter, RS232 Serial Port to Wiring Module (Male/with Nut) Female/With Nut

KWD 5.500
ماركة
Oiyagai
وزن
56 g
اللونFemale / With Nut
– 1 +

مميزات خاصة

  • With insulation foam at the bottom, all-copper base, contacted better and more antioxidative. All signal ports named and labeled clearly.
  • Material: Copper Base,Plastic Part; Color: Green, Black; Weight : 115g
  • All signal ports named and labeled clearly
  • Total Size : 86 x 53 x 18mm/ 3.4" x 2.1" x 0.7"(L*W*H)
  • Fixing Hole Diameter: 3mm; Fixing Hole Center Distance: 5mm/0. 2 inch

وصف

Specifications:
Name: DB25 solderless module
Plug Type: Male
Connector Material: Pure copper nickel plated joints
Contact Material: Copper
Pitch: 0.15'' / 3.81mm
Cable Specification: 26-16 AWG

No Soldering Required:
Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. Save you from solder trouble, no need to purchase expensive tool. Great time and money saver.

Durable:
Copper cored gold-plated joints are used for durability, plugging resistance and good contact. It adopts all-copper environmental protection copper terminal, which has good transmission.

Convenience:
All signal ports are clearly named and labeled on both sides of the board for quick wiring and reduce error.
