1.25G SFP to RJ45 Copper Transceiver Module, 10/100/1000BASE-T, Hot Pluggable, CAT5e UTP Cable, Up to 100m, Compatible with Cisco, TP-Link, D-Link and More in Kuwait 1.25G SFP to RJ45 Copper Transceiver Module, 10/100/1000BASE-T, Hot Pluggable, CAT5e UTP Cable, Up to 100m, Compatible with Cisco, TP-Link, D-Link and More in Kuwait 1.25G SFP to RJ45 Copper Transceiver Module, 10/100/1000BASE-T, Hot Pluggable, CAT5e UTP Cable, Up to 100m, Compatible with Cisco, TP-Link, D-Link and More in Kuwait 1.25G SFP to RJ45 Copper Transceiver Module, 10/100/1000BASE-T, Hot Pluggable, CAT5e UTP Cable, Up to 100m, Compatible with Cisco, TP-Link, D-Link and More in Kuwait 1.25G SFP to RJ45 Copper Transceiver Module, 10/100/1000BASE-T, Hot Pluggable, CAT5e UTP Cable, Up to 100m, Compatible with Cisco, TP-Link, D-Link and More in Kuwait 1.25G SFP to RJ45 Copper Transceiver Module, 10/100/1000BASE-T, Hot Pluggable, CAT5e UTP Cable, Up to 100m, Compatible with Cisco, TP-Link, D-Link and More in Kuwait 1.25G SFP to RJ45 Copper Transceiver Module, 10/100/1000BASE-T, Hot Pluggable, CAT5e UTP Cable, Up to 100m, Compatible with Cisco, TP-Link, D-Link and More in Kuwait

وحدة إرسال واستقبال نحاسية 1.25G SFP إلى RJ45، 10/100/1000BASE-T، قابلة للتوصيل السريع، كابل CAT5e UTP، يصل إلى 100 متر، متوافق مع Cisco، TP-Link، D-Link والمزيد

KWD 7
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

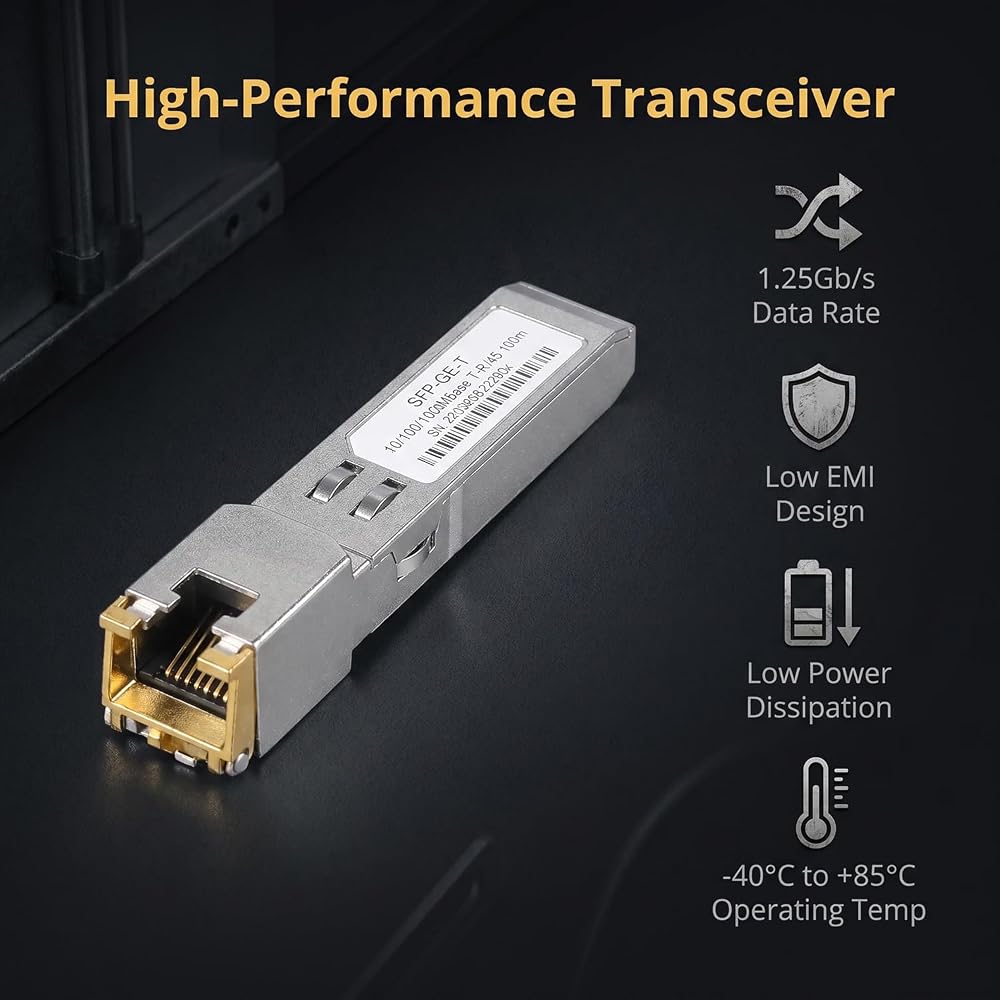

  • 【 Gigabit SFP to RJ45 Transceiver 】 10/100/1000BASE-T copper module with up to 1.25Gb/s bi-directional data rate, supporting up to 100m transmission over Cat5 UTP cable, fully compliant with IEEE 802.3 and SFP MSA standards.
  • 【Industrial Wide Temperature Design】Operating case temperature range from -40°C to +85°C, with fully metallic enclosure for low EMI, low power consumption, and stable performance in harsh industrial environments.
  • 【 Hot Pluggable & Easy Deployment】Hot-pluggable SFP footprint for plug-and-play installation, no configuration required; supports auto-negotiation and auto MDI/MDI-X crossover detection, simplifying network upgrades and maintenance.
  • 【 Stable & Reliable Performance】3.3V single power supply, built-in EEPROM for detailed device information, low power dissipation, and excellent anti-interference ability, ensuring stable long-term links for switches, routers, and servers.

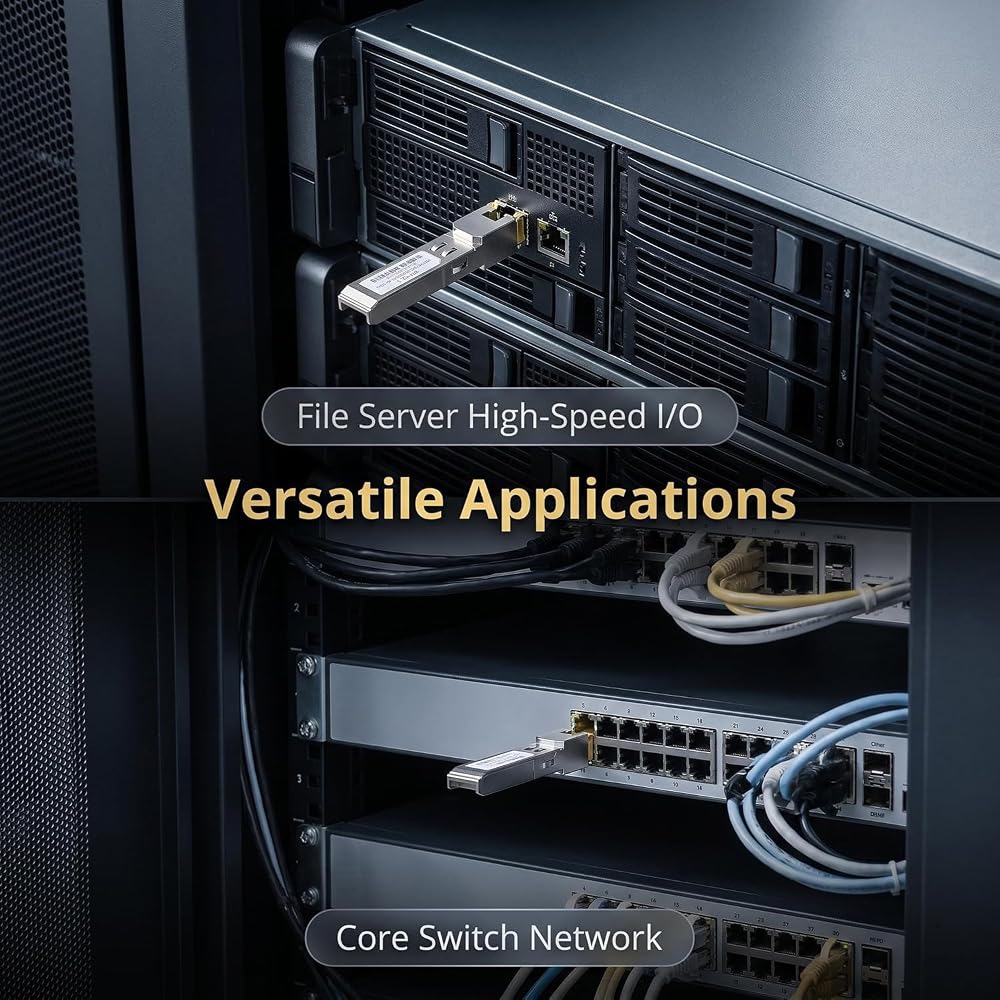

  • 【Wide Compatibility & Certifications 】Fully compatible with standard SFP switches and network equipment; RoHS compliant, FCC Class B certified, ideal for enterprise, industrial, and high-speed Ethernet applications.

وصف

Overview：
III-V's 10/100/1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFPMulti Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-Tstandards as specified in IEEE Std 802.3. They are RoHS compliant and per Directive 2011/65/EU.The 1000BASE-T physical layer IC (PHY) can be accessed via 12C, allowing access to all PHYsettings and features. They support 10/100/1000 BASE-T operation in host systems with SGMIlinterface and auto-negotiation. 35-SERC-L shall support Rx_LOS as link indication function, and35-SERC shall not support Rx_LOS as link indication feature (RX_LOS is intemally grounded).

Features:
★Up to 1.25Gb/s bi-directional data links
★Hot-pluggable SFP footprint
★Extended case temperature range (-40° C to +85° C)
★Fully metallic enclosure for low EMI
★Low power dissipation

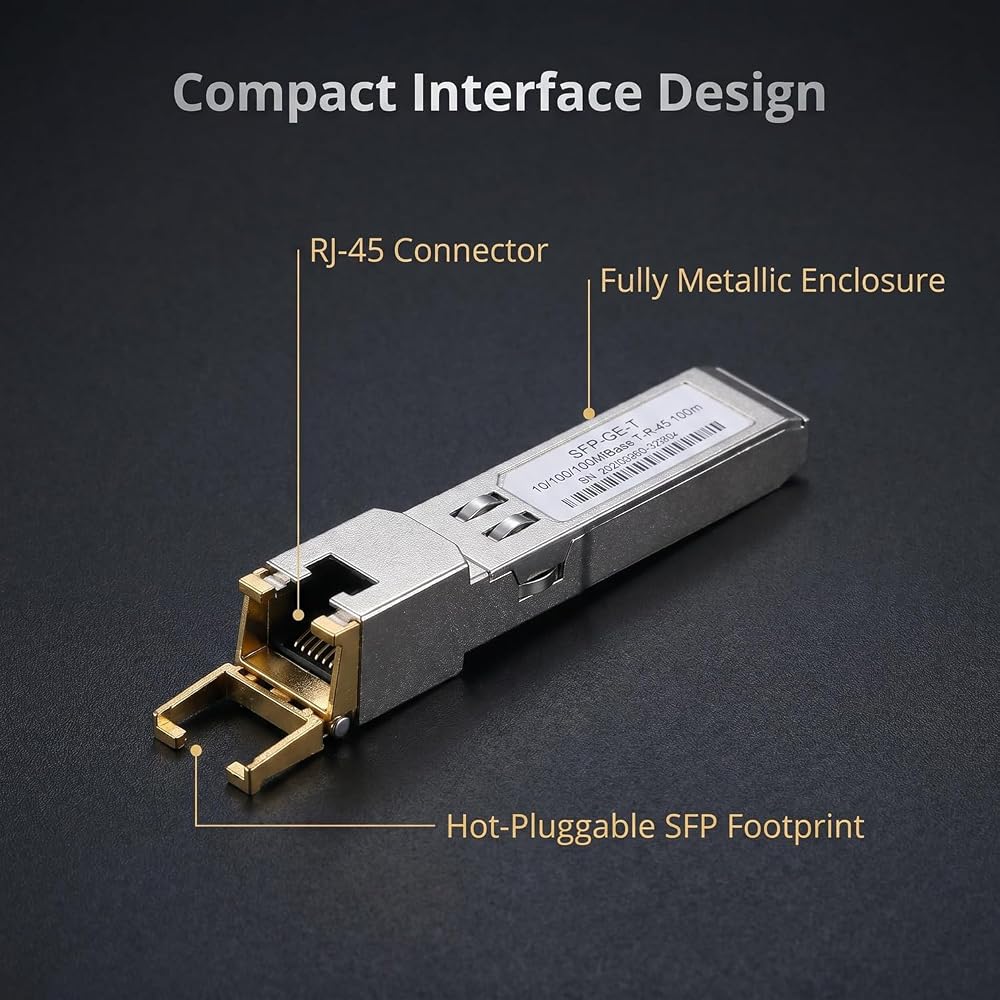

★Compact RJ-45 connector assembly
★Detailed product information in EEPROM
★+3.3V single power supply
★Access to physical layer IC via 2-wire serial bus

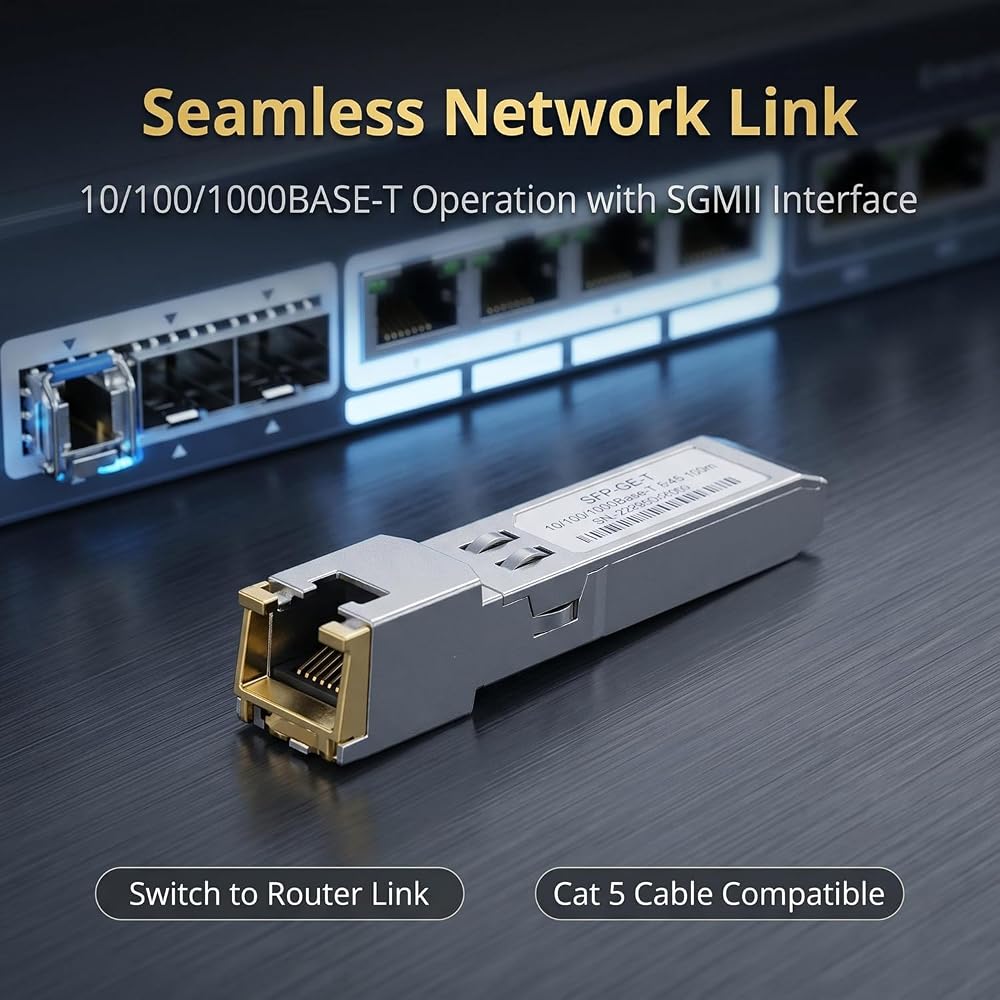

★10/100/1000 BASE-T operation in host systems with SGMII interface
★Compliant with SFP MSA
★Compliant with IEEE Std 802.3
★Compliant with FCC 47 CFR Part 15, Class B
★RoHS Compliant Products

Specifications:
Model: SFP-GE-T
Transfer Rate: 10 Gigabit
Input Voltage: 3.3V
Standard: IEEE 802.3
Operating Temperature: 0°C to 70°C
Dimension: 69mm*14mm*14mm(L*W*H)
Weight:25g

Package Content:
SFP to RJ45*1 (SFP-GE-T)
