Overview

The CM5 PoE 2ETH Carrier Board is a high-performance multifunctional expansion module designed for Raspberry Pi Compute Module 5 (CM5). It provides a compact and reliable embedded platform
with dual Ethernet ports, PoE support, M.2 NVMe SSD, dual HDMI outputs, USB3.0/USB2.0 ports, MIPI camera and display interfaces, RTC interface, fan connector, and a standard 40-pin GPIO header.

One RJ45 port supports Gigabit PoE, allowing simultaneous network communication and power delivery through a single Ethernet cable, while the second 100M RJ45 port provides dual-network capabilities
for routing, gateway applications, and network isolation. The M.2 M-Key interface supports NVMe SSDs for high-speed storage and system boot, suitable for edge computing, industrial control, network
gateways, video capture, and embedded terminals.

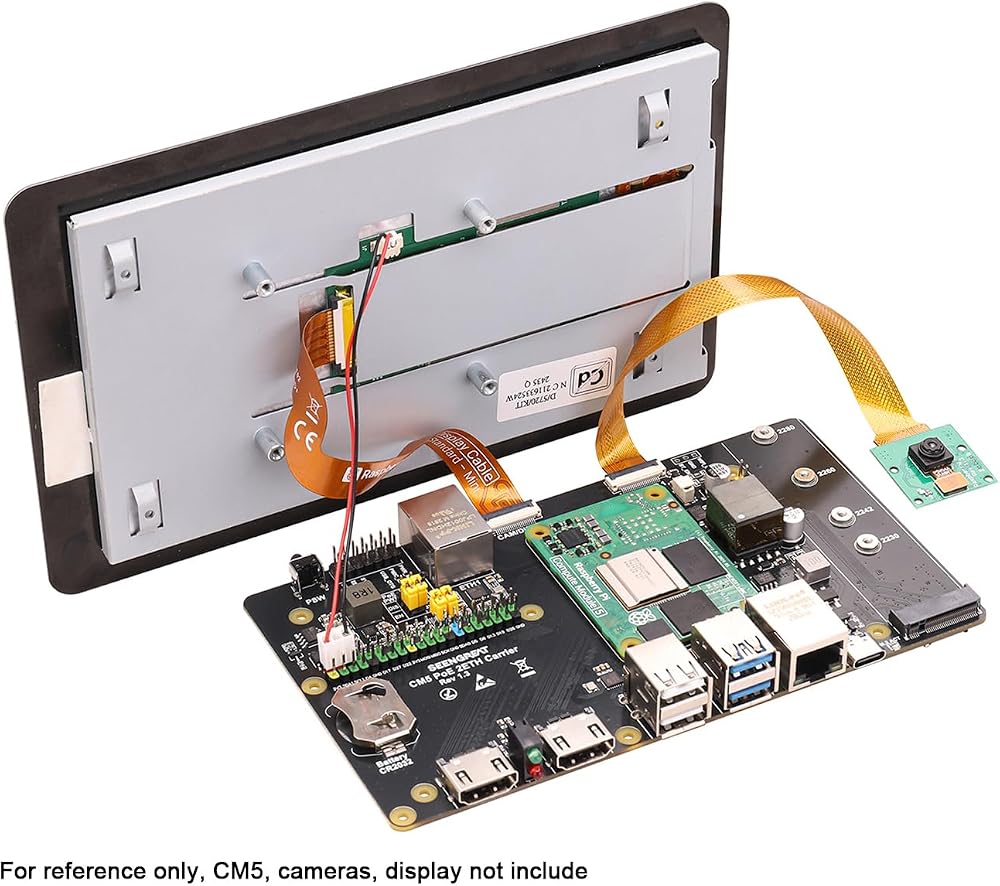

Dual HDMI outputs and multiple USB interfaces allow connection of displays, peripherals, cameras, or other USB modules for multimedia or embedded testing. The dual CAM/DISP connectors and 40-pin GPIO
header provide flexible expansion options for sensors, HATs, and custom peripherals.

This carrier board supports PoE input, onboard 5V system output and 12V auxiliary output. The RTC interface and fan connector enable additional functionality without including a battery, reducing potential
compliance risks. Users can rapidly build a stable, compact, and feature-rich CM5 embedded platform suitable for industrial, network, and edge computing applications.

Please note: This product is a CM5 carrier/expansion board for embedded development. NVMe SSDs, HDMI displays, USB peripherals, cameras, and fan modules are not included.

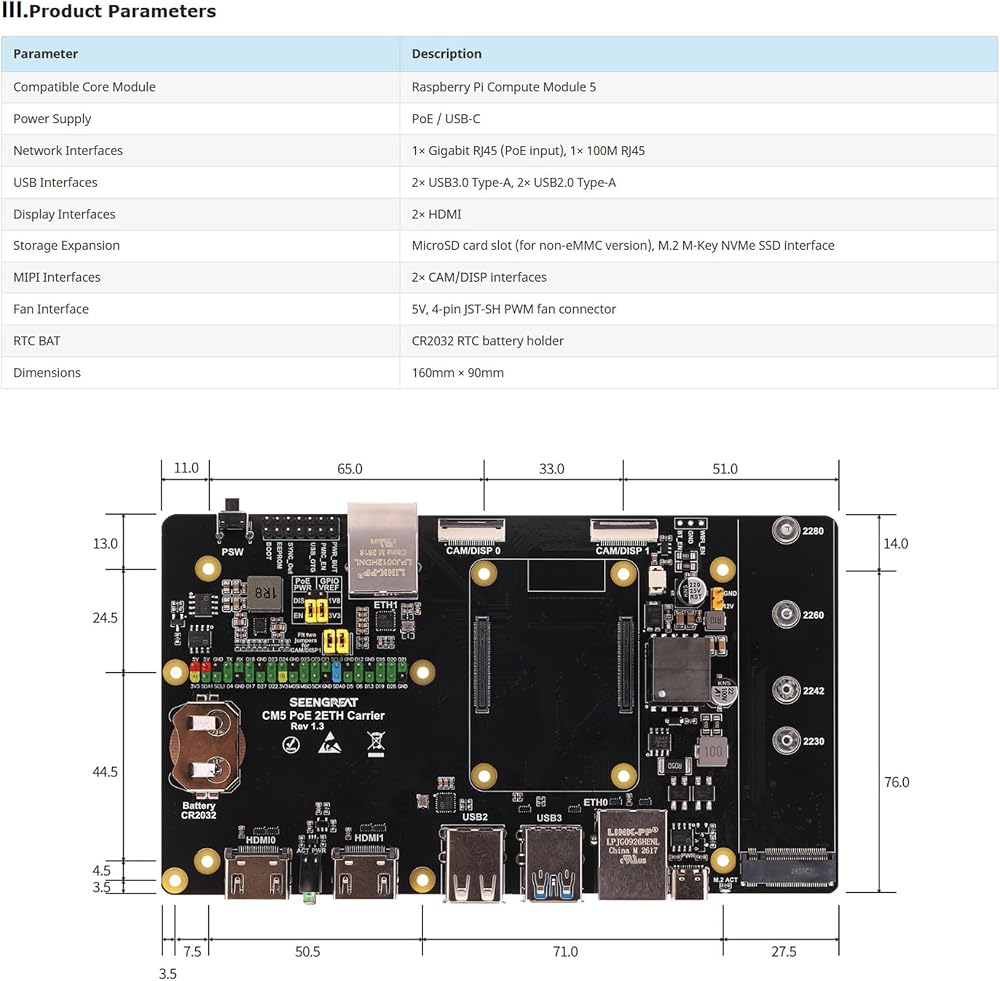

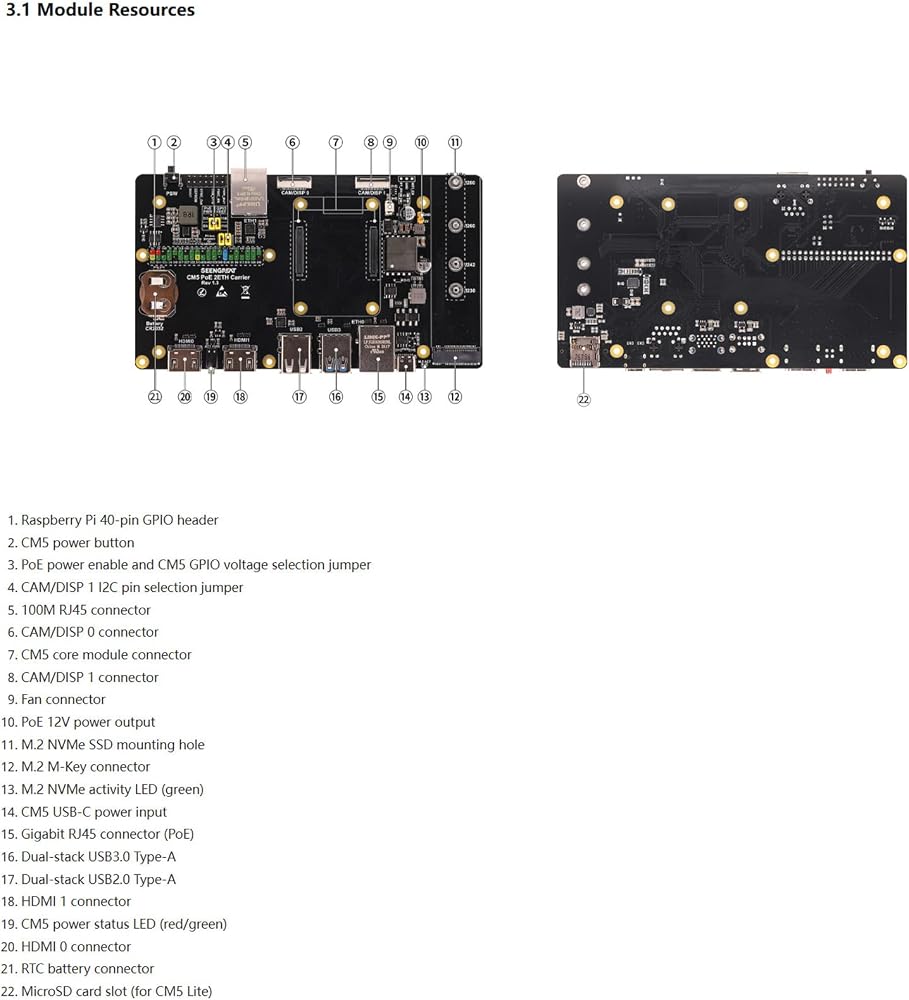

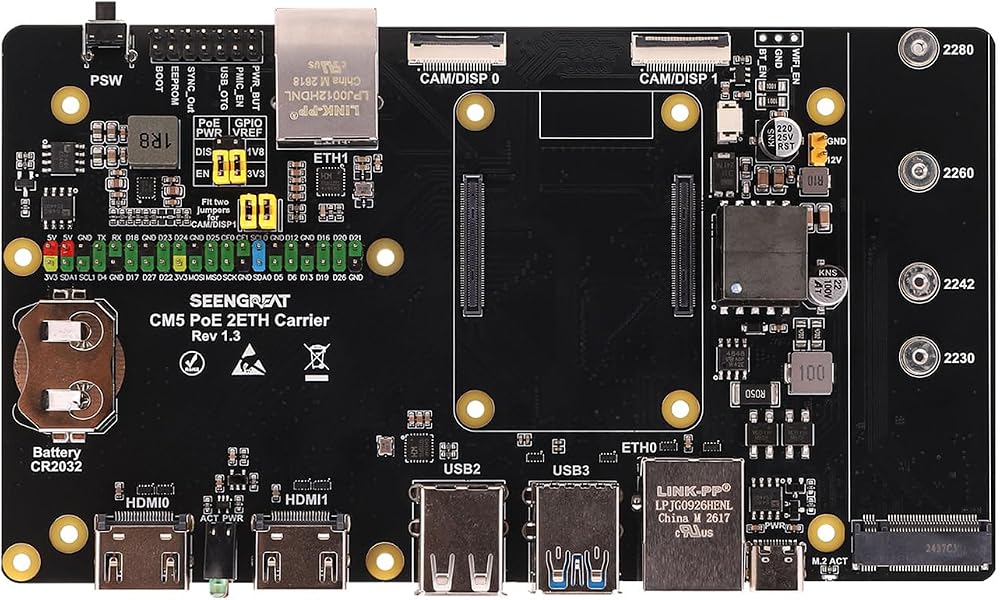

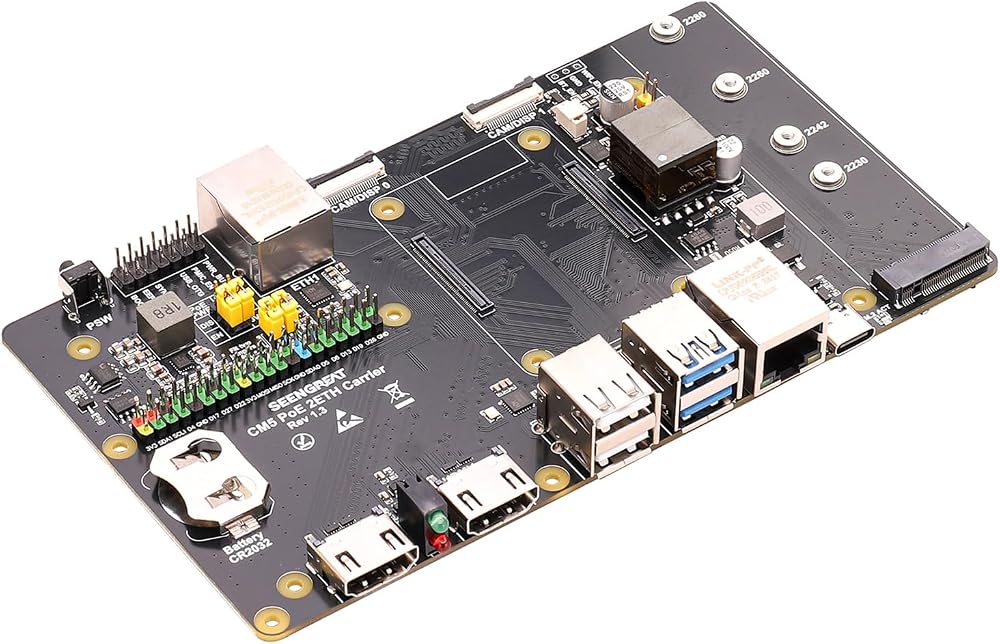

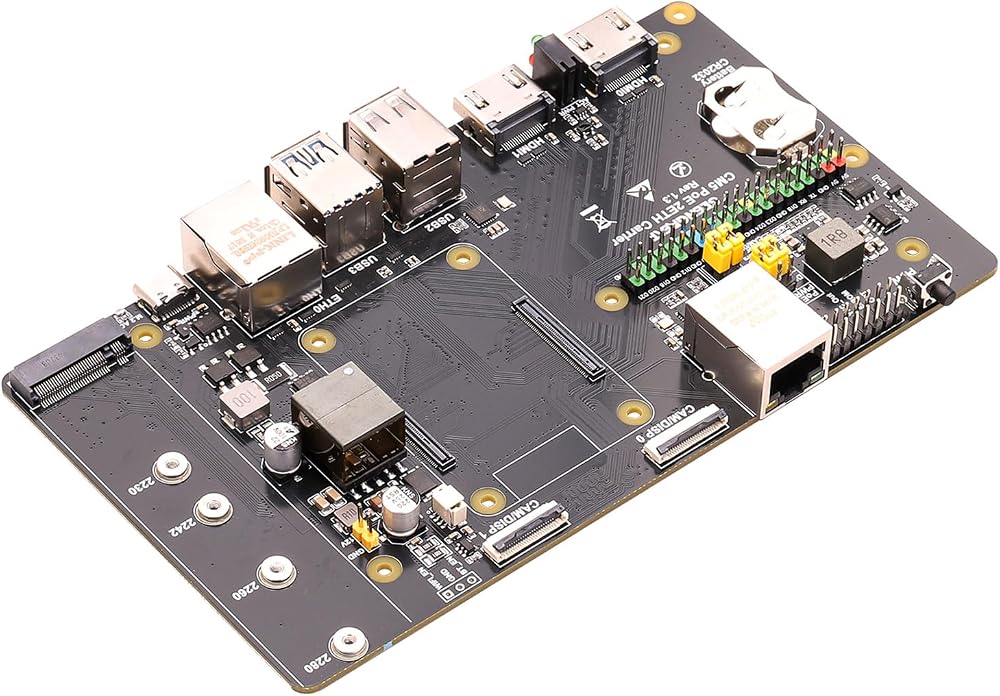

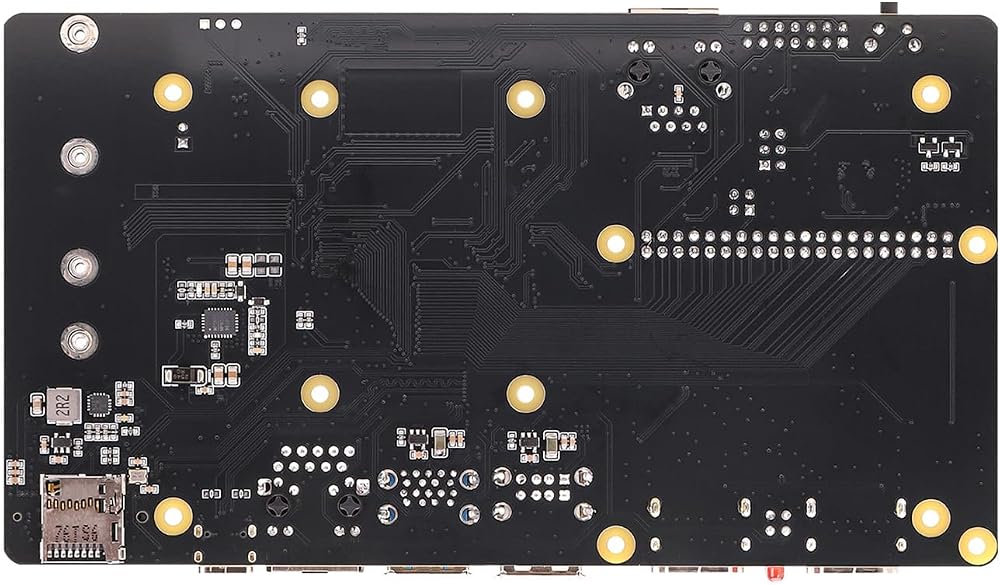

Specifications:

Product Name: CM5 PoE 2ETH Carrier Board
Compatibility: for Raspberry Pi Compute Module 5
Network Ports: 1× Gigabit PoE RJ45, 1× 100M RJ45
Storage Interface: M.2 M-Key NVMe SSD
Display Outputs: Dual HDMI
USB Ports: 2× USB3.0, 2× USB2.0 Type-A
Camera/Display Interfaces: 2× CAM/DISP
GPIO: 40-pin standard header
Power: PoE input, 5V system output, 12V auxiliary output
Additional: RTC interface, fan connector

Package Contents

1. CM5 PoE 2ETH Carrier x1
2. Copper post pack x1
