YDS-KD6-OV5640-1B V4.5 IR850 5MP High Definition OV5640-1B MIPI Interface 850nm IR Pass M12 Fixed Focus Camera Module in Kuwait YDS-KD6-OV5640-1B V4.5 IR850 5MP High Definition OV5640-1B MIPI Interface 850nm IR Pass M12 Fixed Focus Camera Module in Kuwait YDS-KD6-OV5640-1B V4.5 IR850 5MP High Definition OV5640-1B MIPI Interface 850nm IR Pass M12 Fixed Focus Camera Module in Kuwait YDS-KD6-OV5640-1B V4.5 IR850 5MP High Definition OV5640-1B MIPI Interface 850nm IR Pass M12 Fixed Focus Camera Module in Kuwait YDS-KD6-OV5640-1B V4.5 IR850 5MP High Definition OV5640-1B MIPI Interface 850nm IR Pass M12 Fixed Focus Camera Module in Kuwait

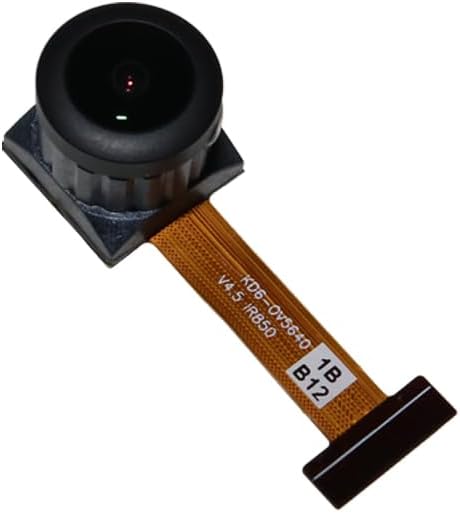

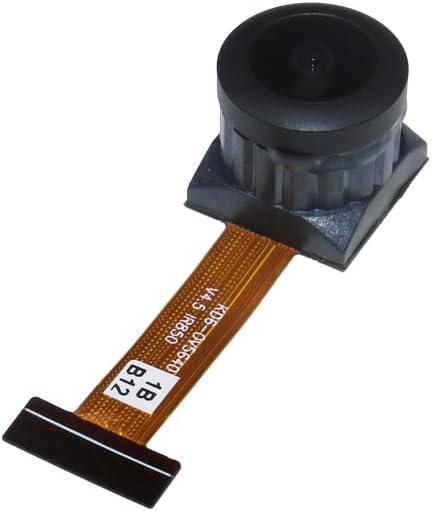

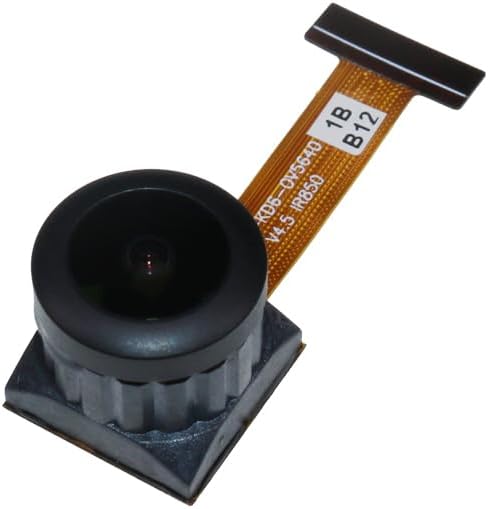

YDS-KD6-OV5640-1B V4.5 IR850 5MP High Definition OV5640-1B MIPI Interface 850nm IR Pass M12 Fixed Focus Camera Module

KWD 23
– 1 +

مميزات خاصة

  • 􀀁 1.4 µm x 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)
  • 􀀁 optical size of 1/4"
  • 􀀁 automatic image control functions: automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz luminance detection, and automatic black level calibration (ABLC)
  • 􀀁 programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning
  • 􀀁 image quality controls: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling

وصف

YDS-KD6-OV5640-1B V4.5 IR850 is a MIPI interface 850nm IR Pass M12 fixed focus camera module based on 1/4" OV5640 which delivers a complete 5-megapixel camera solution on a single chip, aimed at offering cost efficiencies that serve the high-volume autofocus (AF) camera phone market. The system-on-a-chip (SOC) sensor features high quality 1.4 micron OmniBSI backside illumination architecture to deliver excellent pixel performance and best-in-class low-light sensitivity, while enabling ultra compact camera module designs of 8.5 mm x 8.5 mm with
