Sundown Audio SA-3M 3" Midrange Speaker Pair (High fedelity) in Kuwait Sundown Audio SA-3M 3" Midrange Speaker Pair (High fedelity) in Kuwait Sundown Audio SA-3M 3" Midrange Speaker Pair (High fedelity) in Kuwait Sundown Audio SA-3M 3" Midrange Speaker Pair (High fedelity) in Kuwait Sundown Audio SA-3M 3" Midrange Speaker Pair (High fedelity) in Kuwait

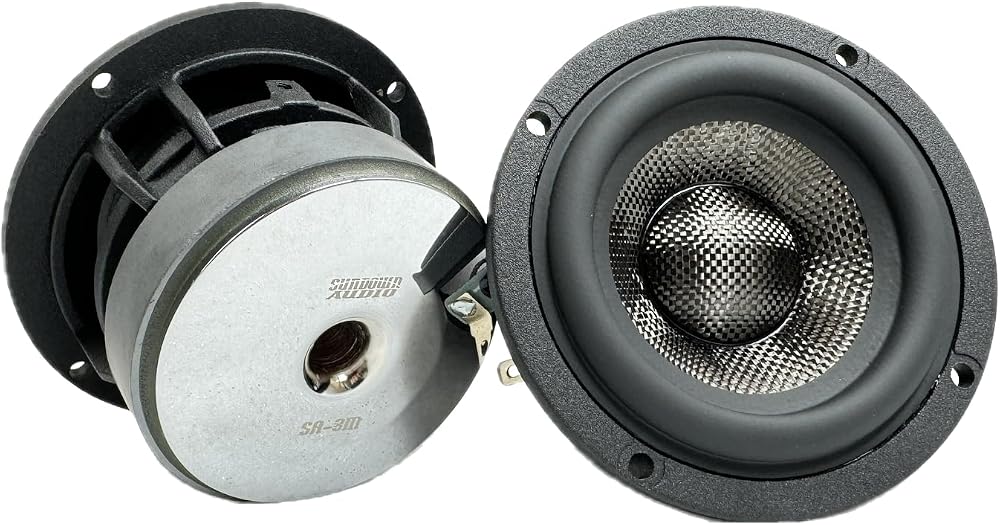

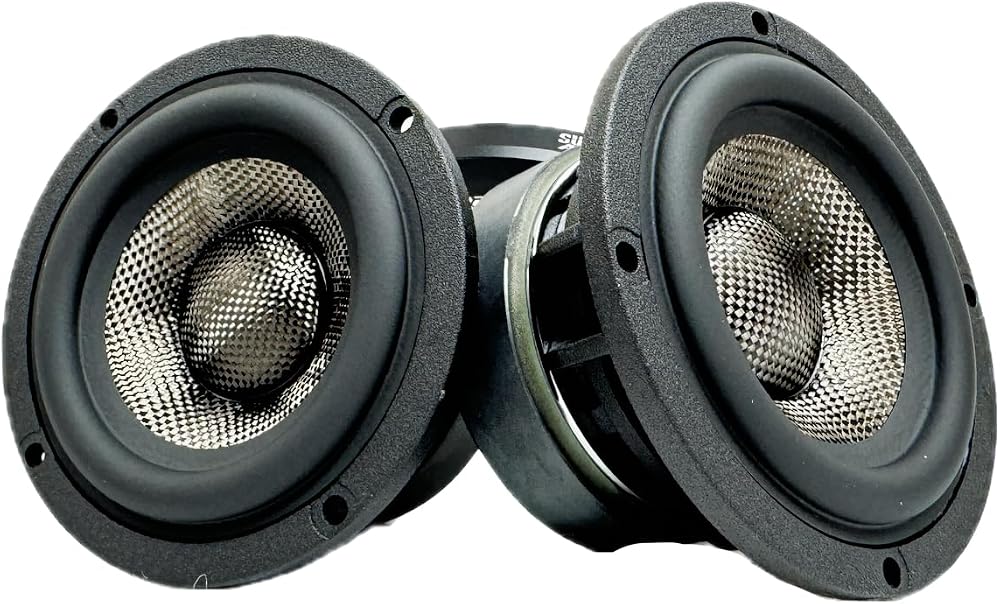

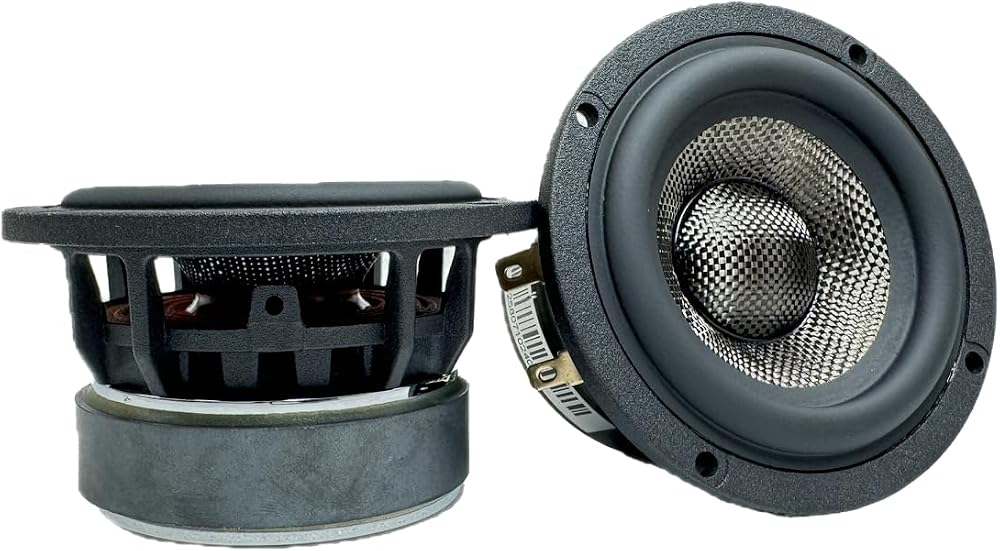

Sundown Audio SA-3M 3" Midrange Speaker Pair (High fedelity)

KWD 76
– 1 +

مميزات خاصة

  • Engineered for Ultra-Low Distortion: Designed specifically for the dedicated Sound Quality (SQ) market. Features a double LE treatment with a copper pole sleeve and an aluminum magnet ID shorting ring for superior distortion performance, enabling full-range play beyond 20kHz
  • Extreme Linear Excursion: Achieves an impressive 4.5mm of one-way linear excursion (Xmax) by 70% BL, effectively preventing linearity limits in most applications. The suspension system was meticulously refined over a year of FEA simulation
  • Robust Power Handling: Handles 150 Watts RMS with a 300Hz High-Pass Filter (HPF) or 30W RMS full-range. Its 28mm diameter, extra-long voice coil and high linear stroke allow for high-pass crossovers as low as 300Hz effortlessly
  • Hybrid Motor Structure & Sensitivity: Utilizes a powerful ferrite and neodymium pole cap hybrid motor structure for a high-force magnetic circuit. Achieves 84.5dB sensitivity (at 1-watt) without excessive power requirement, making integration easier

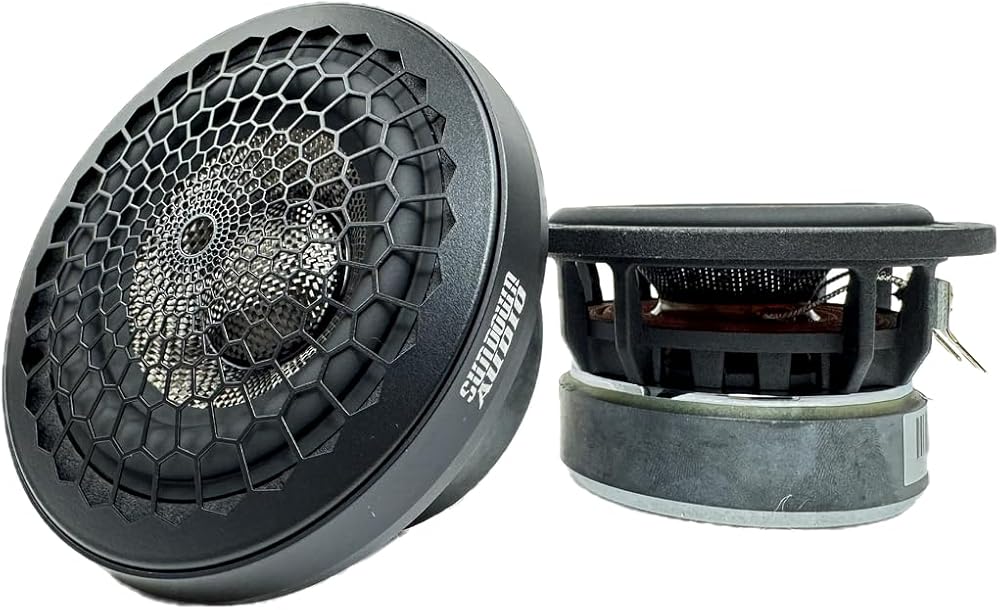

  • Optimized Build & Integration: Sold as a pair and includes metal grilles for protection. Features a custom-tooled frame and high-quality woven carbon fiber cone for optimal frequency response. Compact dimensions: 3.6 inch Outer Diameter and only 1.91 inch depth with a 3.1 inch cutout
  • Advanced Thiele-Small Parameters: Features an electrical resistance of 3.09 Ohms, resonant frequency of 134.8 Hz, and total Q factor of 0.78, providing excellent acoustic performance and flexibility for custom audio system configurations
  • Three-Way System Compatibility: High linear stroke design enables low crossover points down to 300Hz, making this midrange speaker highly suitable for advanced 3-way audio system builds requiring clean mid-bass and midrange reproduction

وصف

Sundown Audio SA-3M 3" Midrange Speaker: Dedicated Sound QualityThe all-new 2025 Sundown Audio SA-3M is an incredibly special midrange speaker, bringing Sundown's low-distortion engineering approach to the dedicated Sound Quality (SQ) market. This unit was built specifically to address the major drivers of audio distortion, ensuring every frequency is reproduced with exceptional fidelity and clarity. Its unique design and high linear stroke allow it to be crossed over low, making it a favorite for 3-way system builders. The speaker is sold as a pair and includes metal grilles.
The SA-3M features components usually reserved for high-end subwoofers:
Linear Excursion: Boasts 4.5mm of one-way linear excursion by 70% BL (with 8mm X-mech) and over 6mm by CMS and LE definitions. This design effectively ensures there is essentially NO risk of the driver reaching linearity limits in most applications.

Motor: A ferrite and neodymium pole cap hybrid motor structure helps achieve 84.5dB sensitivity at 1-watt.

LE Treatment: Incorporates double LE treatment via both a copper pole sleeve and an aluminum magnet ID shorting ring, allowing the SA-3M to play full-range to beyond 20kHz.

Suspension: The surround and spider suspension system underwent over a year of FEA simulations and Klippel testing to ensure exceptional linearity.

The SA-3M is built to handle significant power while offering wide frequency versatility:
RMS Power Handling: Rated for 30W RMS (Full Range) or 150W RMS with a 300Hz HPF.

Coil: Features a 28mm diameter, extra-long voice coil for thermal reliability and high linear stroke.

Crossover Flexibility: Can be high-pass crossed over at 300Hz effortlessly with high power, or even lower if needed, due to its incredibly high linear stroke.

Cone Material: Uses a high-quality woven carbon fiber cone & dust cap to achieve the best frequency response possible.

T/S Specs: Features an RE of 3.09 Ohms, FS of 134.8 Hz, and Qts of 0.78.

The compact size of the SA-3M offers flexible installation:
The Outer Diameter is 3.6 inches.

The Cutout Diameter is 3.1 inches.

The Mounting Depth is a shallow 1.91 inches.

This speaker is the perfect choice for the demanding audio enthusiast looking for clean, low-distortion midrange and mid-bass in a 3-way setup.
