Bad Wolf SP240V200KA-A Type 1 Panel Mount Whole House Surge Protector, 120/240VAC Split Phase, 200kA, 4-Wire L1/L2/N/G, NEMA 4X/IP67, ETL Listed in Kuwait Bad Wolf SP240V200KA-A Type 1 Panel Mount Whole House Surge Protector, 120/240VAC Split Phase, 200kA, 4-Wire L1/L2/N/G, NEMA 4X/IP67, ETL Listed in Kuwait Bad Wolf SP240V200KA-A Type 1 Panel Mount Whole House Surge Protector, 120/240VAC Split Phase, 200kA, 4-Wire L1/L2/N/G, NEMA 4X/IP67, ETL Listed in Kuwait

Bad Wolf SP240V200KA-A Type 1 Panel Mount Whole House Surge Protector, 120/240VAC Split Phase, 200kA, 4-Wire L1/L2/N/G, NEMA 4X/IP67, ETL Listed

KWD 94.500
ماركة
Bad Wolf
وزن
0.5 kg
– 1 +

مميزات خاصة

  • Direct Panel Mount Design: Built-in 1/2-inch NPT male side-mount fitting installs directly through a standard 1/2-inch knockout in a compatible electrical panel, disconnect, service enclosure, or equipment enclosure.
  • Heavy-Duty Whole-House Protection: Designed for compatible 120/240VAC split-phase residential, commercial, and light-industrial electrical systems.
  • 200kA Surge Current Capacity: High-capacity Type 1 surge protective device helps reduce the risk of damage from lightning-related surges, utility switching, load switching, and other voltage transients.
  • Six-Mode Protection: Provides protection across L1-L2, L1-N, L2-N, L1-G, L2-G, and N-G for comprehensive split-phase panel protection.
  • Four-Wire L1/L2/N/G Connection: Pre-wired with 36-inch 10 AWG leads—red and black for Line 1 and Line 2, white for neutral, and green for equipment ground.

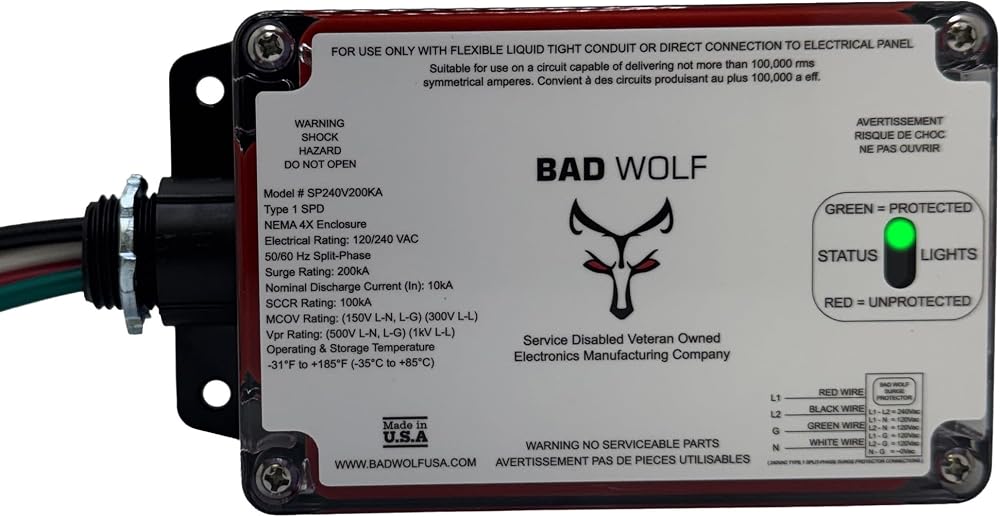

  • Green and Red Status Indicators: Green indicates protected and normal operation; red indicates that the surge protector has been damaged and should be replaced.
  • Indoor or Outdoor Installation: Rugged NEMA 4X/IP67 enclosure helps protect the internal components from rain, dust, moisture, and demanding installation environments.
  • High Electrical Ratings: Rated at 10kA nominal discharge current and 100kA SCCR, with MCOV ratings of 150VAC L-N/L-G and 300VAC L-L.
  • Tested Voltage Protection Ratings: Rated at 500V L-N/L-G and 1000V L-L for compatible 120/240VAC split-phase electrical systems.
  • ETL Listed and Made in the USA: ETL Listed to UL 1449 5th Edition, certified to CSA C22.2 No. 269.1 and 269.2, and backed by a 5-year limited manufacturer warranty.

وصف

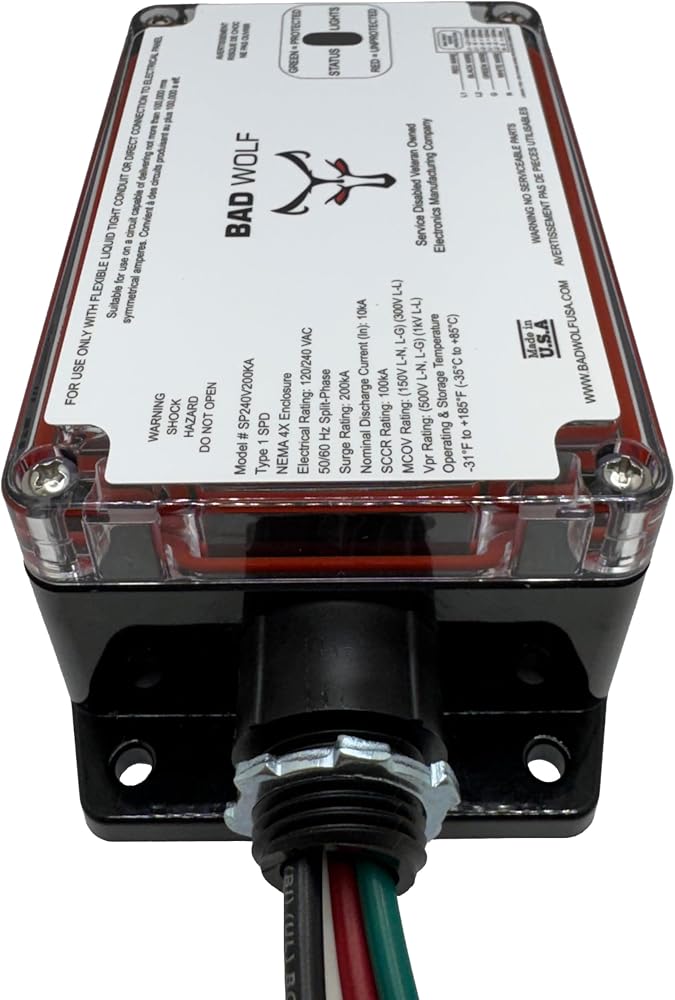

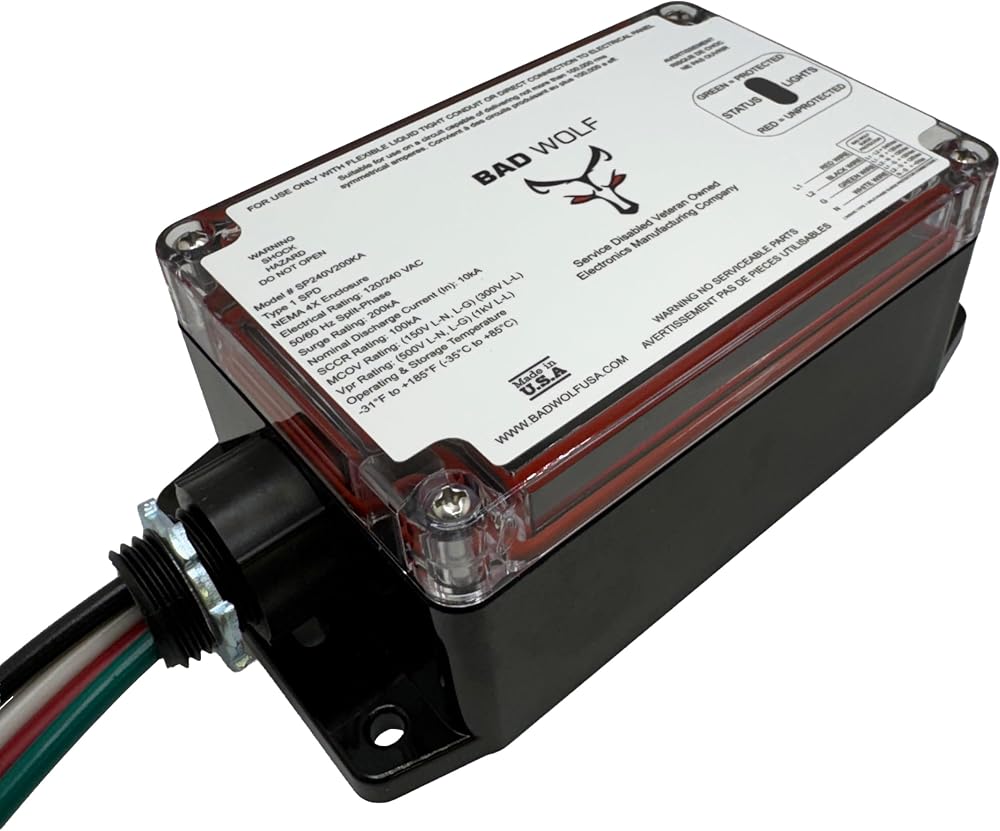

The Bad Wolf SP240V200KA-A is a heavy-duty Type 1 whole-house surge protective device designed for compatible 120/240VAC split-phase electrical systems. Its built-in 1/2-inch NPT side-mount fitting allows the enclosure to mount directly through a standard electrical-panel or equipment-enclosure knockout, helping keep conductor routing short and organized. The four-wire L1/L2/N/G design provides six-mode surge protection with a 200kA surge current capacity, 10kA nominal discharge current, and 100kA short-circuit current rating. Green and red status indicators provide quick visual confirmation of operating condition. The NEMA 4X/IP67 enclosure is suitable for properly installed indoor or outdoor applications. ETL Listed to UL 1449 5th Edition and certified to applicable CSA standards. Made in the USA by Bad Wolf.
