مميزات خاصة

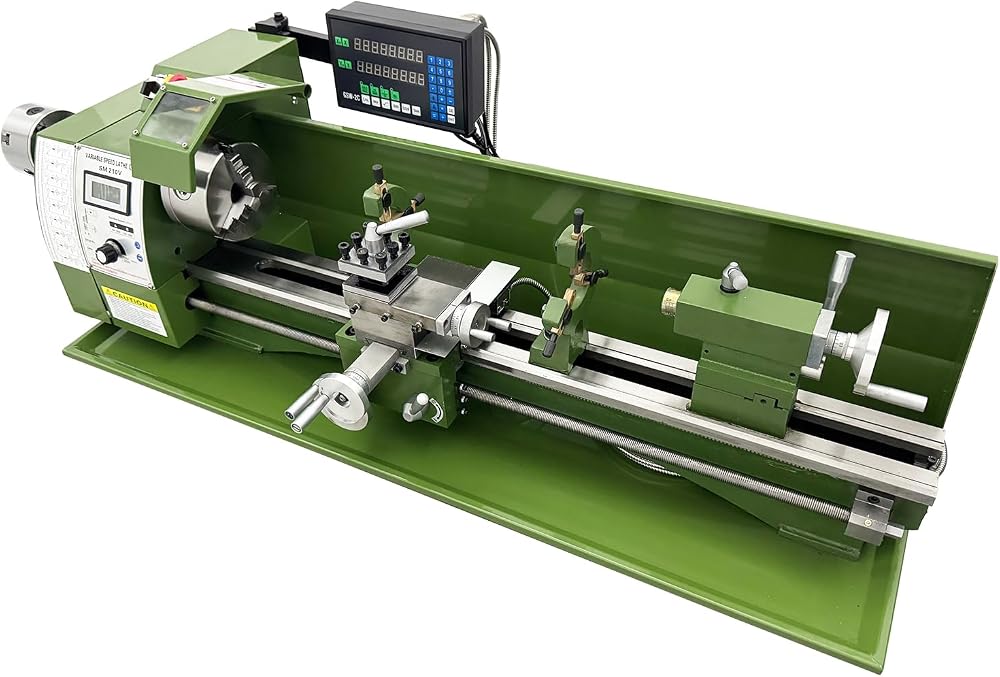

Grating Ruler and Control Panel: The precision metal lathe has a two-axis digital display grating ruler to measure and control the angles or lengths, with an accuracy of up to 0.005mm. The spindle rotation speed is divided into two adjustable gears: 50-1250rpm and 1250-2500rpm, which can be observed through the control panel in real time

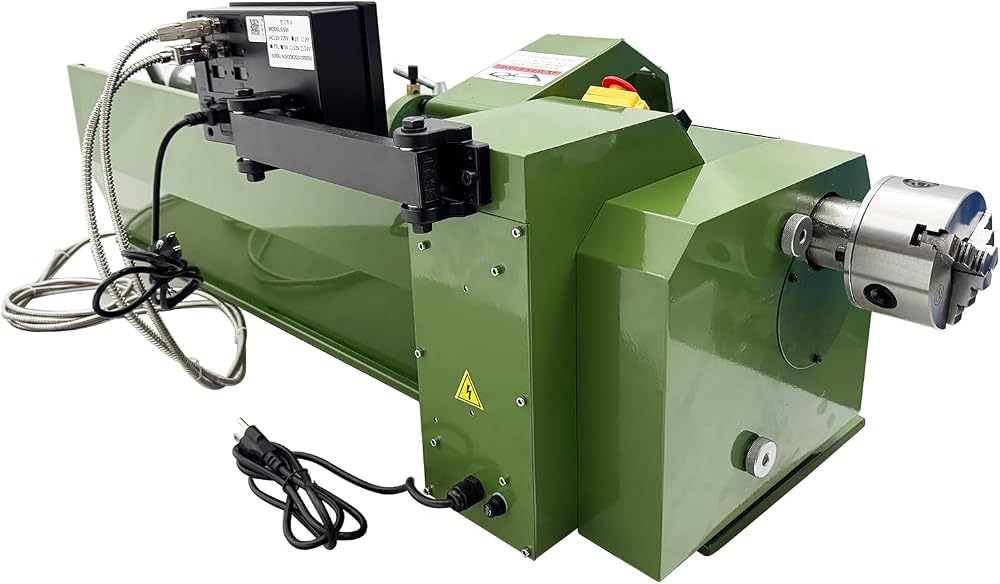

High Processing Accuracy: The benchtop lathe is equipped with two chucks on the left side, with the concentricity of 0.03-0.05mm, which can process longer objects. The processing accuracy is high especially for shaft and pipe part. The tailstock is movable and fixable with a maximum center distance of 27.5" at the far right. The lathe can make accurate operation by adjusting set screws, with the MT#2 taper in tailstock spindle
4-Way Tool Post: The metal lathe adopts the adjustable 4-way tool post, which allows you to easily change the cutting tools. The 8 screws makes it better grip the tool and finish the machining efficiently
Reliable Design: On the top of the lathe is designed with the forward and reverse switch, start and emergency stop switch. The power can be immediately cut off supply in case of emergency, ensuring the operation reliability
Wide Application: The metal lathe is mainly used for processing the end face of various rotary surfaces, such as turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread

وصف

Product Parameters
Voltage: AC110V (Brushless Motor)
Power: 1100W(1.5HP)
Swing Over Bed: 8.27"(210mm)
Concentricity tolerance: 0.03mm-0.05mm
Rotary diameter of tool rest: 5.51"(140mm)
Spindle bore: Right side:1.50"(38mm) Left side:1.26"(32mm)
Max clamping diameter of right chuck: 4.92"(125mm)
Max clamping diameter of left chuck: 3.94"(100mm)
Width of lathe bed: 3.94"(100mm)
Thread standard: Inch screw thread
Number of Spindle Speeds: Infinitely variable speeds
Range of Inch Threads: 8-44T.P.I
Range of metric threads: 0.5mm-3mm
Spindle taper: MT3
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Precision of the spindle: 0.02mm
Automatic feed range: 0.1mm-0.2mm
Tail frame taper: MT2
Maximum stroke of tool rest plate: 2.16"(55mm)
Maximum stroke of middle plate: 2.95"(75mm)
Maximum stroke of bottom plate: 26.77"(680mm)
Maximum stroke of tailstock sleeve: 2.36"(60mm)

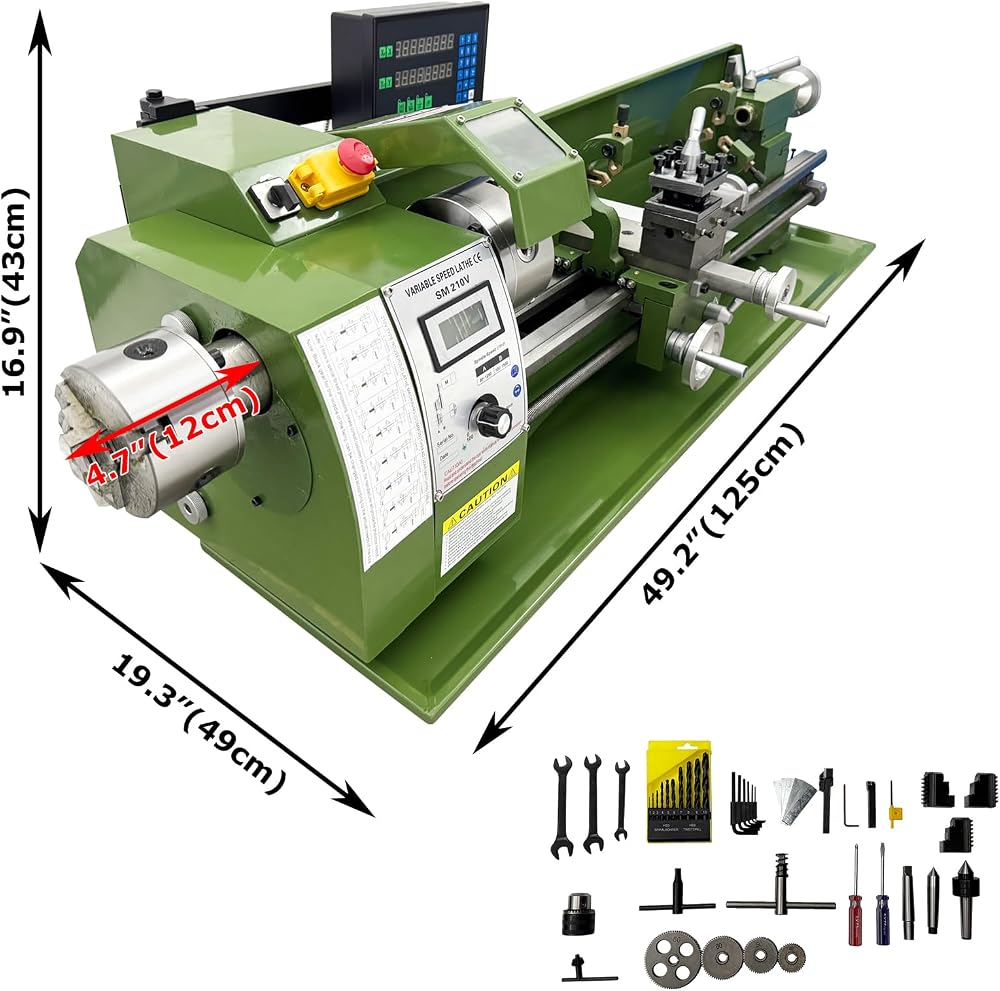

Package size: 52"*24"*22"(132cm*61cm*56cm)
Net weight/Gross weight: 165.3lbs(75kg)/218.3lbs(99kg)
