GOOD PROPERTIES：Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, good and reliability
SNAP JOINT STRUCTURE：Using snap joint structure, the current sensor transformer can be fixed to the cable directly through nylon tiesgrade, convenient to use
Split Core Structural Advantage：Detachable core design eliminates the need for cable threading or power-off during installation, solving the pain point of difficult disassembly and assembly of traditional closed transformers, especially suitable for fixed cables in cable trays or existing circuits
Effortless Installation & Disassembly：No complex tools required, the core can be closed and fixed quickly by hand or with simple tools, reducing installation time to within 5 minutes; it is also easy to disassemble, making it convenient for temporary use or later maintenance
Stable operation：achieves electrical isolation between high-current main circuits and low-current auxiliary circuits, effectively preventing high-voltage hazards from affecting monitoring equipment and personnel, and proving highly effective in industrial and building electrical applications
وصف
Operating temperature: -25ºC ~ +60ºC
Storage temperature: -30ºC ~ +90ºC
Frequency range: 50Hz-1KHz
Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz
Output/Housing AC 3.5KV/1min 50Hz
Coil Structure : Split core current transformer

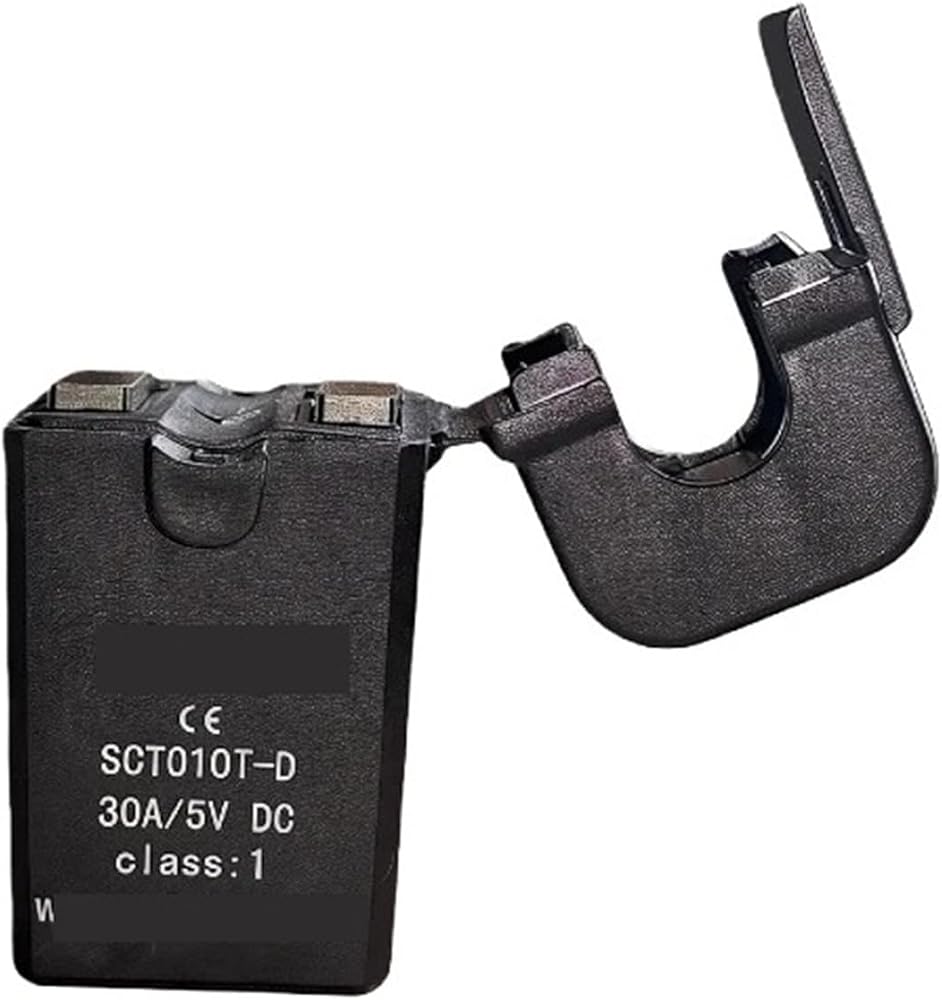

Model Number : SCT010T-D
Coil Number : current transformer
Phase : SINGLE
Use : Current
