سبليت الأساسية محول التيار سبليت الأساسية محول التيار Ct المشبك QNCTK1-16 50 5 100 150 200/5 التيار المتناوب الاستشعار الحالي (QNCTK1-16 150A-5A) in Kuwait سبليت الأساسية محول التيار سبليت الأساسية محول التيار Ct المشبك QNCTK1-16 50 5 100 150 200/5 التيار المتناوب الاستشعار الحالي (QNCTK1-16 150A-5A) in Kuwait

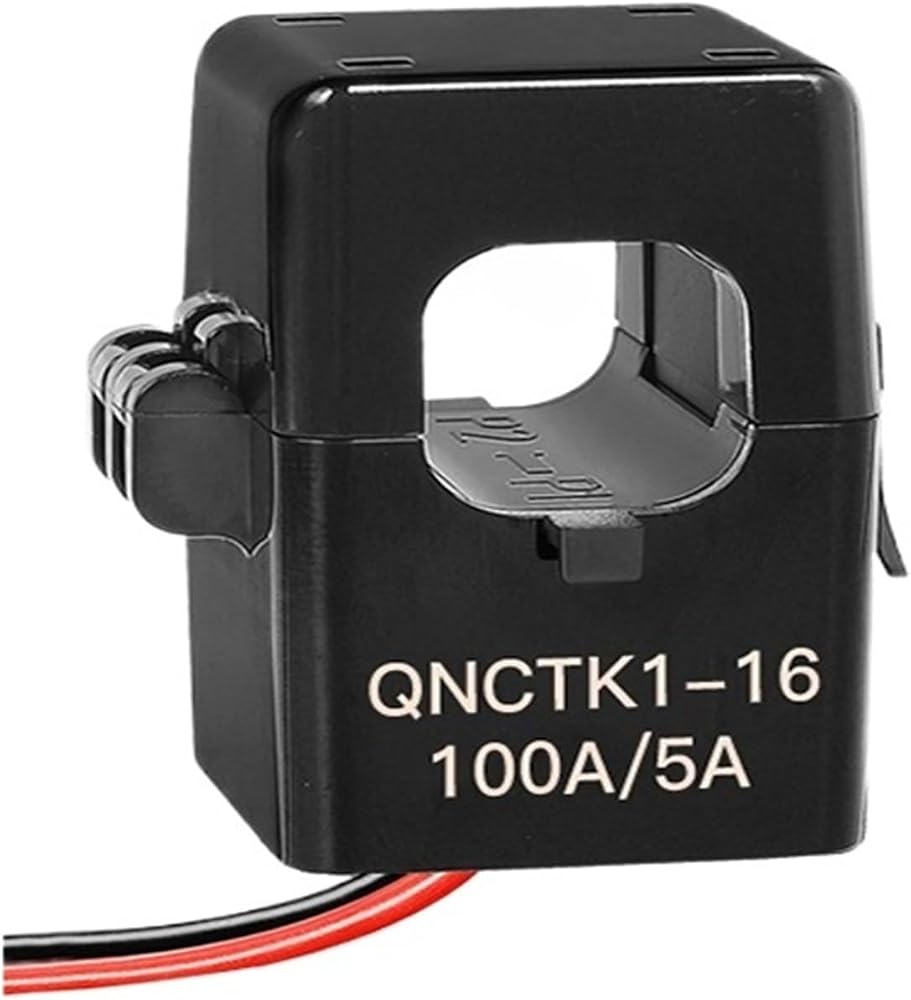

سبليت الأساسية محول التيار سبليت الأساسية محول التيار Ct المشبك QNCTK1-16 50 5 100 150 200/5 التيار المتناوب الاستشعار الحالي (QNCTK1-16 150A-5A)

KWD 24
– 1 +

مميزات خاصة

  • GOOD PROPERTIES：Fully enclosed, good mechanical properties and environmental resistance, strong voltage isolation capability, good and reliability
  • SNAP JOINT STRUCTURE：Using snap joint structure, the current sensor transformer can be fixed to the cable directly through nylon tiesgrade, convenient to use

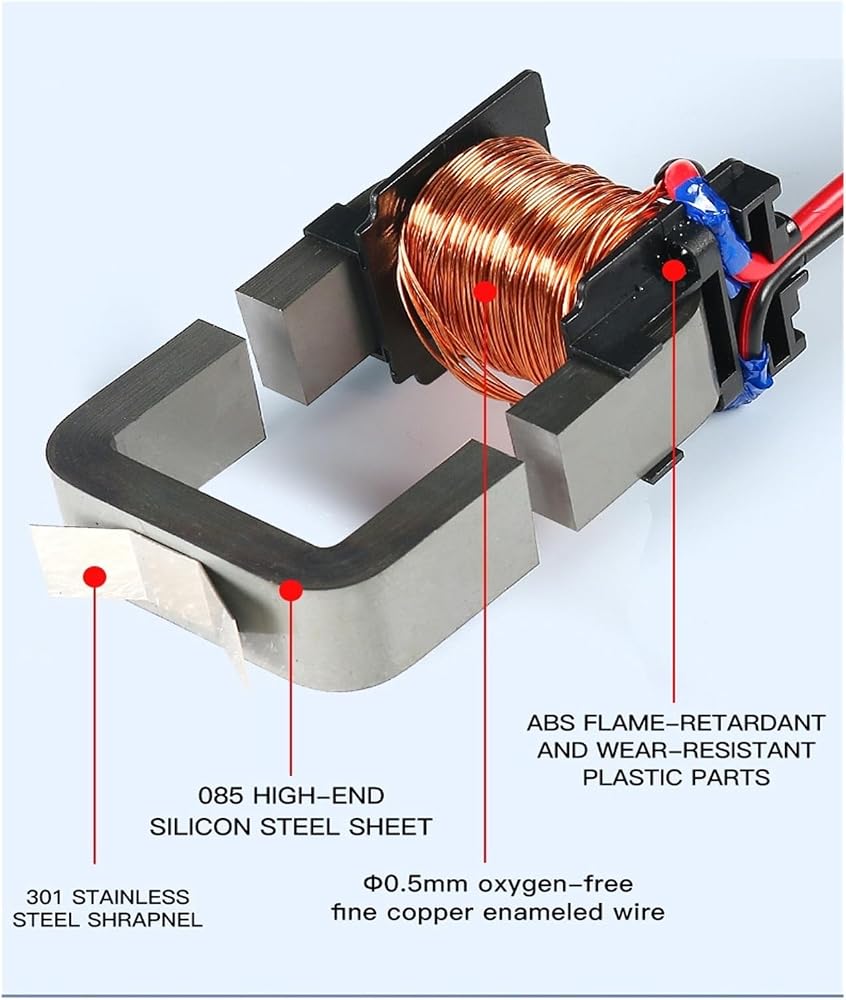

  • Split Core Structural Advantage：Detachable core design eliminates the need for cable threading or power-off during installation, solving the pain point of difficult disassembly and assembly of traditional closed transformers, especially suitable for fixed cables in cable trays or existing circuits
  • Effortless Installation & Disassembly：No complex tools required, the core can be closed and fixed quickly by hand or with simple tools, reducing installation time to within 5 minutes; it is also easy to disassemble, making it convenient for temporary use or later maintenance
  • Stable operation：achieves electrical isolation between high-current main circuits and low-current auxiliary circuits, effectively preventing high-voltage hazards from affecting monitoring equipment and personnel, and proving highly effective in industrial and building electrical applications

وصف

Model Number : QNCTK1-16
Phase : SINGLE
Use : Current
Rated input : 50A 100A 150A 200A
Rated output : 5A
Accuracy error : 3% 1%
Compressive strength : 2kV/50Hz/1min
Operating temperature : -40~+85
Work voltage : 0.66/0.72kV
