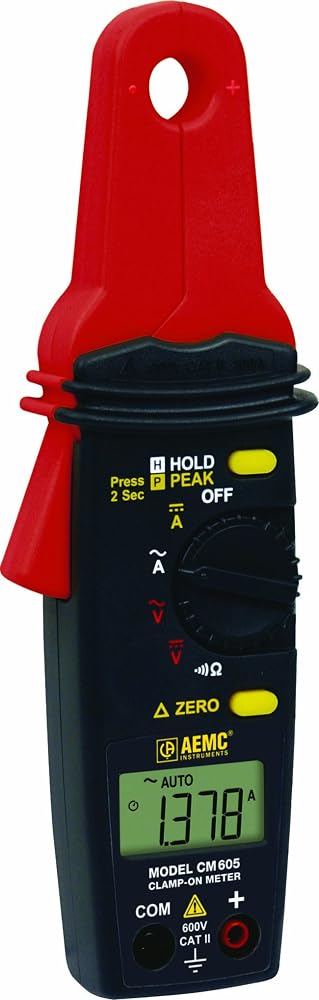

The Multifunction Clamp-on Meter Model CM605 is an ideal choice for both process and general industrial markets. It is also the perfect instrument for measuring 4 to 20mA process signals, as well as, the higher currents (up to 100A) associated with general industrial monitoring and troubleshooting. The Model CM605 is a versatile device that is capable of measuring both AC/DC voltage, up to 600V, and AC/DC current. It can also measure resistance up to 10k Ohms and includes a continuity buzzer to assist in circuit verification. For operator convenience, the Model CM605 can also hold the last reading in the display and capture the peak value at the time of the measurement.
Specifications
Multimeters AC Current Accuracy: 10 A: 2.0% ±10 counts
80 A
2.0% ±10 counts
>80 A: 3.5% ±10 counts
Multimeters Ac Voltage Accuracy: 1.5% ±5 counts
Multimeters Continuity: range: Buzzer
Multimeters DC Current Accuracy: 10 A: 2.5% ±10 counts
80 A
2.5% ±10 counts
>80 A: 4.5% ±10 counts
Multimeters DC Voltage Accuracy: 1.0% ±2 counts
Multimeters Safety Rating: IEC 61010, EN 61010
Description: Low Current Clamp Meter, 100 A AC/DC
Universal Guarantee: 1 Year
Multimeters Depth (in): 1.33
Multimeters DC Max Volts: 600
Multimeters DC Max Amps: 100
Multimeters Frequency Max Hz: 500
Multimeters Frequency Min Hz: 40
Multimeters Height (in): 2.76
Multimeters Width (in): 7.95
Multimeters Resistance Max Kohm: 10
Multimeters Max Clamp Size: 0.6
Multimeters AC Max Volts: 600
Multimeters AC Min Amps: 10
Multimeters AC Max Amps: 100
