[STABLE AFHDS 3 CONNECTION] Experience cutting control with third-generation AFHDS 3 automatic frequency hopping technology. This 2.4GHz RF module delivers rock solid signal transmission across 18 channels with an impressive 4096 resolution, giving you precise and responsive command over your RC aircraft or vehicle for an unmatched flying or racing experience.
[WIDE COMPATIBILITY & INPUTS] Adapt effortlessly to your setup with support for multiple input signals including PPM, S.BUS, and UART. This versatile transmitter module works seamlessly with PL18, EL18, NB4, and NB4 Pro controllers, plus it is compatible with FS TH9X, FS ST8, and FTR8B receivers, making it a perfect upgrade for your existing gear.
[EXTREME LONG RANGE CONTROL] Take your RC adventures further with a transmission distance exceeding 3500 meters in open interference free areas. Whether you are piloting a fixed wing aircraft or competing in high speed RC racing, this portable RF module provides reliable long range control so you can push your limits with confidence.
[FLEXIBLE POWER OPTIONS] Stay powered and informed with three convenient input methods including an XT30 interface supporting 5 28V, a signal interface for 5 10V, and USB power from 4.5 to 5.5V. The built in voltage alarm function for external power sources keeps you alerted to battery status, ensuring uninterrupted operation during your sessions.
[DURABLE & UPGRADEABLE DESIGN] Built to last with replaceable external SMA antennas and support for easy firmware updates, this compact module maintains performance across a wide temperature range from 10°C to 60°C. Its rugged design and small size at just 75x44x15.5mm makes it an ideal long term companion for dedicated RC enthusiasts.
وصف
Spec:

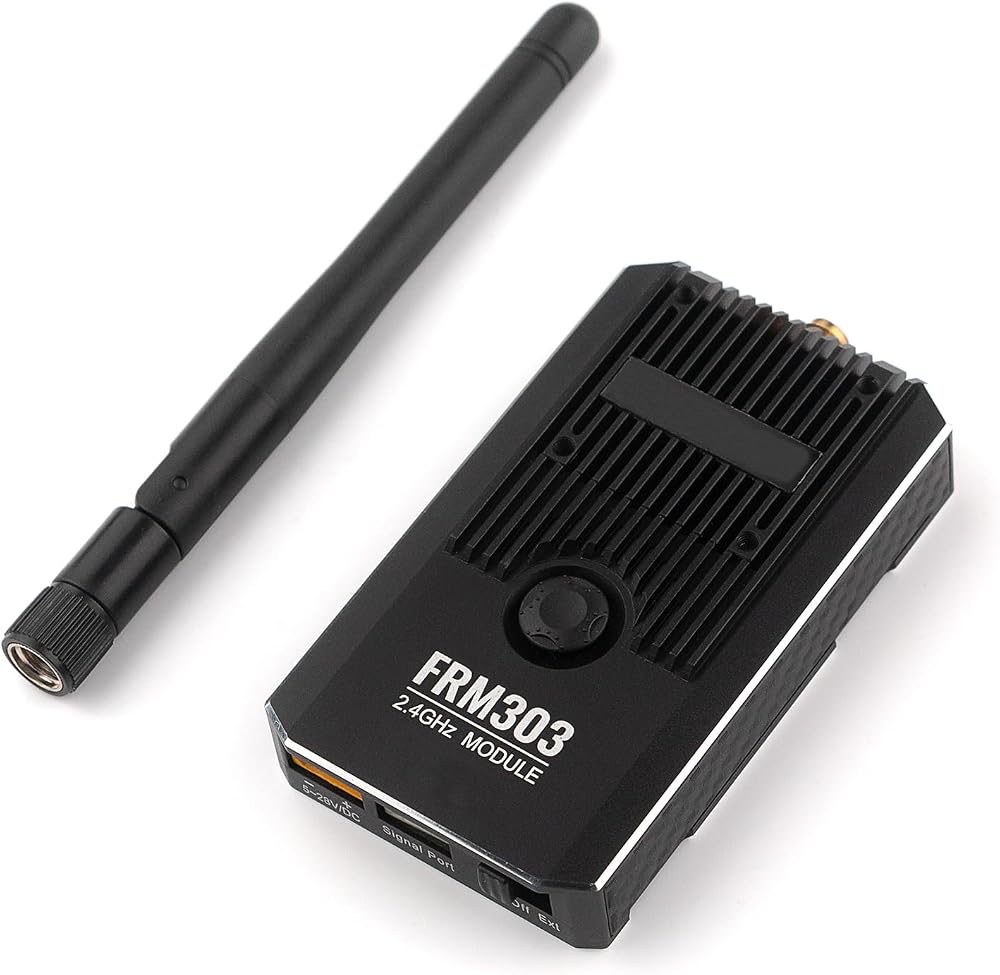

Item Type: 2.4GHz AFHDS 3 RF Module
Application: fit for PL18/EL18/NB4/NB4 Pro
Compatible Devices (PPM): FS-TH9X, FS-ST8, FTR8B receivers
Compatible Devices (S.BUS): FS-ST8, FTR8B receivers
Compatible Devices (Closed Protocol-1.5M UART): PL18
Compatible Devices (Open Protocol-1.5M UART): EL18
Compatible Devices (Open Protocol-115200 UART): Devices supporting this protocol
Suitable Model: Fixed-wing aircraft, RC racing aircraft, relay competitions
Channels: 18
Resolution: 4096
RF Frequency: 2.4GHz ISM band
Protocol: AFHDS 3
Maximum Power: Transmission Distance: 3500m / 11482.94ft (interference-free area)

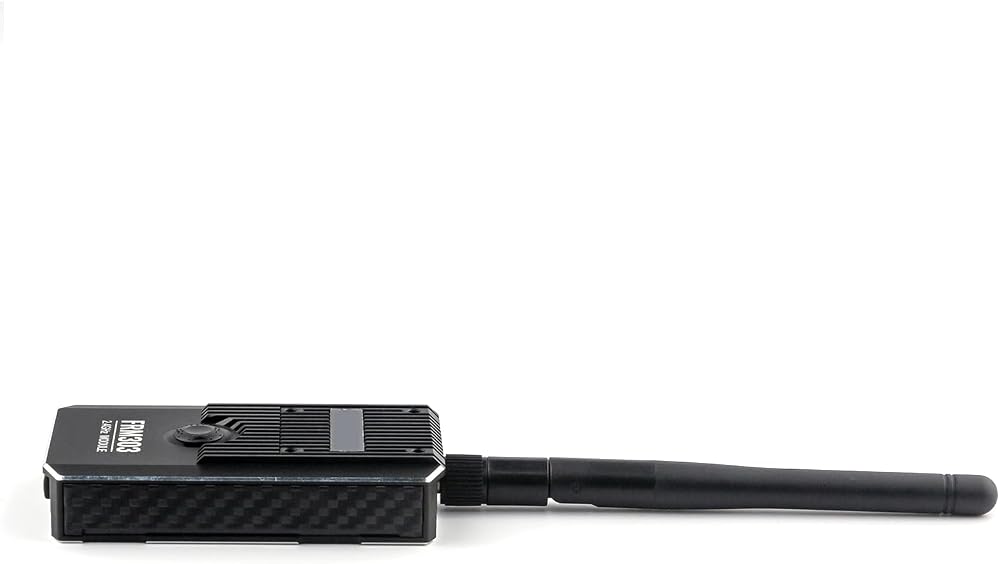

Antennas: External single SMA antennas (male thread with inner pin)

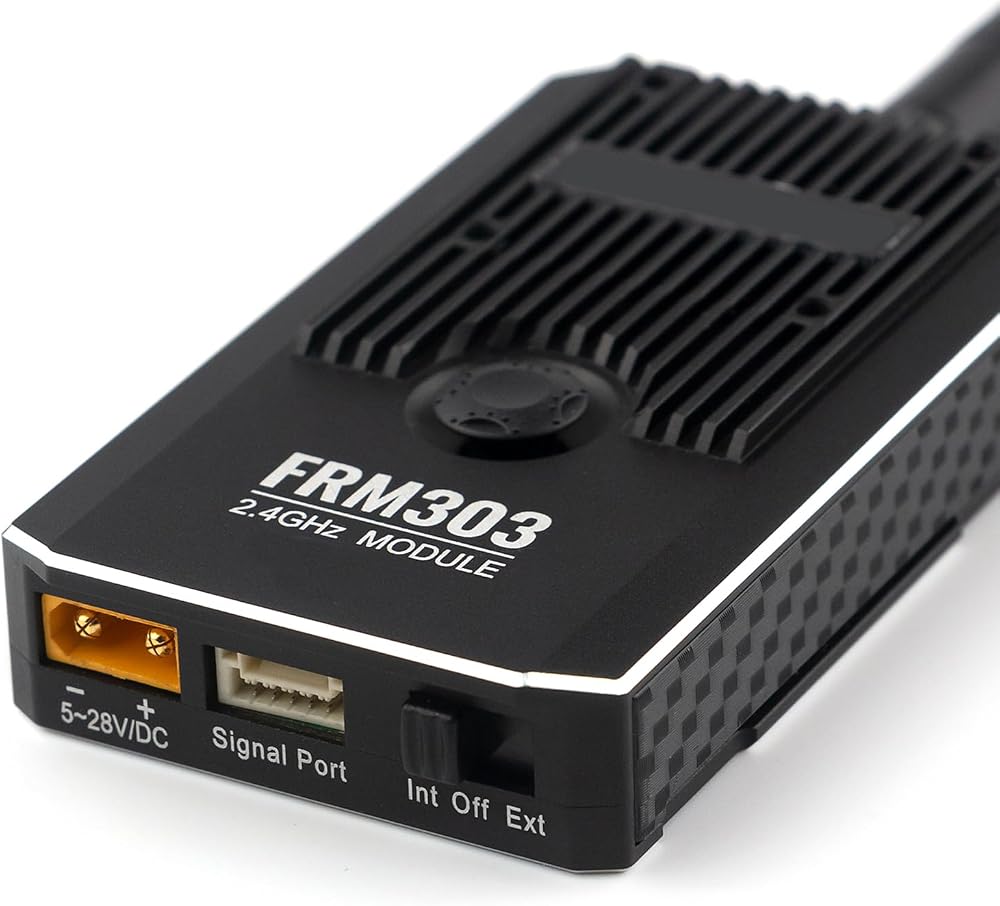

Power Input (XT30): 5-28V/DC
Power Input (Signal Interface): 5-10V/DC
Power Input (USB): 4.5-5.5V/DC
Working Current (External Power): 98mA/8.4V
Working Current: 138mA/5.8V
Working Current (USB): 135mA/5V
Data Interface: PPM, UART, and S.BUS
Temperature Range: -10℃ - +60℃ / 14℉ - 140℉
Humidity Range: 20% - 95%
Firmware Update: Supported
Product Size: 75x44x15.5mm / 2.95x1.73x0.61in (without antennas)

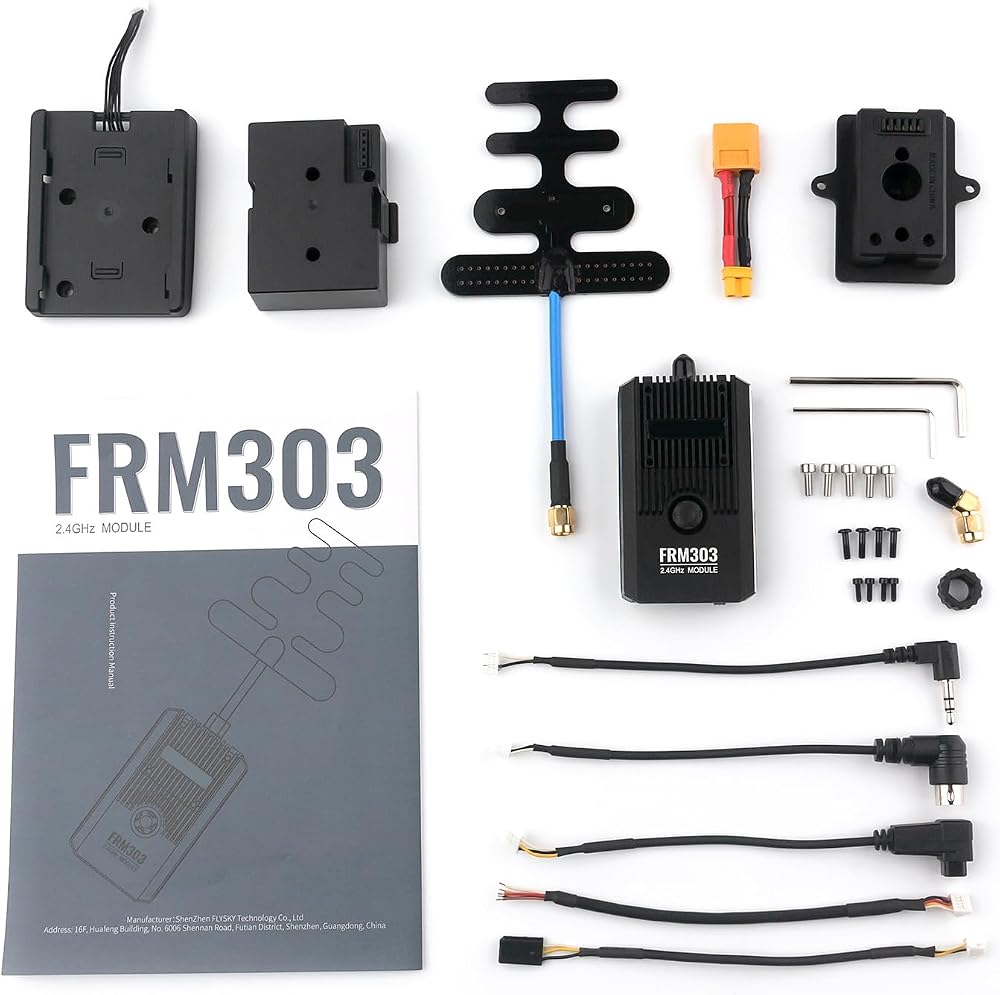

Package List:
1 x RF Module
1 x Antennas

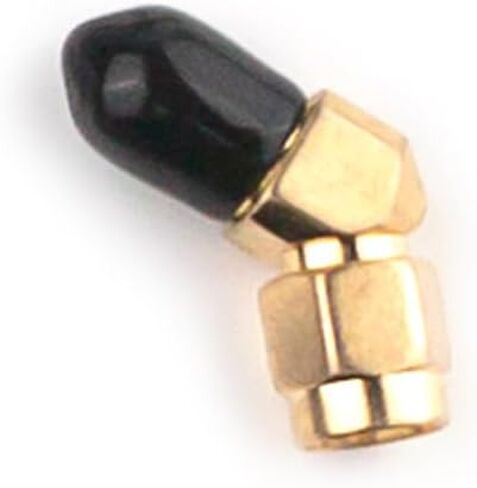

1 x SMA Antennas Adapter

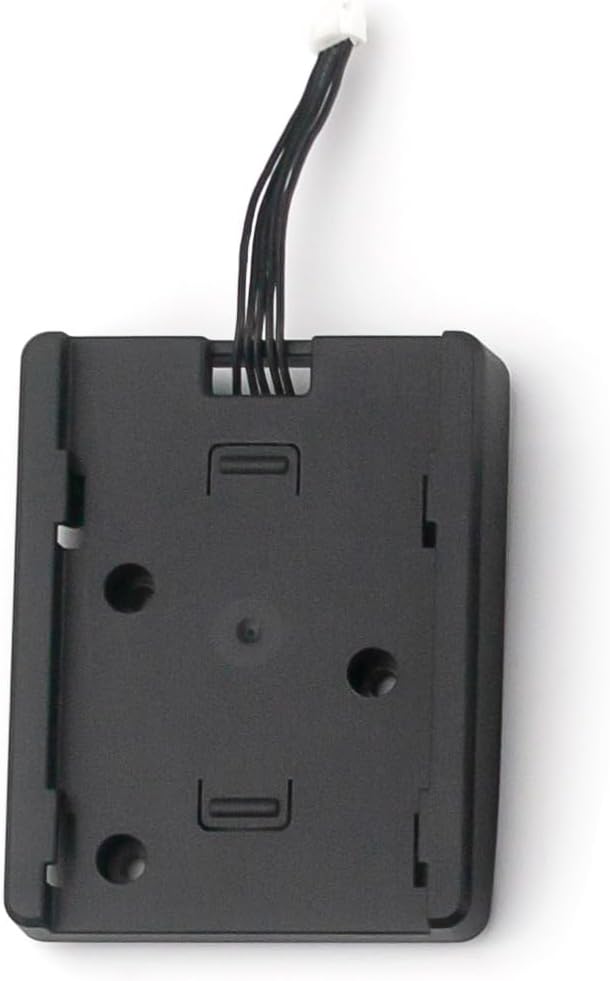

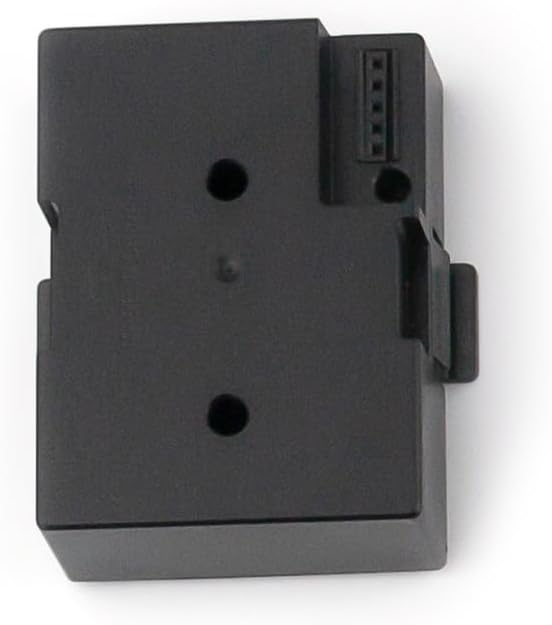

3 x Adapter
5 x Adapter Cable
1 x Instruction Manual
1 x XT60 Male To Female Connector
2 x Wrench
13 x Screw
1 x Installation Auxiliary Ratchet
How To Use:
1. Install the instruction manual to the matching remote controller.
