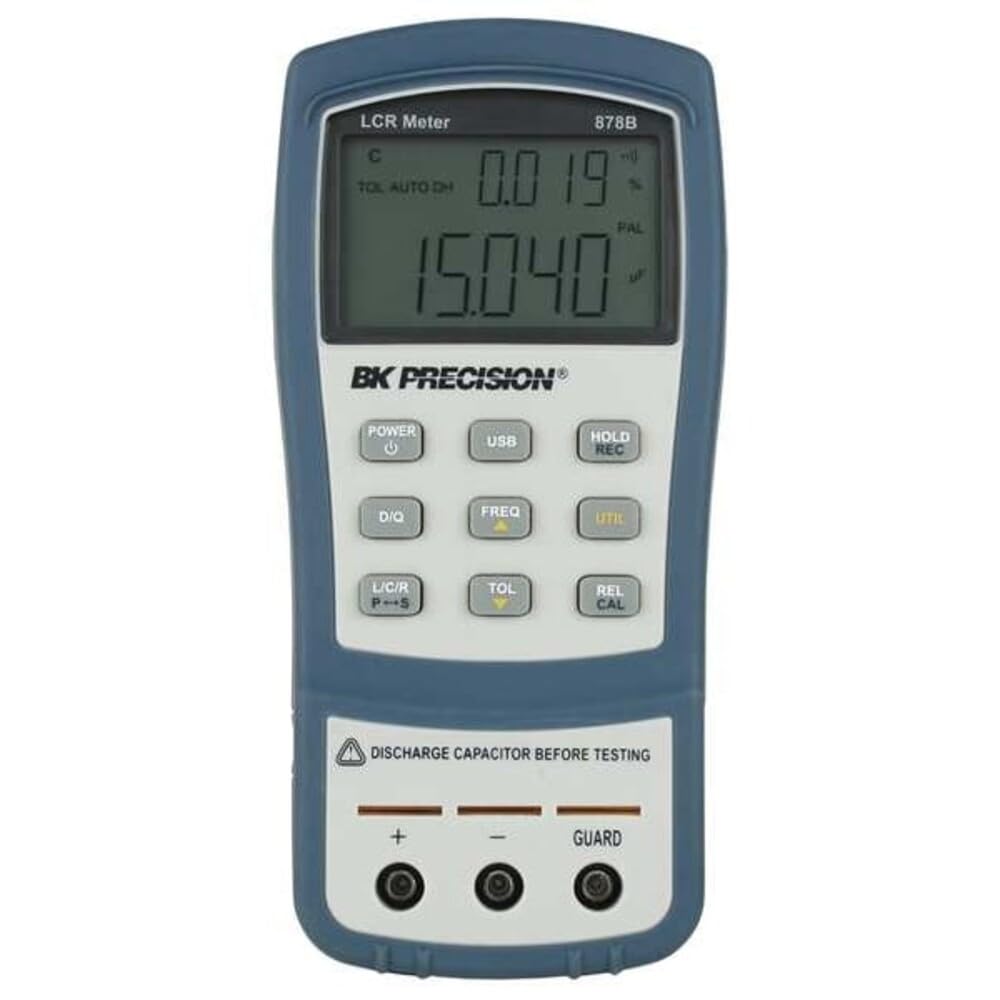

40000 Count handheld LCR meters measures inductance, capacitance, and resistance quickly and precisely. The meters also includes handy functions such as data hold, Min/Max/Average recording, tolerance sorting, and relative mode. Measurement data can continuously transfer to a PC via the meter's mini USB interface, using either the provided data logging software or SCPI commands sent from a custom program. 0.5 percent basic accuracy. Fast auto range design for rapid, easy component measurements. Relative mode; data hold and min/max/average recording. USB (Virtual COM) interface. Software for datalogging and front panel emulation available as free download. Selectable auto-power-off options. Applications: Passive component trouble shooting. Electronic assembly. Quality control (component sorting). Measurement parameters: L/C/R/D/Q. Test frequency accuracy is 0.02 percent of actual test frequency: 120 Hz, 1 kHz (test setting), 120.048 Hz, 1 kHz (actual frequency). Tolerance mode: 1 percent, 5 percent, 10 percent. Test signal level: almost equal to 0.6 Vrms. Measuring circuit mode: Series mode/Parallel mode. Basic accuracy: 0.5 percent. Ranging mode: Auto. Measuring terminals: 3 terminals with sockets. Measurement rate: 1.5 reading /second (range auto search not included). Response time: almost equal to 680 ms/DUT. Auto power-off: 5, 15, 30, 60 minutes, None. Operation temperature: 32 to 104 degree F; 0-70 percent R.H. Storage temperature: -4 to 122 degree F; 0-80 percent R.H. Low battery indication: almost equal to 6.8 V. Battery life: almost equal to 16 hours using Alkaline Battery at 1 kHz with 100 ohm DUT, with backlight off. Power consumption: almost equal to 28 mA (under full power battery) for operation/ 2 microamps after Power-off. Power requirements: 1) DC 9V Battery, 2) Ext. DC Adaptor: DC 12 Vmin -15 Vmax. (Load 50 mA Min.). Measures 7-1/2" length by 3-1/2" width by 1-19/32" height. 1 year warranty.
