مميزات خاصة

Self-Powered Operation: This AC current tran ucer requires no external power supply — it draws energy directly from the measured AC circuit, enabling plug-and-play installation without additional wiring or power sources; ideal for retrofitting into existing panels or compact enclosures where space and power access are limited.
True Isolation Safety: Features reinforced galvanic isolation with 2000VAC withstand voltage (1 minute), fully separating input current path from low-voltage DC output to protect downstream devices and personnel; meets industrial safety requirements for grounded and floating systems alike.
Straight-Through Design: Accepts AC currents from 0–10A/20A/50A through a 20mm aperture (wire diameter 0.35–20mm), delivering linear 0–5V DC output with ±1% accuracy across 10–100% range and ≤200ms response time — optimized for real-time monitoring in control systems and energy meters.
No Circuit Interruption Needed: Installs non-invasively around live conductors using its open-core straight-through structure; eliminates the need to break, cut, or reconnect wiring during setup — reducing downtime and installation while maintaining system continuity.
Compact & : Measures just 61.5 × 90 × 26 mm and weighs approx. 98g, with an operating range of –20°C to 60°C and 5–95% RH; fits standard DIN rail mounts and tight service panels, supporting reliable performance in industrial automation, HVAC monitoring, and renewable energy inverters.

وصف

Specification:
Model: SZT15--5V
Supply power: Not required
Output type: 0-5V DC
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: ≤1W
Leakage current: ≤1mA
Hysteresis: ≤1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: ≤200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60℃, 5-95%RH
: 61.5*90*26mm / 2.4*3.5*1.0in
Hole diameter: 20mm / 0.8in
Package weight: Approx. 98g/3.4oz

Package List:

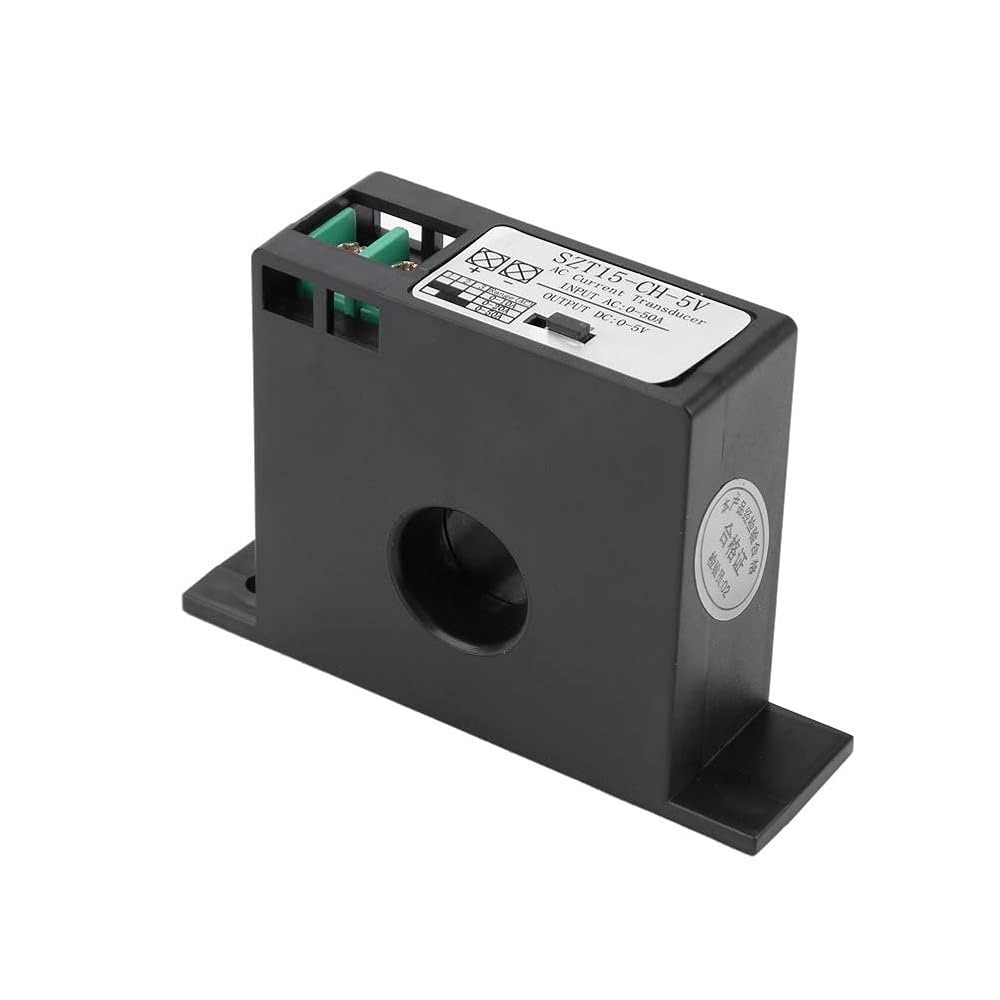

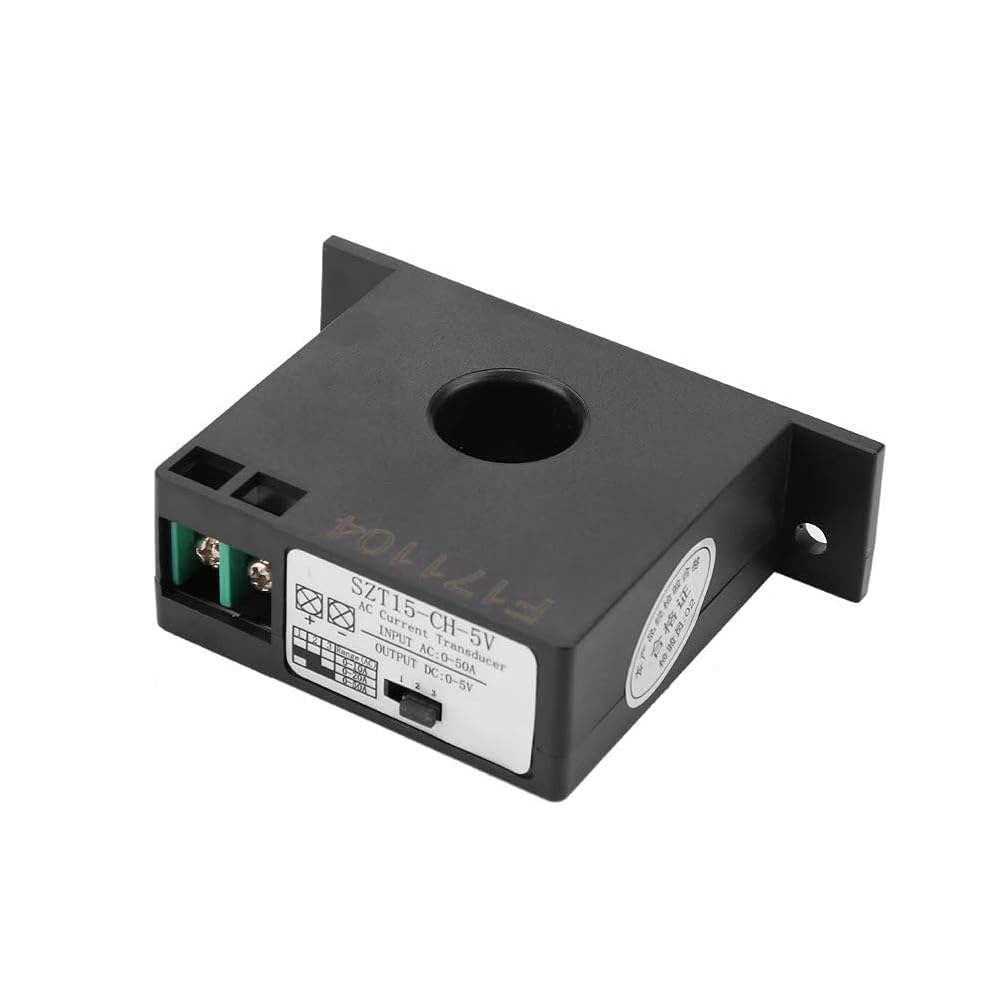

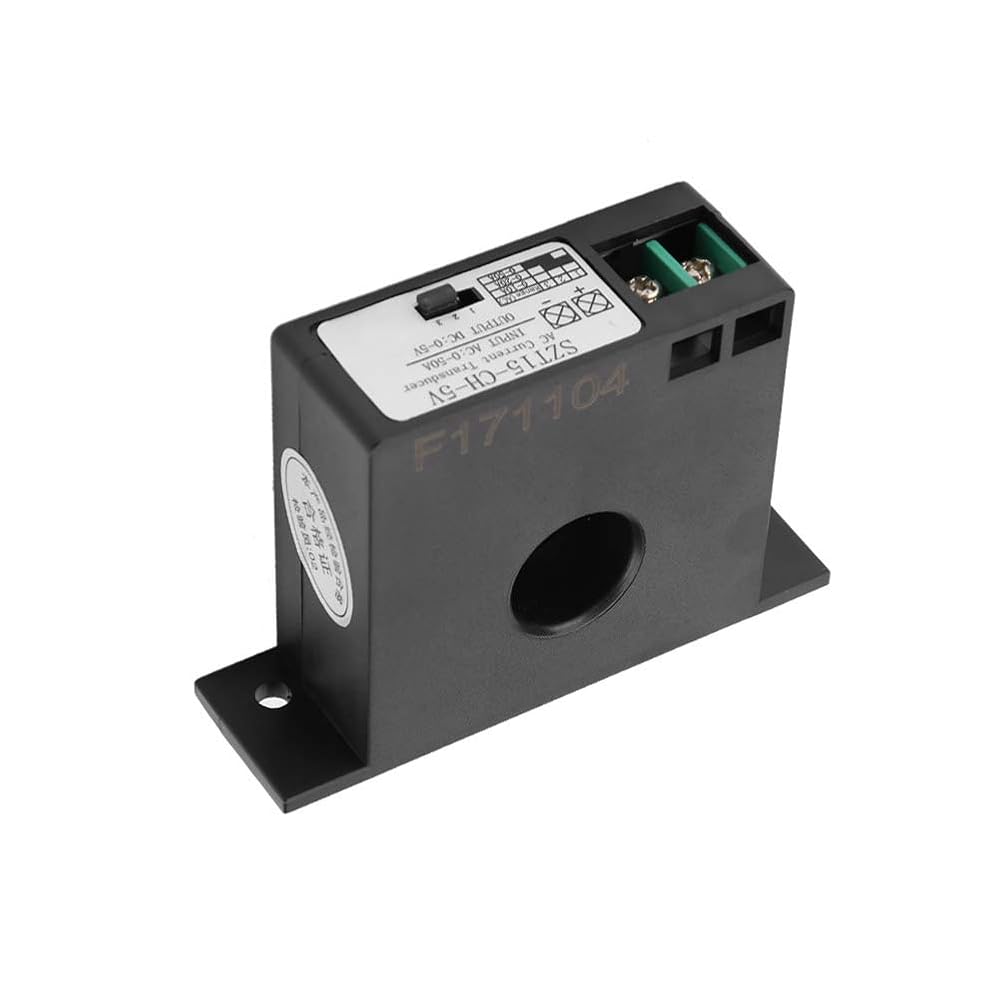

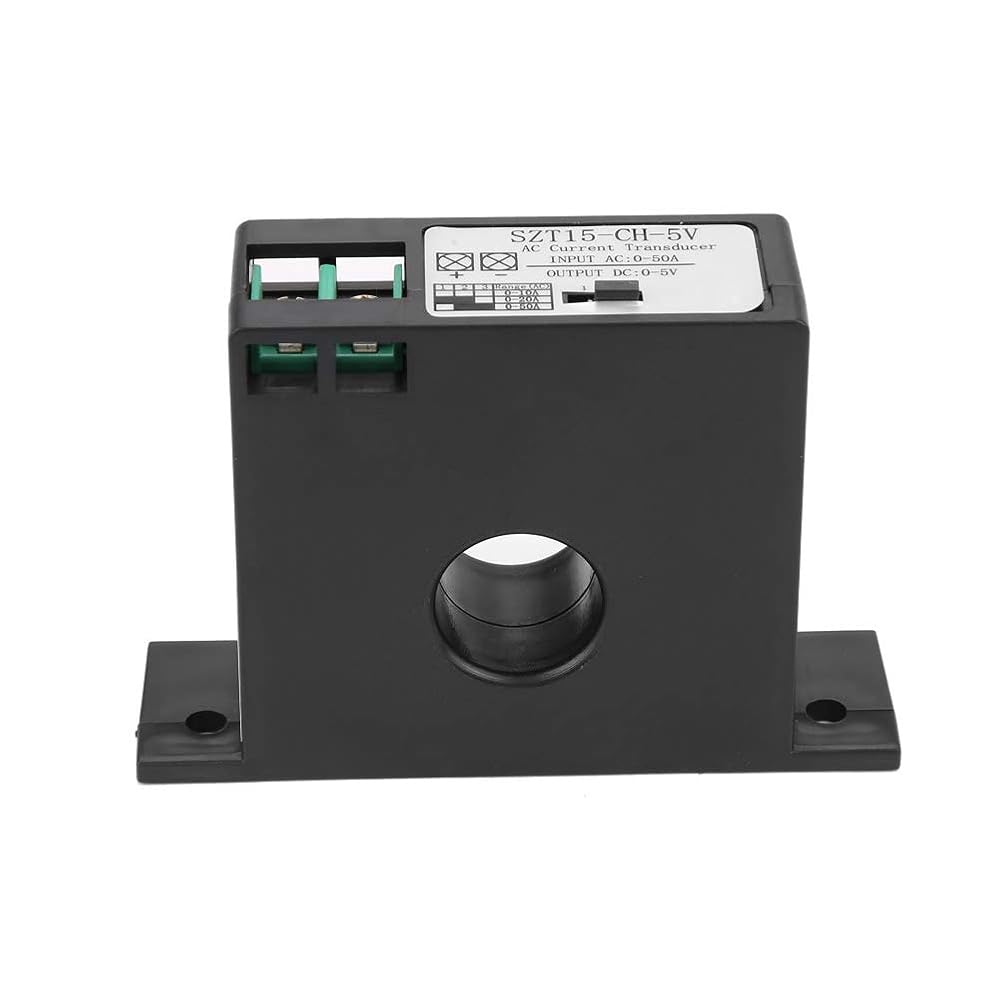

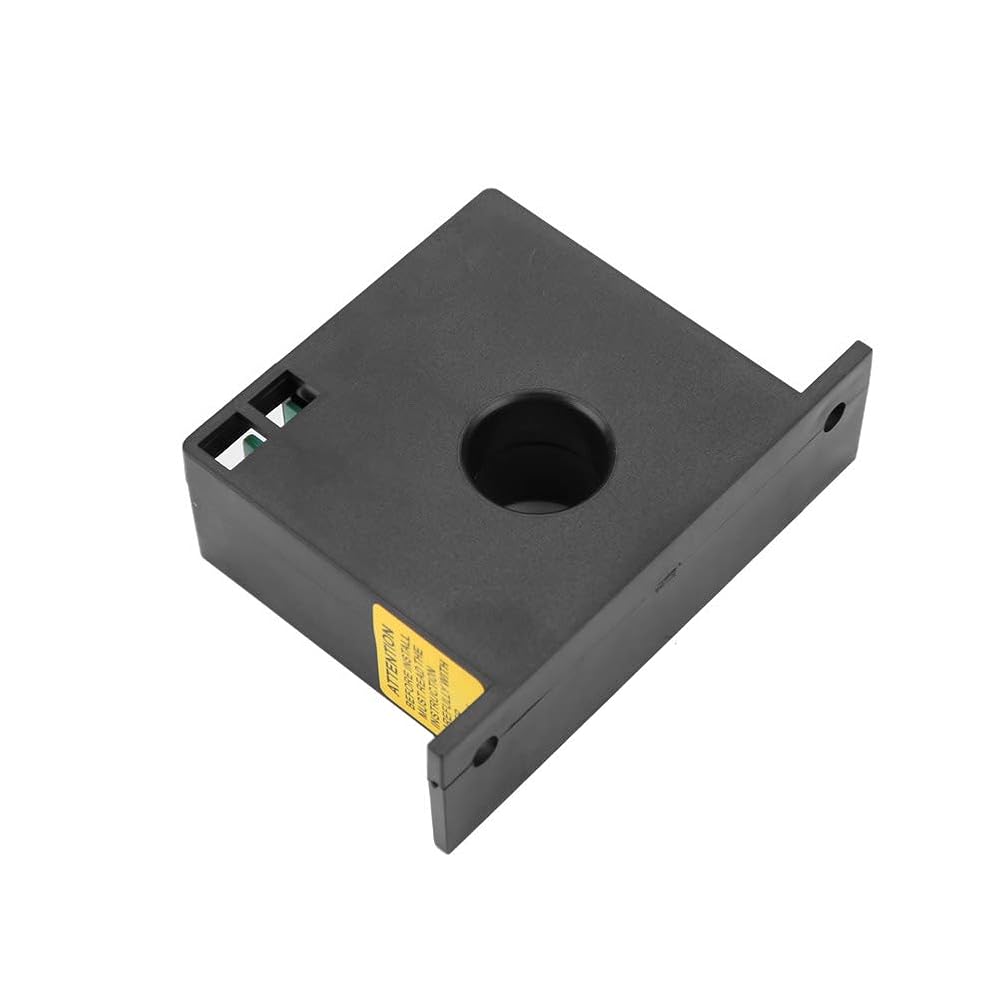

1 * AC Current Transmitter

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
