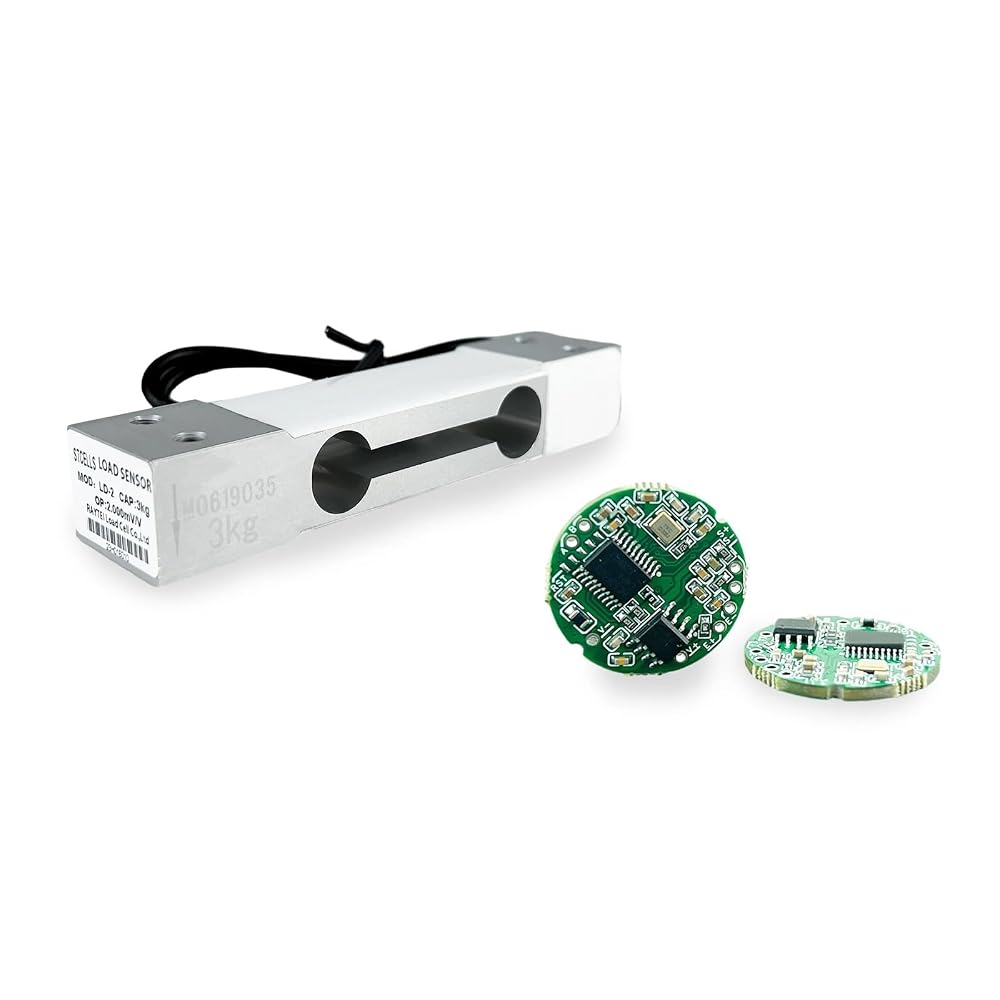

Linear Sensors
Theory : Resistance Sensor
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Use : Pressure Sensor
Capacity : 3~50KG
Type : Load Cell/Force Sensor
Rated voltage : 9-12V
Sensitivity : 2.0-2.0MV/V
Hysteresis error : 0.03F.S
Non-linear : 0.03F.S
Creep (30 minutes) : 0.02F.S
Zero point output : 1F.S
Operating temperature range : -20~+60
Zero temperature drift : 0.03F.S/10
Sensitivity temperature drift : 0.03F.S/10
Input resistance : 405± 10
Output resistance : 350± 3
Insulation resistance : 5000 M
Safety overload : 120%F.S
Recommended excitation voltage : 9-12V
