Digital Signal Processors
Model:

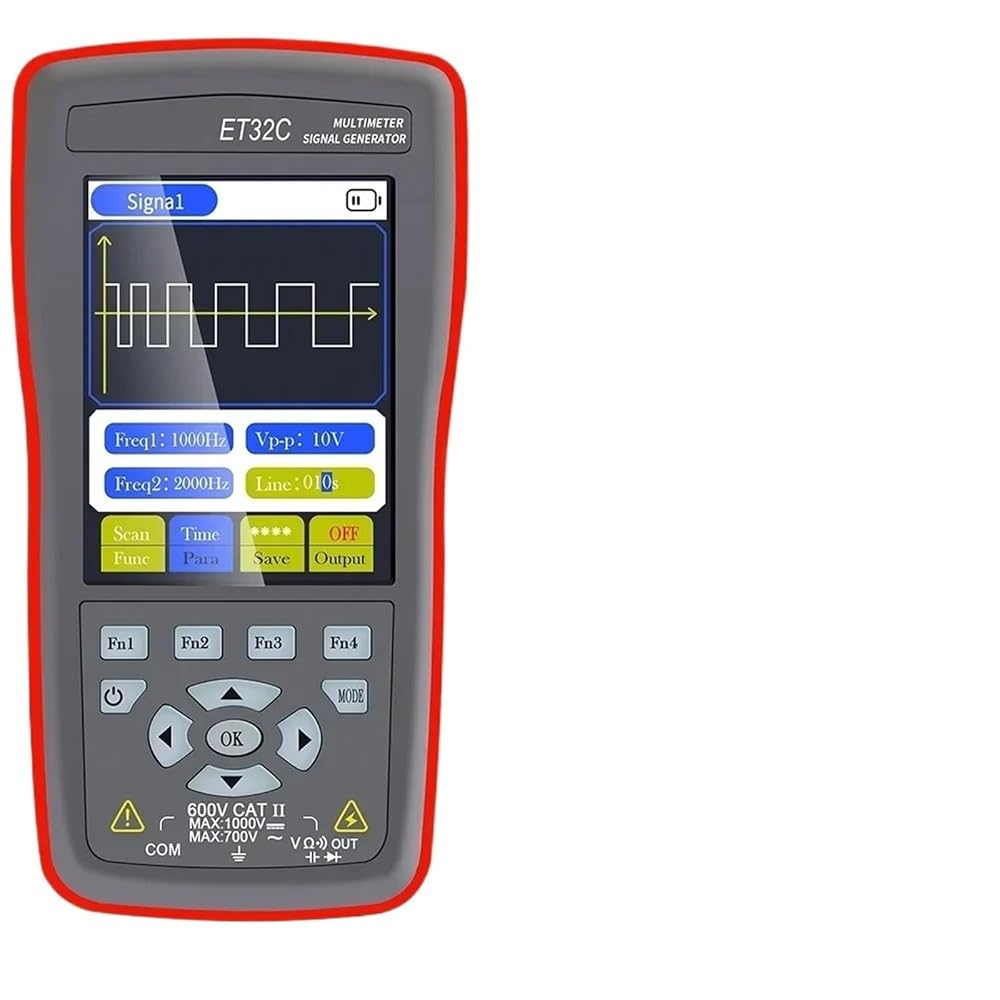

ET32C Built-in lithium battery
Features:
1. Adjustable signal parameters: The output frequency of the signal generator is adjustable from 1HZ to 9999HZ; the output amplitude is adjustable from -12v to +12v.
2. Multiple signal output: It can output square wave, sine wave, combination wave (square wave N+N, sine wave N+N), scanning wave and DC wave.

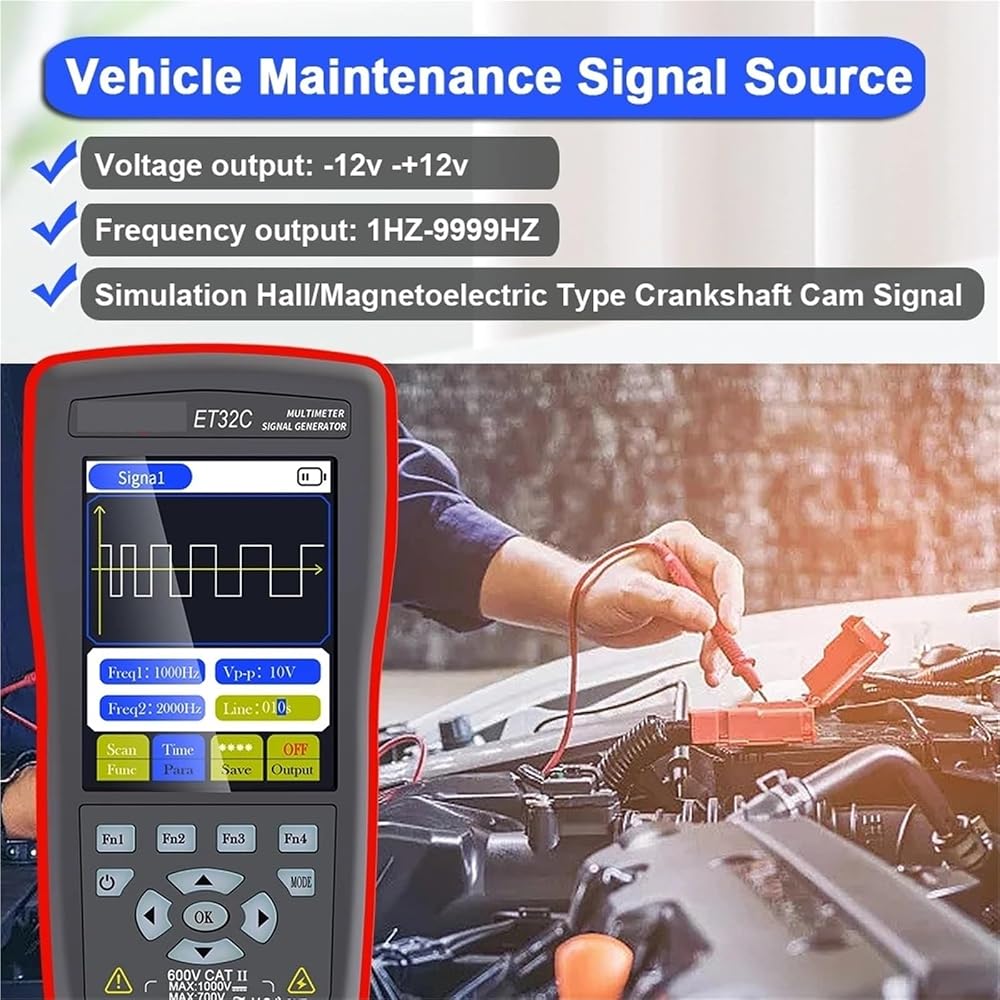

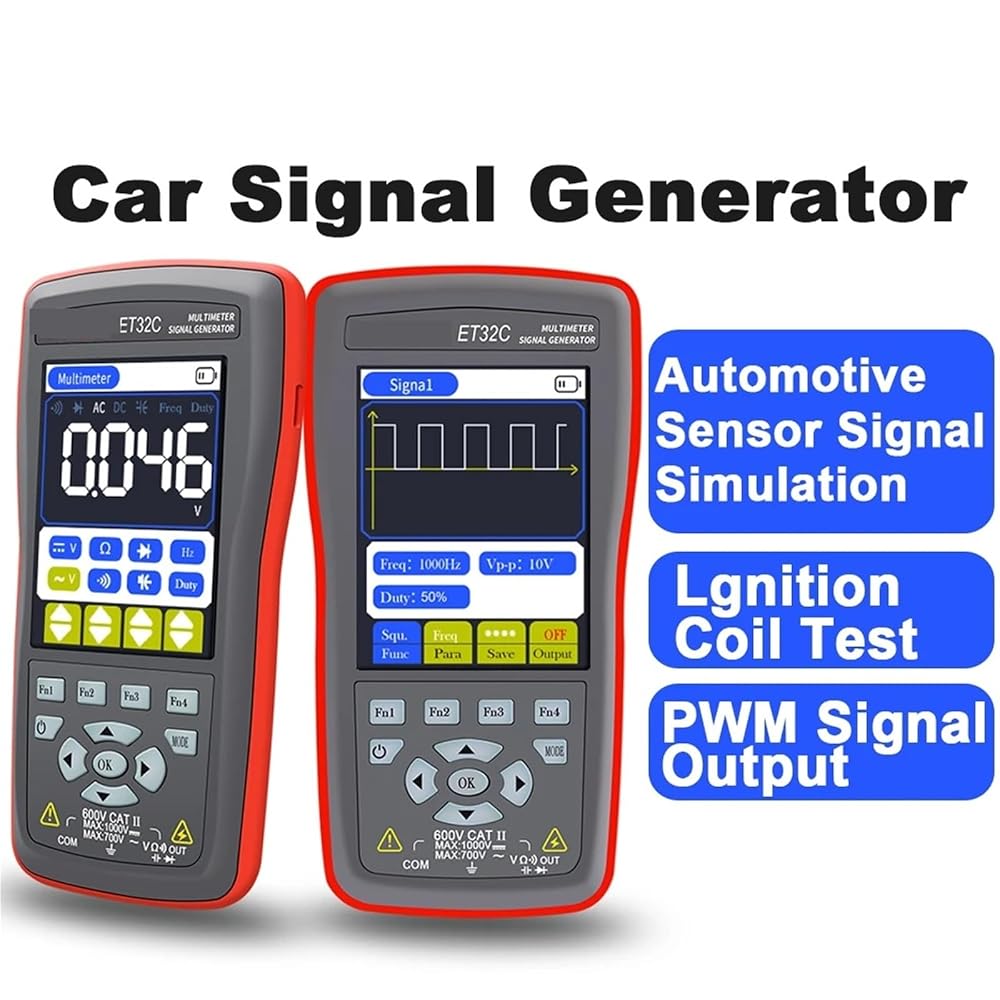

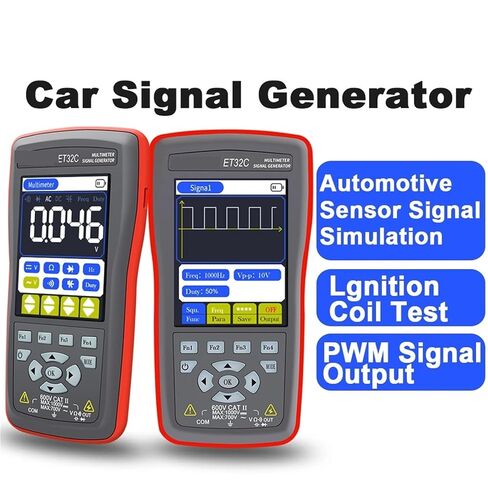

3. Automotive signal simulator: Can simulate Hall type and magnetoelectric crankshaft signals and cam signals. Supports crankshaft and cam signal simulation for gasoline and diesel vehicles.
4.Support magnetoelectric signal scanning or Hall signal scanning.

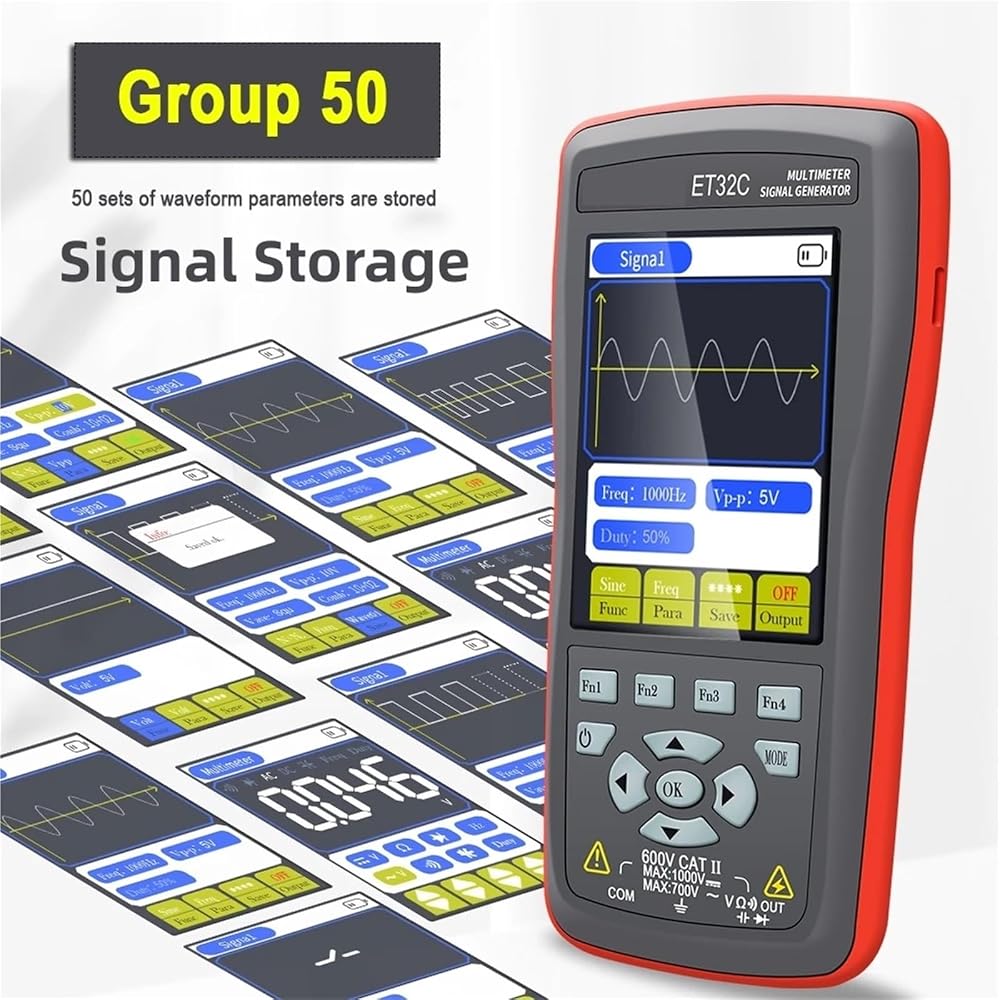

5. Signal storage: The instrument supports 50 groups of signal waveform storage, and can store waveforms to specified locations.

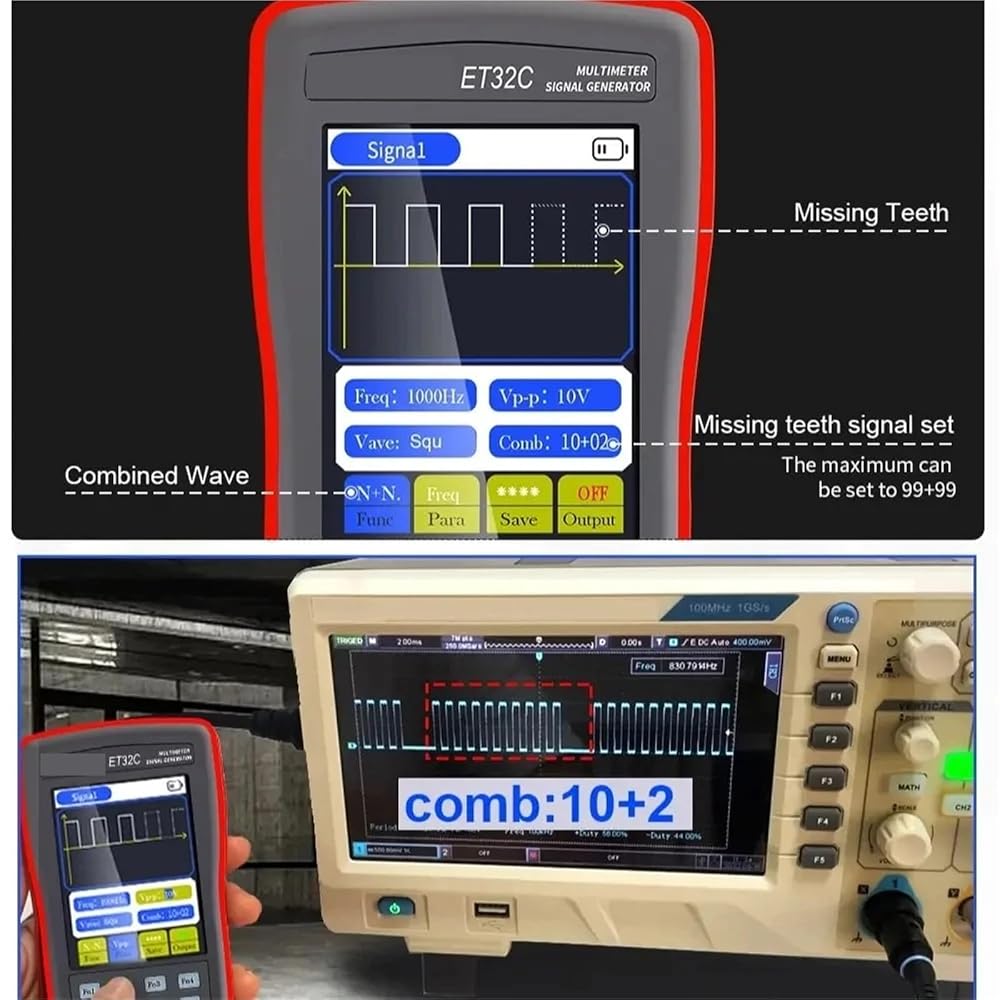

6. Combined wave signal: The missing tooth signal can be set arbitrarily (for example, combined wave 58+2, 10+1) without connecting to a computer.
7.Scanning wave signal:It can output scanning wave to simulate the process of crankshaft cam signal running from low speed to high speed.
8.Analog voltage output:-12v - +12v adjustable, step value 1V.

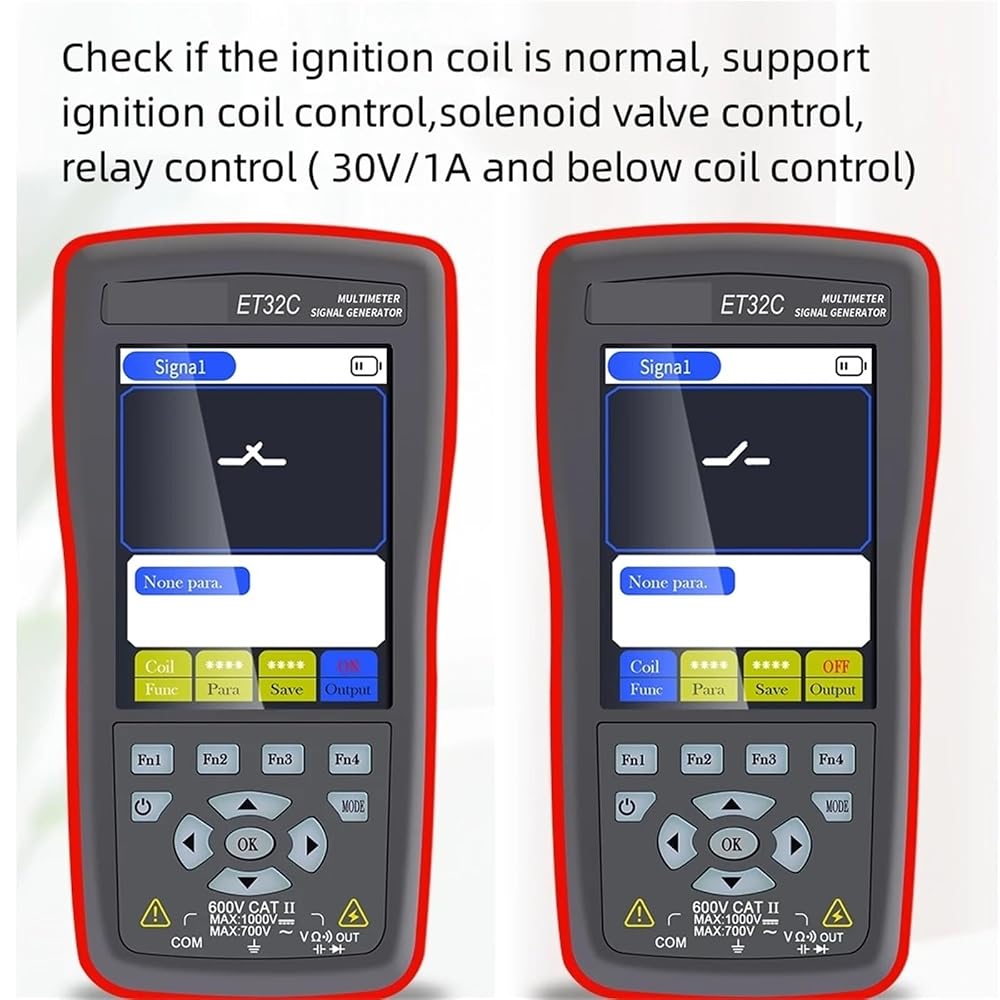

9. Coil control: supports ignition coil control, solenoid valve control, and relay control (only supports coil control of 30V/1A and below).
10. Multimeter:measure DC voltage, AC voltage, resistance, diode, continuity, capacitance, frequency and duty cycle. Quantity function.
11. The internal power supply of the equipment is isolated to prevent electric shock.

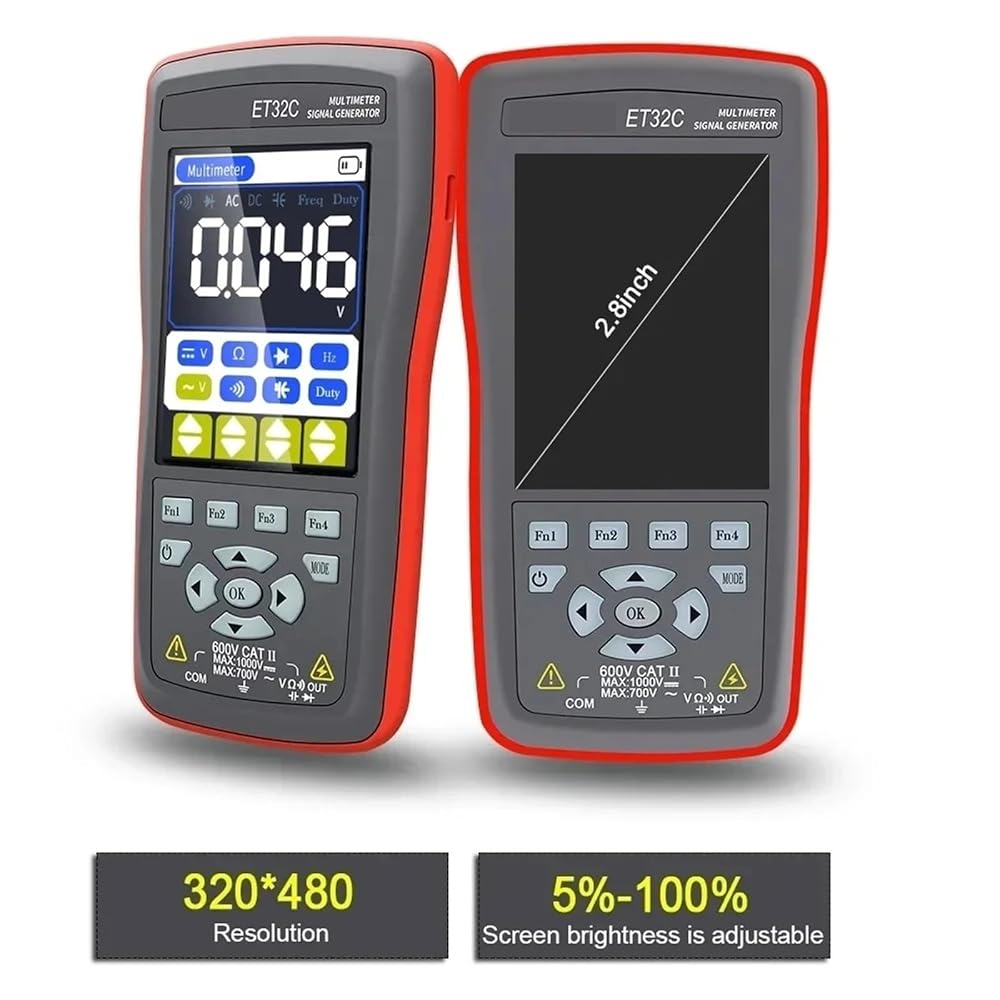

Specifications: Display screen: 2.8 inch 320 * 480 resolution
Touch screen: not supported
USB interface: Type-C USB
Battery: Built-in 4.2V lithium battery (for ET32C)
Storage temperature: -20~60 (-4~140 )
Working temperature: 0-50 (32-122 )
Product size: (LxWxH) 134 mm * 69 mm * 25 mm
Product weight: 125g (excluding accessories)
Signal generator parameters Sine wave/square wave frequency range: 1Hz~9999Hz
Sine wave/square wave frequency step: 1Hz
Sine wave/square wave peak range: -12V~+12V
Sine wave/square wave peak step: 1V
Scanning wave scanning time range: 1s~999s
Maximum number of combined wave combinations: 99+99
Output voltage range: -12V~+12V
Output voltage step: 1V
Coil control power: below 30V/1A
Waveform storage: 50 sets
Duty Setting:1%~99%(only for square wave )
Multimeter parameters Maximum DC input voltage: 1000V
Maximum AC input voltage: 750V
Maximum measured resistance: 40M
Maximum measured capacitance value of capacitance: 100uF
Maximum frequency measurement: 50KHz
Duty cycle measurement range: 0.1%~99.9%
Diode measurement range: 0V~1.5V
Maximum resistance value for on/off detection: 30
Display:4000 counts
updated :3 times per second
Package List 1 x Signal generator multimeter
1 x One pair of test leads
1 x One pair of crocodile clamp wires
1 x English User Manaul
==========
Battery Included : Yes
High-concerned chemical : None
DIY Supplies : Electrical

Screen : 2.8 inches
USB interface : Type-C
Sine/Square frequency range : 1-9999Hz
Sine/square Peak Range : -12V~+12V
Scanning wave scanning time range : 1s~999s
Maximum number of combined wave combinations : 99+99
Output voltage : -12V~+12V
Coil control power : below 30V/1A
Waveform Storage : 50 sets
Duty Setting : 1%~99%(only for square wave )
DC Voltage : 1000V
AC Voltage : 750V
Resistance : 40M
Capacitance : 100uF
Frequency : 50KHz
Duty cycle : 0.1%~99.9%
Diode : 0V~1.5V
Display : 4000Counts
