مميزات خاصة

This transformer simplifying assembly while maintaining stable inductance for signal
Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

وصف

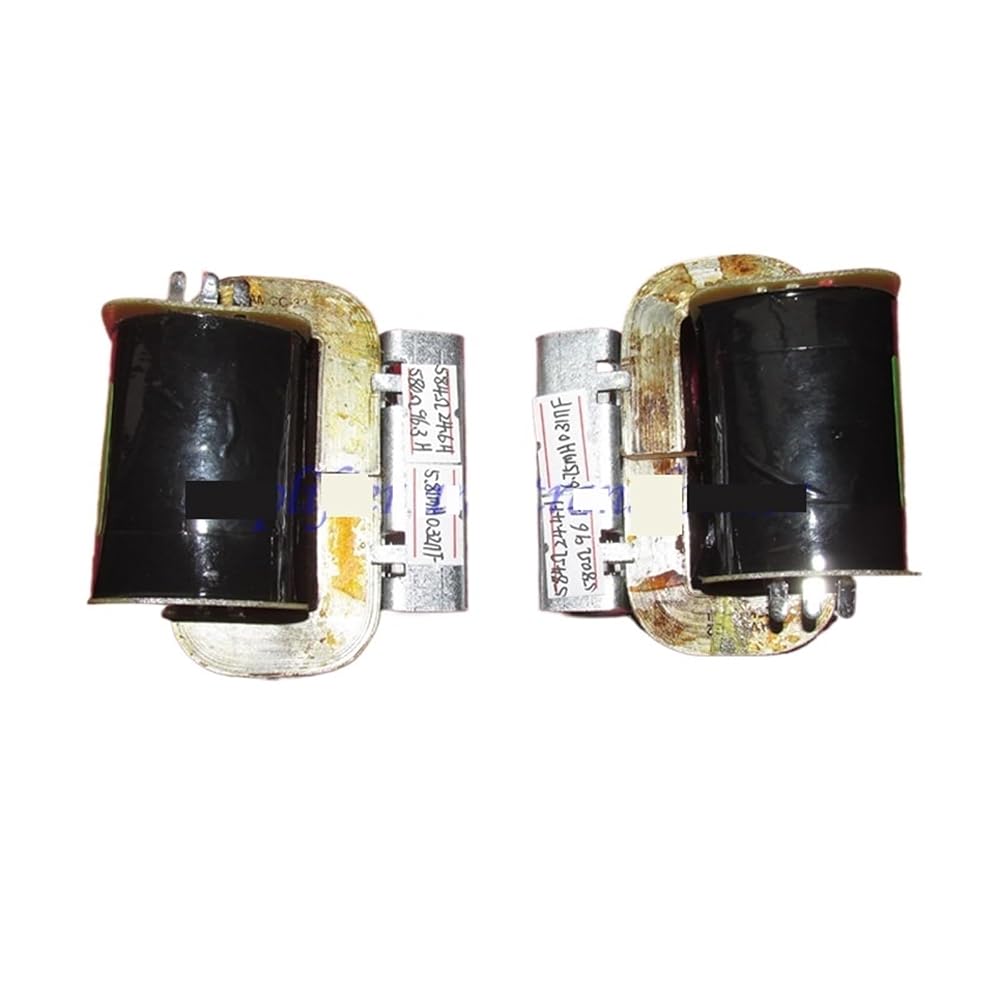

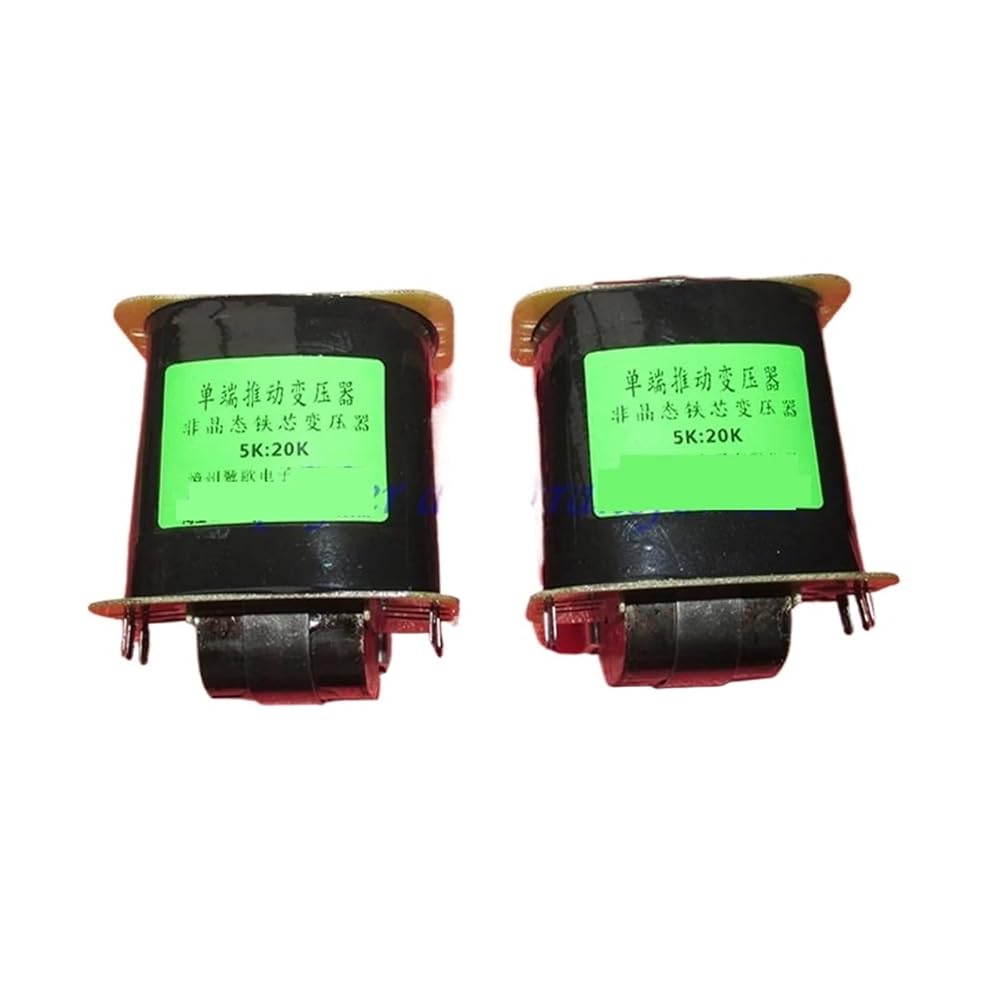

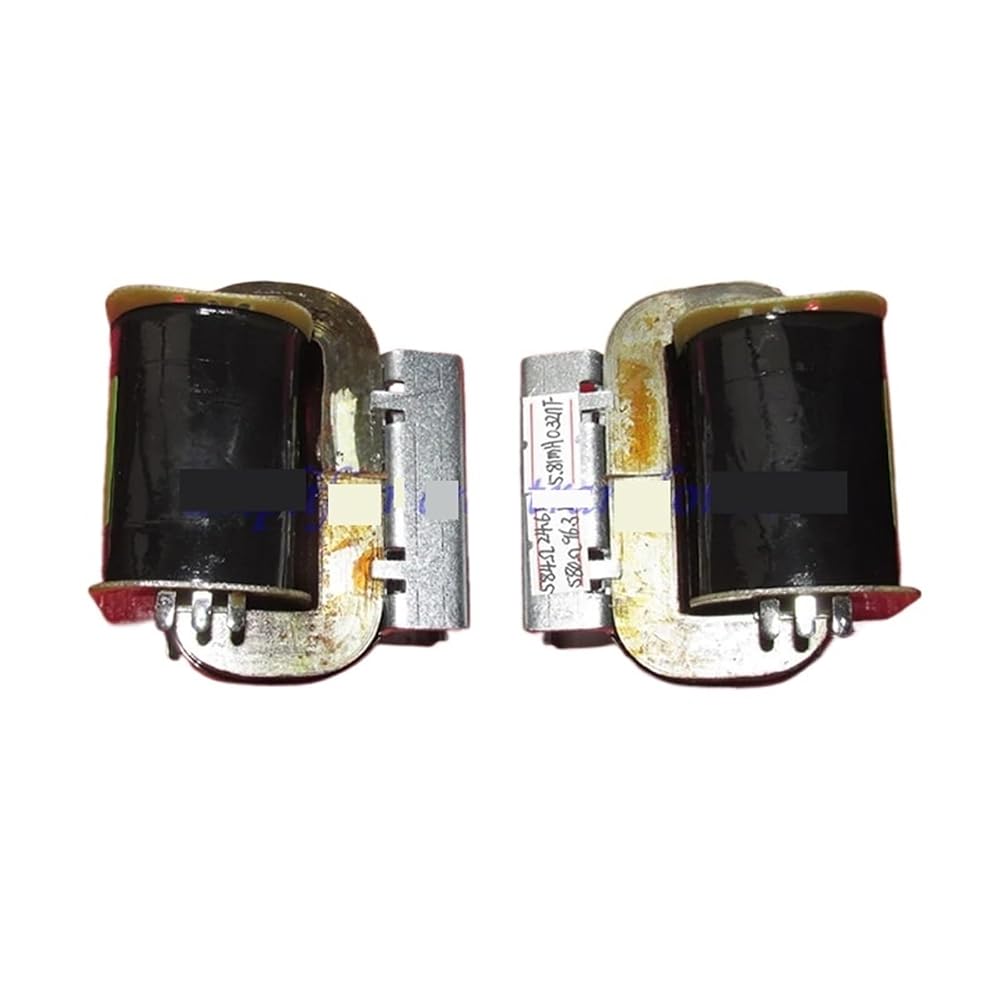

Double C amorphous 5K: 20K single-ended balanced output transformer, input and output circuit, drive transformer, output transformer for tube pre-amplifier.
The volume is 90mmX65mmX75mm.
The weight is about 1.72 kg/pair.
Measured parameters: The data will be different due to different measuring instruments.
Measured parameters:
Primary resistance: 292 ohm + 292 ohm 0.13mm diameter wire
Secondary resistance: 290 ohm + 290 ohm, diameter 0.13mm wire double wire
Primary inductance: 24H or so 100HZ measurement
Secondary inductance: 96H or so 100HZ measurement
Leakage inductance: about 6.8mH 1000hz measurement
Distributed capacitance: about 320P 20KHZ measured
Primary over-signal current 35mA
Withstand voltage: 1000V
Frequency response: 10HZ-24KHZ -0.2DB, 5HZ-30KHZ -1DB
==========
High-concerned chemical : None
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO

مرحبًا،

بحث

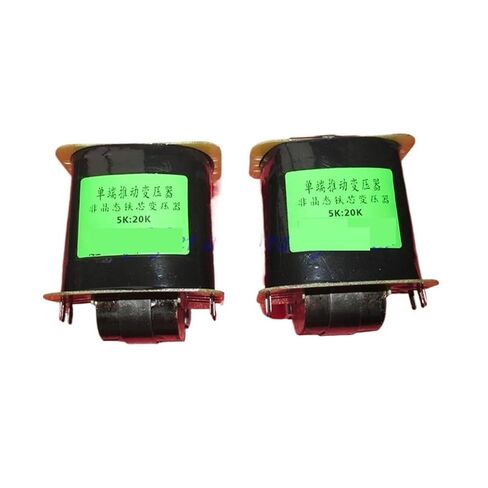

محول إخراج مكبر الصوت غير متبلور مزدوج C 5K: محول إخراج توازن أحادي الطرف 20K، نسبة الجهد 1:2
