Introduction

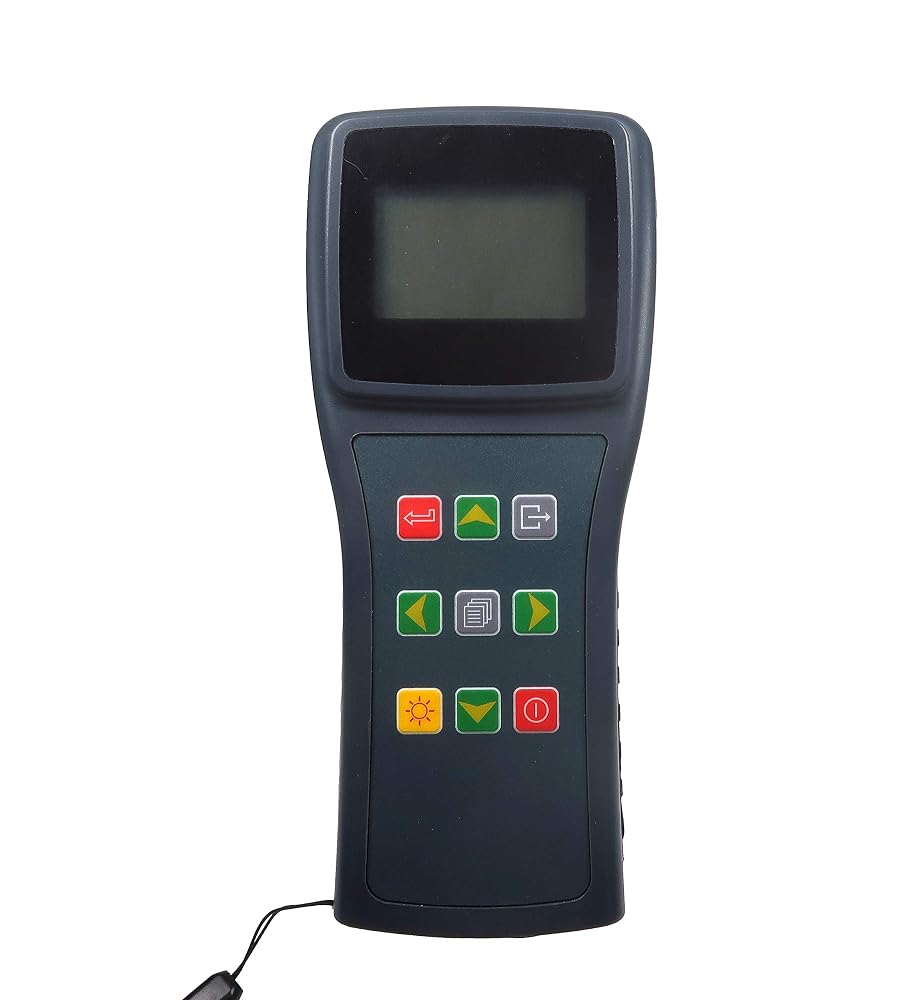

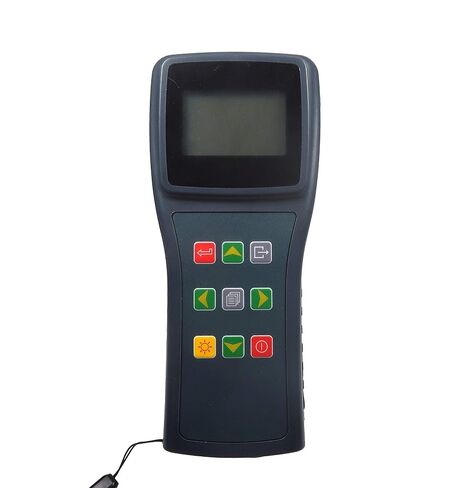

Model TMV110 portable vibration meter is suitable for routine vibration measurement, especially in reciprocating machinery vibration measurements.This product use optimized-filtering method to ensure stable and accurate measurement indication in multi-interference measurements environment. And the product of smart appearance, white backlit display is easy to use in complex environment.

Technical Specification
Model---TMV110
Testing range---Acce: 0.1 m/s2 ~ 199.9 m/s2(peak)Velo: 0.01 cm /s ~ 19.99cm /s(RMS)Disp: 0.001mm ~ 1.999mm(peak-peak)
Freq range---Acce: 10Hz ~ 10kHzVelo: 10Hz ~ 1kHzDisp: 10Hz ~ 500Hz
Tolerance---±5%
Temp0℃ ~ 40℃
Display---LCD,128×64 pixels with LED backlight
Data memory---10×10
Limit alarm---Yes(Beep)
Print---Data(External portable printer)
Battery---Rechargeable Li battery,1800mAh
Continuous working time---About 100h(without backlight)
Charge---About 5 hours
Software---No
The product especially have excellent accuracy and stability when used in high-frequency vibration spindle object (such as spindle CNC machine tools, woodworking motor, etc.)

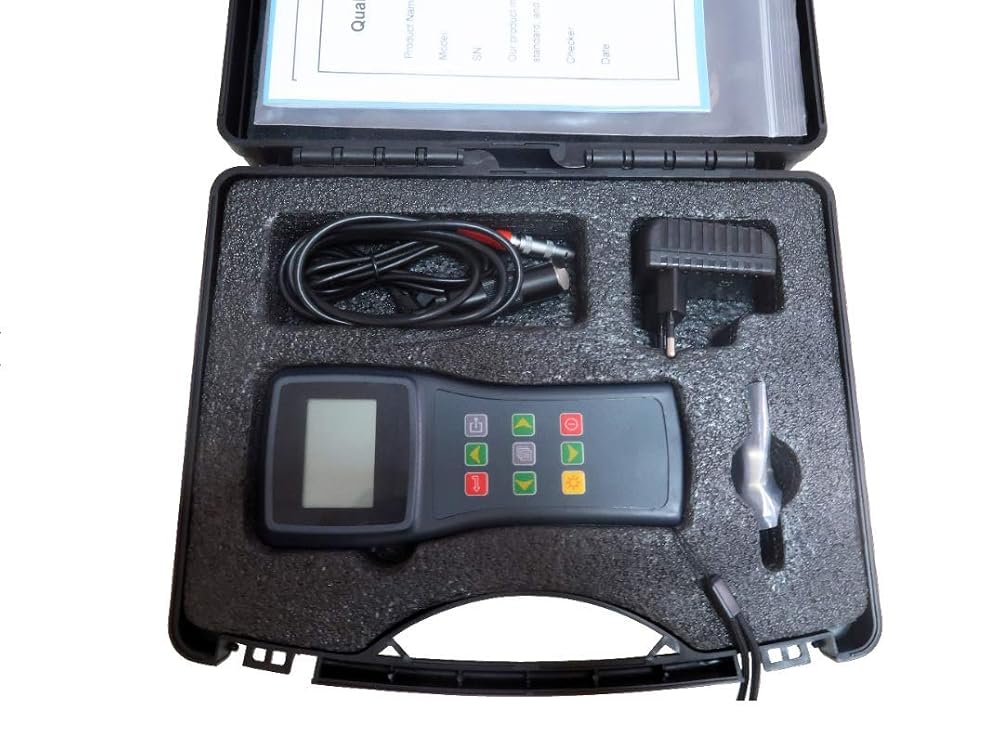

Standard Configuration
Main unit---1
Power Adapters(input:220V/50Hz，output:6V/1000mA) /Power Adapters(input:110V/50Hz，output:6V/1000mA)---choose one
Piezoelectric sensors---1
Magnetic seat (with 2 bolts)---1
Manual---1
Product Packaging---1 set
Optional Configuration:
Communication cable---1
Micro-printer---1
Probe---1
