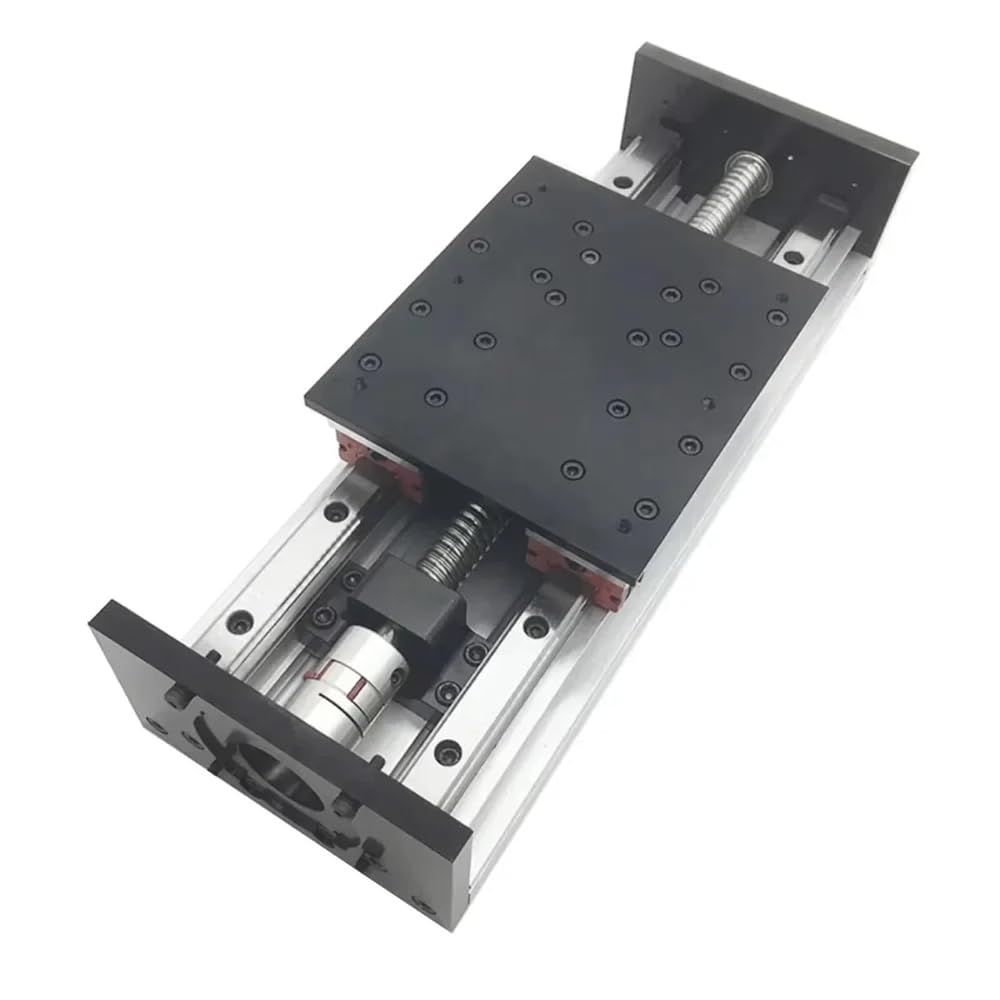

1PC 150mm Wide Heavy Duty Linear Ballscrew Sliding Table SFU1605/2005 HGR20 Double Guide Rail 4PCS HGR20 Z Axis For CNC
If you choose '' For Nema23 Bracket '':
1* SXG150*170 Sliding Table
1* 8mm Coupling For Nema 23 57mm Stepper Motor
If you choose '' For Nema34 Bracket '':
1* SXG150*170 Sliding Table
1* 14mm Coupling For Nema 34 86mm Stepper Motor
If you choose ''For 60 Servo Bracket'':
1* SXG150*170 Sliding Table
1* 14mm Coupling For 60mm Servo Motor
If you choose ''For 80 Servo Bracket'':
1* SXG150*170 Sliding Table
1* 19mm Coupling For 80mm Servo Motor
If you need the slide table with dust cover, you can click it to purchase
Model: SXG150*170
Rail width: 20MM
Guide model: 2*HGR20
Block model: 4*HGH20
Ballscrew Precision:C7
Maximum speed: 100mm/s
Horizontal load: 250KG (Max)
Vertical load: 100KG(Max)
Effective stroke:100mm-2000mm
Mobile panel size: 150mm*175mm
Repeat positioning accuracy: 0.02mm
Slide Material: Industrial aluminum profiles
Total length of Sliding Table(L): Effective stroke+240mm
Ballscrew Model: SFU1605 /SFU1610/SFU2005/SFU2010
Motor: Not included (The motor bracket is compatible with Nema23 and Nema34 stepper motors. If you need to customize the servo motor bracket, please inform us in advance.)
Customize:Ballscrew model, motor bracket, front and back tooth screw rods,multi axis combination
Model Number : SXG150*170
Guide Width or Diameter : 20mm
Slide Material : Industrial aluminum profiles
Effective stroke : 100mm-2000mm
Horizontal load : 250KG (Max)
Vertical load : 100KG(Max)
Mobile panel size : 150mm*170mm
Total length of Sliding Table : Effective stroke+217MM
Repeat positioning accuracy : 0.02mm
Maximum speed : 100mm/s
Guide model : 2*HGR20
Block model : 4*HGH20
Rail width : 20MM
Screw Precision : C7
Ballscrew : SFU2010/SFU1605/SFU1610/SFU2005
