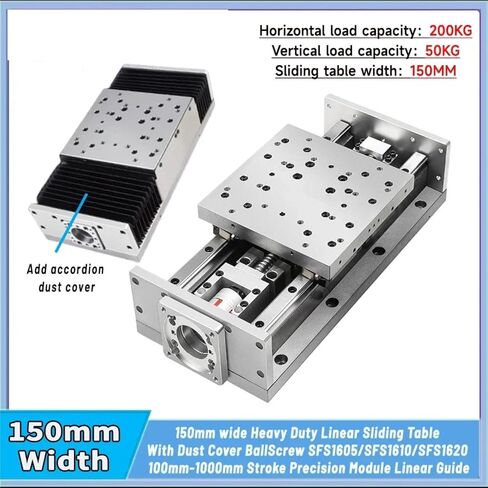

1PC 150MM Heavy Duty Steel Plate Slide Table Module Ballscrew SFS1605/1610/1620 Stroke 100~1000mm 4 Slider XY Axis CNC

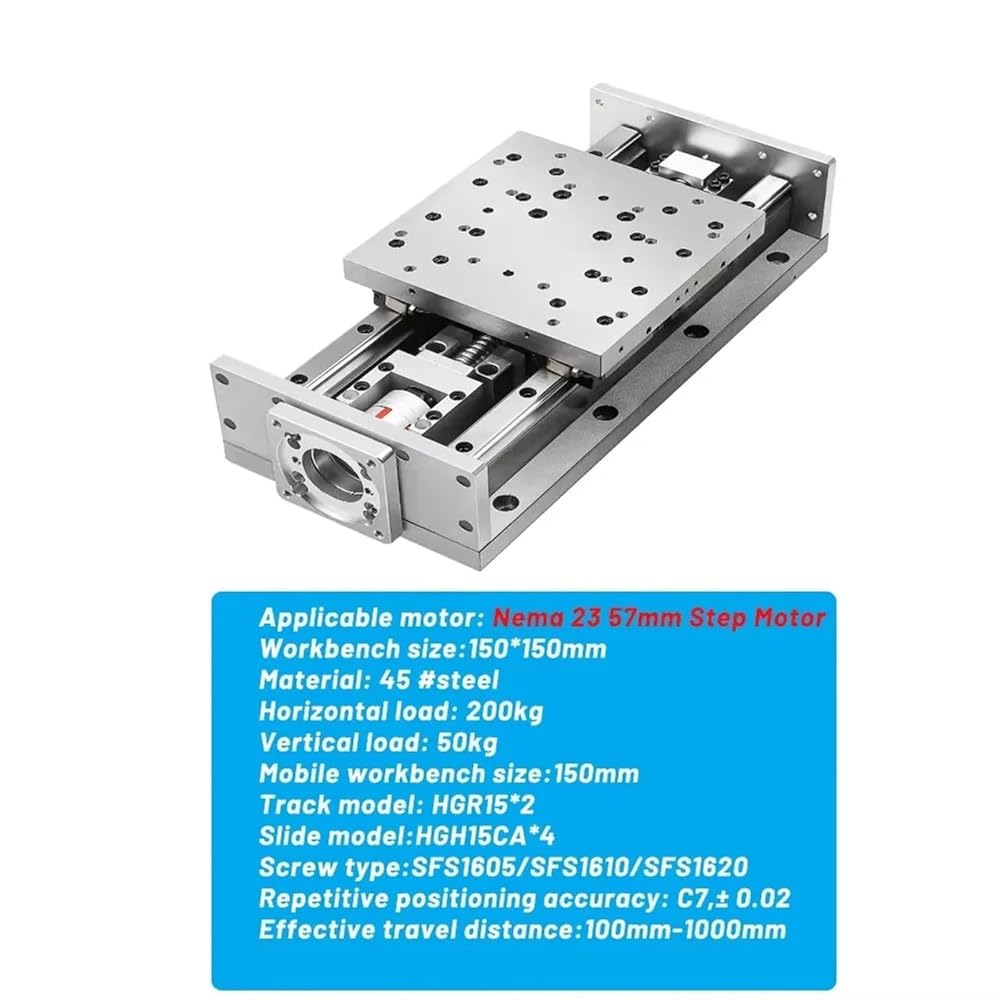

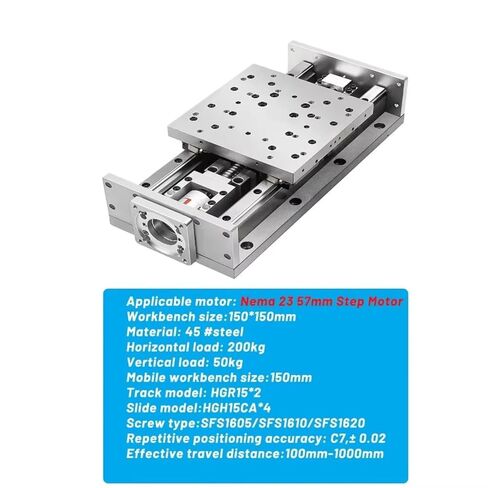

Model: FG130
Material: 45# Steel

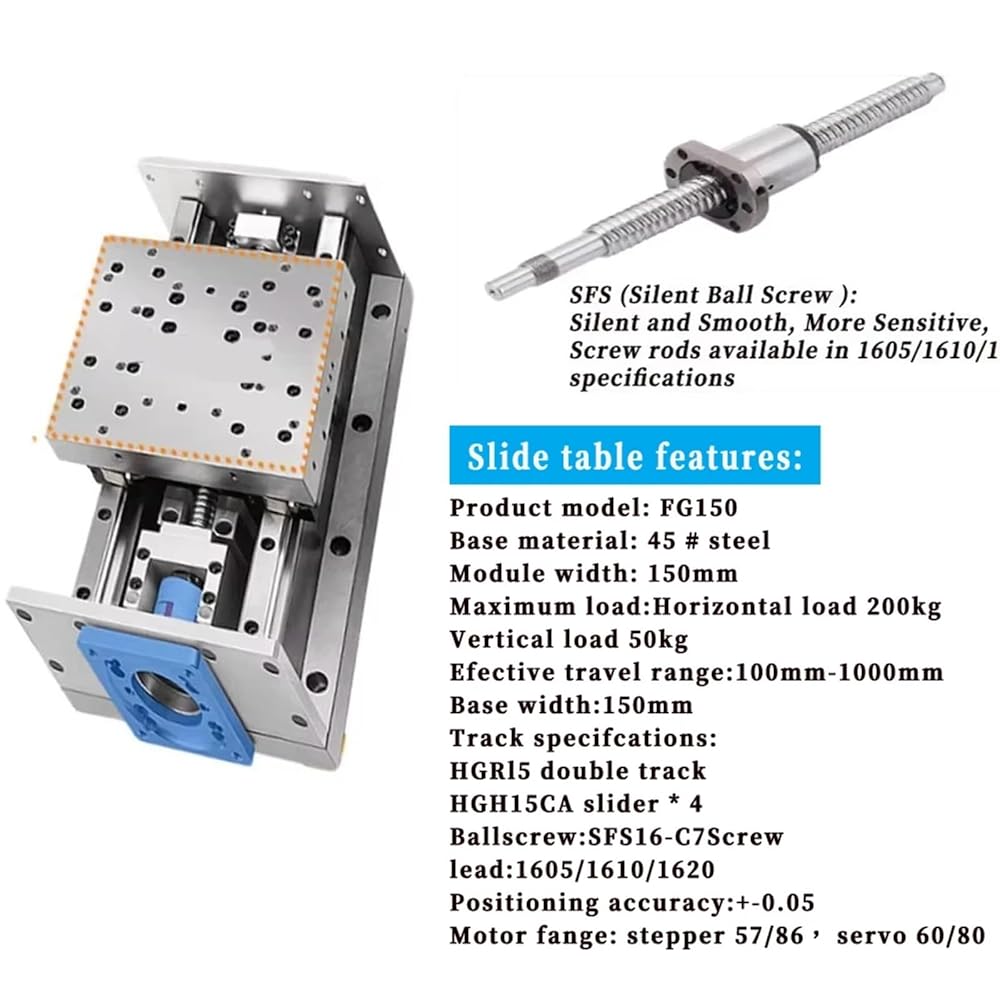

Ballscrew type: SFS1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFS1610/SFS1620
Ballscrew accuracy: C7 level
Mobile panel/ table size: 153mm*150mm

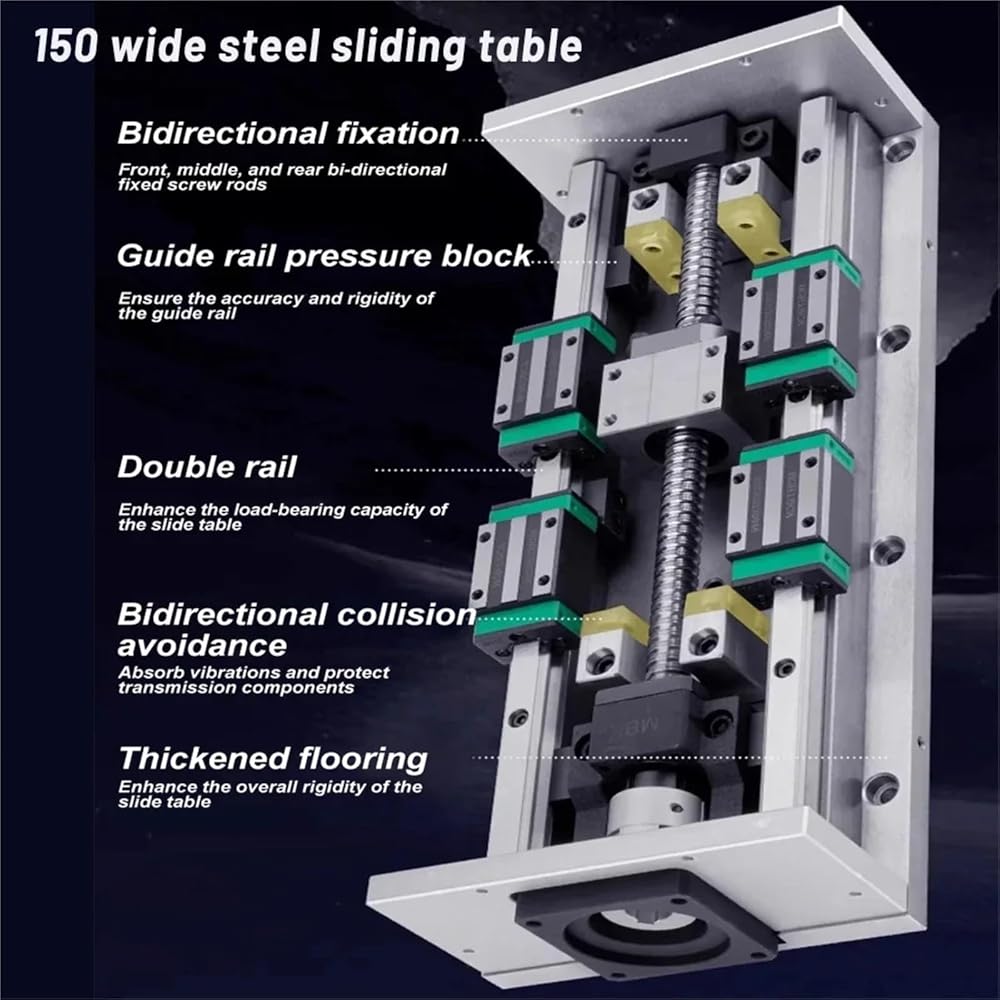

Guide Type: 2 rail
Slider : 4

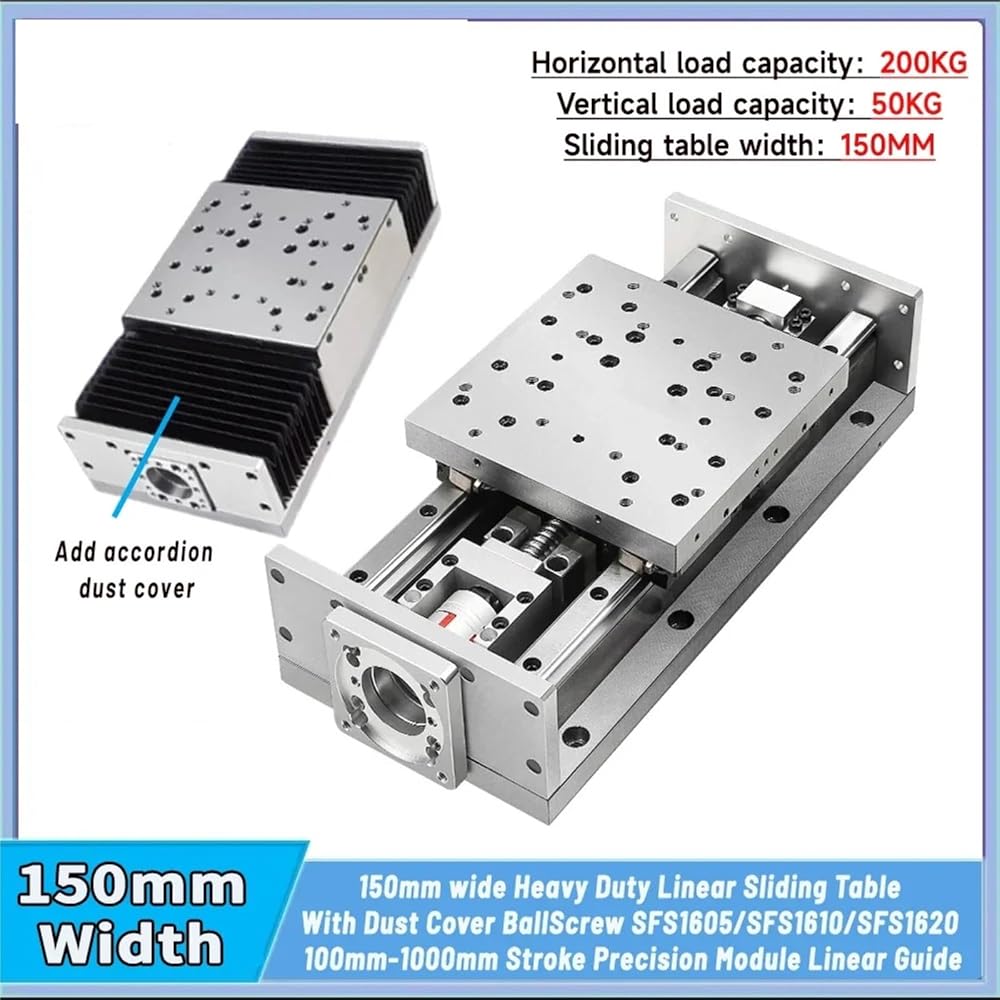

Horizontal load: 200KG (Max)
Vertical load: 50KG(Max)
Motor bracket type:
For stepper motor: 57mm/86mm Optional
For servo motor: 60mm/80mm Optional

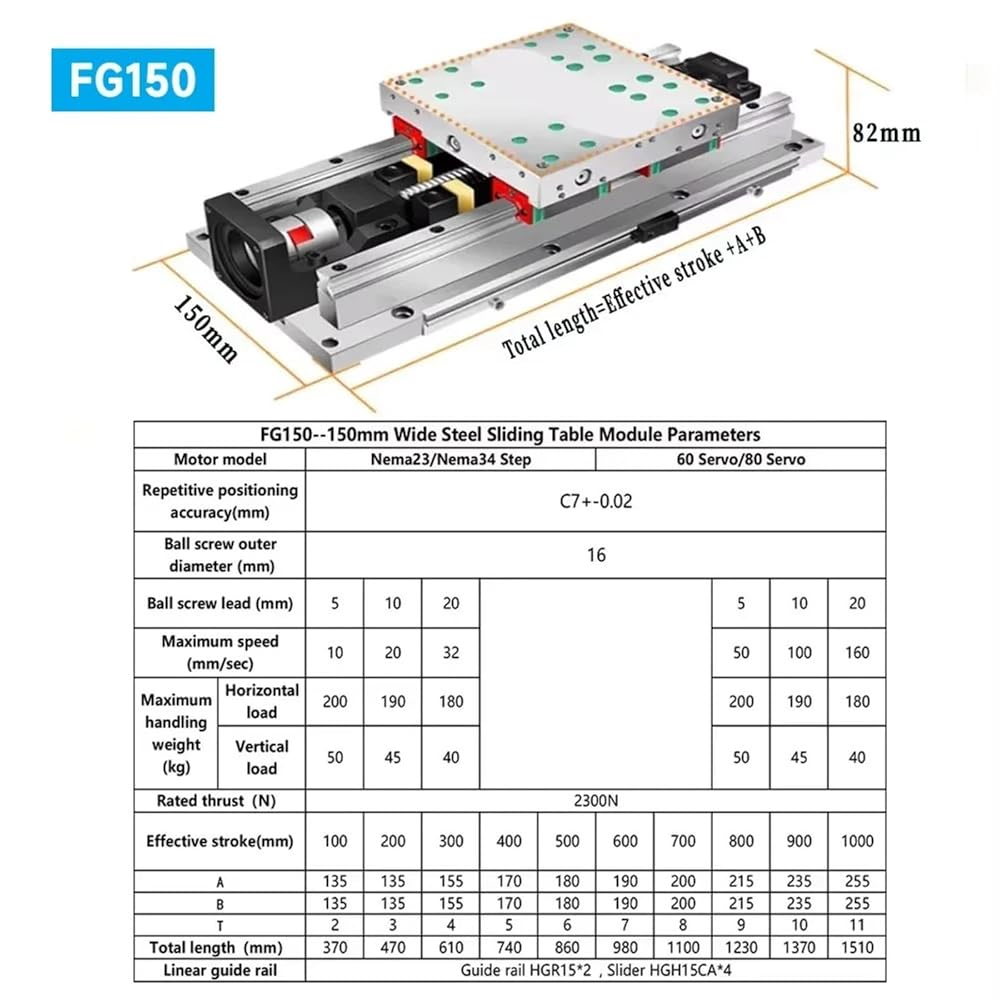

Effective stroke: 100mm-1000mm Optional
Maximum speed: 160mm/s
Ballscrew Repeat positioning accuracy: 0.05mm
Model Number : FG150-1605-100
Ballscrew type : SFS1605/SFS1610/SFS1620
Ballscrew accuracy : C7
Effective stroke : 100mm-1000mm Optional
Slide Material : 45 Steel Plate
Repetitive positioning accuracy : 0.02mm

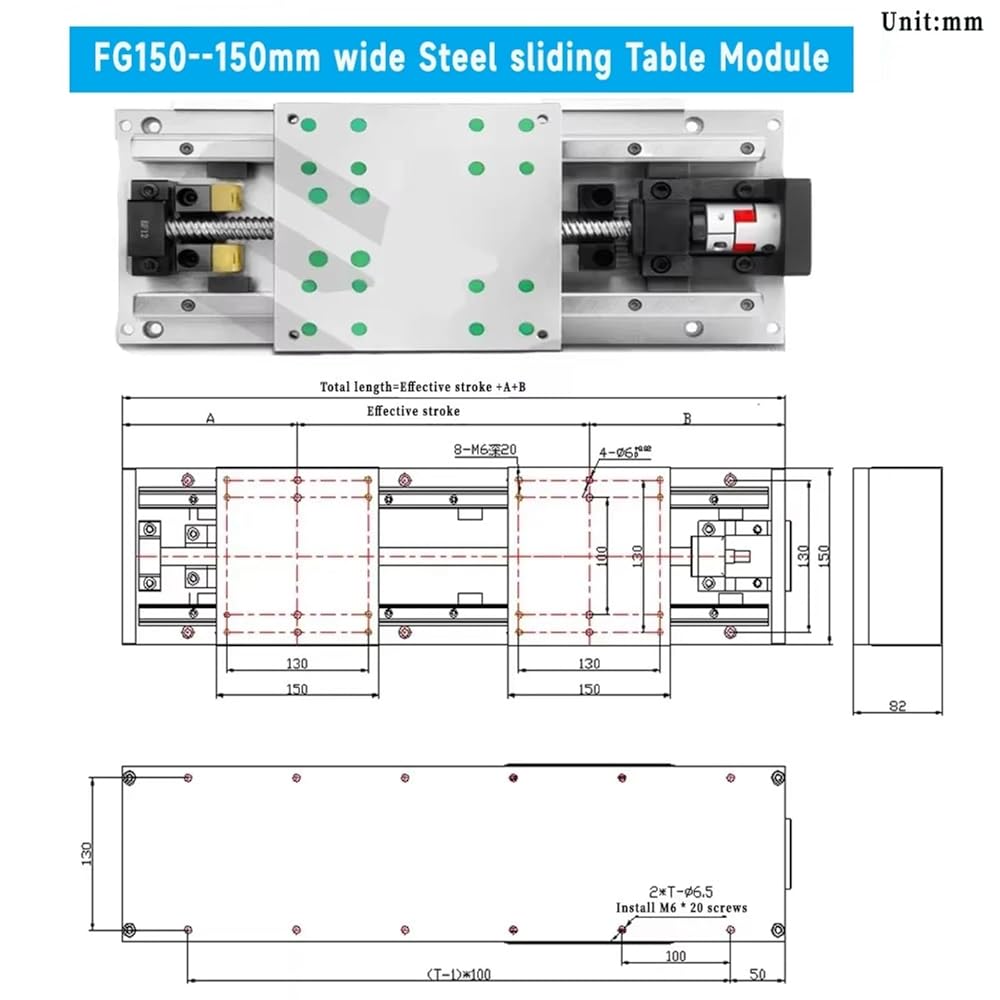

Sliding table panel : 150mm * 150mm
Type 1 : sliding table
Type 2 : linear guide
Type 3 : cnc rails
Type 4 : linear actuator
Type 5 : x y axis table cnc
Type 6 : linear guide system
Type 7 : linear rail
Type 8 : xy table
Type 9 : linear stage
Type 10 : linear guide rail
Type 11 : linear module
Type 12 : Electric slide
Type 13 : sliding linear rail
