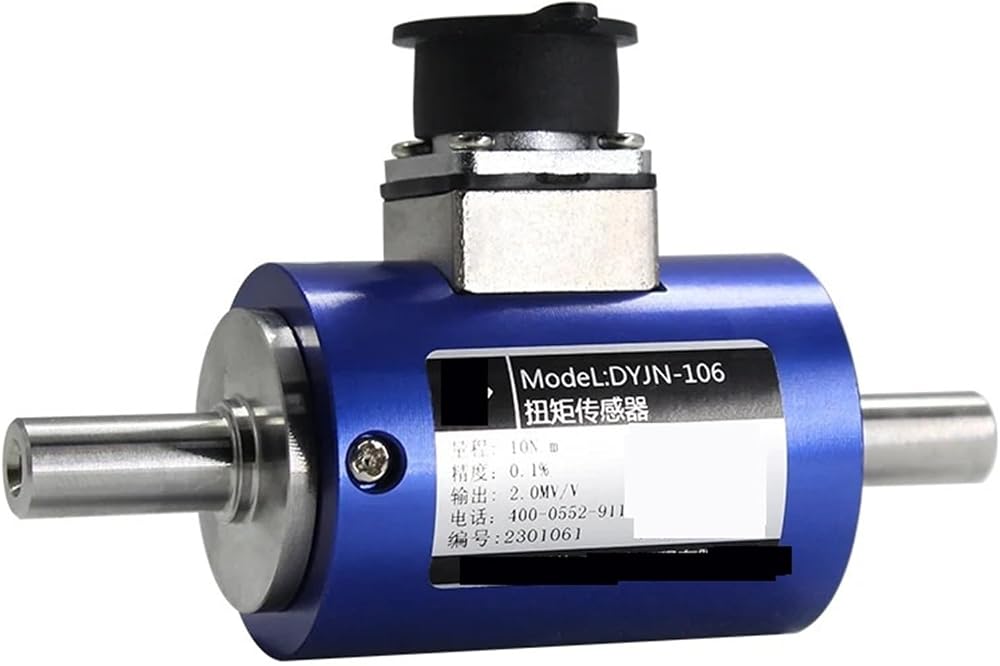

LJIA محول عزم الدوران مستشعر عزم الدوران الثابت المصغر 0.1N.m صغير الحجم كبير المدى كشف معايرة المفتاح (1-1000N.m) in Kuwait

LJIA محول عزم الدوران مستشعر عزم الدوران الثابت المصغر 0.1N.m صغير الحجم كبير المدى كشف معايرة المفتاح (0.1-10N.m)

KWD 0
اللون
مقاس
– 1 +

مميزات خاصة

  • High Measurement Range: Accurately measures torque from 0.1 to 1000 N·m, suitable for various calibration needs.
  • Exceptional Sensitivity: Output sensitivity of 1.0–2.0 mV/V ensures precise readings for reliable performance.
  • Robust Construction: Made from alloy steel and stainless steel, designed to withstand challenging environments.
  • Temperature Stability: Operates effectively in a wide temperature range of -20 to 80°C with minimal drift.
  • Safe Overload Protection: Features safe overload capacity of 120% and ultimate overload of 150% for enhanced safety.

وصف

Measurement Range: 0.1–1000 N·m
Output Sensitivity: 1.0–2.0 mV/V
Zero Output: ±1% F.S.
Non-linearity: 0.1% F.S.
Hysteresis: 0.5% F.S.
Repeatability: 0.3% F.S.
Creep (30 min): 0.1% F.S.
Temperature Sensitivity Drift: 0.1% F.S./10°C
Zero Point Temperature Drift: 0.1% F.S./10°C
Response Frequency: 10 kHz
Material: Alloy Steel / Stainless Steel
Impedance: 350 Ω
Insulation Resistance: ≥ 5000 MΩ / 100 VDC
Operating Voltage: 5–15 V
Operating Temperature Range: -20 to 80°C
Safe Overload: 120%
Ultimate Overload: 150%
Cable Specifications: φ5 × 3 m
Cable Ultimate Tensile Strength: 98 N
