NEMA 17 stepper motor, 2 phase, up to 62.31oz-in(44Ncm) holding torque, high torque, low noise, low step loss and low cost
Rated current: 1.7A. Step angle: 1.8°(200 steps/rev). Frame size: 1.65"(42 mm), square body. Full D-cut shaft length: 0.87", shaft diameter: Φ0.2"
39.37"(1m) 4-pin cable and 2.54mm(0.1") connector. Using M3 screws, easy to install. Connection: Red(A+), Blue(A-), Black(B+), Green(B-) Tips: Not only swap your old motor out but aslo the wire
RoHS and CE Certified. Tightly packed in cut foam.
Widely used for 3D printer, CNC milling, small robotics, stage lighting, laser engraving, textile machinery, medical equipment, placement machine, automation equipment. After-sales Service: , defective motor free replacement or refund. Any question feel free to message or QA us, we and our engineers will try our best to assist you

وصف

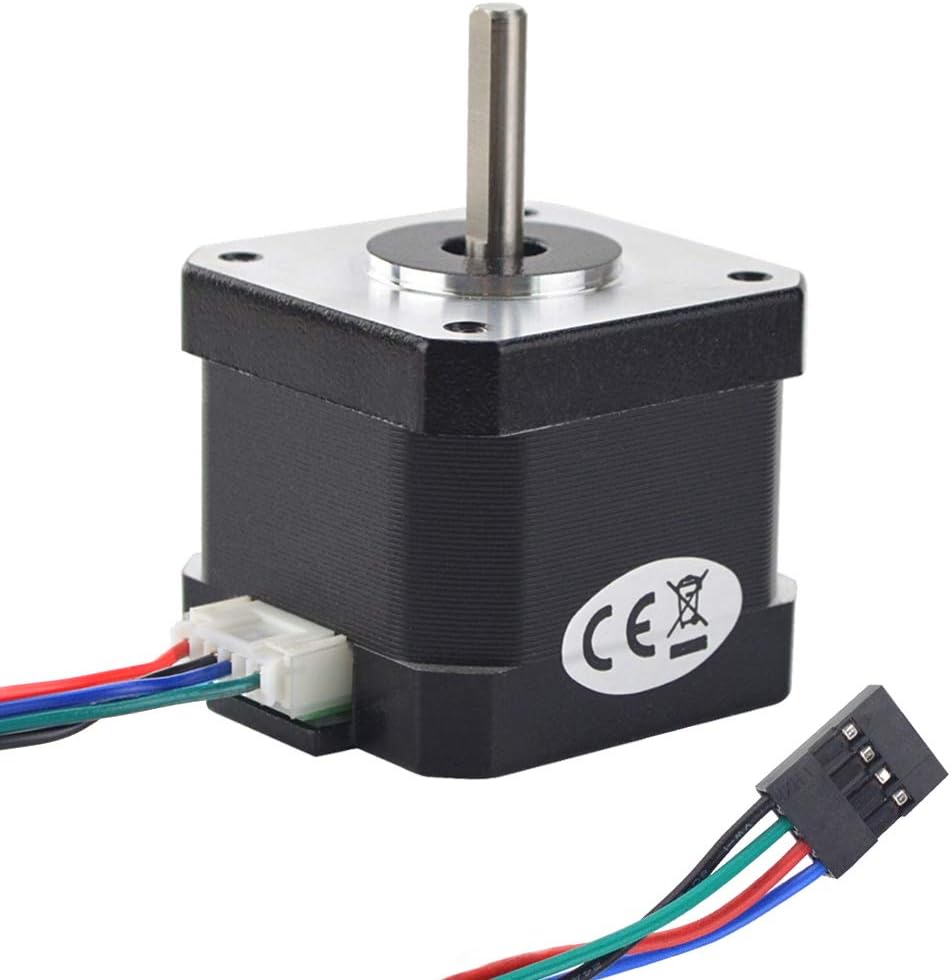

Nema 17 42mm 2-phase 4-wire hybrid DC stepper motor, used in various types of equipment for accurate rotation angle and speed control, compact body with strong high torque and smooth motion, popular choice for DIY maker and 3d printer

Electrical Specification

Manufacturer Part Number: 17HS15-1704S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Maximum Holding Torque: 44 Ncm(62.31oz-in)
Rated Current/phase: 1.7 A
Phase Resistance: 2.7 ohms
Inductance: 3.55 mH ± 20%(1KHz)

Physical Specification

Frame Size: 1.65" x 1.65" (42 x 42 mm)
Body Length: 1.48" (37.5 mm)
Shaft Diameter: Φ0.2"(Φ5 mm)
Full D-cut Shaft Length: 0.87" (22 mm)
Number of Leads: 4
Lead Length: 39.37" (1000 mm)
Weight: 9.88oz(280 g)

Connection

Red(A+), Blue(A-), Black(B+), Green(B-)

Package Included

3-Piece Nema 17 stepper motor
