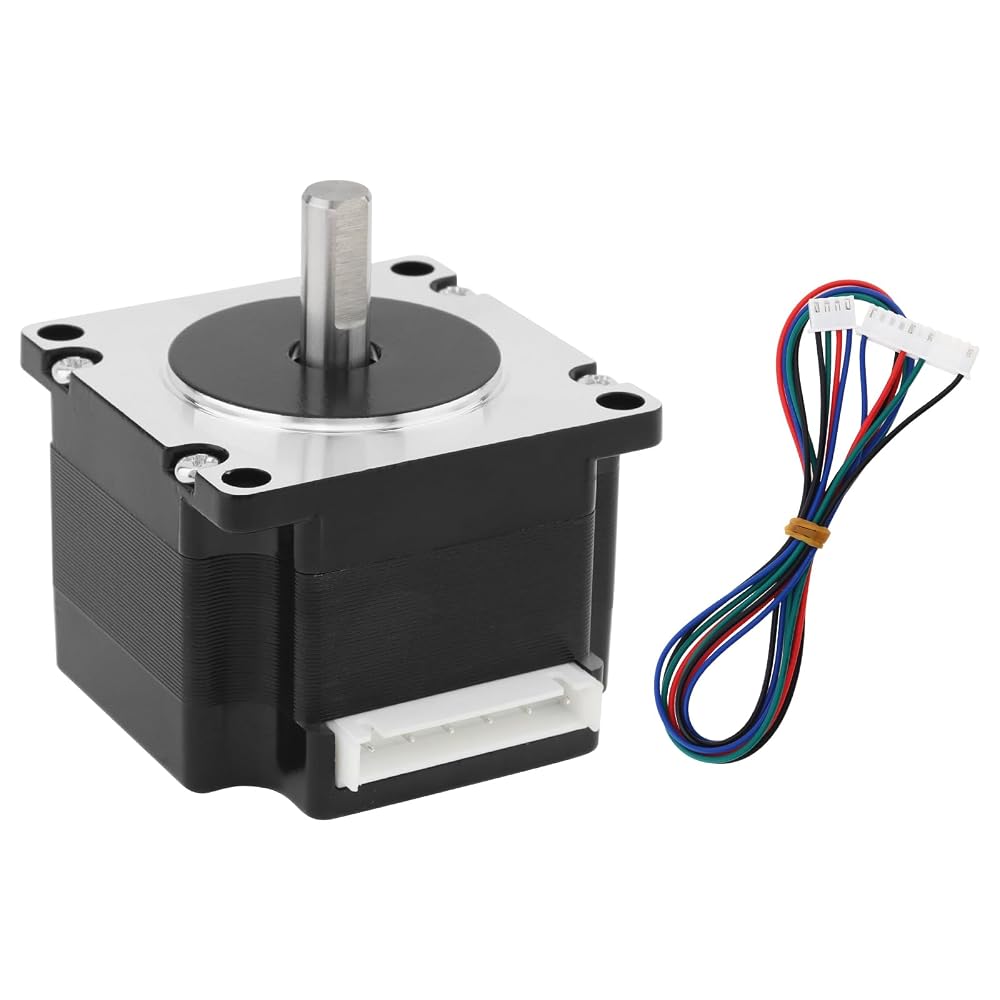

محرك Nema 23 المتدرج، محرك ثنائي القطب 40 مم للجسم 58.84N.cm(83.3oz.in) 2A 8mm-Shaft 2-Phase 4-Wire 1.8-Deg لجهاز توجيه مخرطة مطحنة CNC DIY، طابعة ثلاثية الأبعاد مع كابل XH2.54 in Kuwait

محرك Nema 23 المتدرج، محرك ثنائي القطب 40 مم للجسم 58.84N.cm(83.3oz.in) 2A 8mm-Shaft 2-Phase 4-Wire 1.8-Deg لجهاز توجيه مخرطة مطحنة CNC DIY، طابعة ثلاثية الأبعاد مع كابل XH2.54

KWD 8
مقاس57 ملم × 40 ملم
– 1 +

مميزات خاصة

  • Package Includes: 1 pcs high torque CNC stepper motor, with 50cm(20inch) XH2.54 cable, advanced magnetic circuitry and low noise.Smooth and reliable run, ensuring accurate positioning and efficient motion control
  • Low Noise: 58.84N.cm(83.3oz.in) holding torque, drive voltage 24V - 60V, rated current 2A, resistance 2ohms
  • Size: NEMA 23 bipolar 57 x 57 x 40mm/2.24 x2.24 x1.57inch, 2 phase, 4 wire, shaft diameter: 8mm(D-Shaft 7.5mm), shaft length: 21mm
  • Application: Nema 23 Stepper Motor is used in CNC machine, milling machine, 3D printer, laser engraving, semiconductor equipment and other automation systems. Compact size and high torque make it suitable for various demanding applications
  • Note: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will damage the motor

وصف

Product Name: Nema 23 Stepper Motor
Driving Voltage: 24V - 60V
Rated Current: 4A
Step Angle: 1.8 degrees
Phase: 2
Phase Resistance(Ω): 1 ± 15per cent
Phase Inductance(mH): 4.9 ± 20per cent
Holding Torque: 30kg.cm
Motor Type: Bipolar Stepper
Frame Size: 57 x 57mm
Body Length: 112mm
Shaft Diameter: 8mm (D-Shaft 7.5mm)
Output Shaft Length: 21mm
