مميزات خاصة

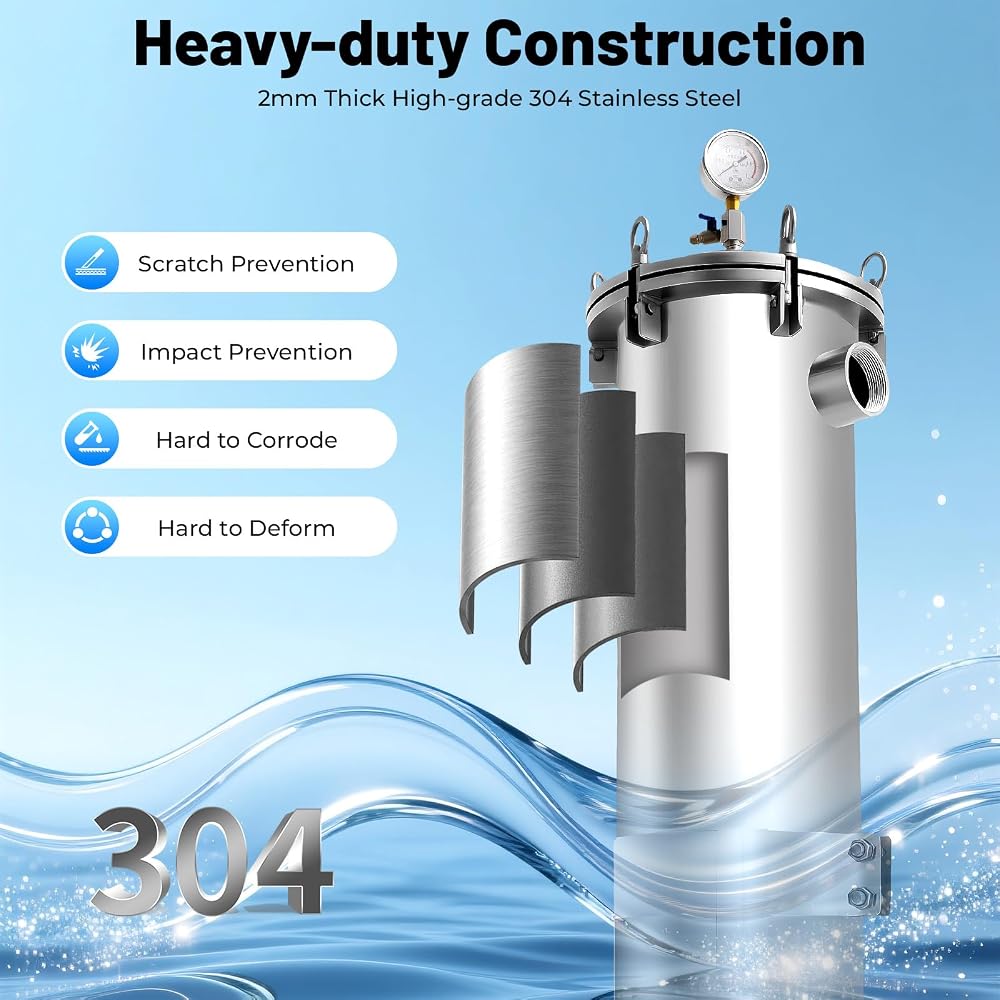

Build to Last: The bag filter's 2mm wall thick high-grade 304 stainless steel material and exquisite mirror polishing process make this product durable, scratch-resistant, impact-resistant, and not easily corrode or deform, ensuring a long service life.

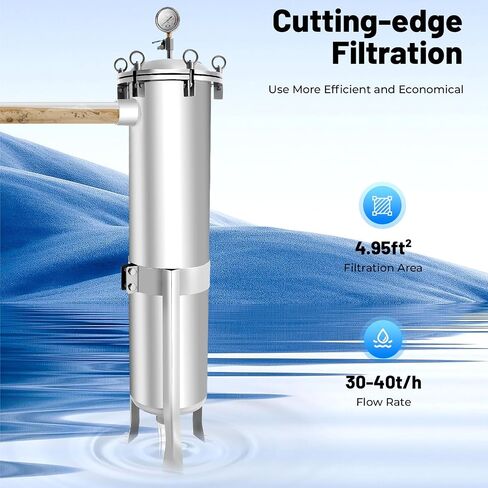

Efficient Filtration: The 7.1*31.9 inch filter bag has a high filtration area of 4.95 square feet. The filtrate flows into the filter bag from the side inlet of the filter housing, allowing the liquid to flow from high to low so that the filter bag is not affected by turbulence, which improves the filtration efficiency and service life.

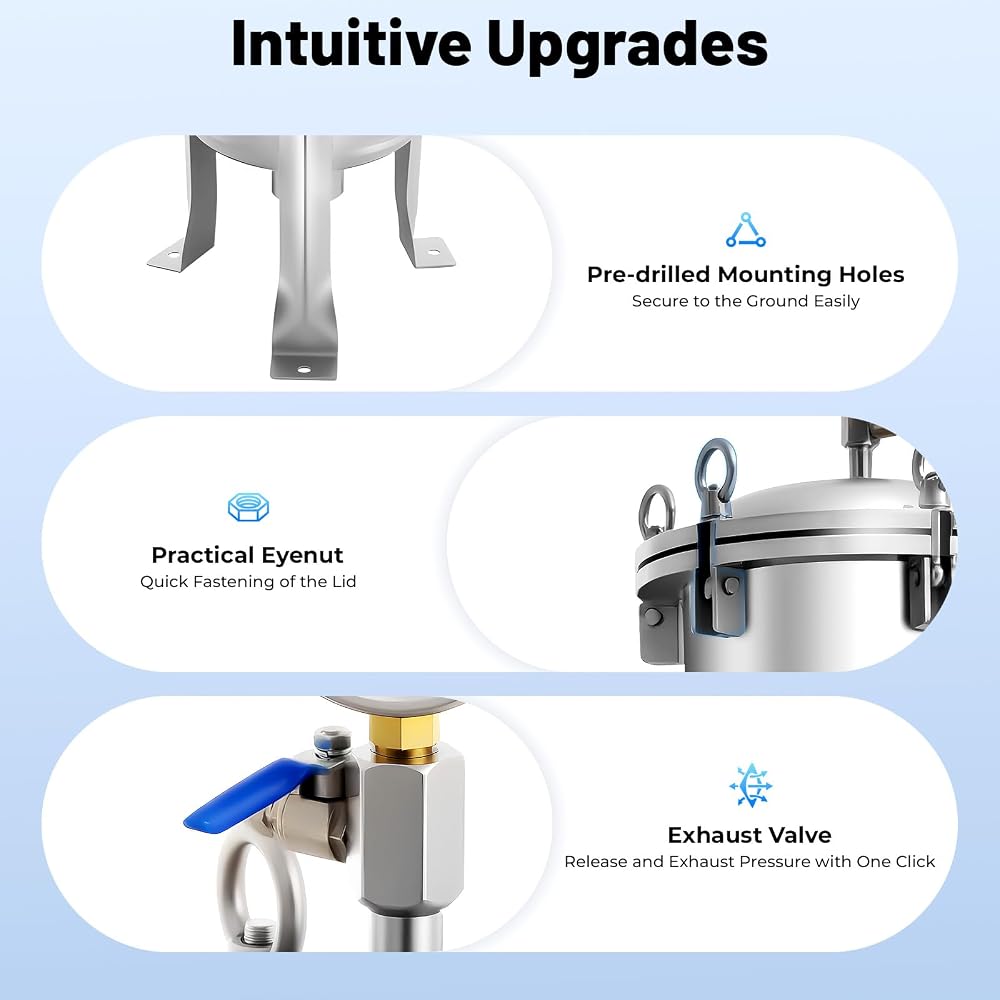

Excellent Performance: The filter unit mainly consists of the filter barrel body, the filter drum cover, the quick-opening mechanism, and the stainless steel filter bag reinforcing mesh basket. The filter bag installed in the reinforced mesh basket can effectively intercept the impurity particles, and the qualified filtrate can be obtained after the liquid penetrates the filter bag of the required fineness level, thereby achieving the effects of liquid filtration, purification, separation, and recovery.
Considerate Design: The low probability of side leakage of the filter bag ensures filtration precision and the rapid replacement of the filter bag reduces the operation cost. The filter bag is supported by a metal mesh basket to help extend its service life.
Adjustable Height: You can adjust the overall height of the product(45.1-52.9 inches) by adjusting the support feet to determine the height of the machine from the ground according to the height of the inlet and outlet.

وصف

Description

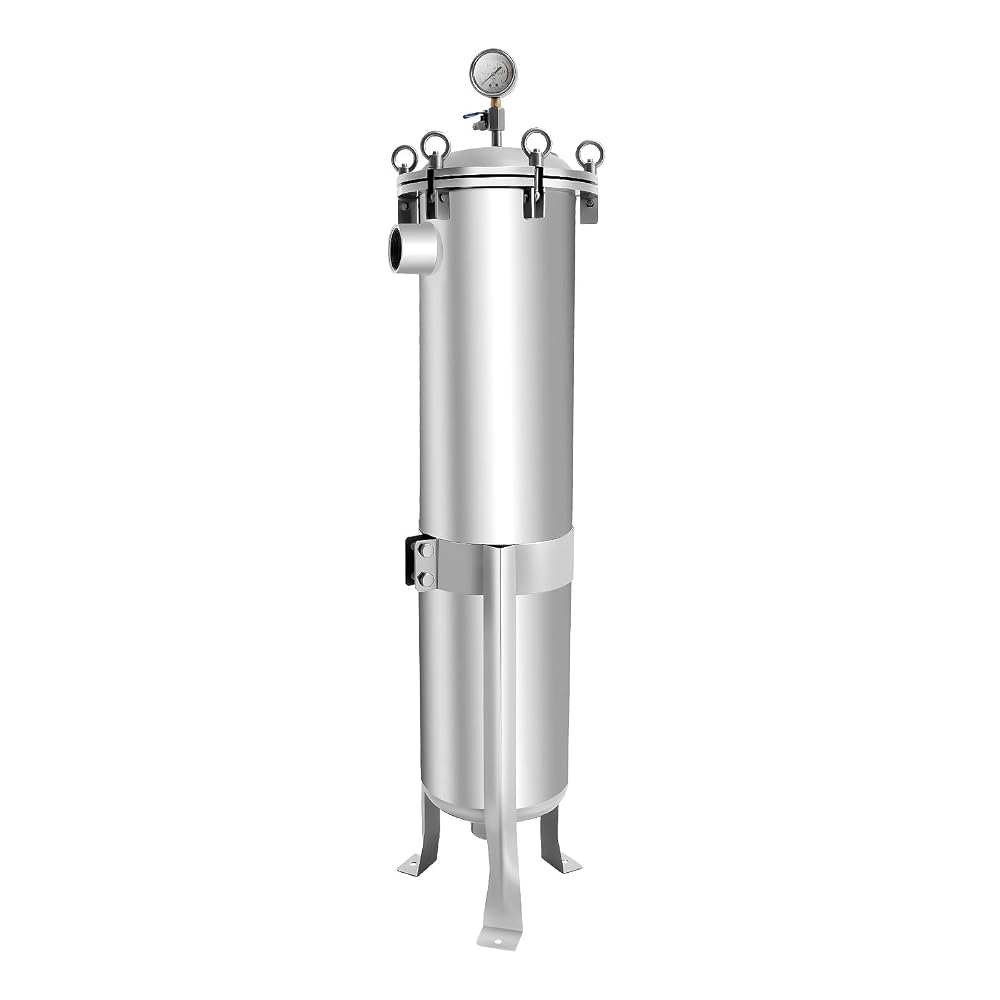

This 304 stainless steel bag filter is crafted from high-grade materials with a sturdy and durable structure and strong corrosion resistance. It has a compact and reasonable design, easy to install and clean, can efficiently filter a variety of impurities, and is suitable for a variety of liquid filtration scenarios, making it an ideal choice for improving production efficiency and guaranteeing product quality.
Application

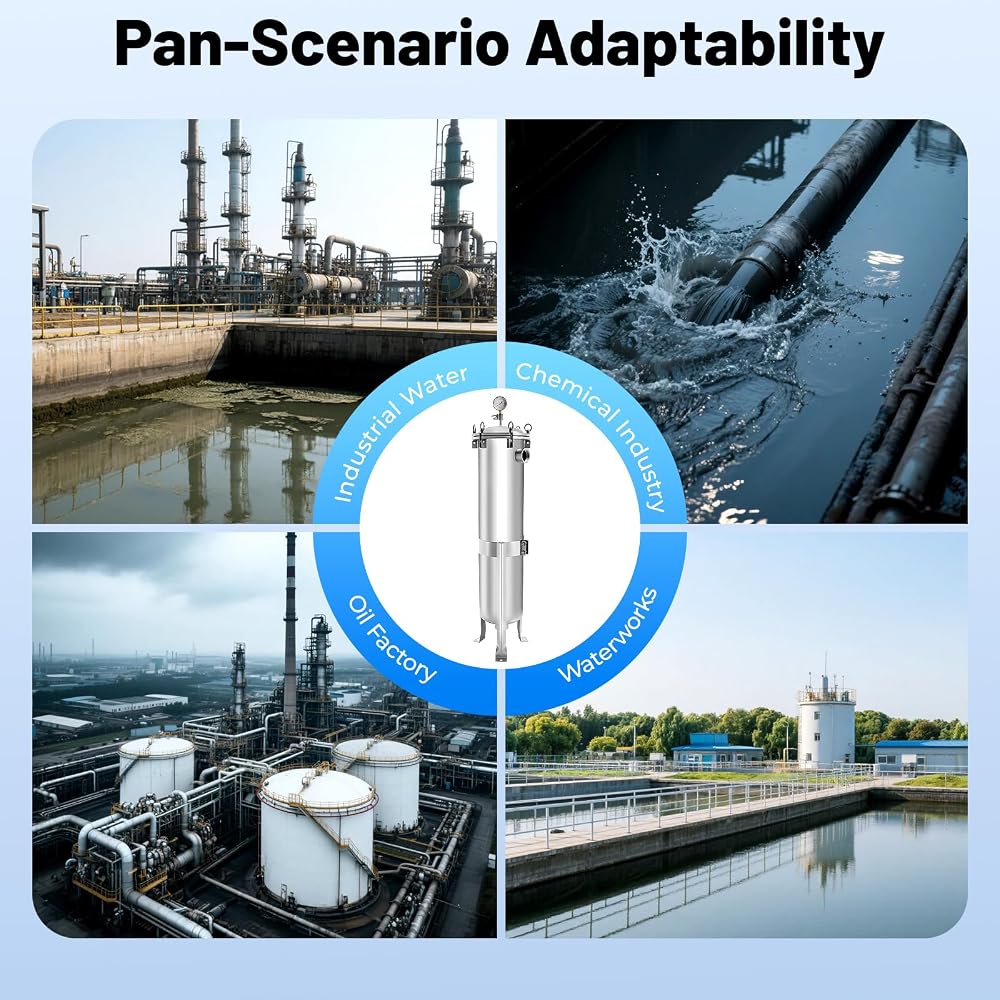

This product is suitable for water treatment, ink, oil, beverage, and many other fields.
Specification
Mount Type: Floorstanding
Assembly Required: Yes
Style: Modern
Color: Silver
Material: 304 Stainless Steel
Process: Mirror Polishing
Thickness: 2mm/0.08in
Filter Bag Size: 180*810mm/7.1*31.9in

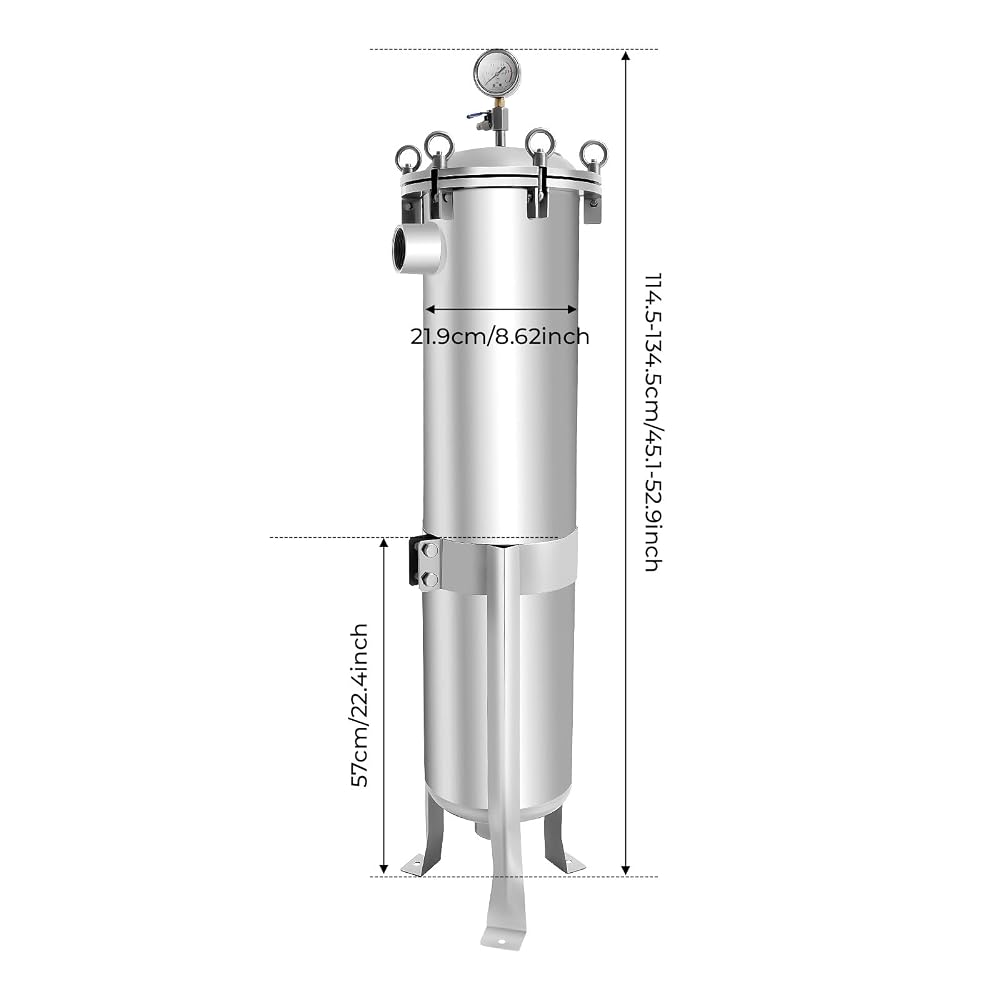

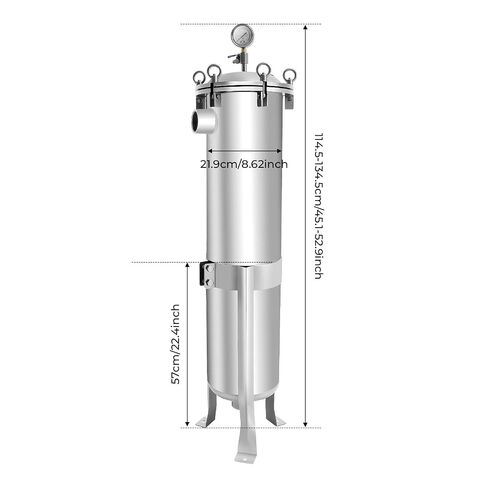

Height Range: 1145-1345mm/45.1-52.9in
Support Feet Length: 570mm/22.4in
Center Straight Barrel Length: 860mm/33.86in
Distance from the Center of the Inlet to the Opening Side: 90mm/3.54in
Product Diameter: 219mm/8.62in

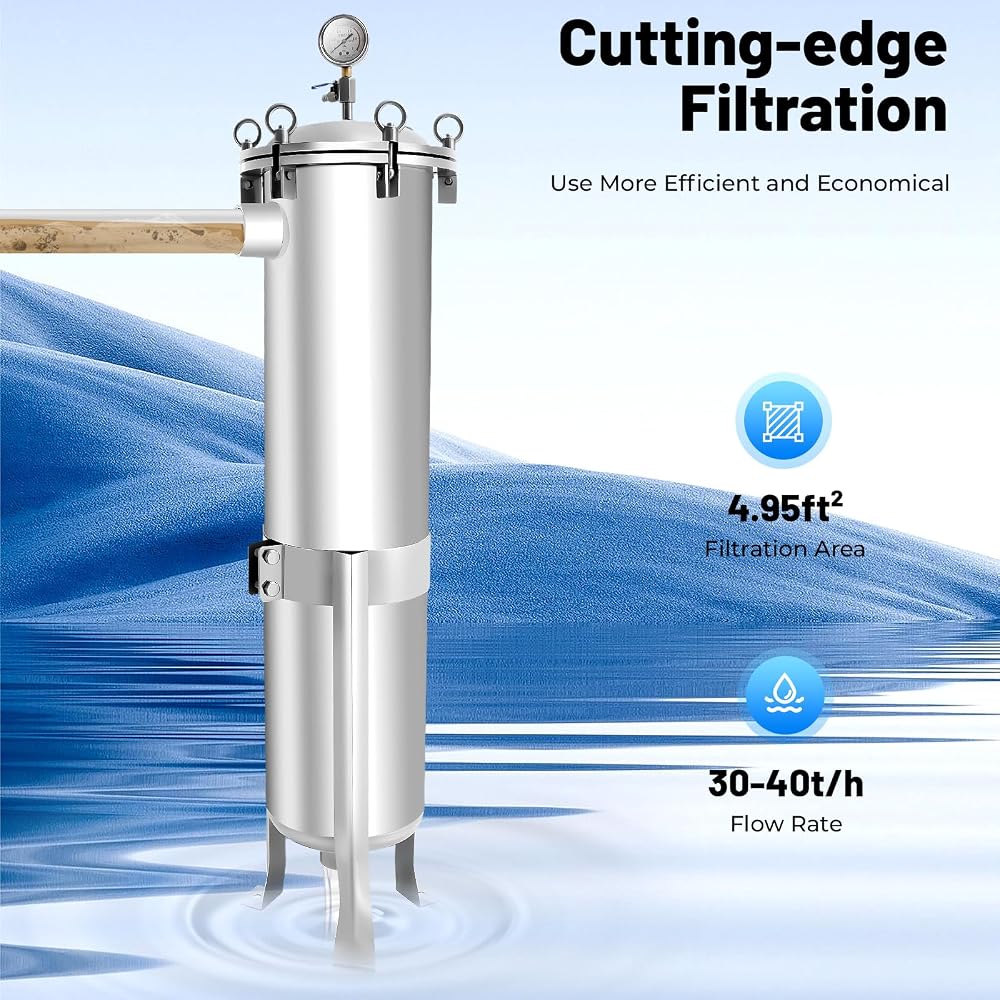

Filtration Area: 0.46m²/4.95ft²
Reference Flow Rate: 30-40t/h
Inlet/ Outlet Female Thread Size: NPT 2″
Maximum Pressure: 1.0MPa

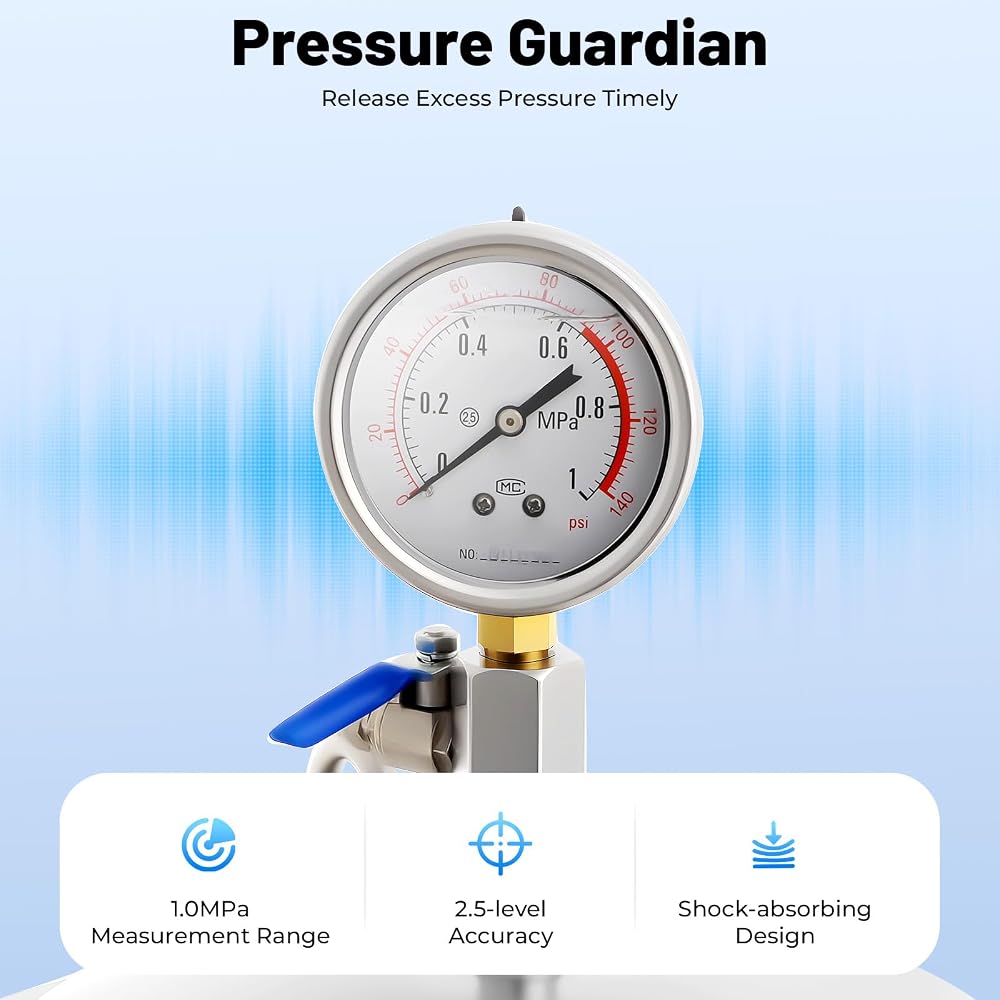

Pressure Gauge
Thread Diameter: M14x1.5
Thread Height: 15mm/0.59in
Total Height: 90±2mm/3.54±0.08in
Dial Diameter: 68±1mm/2.68±0.04in
Dial Thickness: 28±2mm/1.1±0.08in
Accuracy: 2.5 Level

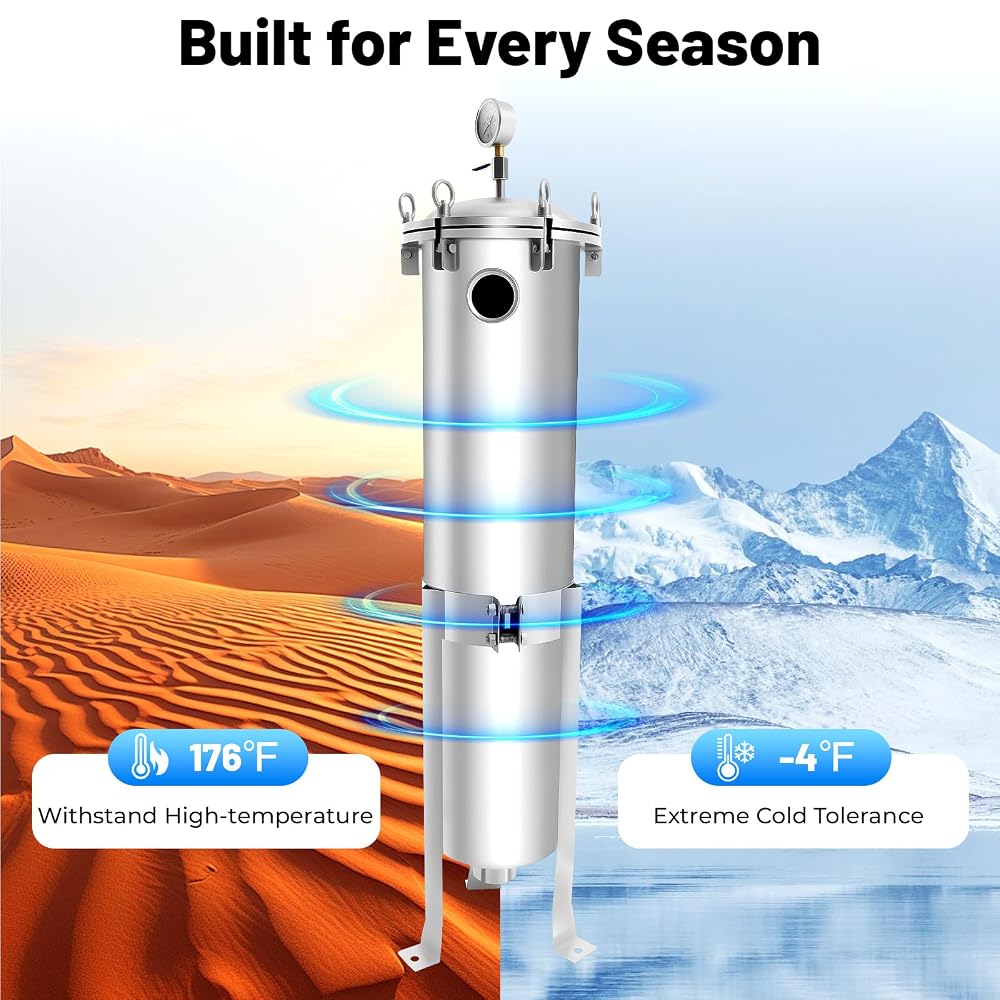

Ambient Temperature: -20~80℃/-4~176℉
Package Size: 123*30*30cm/48.43*11.81*11.81in
Gross Weight: 21.5kg/47.4lbs
Net Weight: 20.43kg/45.04lbs
Package Included
1* Stainless Steel Bag Filter
Other Mounting Accessories
Notes
1.Please check the style and size before purchasing.
2.Please note that the filter must be cleaned with solvent (not included) before cleaning.
