▶【High Efficiency and Energy Saving】: Welding and quenching equipment adopts advanced drive technology and frequency conversion control, with an output power of up to 15 kW, while the actual power consumption is only about 8–10 kW, significantly reducing energy consumption. Dual constant current and constant power control precisely matches the metal heating requirements, optimizes the heating process, and ensures uniform and efficient heating
▶【Technical Specifications】: Output power: 15 kW; Output current: 200–600 A; Frequency converter: 30–100 kHz; Heating time: 1–99 s (automatic); Input voltage: Single phase 220 V; Cooling water flow rate: 0.2 MPa, 6 l/min; Water temperature protection point: 40 °C (104 °F); Cooling method: Water cooling

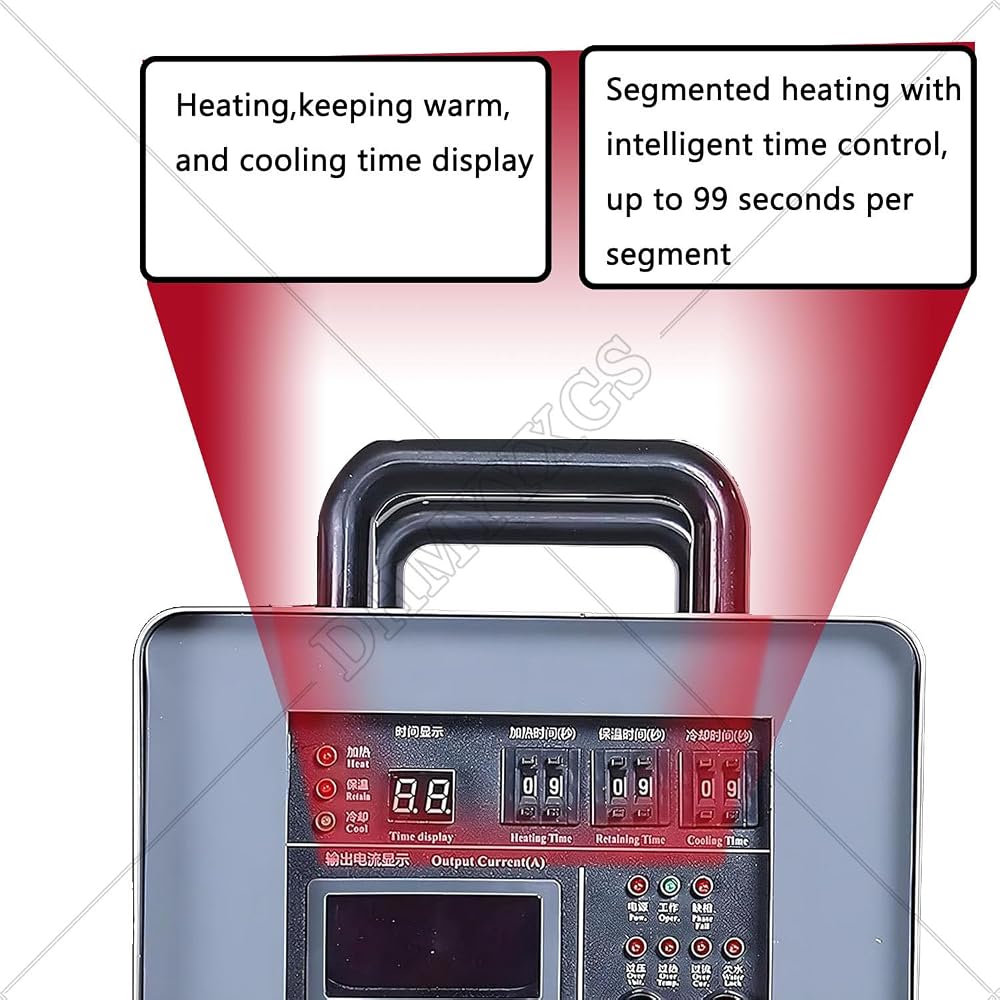

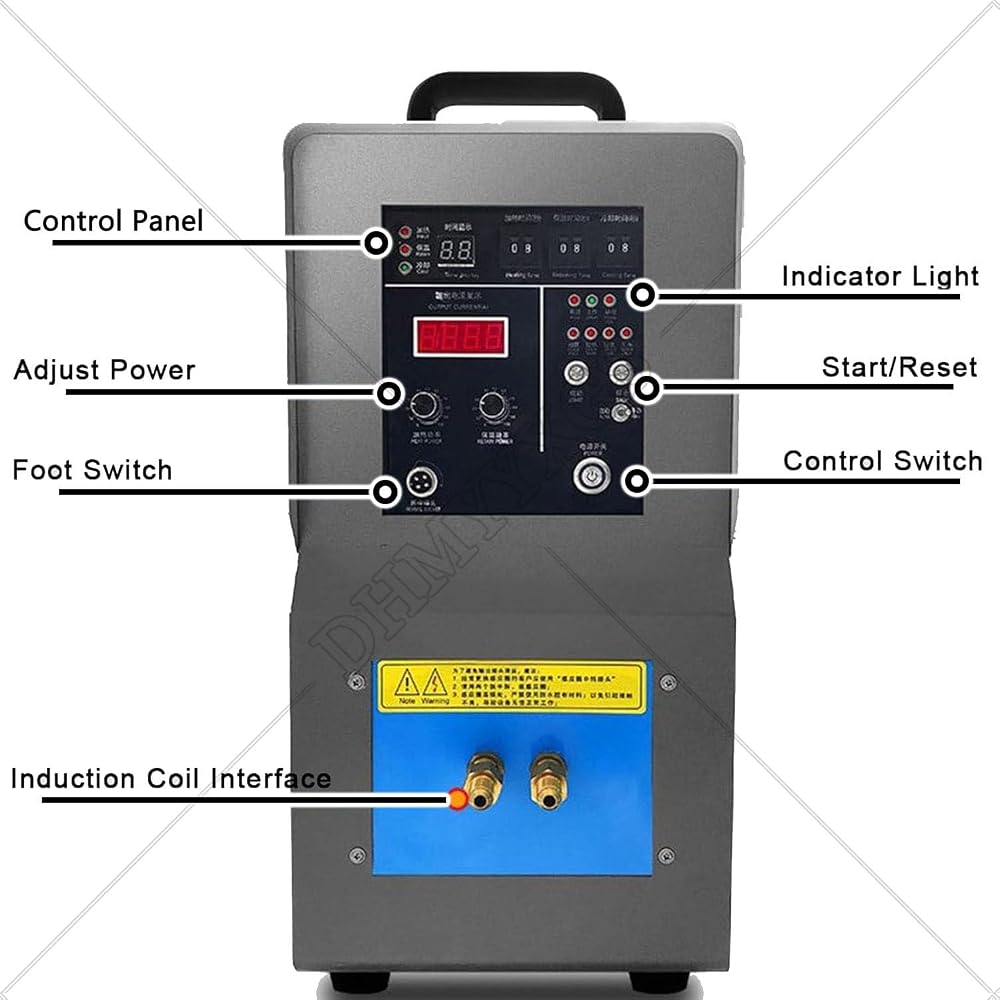

▶【Multifunctional Adaptability】: High-frequency induction heating machine is equipped with a three-stage setting for heating, heat preservation, and cooling, which can flexibly adjust the heating according to the needs of batch and repeated heating of workpieces. Real-time equipment monitoring and rapid troubleshooting are achieved through indicators for current, overvoltage, low water level, phase loss, and load fault status
▶【Durable Design】: Designed for 100% full load, meeting the needs of 24-hour uninterrupted in industrial environments. An optional infrared thermometer enables automatic temperature monitoring and control, improving heating quality and stability. No special training is required; operators can quickly learn to use it
▶【Wide Applications】: High-frequency induction heating furnaces are widely used in the heat treatment of gears and shafts, continuous annealing of steel wires, heating and hot pressing of cookware, and forging and forming of standard workpieces. Rapid heating speed and high temperature stability meet various industrial needs

وصف

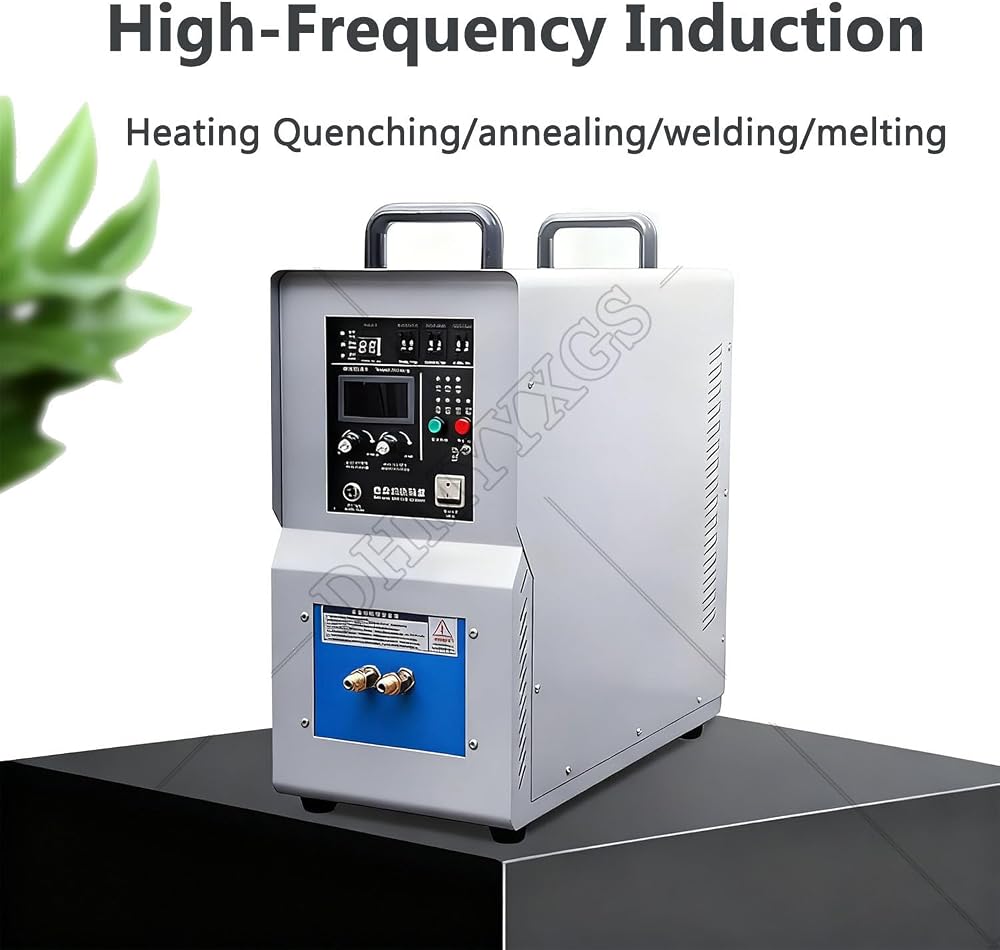

This 15kW high-frequency induction heater is widely used in jewelry making, tool repair, blade hardening, shaft heating, copper tube brazing, and metal casting and smelting.

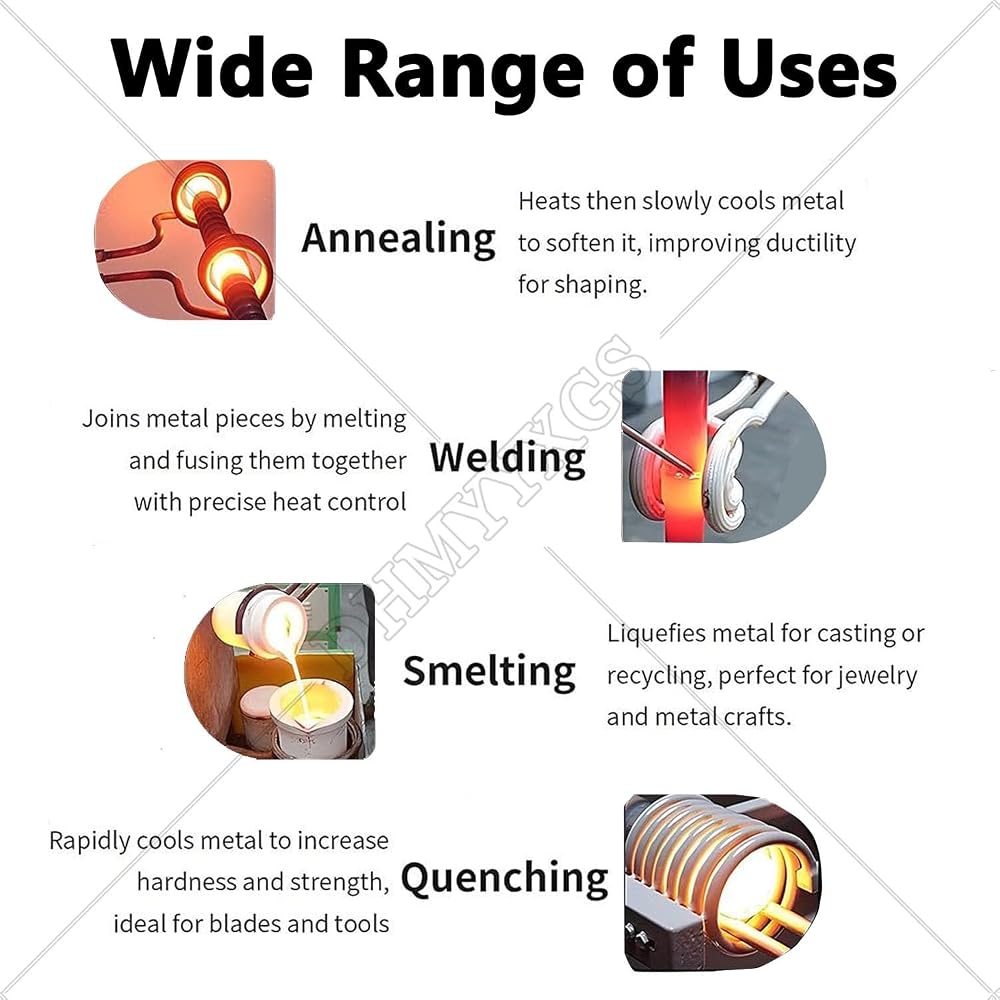

It supports various processes, including hardening, annealing, smelting, forging, and welding. The temperature range is 40℃ to 2000℃, and the frequency is adjustable from 30kHz to 100kHz. It can efficiently heat a variety of metals, including steel, gold, and copper, meeting your diverse heating needs.

Main Features: Digital display, portable, temperature control, rapid heating, non-contact heating, precise heating

Technical Specifications:

Model: High-Frequency Heater

Power: 15 kW

Voltage: 220 V

Output Frequency: 30–100 Hz

Temperature Range: 40 °C–2000 °C

Heating Current: 200–600 A

Cooling Water Flow Rate: 0.2 MPa, 6 l/min

Power-Off Temperature: 40 °C

Weight: 25 kg

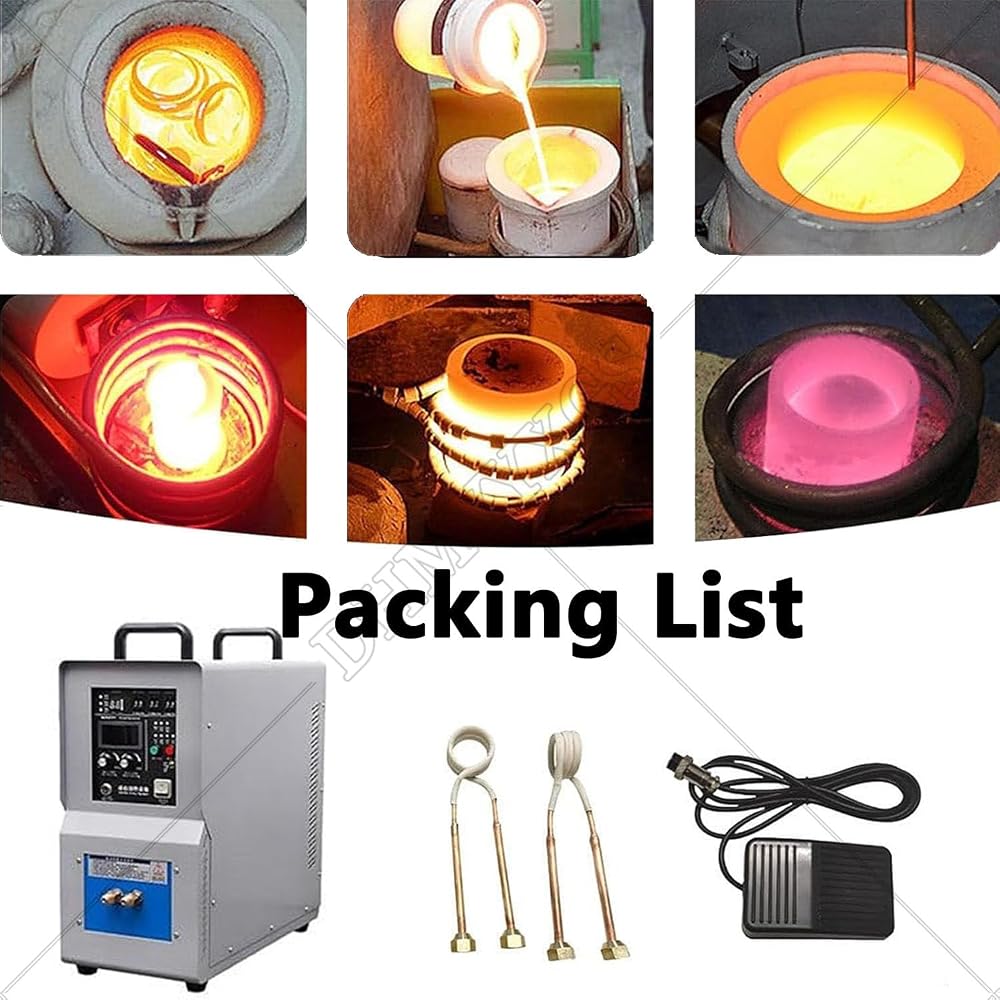

Scope of Delivery:

1 main unit

1 foot switch

2 heating coils

1 instruction manual

For any questions, please contact us immediately. We are happy to assist you.
