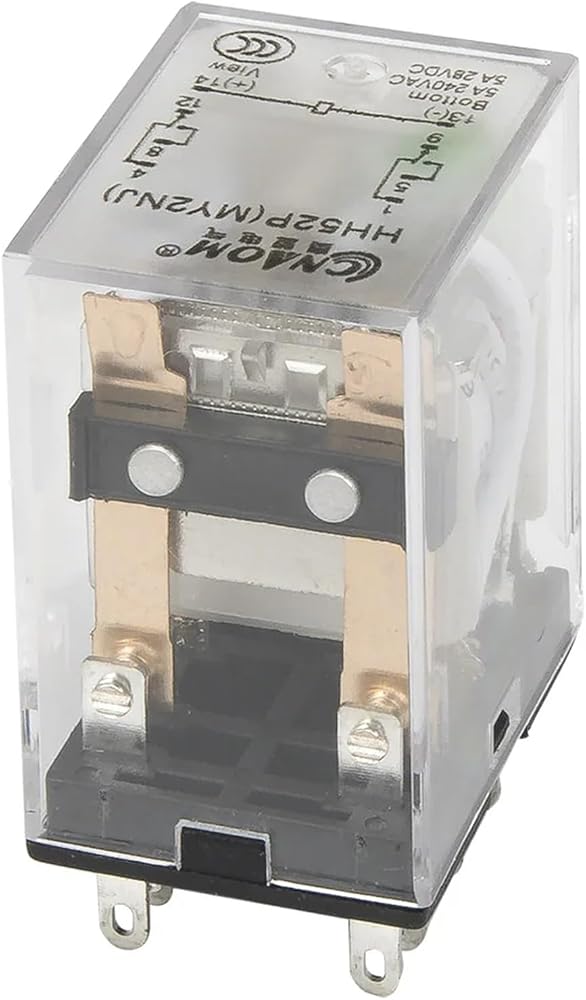

HH52P series electromagnetic relay
Model number and type
Model number
Same model
Type
Related product
HH52P
MY2
Standard
HH52PL
HH52P-L MY2NJ
With LED indicator
Visiting...
HH52PL electromagnetic relay model number legend
HH52PL
Parent Model Number
Socket
-N: Without socket
-S: With socket
Coil voltage
220VAC: 220VAC
110VAC: 110VAC
24VAC: 24VAC
24VDC: 24VDC
12VDC: 12VDC
6VDC: 6VDC
General
Model number
HH52P series
Contact material
Silver alloy
Contact form
DPST-NO DPST-NC DPDT
Contact rating
5A@28Vdc/240Vac
Rated coil power
1.2Wac 0.9Wdc
Rated coil voltage
AC/DC: 6 12 24 36 48 110 220V; AC380V
Dielectric strength
1 500Vac 50/60 Hz for 1 min between coil and contacts
1 000Vac 50/60 Hz for 1 min between opening contacts
Pick-up voltage
DC types: 75% max; AC types: 80% max
Drop-out voltage
DC types: 10% min; AC types: 30% min
Operation voltage
110% max
Contact resistance
50m max
Termination
8 pins
Mounting
Quick connect
Matched socket
PYF08A PY08
Matched relay pothook
FRSA01 PYC-A1
Mechanical life
1x107 operations min
Electrical life
1x105 operations min
Insulation resistance
100M min. at 500 VDC
Operating temperature
-30 to 55 °C (-22 to 131 °F)
Operating humidity
35 to 85% RH no condensation
External dimensions
27.3x21x35.2 mm
Alias name
HH52P series power relay electric relay electrical relay
HH52PL electromagnetic relay related products
No
Model Number
Socket
Coil Voltage
Related Product
1 HH52PL-N220VAC(110VAC 24VAC 24VDC 12VDC)
Without socket
220VAC; 110VAC; 24VAC; 24VDC; 12VDC
Visiting...
2 HH52PL-S220VAC(110VAC 24VDC 12VDC)
With socket
220VAC; 110VAC; 24VDC; 12VDC
