مميزات خاصة

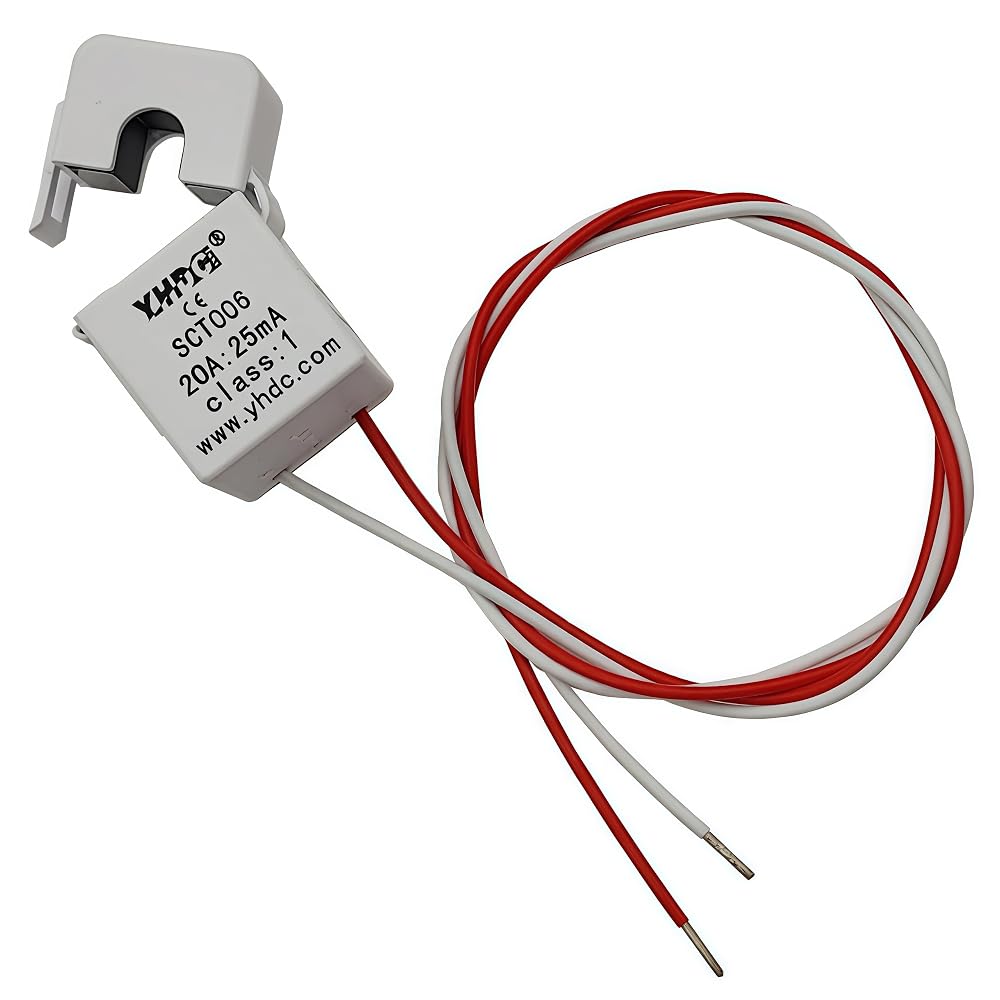

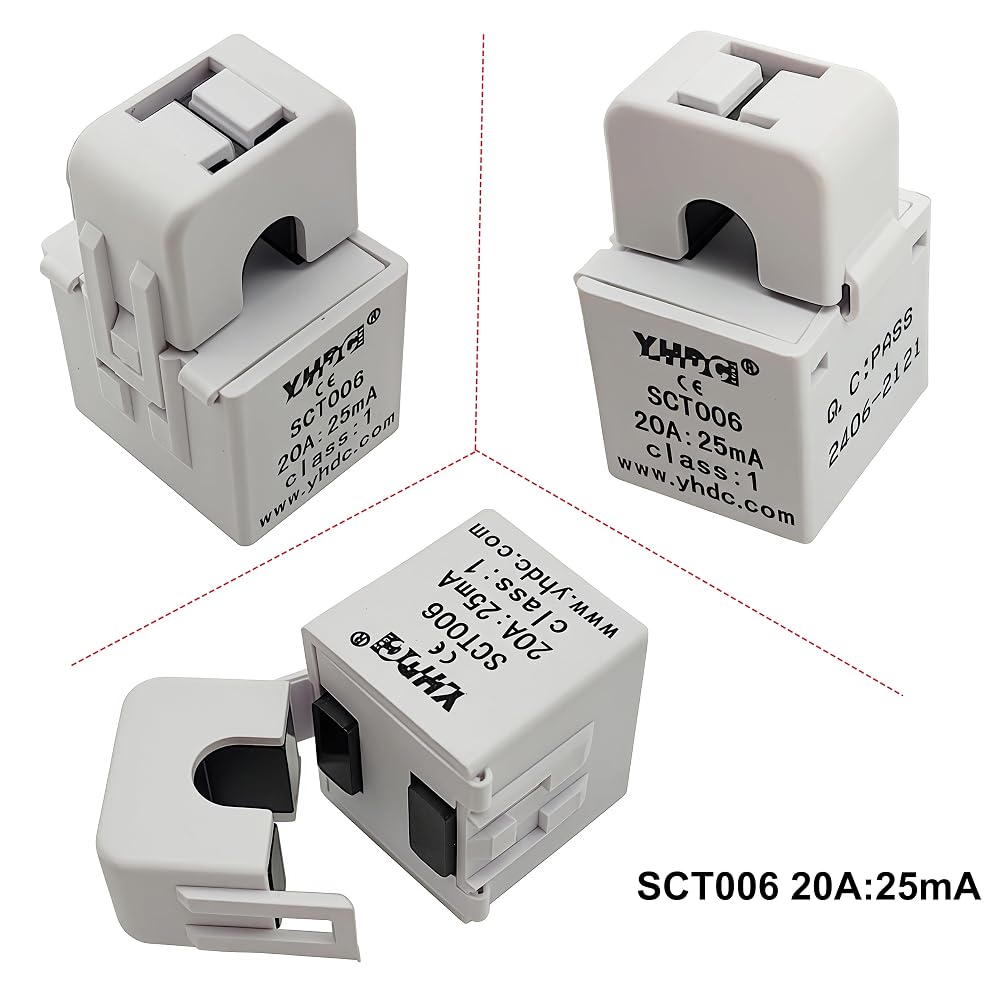

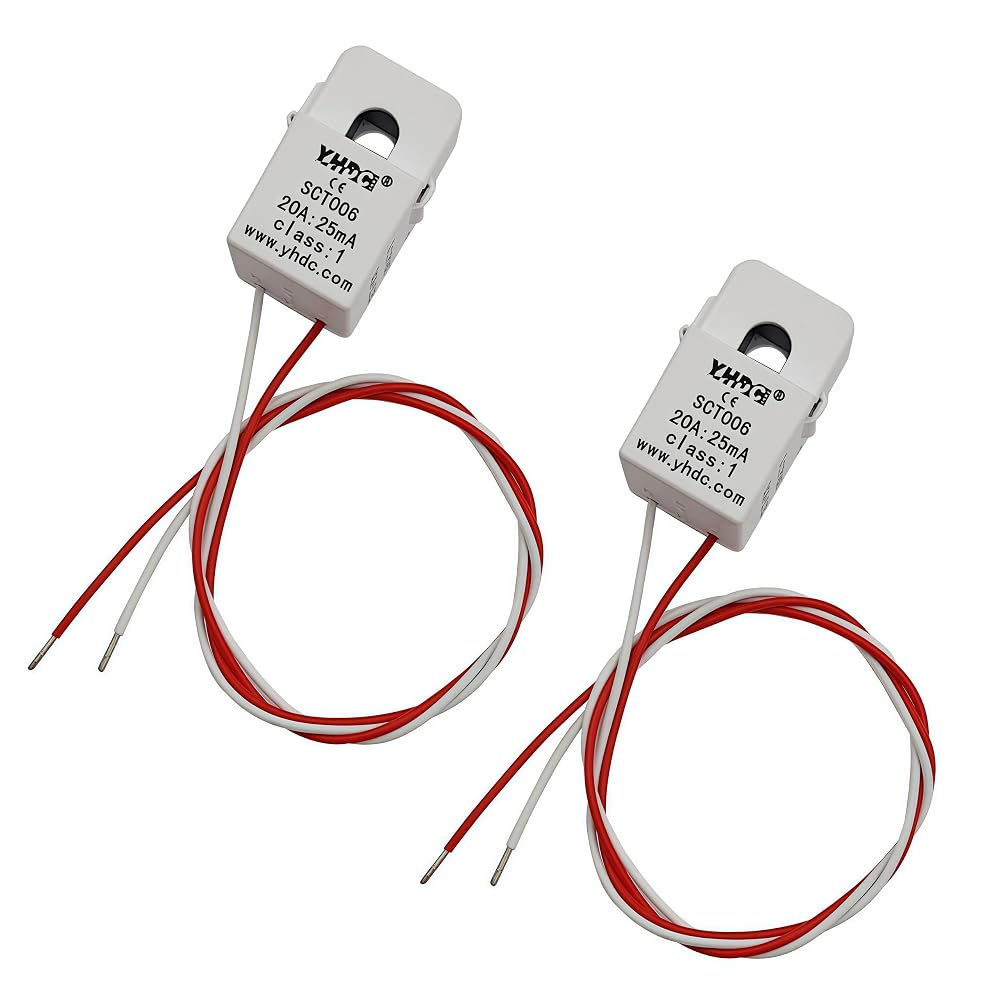

Model: SCT006, Rated input: 20A, Rated output: 25mA

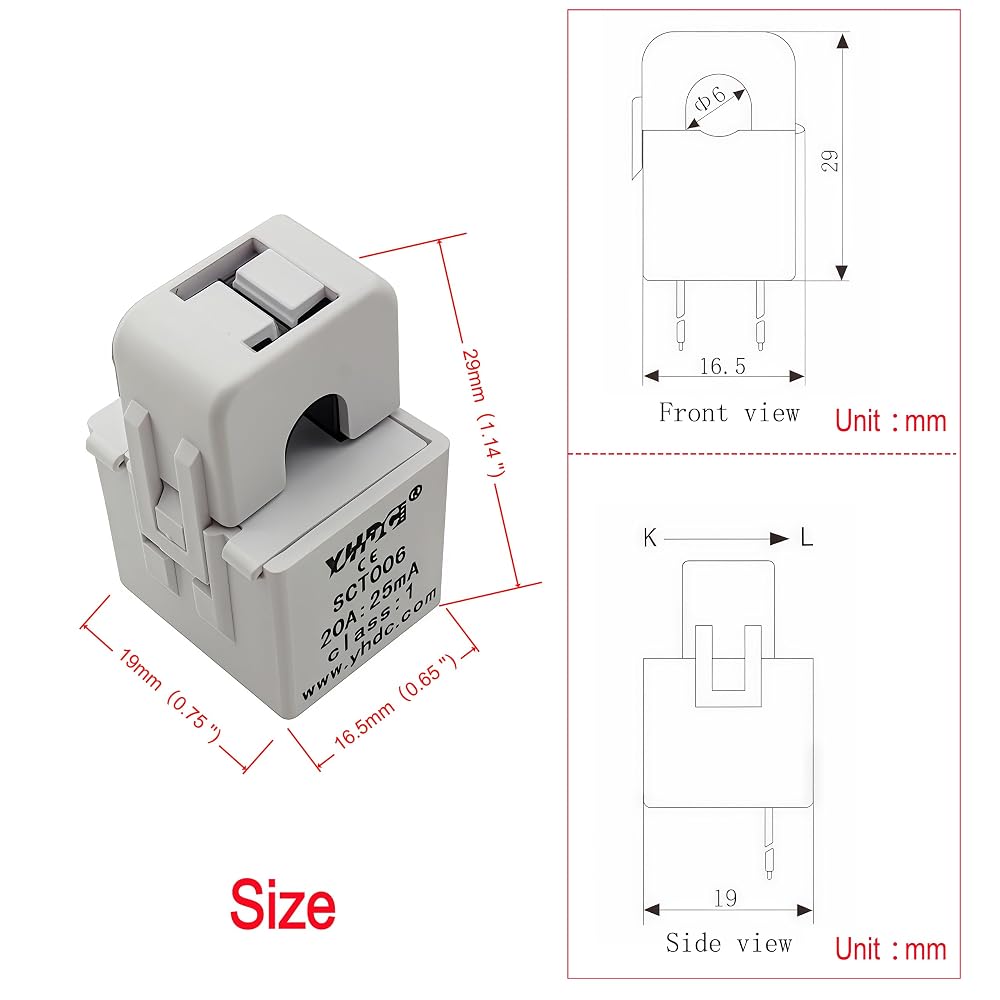

Split-Core Current Transformer Size: 29*19*16.5mm, Weight: 20g, Leading Wire in Length: About 30cm
Small size and light weight, Safety lock buckle, easy installation, cable output.
This split core current transformer is particularly suitable for DIY use and it compatible with arduino and raspberry pi.
Applications for AC motors, lighting equipment, air compressors and other current ,monitoring and protection.

وصف

Technical Features:

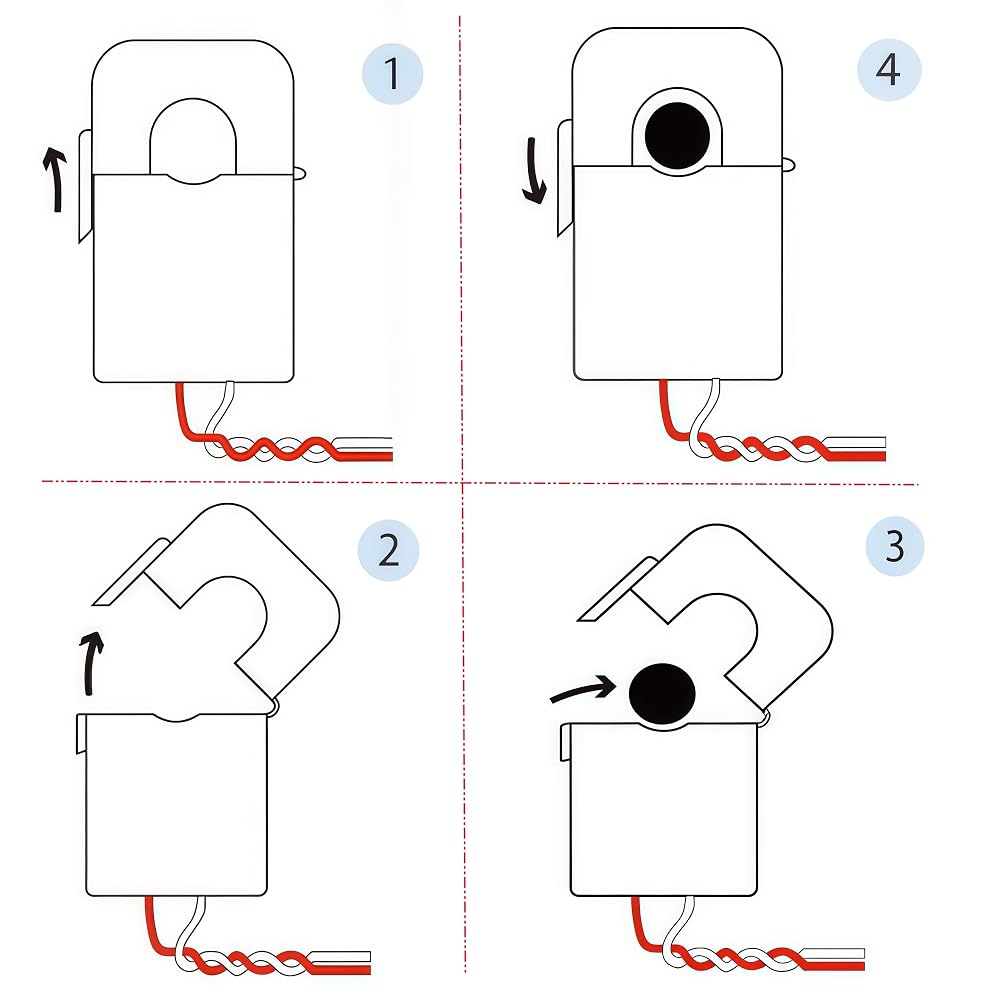

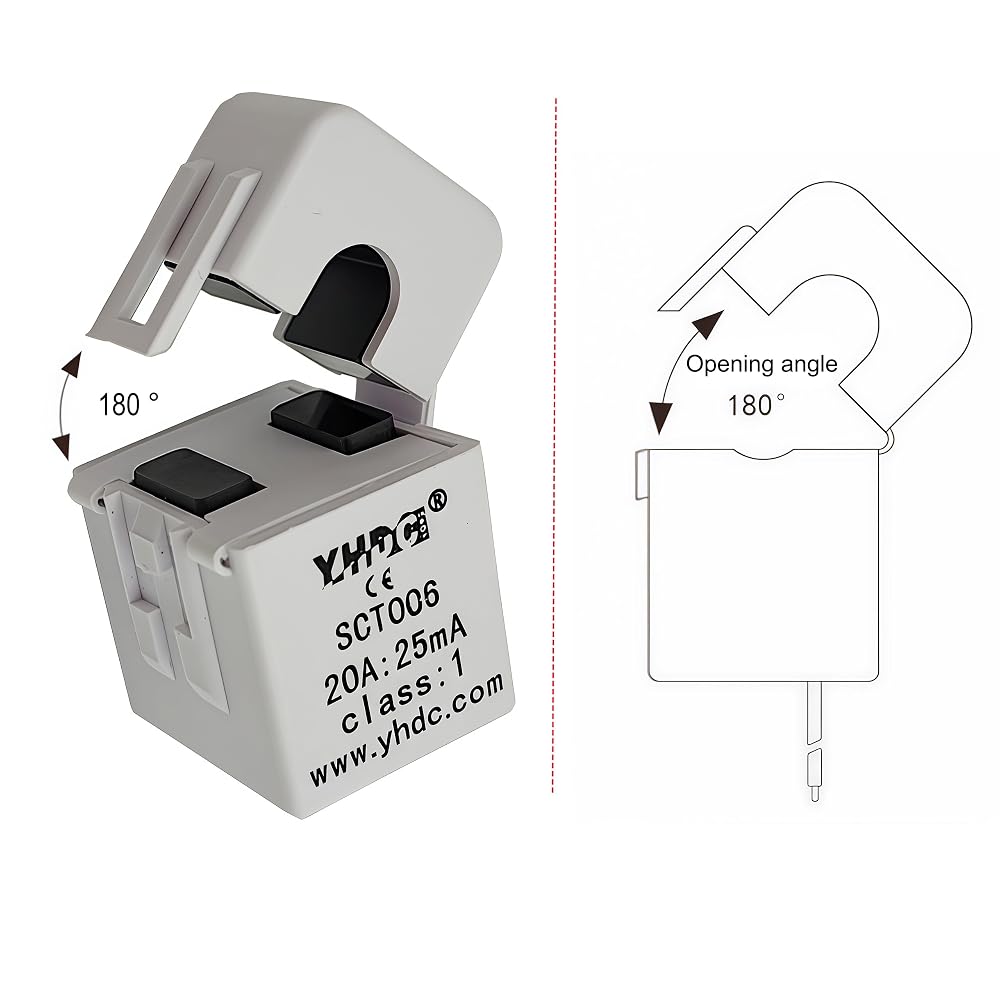

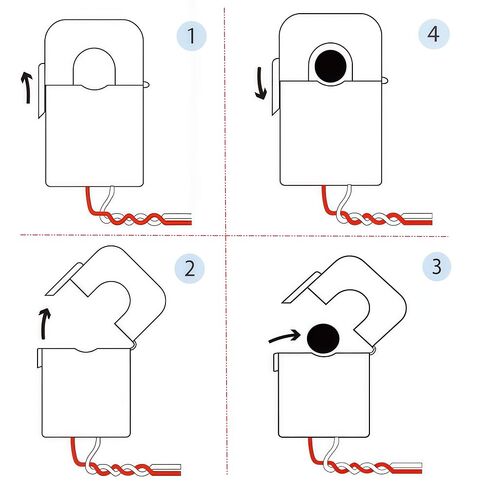

Safety lock buckle, easy installation, cable output.

Typical Parameter:
Model: SCT006
Weight: 20g
Color: White

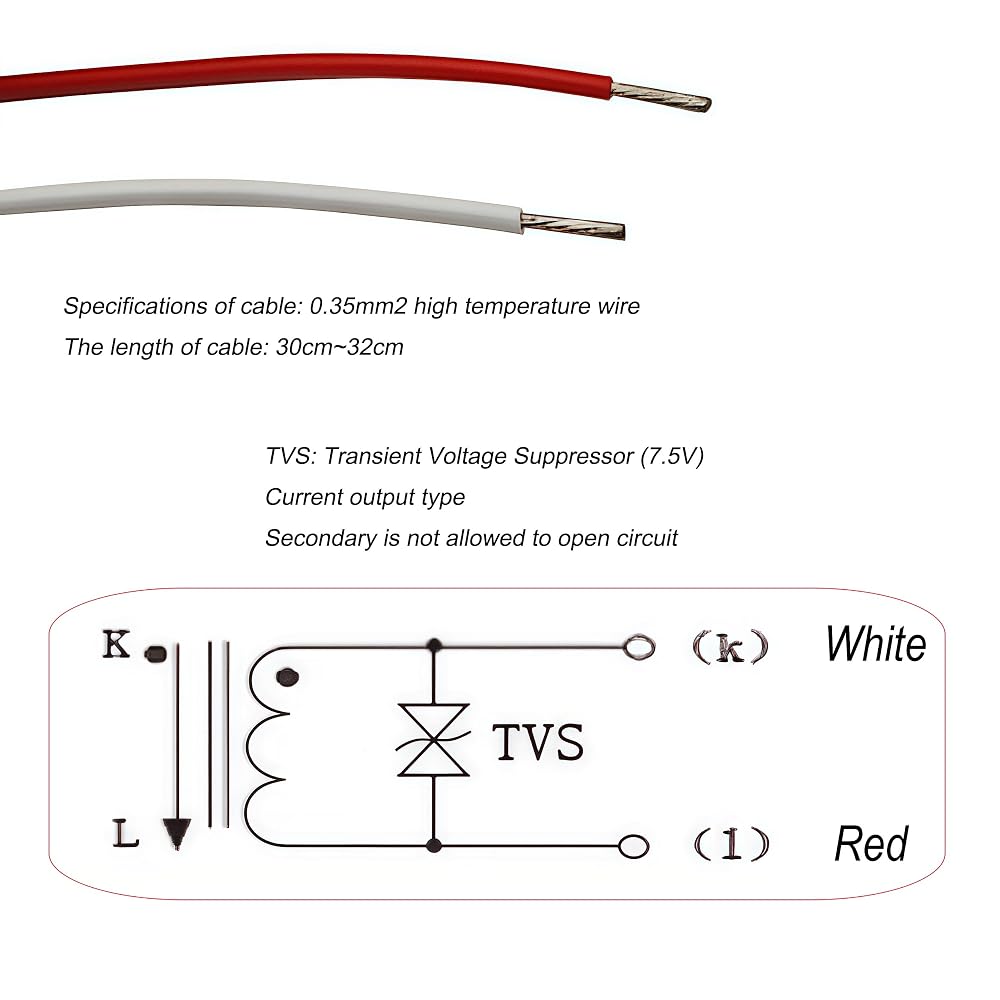

Lead wire length: About 30cm
Diameter of aperture: 6mm
Rated input: 20A
Rated output: 25mA
Turns Ratio: 1: 800
Max Sampling Resistive: 5Ω
Accuracy: ±1%
Mounting type: Free hanging
Material of core: Ferrite
Applicable standards: GB20840-2014
Operating temperature: -25℃ ~ +60℃
Storage temperature: -30℃ ~ +90℃
Frequency range: 50Hz-1KHz
Waterproof grade: IP00
Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz
Output/housing AC 3.5KV/1min 50Hz
Applications: for AC motors, lighting equipment, air compressors and other current ,monitoring and protection.
