Model: AL03
Voltage: 12V DC
Maximum Load: 1000N/220lb
Working Speed: 14mm/s
Power: 30W
Rated Current: 2.5A
Motor Type: Brush DC Motor
Noise Level: Less than 43dB

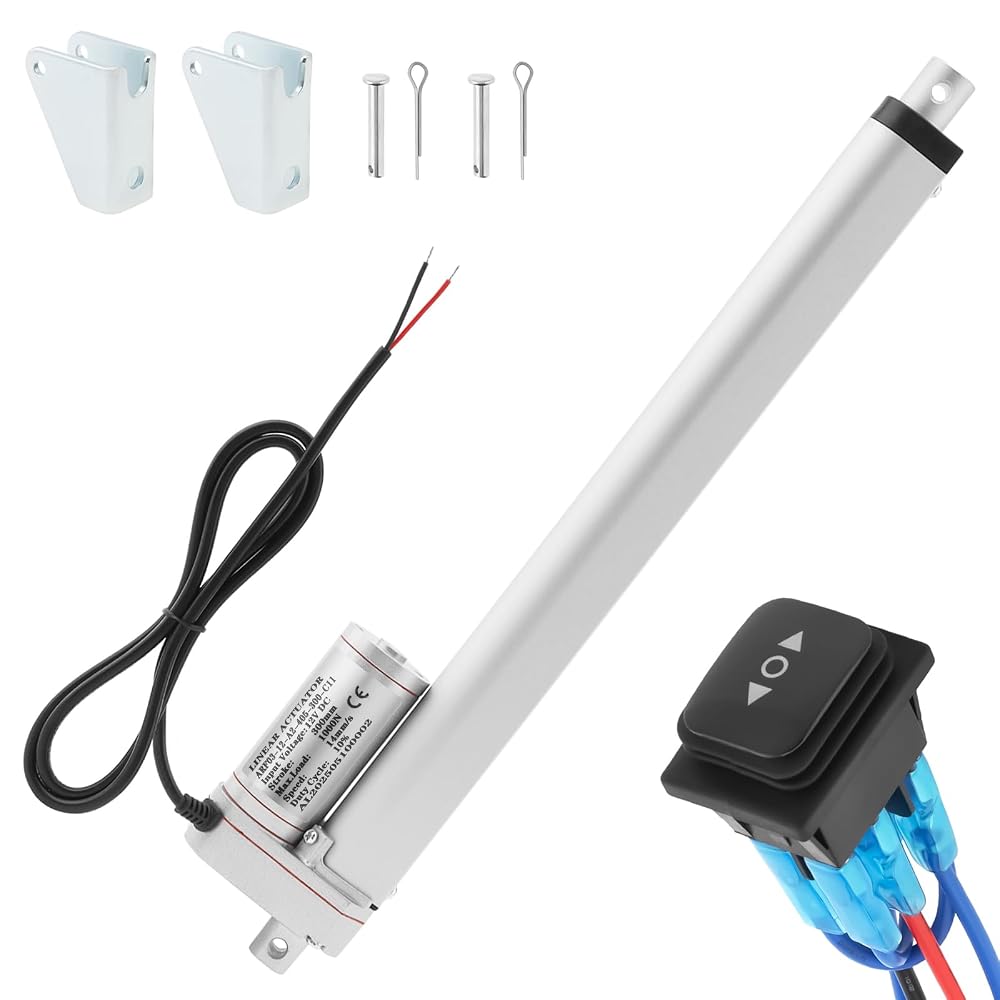

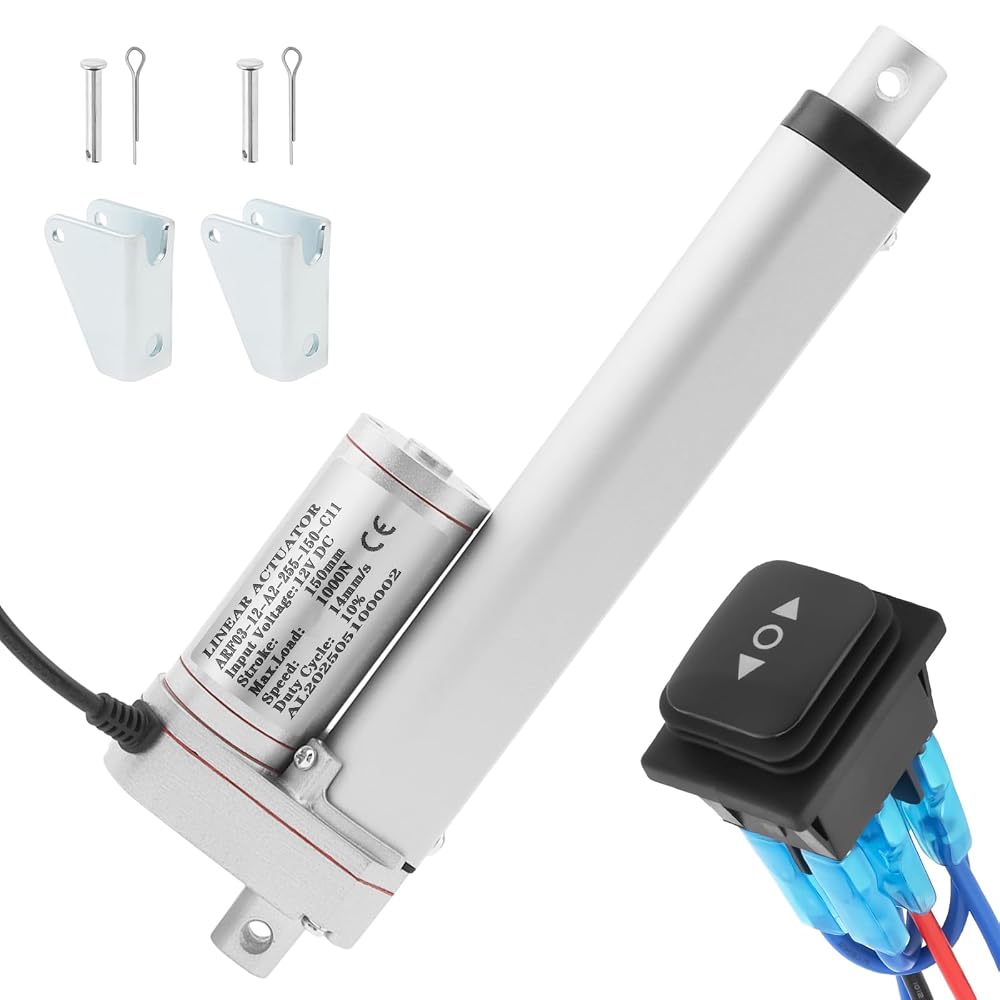

Product Name: 12V Electric Actuator
Actuator Protection Level: IP54
Switch Protection Level: IP65
Ambient Temperature: -20 to +75 Celsius degree
Actuator Stroke: 50mm(2inch), 100mm(4inch), 150mm(6inch), 200mm(8inch), 250mm(10inch), 300mm(12inch), 350mm(14inch), 400mm(16inch)
High Speed: This 12V linear actuator is equip with a high speed motor to make the travel speed reach 14mm/s, which makes the linear motion actuator fast and heavy duty enough to meet a variety of demands.The built-in limit switch makes it automatically cut off the power when the linear actuator 12V reaches top or bottom. In addition, there is also a built-in safety lock to make the stroke stop at any position, which makes it much safer when use

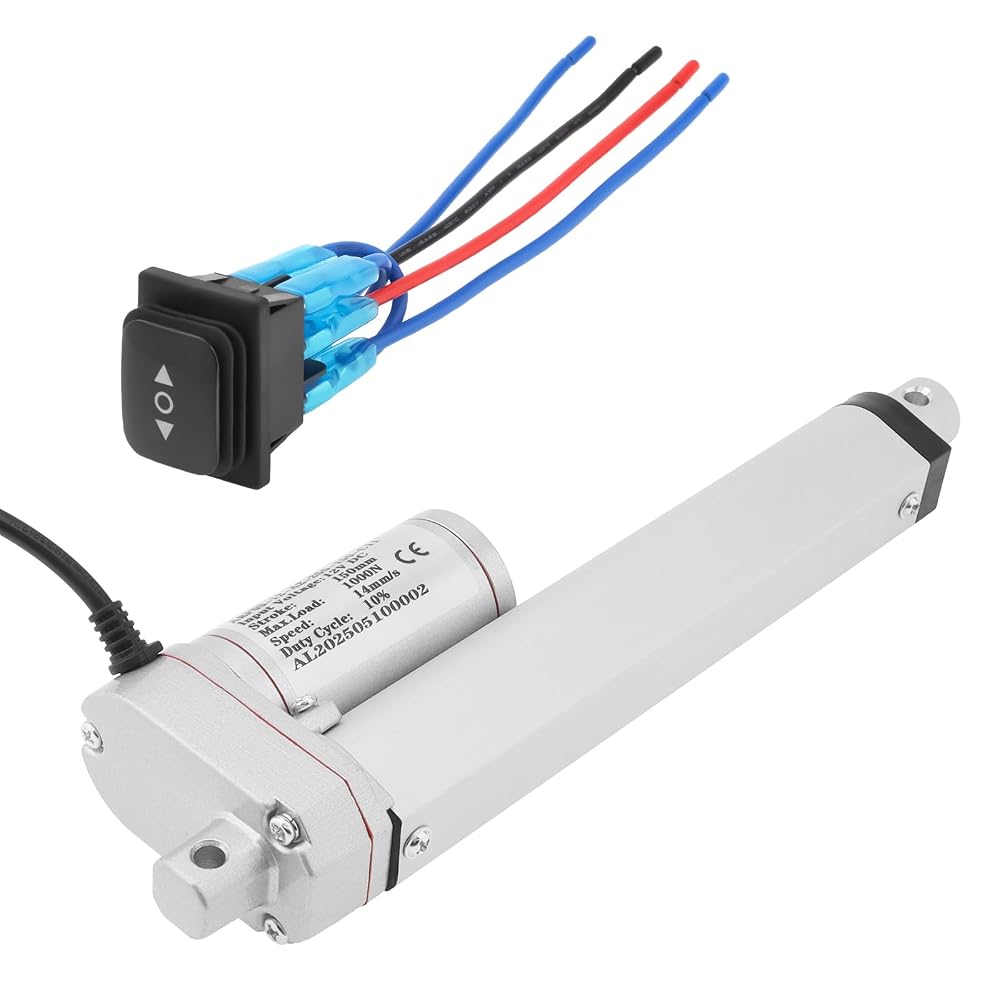

Waterproof Momentary Polarity Switch.This switch is momentary meaning it springs back to the center off position when the toggle is released; The switch will reset automatic back to off if released. Simply connect the power and two DC motor wires and the switch will the direction of the motor. Add a waterproof cap to achieve IP65 waterproof level for the switch
Made of aluminum alloy housing and alloy steel shaft, low noise, sealed against dust and corrosion, accompanied by metal gears allows it to push and pull up to 1000N/220lb, IP54 waterproof rating protects the electric piston from dust, and water ingress,ensuring reliable even in challenging weather conditions
Widely Application: Could widely be applied to automatic door opener, window opener, power sunroof, electric sofa, electric massage chair, electric nursing bed, industrial electric lifting system, solar tracking system, automated devices, smart homes, etc
