【 for MINI RF Coaxial Attenuator 2W 1dB-40dB】The attenuator is made of sturdy and practical materials, durability. It is built and tested to strict control standards, guaranteeing stable performance and high reliability.
【N Type Male to Female】The attenuator features a N-JK male-to-female connector, allowing for easy installation and connection with compatible devices.
【DC-0GHz for frequency Range】With a for frequency range of DC-3.0GHz (0-3GHz), the attenuator provides reliable signal attenuation for ACROSS various applications.
【50 Ohm Impedance】The attenuator offers a 50-ohm impedance, effective signal transmission and minimizing signal loss.
【Multiple Options】Available in various models with attenuation levels ranging from 1dB to 50dB, providing flexibility and options to meet different requirements.

وصف

Features:
* and
* Made of - materials, sturdy and practical
* Built and tested to strict quality control standards.
* Stable performance and high reliability.

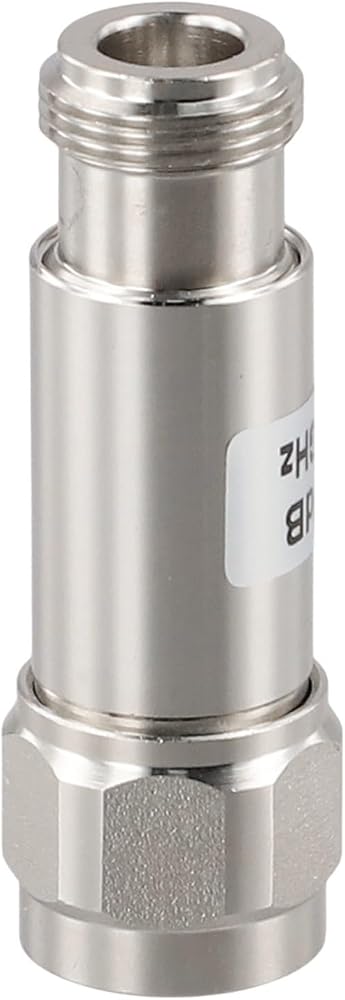

* DC-3GHz2W N-JK male-to-female copper-plated three-element 1-50dB coaxial low-power fixed attenuator

Specification:
Name: Attenuator
Model (optional): 1dB, 2dB, 3dB, 5dB, 6dB, 10dB, 15dB, 20dB, 25dB, 30dB, 40dB, 50dB
Color: silver
Material: copper plated ternary
Power: 2W
for frequency range: DC-3.0GHz (0-3GHz)
Standing wave ratio: less than 1.20
Impedance: 50 ohms
Connector: N type
Size: 58mm x 18.5mm
Operating for temperature: -55 - +125 degrees for CELSIUS
Tolerance: 1-10dB ±0.5dB, 15-30dB ±1dB
Direction: male to female
Male header (center pin): signal input
Female (center socket): signal output

Package Contents:
1 x attenuator
