End Mills

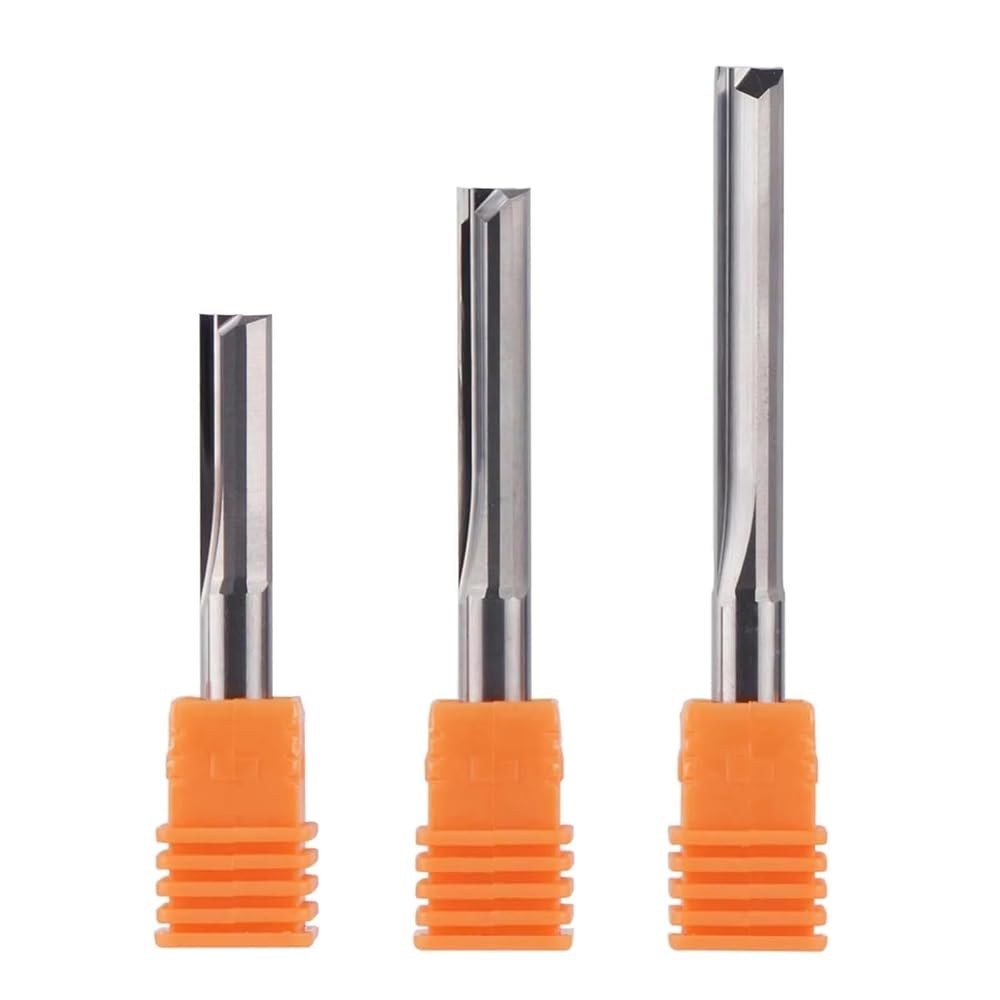

3.175 4mm 6mm 8mm Shank 2 Flute Carbide Carbide End Mill CNC Milling Tools Engraving Bit Straight Slot Milling Cutter 2Pcs
Description:
Type: Two Flutes Straight Slot Milling Cutte For Wood , Acrylic, Aluminium, Copper
Made of: Grain Tungsten Steel Solid Carbide;
Cutting Diameter: 3.175mm 4mm, 6mm 8mm, and etc
Cutting Length: 12mm, 17mm, 22mm, 22mm, 25mm, 28mm, 32mm, 42mm, 52mm, 62mm
Shank Diameter: 3.175mm 4mm, 6mm 8mm, and etc
Best Suitable Materials: Compression, MDF, Acrylic.
could also suitable on below materials:
(1) MDF, particle board, board with lagging, log, affixed to the skin panels;
(2) Chipboard, composite board, melamine board;
(3) Solid wood, native wood, plywood, s plate;
Applied to:
CNC Router Machining Center, Woodworking Machine, Advertising CNC Router, etc;
Features:
(1) Excellent combination of upper and lower blades, SHARP cutting edge;
(2) High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
(3) No burrs for machining;
(4) High performanc, improve the work efficiency, reduce cost;
Advantages:
(1) The 2-Flute Straight Router Bits have a mirror polish and large chip space which produces smooth cutting and fast chip-removal.
(2) Mirror grinding process, large capacity chip removal slot, sharp edge, wear-resistant, smooth and delicate section, no polishing. non stick knife, smokeless, tasteless and silent.
Package included:
1 x Two Flutes Straight Slot Milling Cutter
Degree : R0.1
Diameter : 3.175mm 4mm 6mm 8mm
Coating : NONE
Model Number : ST2F, D3.175 D4.0 D6.0 D8.0
Type : Flat End Mills
Material : Carbide
Overall Length : 38.1mm, 50mm, 60mm, 75mm, 100mm
TYPE1 : Carbide Milling Cutter, CNC Router Bits
Flute Number : 2 Flutes, Straight Flute
Made of : Tungsten Carbide Alloy
Applicable Machining : Slot Milling , Parting, Grooving
Applicable Material : Solid Wood, MDF, Acrylic, Aluminium, Copper, PVC
Coating : No Coating
CNC or not : CNC
